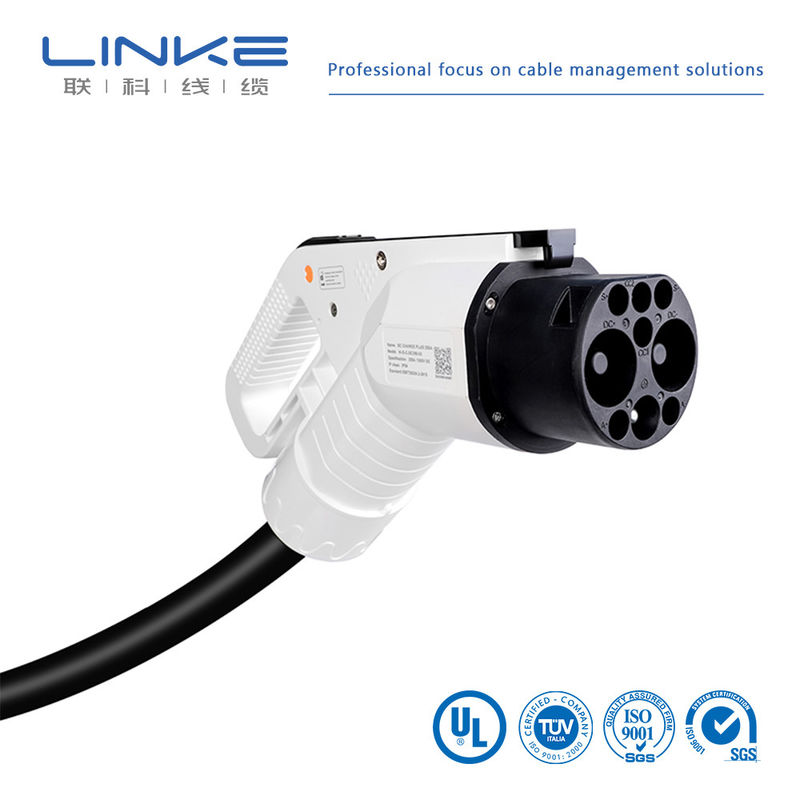

Overview
Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, with good
ergonomic design and beautiful appearance. The product has excellent protection grade, the
protection grade of the Vehicle connector reaches IP67, and the protection grade coupled with
the vehicle socket is IP54. Copper alloy terminal, silver plating on the surface, V0 grade
thermoplastic shell material, wire length and rated current can be customized according to
customer requirements.
Parameters
. Rated voltage: 220V AC( single-phase)/380V AC(three-phase)
. Rated current : 16A, 32A
. Ambient temperature: -35℃— 55℃
. Ambient Humidity : 5%—95%
. IP degrees:IP67(Vehicle connector)；IP54(combination of the socket-outlet or connector)
. Cable outer sheath material :TPE
. Cable structure :
n single-phase 16A: 3 ×2.5mm²+1×0.75mm² OD =11mm
n single-phase 32A:: 3 ×6mm²+1×0.75mm² OD =13.5mm
n three-phase 16A: 5 ×2.5mm²+1 ×0.75mm² OD =13.5mm
n three-phase 32A:: 5 ×6mm²+1 ×0.75mm² OD =16.5mm
. Insertion/withdrawal force: 10N-100N
. Vehicle drive over: 10000N
. Connector material: PC, PA
. Flame Rating: UL94 V-0
. Connection terminal: Brass, silver plated
. Insulation resistance: ≥100MΩ
. Dielectric strength :2000VAC 1min
. Insertion/withdrawal cycles :＞10000 次
Connection diagram
Electrical parameter value and function definition of contact
|
Contact number/identification
|
Rated voltage and current
|
Function definition
|
| 1-(L1) |
250 V 10 A/16 A/32 A |
AC power supply (single phase) |
| 440 V 16 A/32 A/63 A |
AC power supply (three phase) |
| 2-(L2) |
440 V 16 A/32 A/63 A |
AC power supply (three phase)
|
| 3-(L3) |
440 V 16 A/32 A/63 A |
AC power supply (three phase) |
| 4-(N) |
250 V 10 A/16 A/32 A |
Neutral (single phase) |
| 440 V 16 A/32 A/63 A |
Neutral (single phase) |
| 5-(PE) |
|
PE |
| 6-(PP) |
0V~30V2A |
proximity contact
|
| 7-(CP) |
0V~30V2 A |
control pilot |
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
