High-performance DC fast charging cable with flexible construction and high current rating for electric vehicles.
Cable Specifications
DC Charging Cable: 350A | 1/0AWG x 4C + 18AWG (CP: shielding)1C + 14AWG ×1C + 18AWG x 2P + 18AWG x 1C | OD=35mm TPE Sheath
Product Overview
This DC 350 Ampere fast Electric Vehicle charging cable is engineered for high-performance charging applications. The cable assembly includes:
- 4 power cables for maximum current delivery
- 1 green ground cable for safety
- 1 yellow coaxial wire for signal integrity
- 1 blue control cable for charging management
- 2 pairs of signal wires for communication
Designed with superior insulation properties, this cable meets stringent standards for flame retardancy, oil resistance, aging resistance, and flexibility. UL certified for the American market, it delivers large output current, high power capacity, and rapid charging speeds.
Technical Specifications
Electrical Characteristics
| Parameter |
Specification |
| Rated Voltage |
DC 1000V |
| Rated Temperature |
Jacket: -40°C to 90°C
Insulation: -40°C to 125°C |
| Maximum Conductor Resistance (20°C) |
A: 0.242Ω/km
B: 0.78Ω/km
C: 4.95Ω/km
D&E: 26Ω/km |
| Insulation Voltage Withstand (Core A & B, 10m) |
AC 2.5kV/5min, leakage current ≤5mA |
| Completed Cable Voltage Withstand (Core A to A & B, 10m) |
AC 3.5kV/15min, leakage current ≤5mA |
| Minimum Insulation Resistance (20°C, Core A to A&B) |
500MΩ.km |
Physical Properties
| Property |
Specification |
| Tensile Strength |
≥20MPa |
| Elongation |
≥300% |
| Aged Condition |
110±1°C×168h |
| Percent of Original Tensile Strength |
≤±30% |
| Percent of Original Elongation |
≤±30% |
| Flame Test |
GB/T 18380.12-2008 |
| High Temperature Pressure Test |
≤50% |
| Heat Shock Test |
No crack |
| Compatibility Test |
GB/T 33594 |
| Crush Resistance Test |
GB/T 33594 |
| Curved Around Test |
GB/T 33594 |
| Minimum Bend Radius |
6×OD |
| Abrasion Resistance |
≥2000 times |
| Artificial Weathering Test |
GB/T 33594 |
| Low-temperature Impact Test |
-40°C×16H, No crack |
| Resistance Against Chemicals |
GB/T 33594 |
| Chemical Stress Acid |
N-Oxal-acid alkaline solution, N-sodium hydroxide solution: GB/T 33594 |
| Vehicle Rolling |
Requirements and test methods consistent with GB/T 20234.1-2015 7.21 |
Cable Structure
| Type |
Conductor (mm²) |
Structure (N/mm) |
Conductor DIA (mm) |
Material |
Thickness (mm) |
Insulation Material |
Insulation OD (mm) |
20°C Conductor Resistance (Ω/KM) |
| EV-YJ |
1.5 |
48/0.20 |
1.60 |
Copper |
0.6 |
Silicone |
2.90±0.15 |
≤12.7 |
| EV-YJ |
2.5 |
80/0.20 |
2.06 |
Copper |
0.7 |
Silicone |
3.50±0.15 |
≤7.60 |
| EV-YJ |
4 |
128/0.20 |
2.62 |
Copper |
0.8 |
Silicone |
4.30±0.15 |
≤4.71 |
| EV-YJ |
6 |
196/0.20 |
3.50 |
Copper |
0.8 |
Silicone |
5.10±0.20 |
≤3.14 |
| EV-YJ |
10 |
322/0.20 |
4.50 |
Copper |
1.00 |
Silicone |
6.70±0.20 |
≤1.82 |
| EV-YJ |
16 |
513/0.20 |
5.70 |
Copper |
1.10 |
Silicone |
8.00±0.30 |
≤1.16 |
| EV-YJ |
25 |
798/0.20 |
7.10 |
Copper |
1.3 |
Silicone |
9.80±0.30 |
≤0.743 |
| EV-YJ |
35 |
1121/0.20 |
8.50 |
Copper |
1.3 |
Silicone |
11.40±0.30 |
≤0.527 |
| EV-YJ |
50 |
1596/0.20 |
10.10 |
Copper |
1.50 |
Silicone |
13.50±0.30 |
≤0.368 |
| EV-YJ |
70 |
2242/0.20 |
12.10 |
Copper |
1.50 |
Silicone |
15.50±0.40 |
≤0.259 |
| EV-YJ |
95 |
3034/0.20 |
14.10 |
Copper |
1.50 |
Silicone |
17.50±0.50 |
≤0.196 |

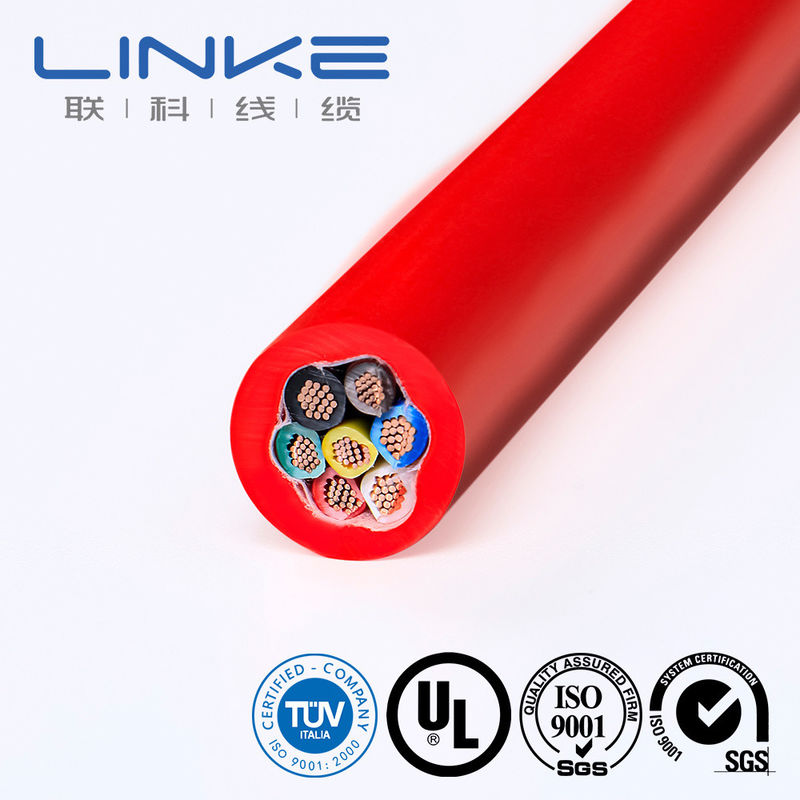

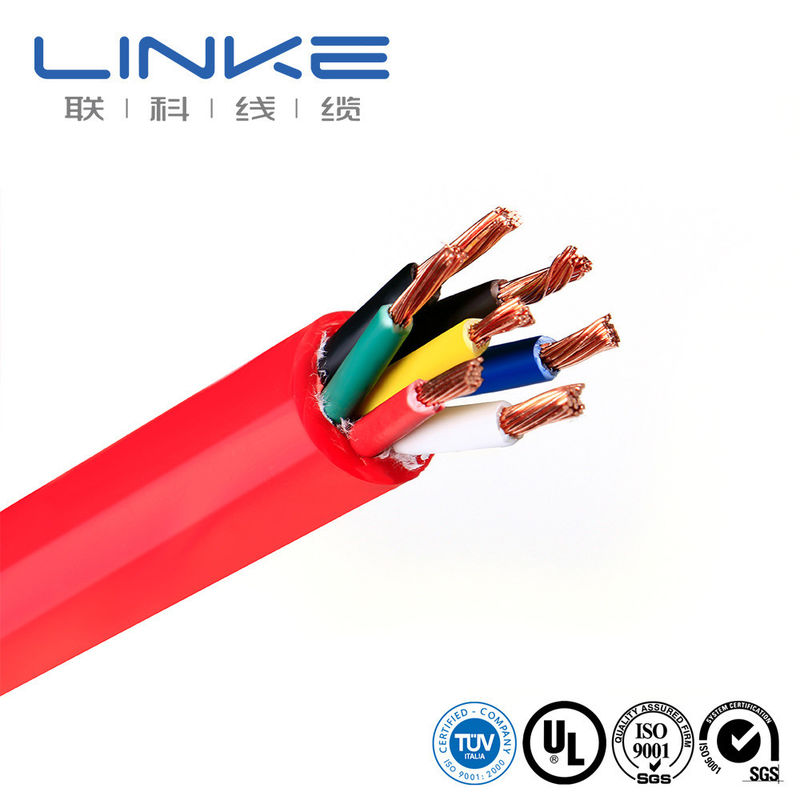

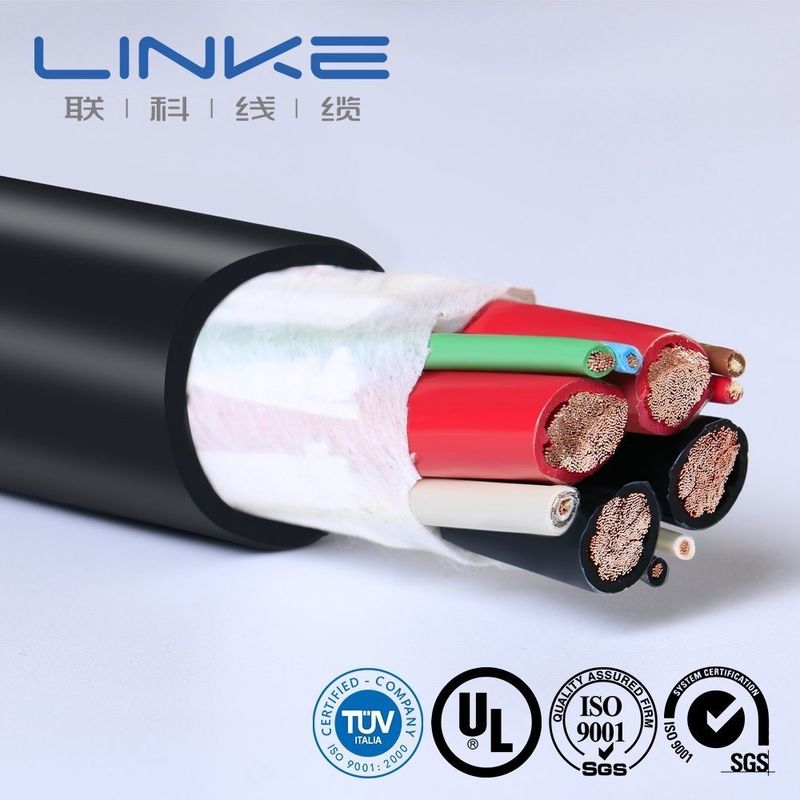

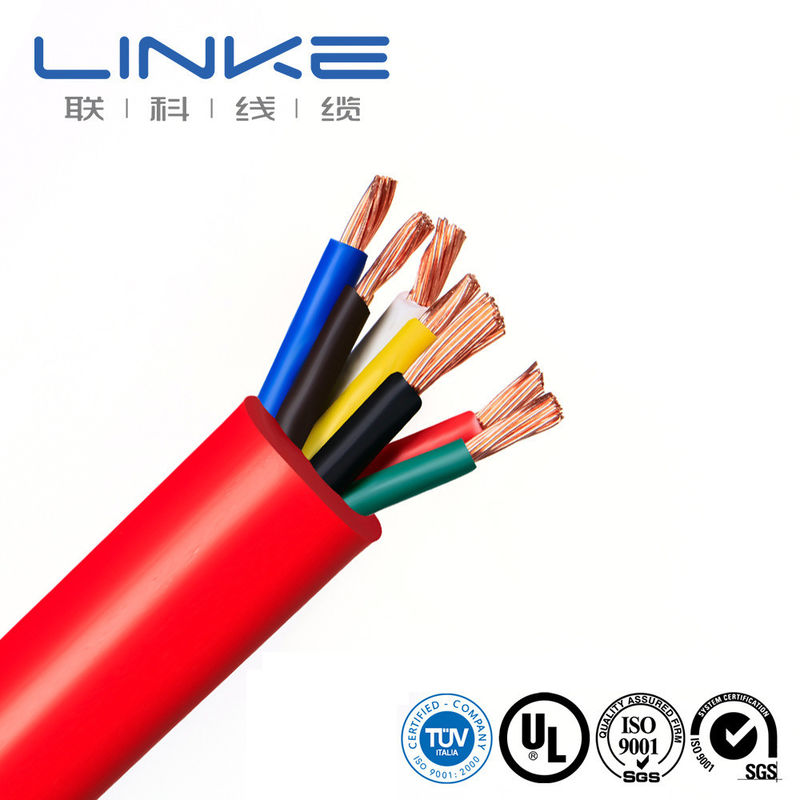

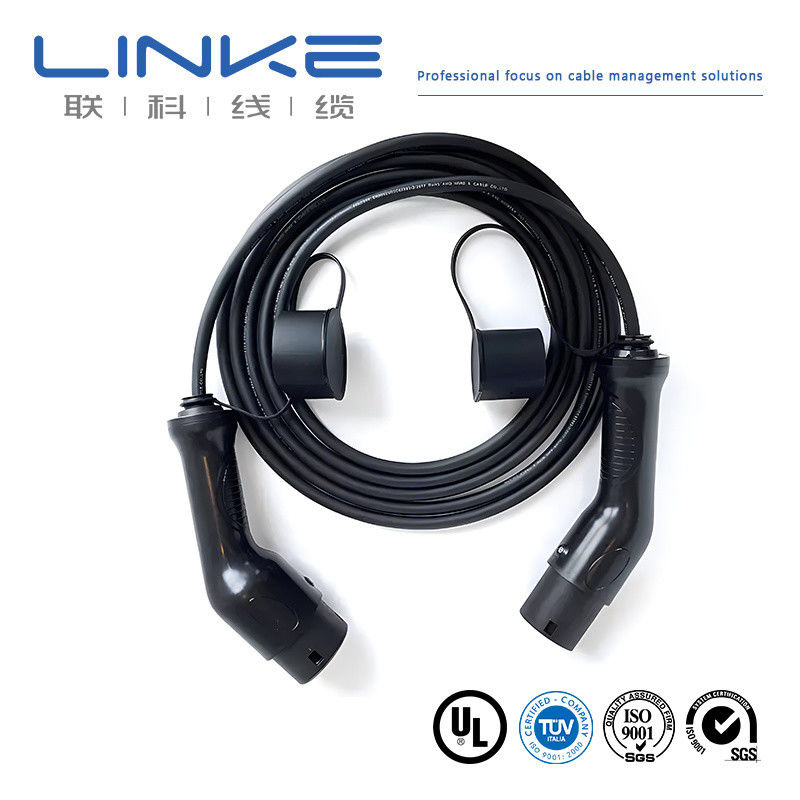

Product Images
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading wire and cable manufacturer in China with over 10 years of industry experience. Specializing in research, development, production, and marketing of high-quality cables, we provide comprehensive cable solutions for global markets.
Specializations
- EV charging cables
- Medical cables
- Silicone cables
- Spring cables
- Braided cables
- Towlobe cables
- UL wires
- Automotive cables
At Linke Cable, we employ an engineer-to-engineer approach to develop superior cable solutions that enhance product performance and improve quality of life.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
| No. |
Test Item |
Test Condition |
Test Requirement |
Test Data |
Result |
| 1 |
Structure Inspection |
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness |
Comply with wire size table |
Refer to test record |
Pass |
| 2 |
Thermal Shock |
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample |
No cracks on the sample surface |
No cracks |
Pass |
| 3 |
Heat Deformation |
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position |
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% |
Refer to test record |
Pass |
| 4 |
FT2 |
Apply a standard flame at a height of 125mm once |
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials |
Refer to test record |
Pass |
| 5 |
Aging |
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength |
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging |
Refer to test record |
Pass |
| 6 |
Cold Bend |
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box |
No cracks on the sample surface |
No cracks |
Pass |
| 7 |
Conductor Resistance |
Measure resistance of one-meter core conductor with DC resistance meter |
At 20℃, resistance of 8AWG ≤ 2.23Ω/km |
Refer to test record |
Pass |
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products)；ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
