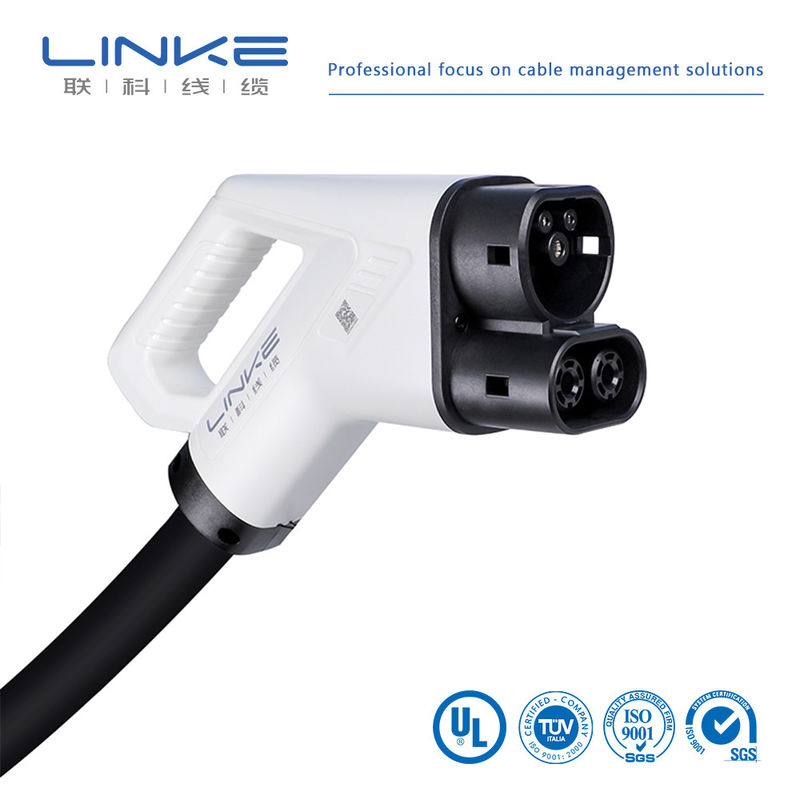

(EVSE) (DC charging cable, with a vehicle charging plug and free line end, used to quickly
charge the electric vehicle (EV) through the CCS 2 vehicle socket, which is used to install it
at an electric vehicle charging station (EVSE)
Product Specifications
(CCS-2 Vehicle Connector)2
1. (Plug type and description)
Basic Product type Rated Voltage/Current Cable Spec. Outer diameter(mm)
E121-40531X 80A 1000V 2×16+16+6×0.75 ∅18.5±0.5
E121-40631X 125A 1000V 2×35+16+6×0.75 ∅24.0±0.6
E121-41331X 150A 1000V 2×50+25+6×0.75 ∅28.0±0.8
E121-40731X 200A 1000V 2×70+35+6×0.75 ∅33.0±0.8
E121-40831X 250A 1000V 2×70(73)+35+6×0.75 ∅33.5±0.8
2. Products Description):
> iec62196 - 3 - 2016 (Standard:IEC62196-3-2016)；
> Overall waterproof performance of connector is higher
than IP67)；
(The product appearance
design novel, the product conforms to the man-machine engineering, comfortable grip,
convenient when operating;)
> ( Contact resistance and temperature rise of pins and ferrules still meet the
requirement of IEC62196-2016 after 10,000 cycles；)
> ( The design of the internal structure
of the product is concise but not simple, which conforms to the actual production needs)；
CCS-2 Vehicle Connector
( Enclosures material used the new high-level engineering plastics, in harsh
environments still can maintain product stability and functionality).
3.(Technical specifications)
(Electric Properties)
> (Rated Voltage) 1000V DC
> (Rated Current) 80A/125A/150A/200A
> (Withstand Voltage) 3500V AC,@＜5mA,&1min
> (Insulation Resistance) 1000MΩ@500V DC
> (Contact resistance) ≤3mΩ
>
(Working frequency) 50Hz
(Mechanical Properties)
> (Insertion force) ＜100N
> (Mechanical life) ＞10000 次
(Operating Environment)
> (Operating Temperature Range) -30℃～+50℃
> (Environment Temperature Range) -30℃～+105℃
> (Pollution Class ) 2
(IP Rate)
> (Degree of protection) (IP54 mated)
(IP55 unmated)
CCS-2 Vehicle Connector
(Size)
(Safety information):
(Make sure that the CCS-2 plug is properly located in the charging station in
order to avoid impacts, drive overs or any situation which could compromise the
usability of the system.
C=1500±3%Ω 0.5w
6.(Implementation standards)
> IEC62196-1-2016
> IEC62196-3-2016
> EN61851-1-2014
> IEC 62893-4-2017
The connector is not suitable for making and
breaking an electrical circuit under load. It shall be equipped
with interlock (retaining device) after the completing assembly.)
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
