5m Electric Vehicle Charger Cable 16A 32A TUV Sud Certified AC Station Connector Plug

5m EV charger cable TUV certified

16A 32A electric vehicle charging cable

AC station connector plug for EV

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Cable Length:

5metrer

Rated Current:

32A

Rated Voltage:

300-600V

IP Grade:

IP65

Conductor Material:

Copper/Tinned Copper

Ambient Temperature:

-35ºC-55ºC

Highlight:

5m EV charger cable TUV certified

16A 32A electric vehicle charging cable

AC station connector plug for EV

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

High-Density High-Conductivity UL2464 UL Electrical Wire for EV Charger Cable and 160 Core Applications

Get Best Price

Video

32A Rated Current IP65 Protection Grade Silicone Jacket EV Charger Cable for Electric Vehicles

Get Best Price

Video

V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal

Get Best Price

Video

High Current Rating Flexible Construction EV Charger Cable with Customizable Materials for Electric Vehicles

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

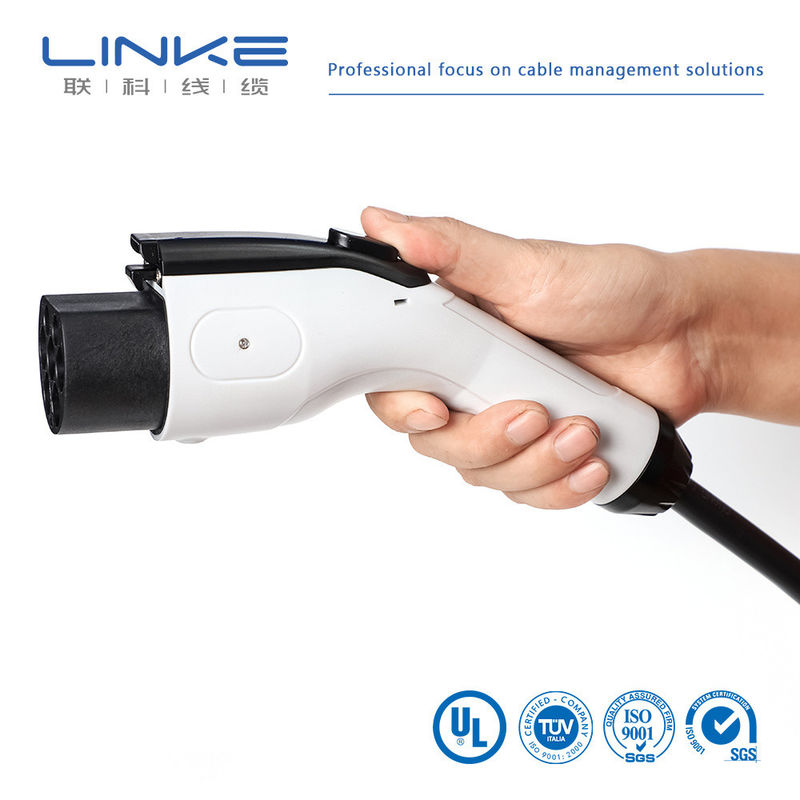

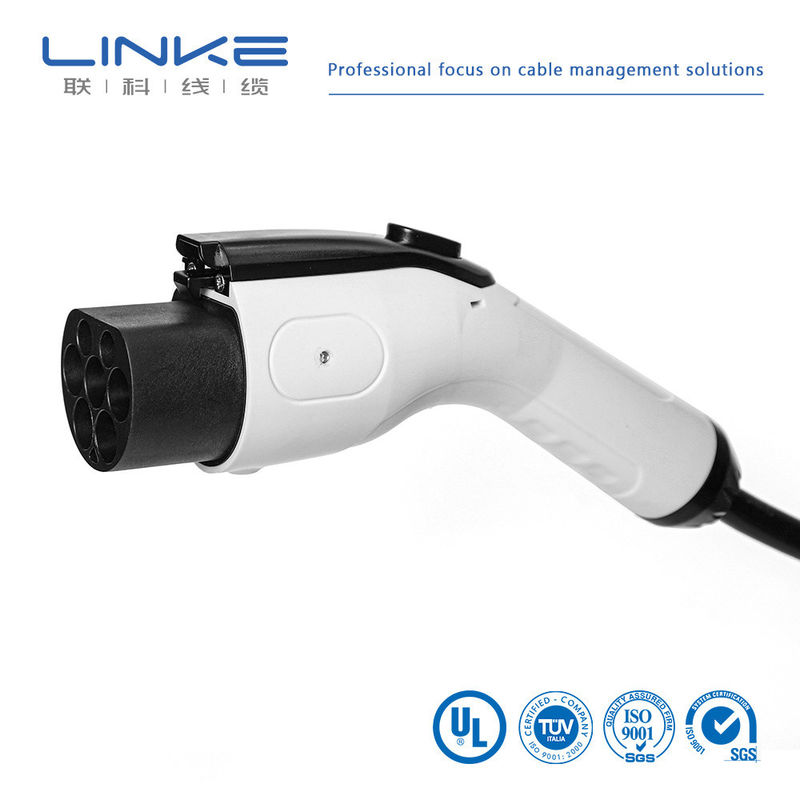

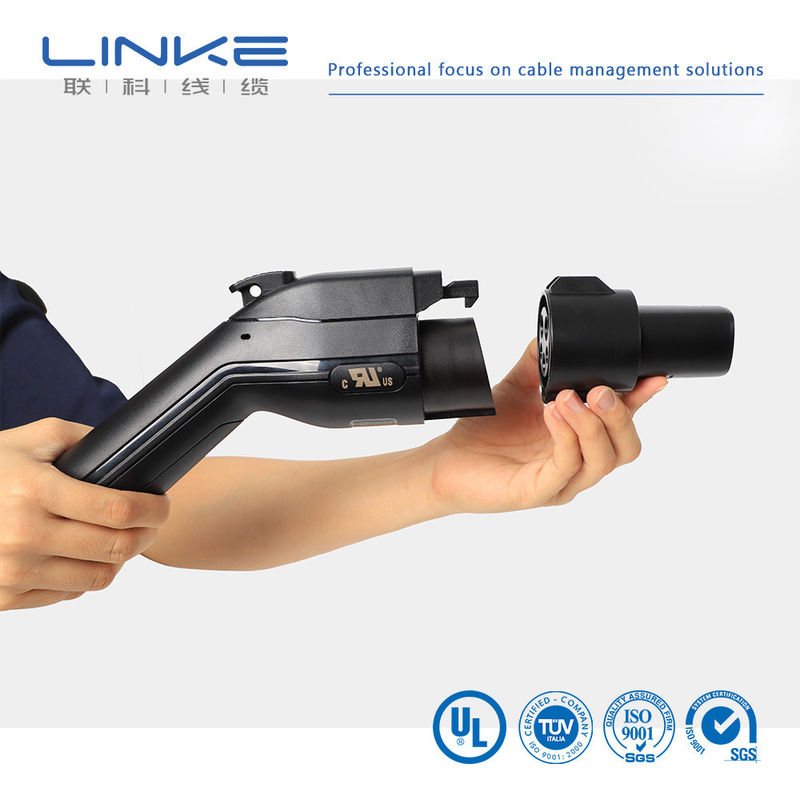

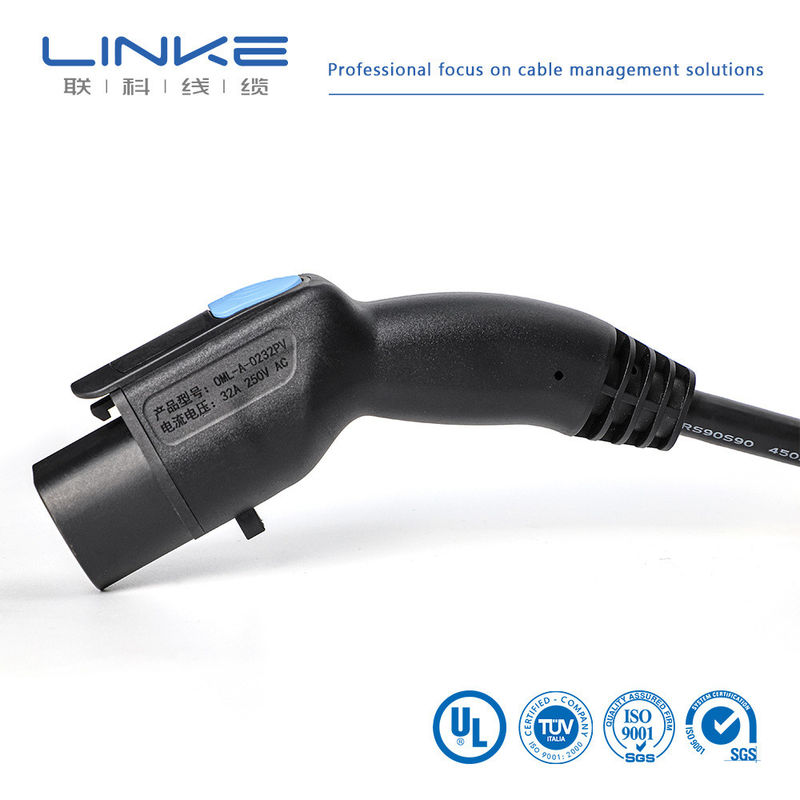

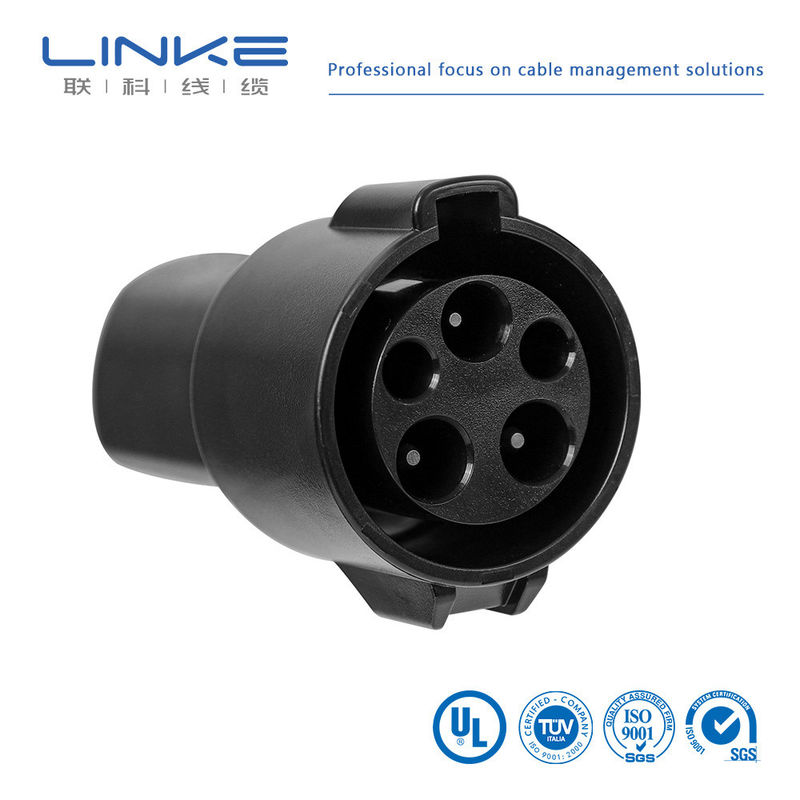

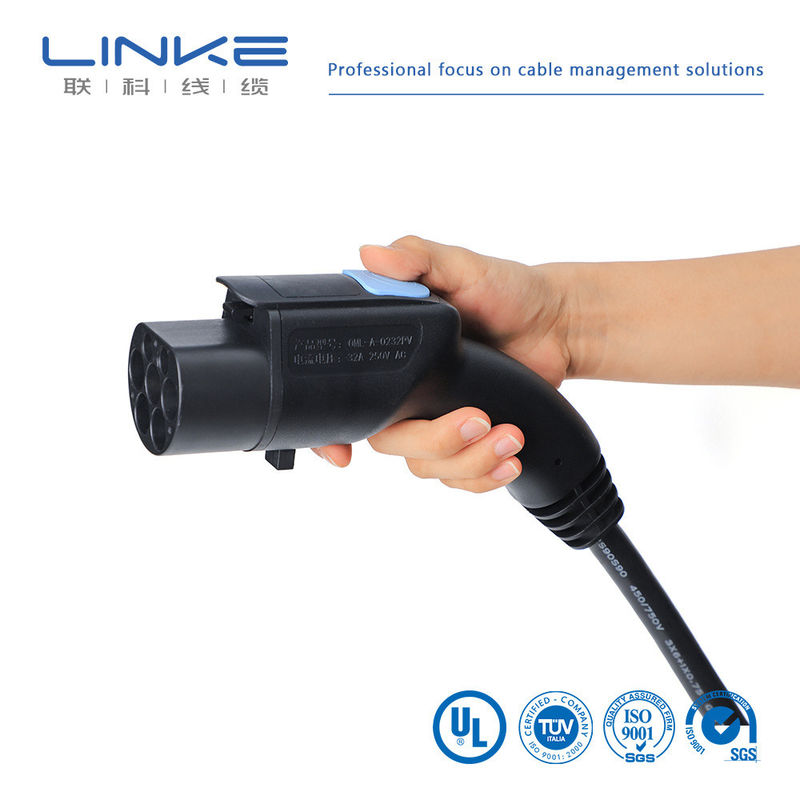

Electric Vehicle Charger 16A 32A TUV Sud Certified AC Station Connector Plug 5m Cable

AC Station Connector Plug EV Car Battery Charging Cable Electric Vehicle Charger(16A 32A)

Overview

Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, with good

ergonomic design and beautiful appearance. The product has excellent protection grade, the

protection grade of the Vehicle connector

reaches IP67, and the protection grade coupled with the vehicle socket is IP54. Copper alloy

terminal, silver plating on the surface, V0 grade thermoplastic shell material, wire length and rated

current can be customized according to customer requirements.

Parameters

Rated voltage:220V AC(

single-phase)/380V AC(

three-phase)

Rated current :16A,32A

Ambient temperature:-35ºC-55ºC

Ambient Humidity :5%-95%

IP degrees:IP67(

Vehicle connector);IP54(

combination of the socket-outlet or connector)

Cable outer sheath, material :TPE

Cable structure :

single-phase 16A:3×2.5mm²+1×0.75mm² OD=11mm

single-phase 32A::3×6mm²+1×0.75mm² OD=13.5mm

three-phase 16A:5×2.5mm²+1×0.75mm² OD=13.5mm

three-phase 32A::5×6mm²+1×0.75mm² OD=16.5mm

Insertion/withdrawal force:10N-100N

Vehicle drive over:10000N

Connector material:PC,PA

Flame Rating:UL94 V-0

Connection terminal:Brass, silver plated3

Insulation resistance:≥100MΩ

Dielectric strength:2000VAC 1min

Insertion/withdrawal cycles :>10000

combination of the socket-outlet or connector)

Cable outer sheath, material :TPE

Cable structure :

single-phase 16A:3×2.5mm²+1×0.75mm² OD=11mm

single-phase 32A::3×6mm²+1×0.75mm² OD=13.5mm

three-phase 16A:5×2.5mm²+1×0.75mm² OD=13.5mm

three-phase 32A::5×6mm²+1×0.75mm² OD=16.5mm

Insertion/withdrawal force:10N-100N

Vehicle drive over:10000N

Connector material:PC,PA

Type		EV-CABLE							Customer signauture
Cable Grade		-40ºC~+125ºC1500V
Standard		GB/T 25087/ISO 14572
Cable Code	Cable sizemm² (****)	Conductor		Tinned copper braid		Cable Jacket
Cable Code	Cable sizemm² (****)	Material	Copper Structure(mm)	single copper OD. (m)	copper braid	Material	Cable OD. (mm)	Standard thickness (mm)	Color	20ºCConductor resistance (mΩ/m)
TEVB050-XX-027	0.5mm²	Copper	16/(0.20±0.008)	0.10TD	≥85%	XLPE	4.20±0.15	0.70	Black/Customization	≤37.1
TEVB075-XX-041	0.75mm²		24/(0.20±0.008)	0.10TD			4.50±0.15	0.70		≤24.7
TEVB100-XX-006	1mm²		32/(0.20±0.008)	0.10TD			4.80±0.15	0.80		≤18.5
TEVB150-XX-036	1.5mm²		49/(0.20±0.008)	0.127TD			5.20±0.15	0.80		≤12.7
TEVB250-XX-295	2.5mm²		49/(0.25±0.008)	0.10TD			5.60±0.20	0.70		≤7.60
TEVB400-XX-140	4mm²		133/(0.20±0.008)	0.15TD			7.30±0.20	0.90		≤4.71
TEVB600-XX-093	6mm²		190/(0.20±0.008)	0.127TD			7.70±0.20	0.90		≤3.14
TEVB800-XX-002	8mm²		259/(0.20±0.008)	0.15TD			8.50±0.20	1.00		≤2.38
TEVBA10-XX-051	10mm²		323/(0.20±0.008)	0.15TD			9.60±0.30	1.00		≤1.82
TEVBA16-XX-044	16mm²		513/(0.20±0.008)	0.15TD			10.90±0.30	1.00		≤1.16
TEVBA25-XX-042	25mm²		798/(0.20±0.008)	0.15TD			13.50±0.30	1.20		≤0.743
TEVBA35-XX-043	35mm²		1121/(0.20±0.008)	0.15TD			14.50±0.30	1.20		≤0.527
TEVBA50-XX-050	50mm²		1596/(0.20±0.008)	0.15TD			17.00±0.40	1.30		≤0.368
TEVBA70-XX-054	70mm²		2257/(0.20±0.008)	0.20TD			21.00÷0.50	1.30		≤0.259
TEVBA95-XX-014	95mm²		1887/(0.254±0.008)	0.20TD			22.0±0.40	1.60		≤0.196
TEVBA120-XX-016	120mm²		2368/(0.254±0.008)	0.20TD			27.00±1.0	1.60		≤0.153

Print		EV-cable"mm³-40ºC~+125ºC1500V DC N ATTENTION HIGH VOLTAGE LINKE CABLE->XLPE<

5m Electric Vehicle Charger Cable 16A 32A TUV Sud Certified AC Station Connector Plug

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.

Quality Certifications

Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664

ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
