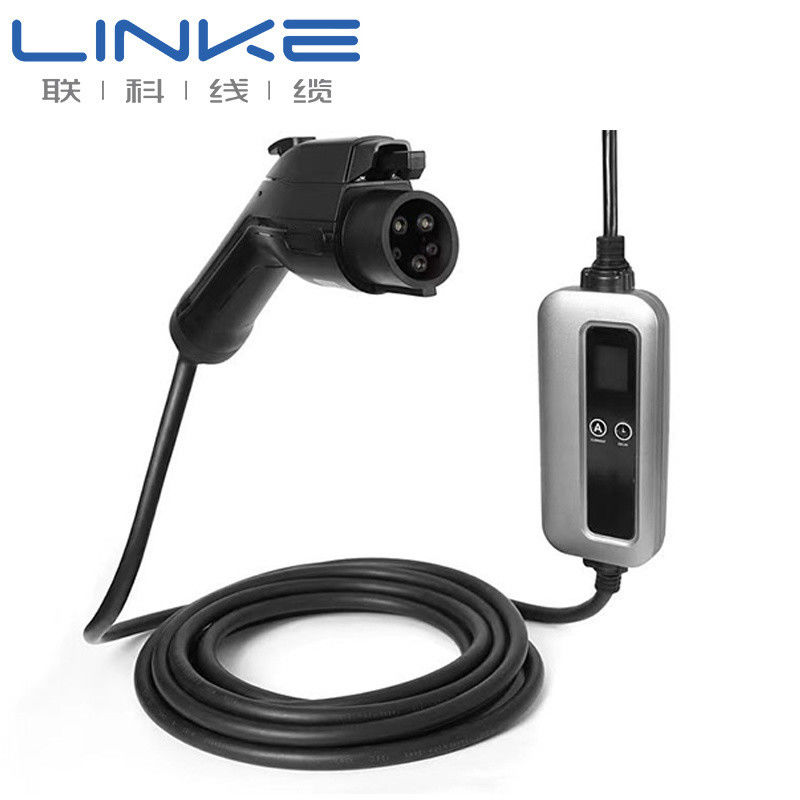

32A Rated Current IP65 Protection Grade Silicone Jacket EV Charger Cable for Electric Vehicles

32A Electric Vehicle EV Charger Cable

16A Electric Vehicle EV Charger Cable

AC Electric Vehicle EV Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

32A Rated Current IP65 Protection Grade Silicone Jacket EV Charger Cable for Electric Vehicles

Product Details

Model NO.:

Charger Cable

Color:

Black

Cable Length:

5metrer

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

After-Sales Service:

1 Year

Type:

Slow EV Charging Station

Warranty:

1year

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 60.00cm * 60.00cm

Package Gross Weight:

108.000kg

Lead Time:

7-15days

Rated Current:

32A

Phase:

Three Phase

IP Grade:

IP65

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Highlight:

32A Electric Vehicle EV Charger Cable

16A Electric Vehicle EV Charger Cable

AC Electric Vehicle EV Charger Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Black UL 62 32A 5p 2c10AWG 1c10AWG 3c*18AWG EV Charging Eve Cable With Copper Wires

Get Best Price

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

Get Best Price

5m Electric Vehicle Charger Cable 16A 32A TUV Sud Certified AC Station Connector Plug

Get Best Price

Slow EV Charging Station 32A Booster Jumper Electric Power Charging Cable

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

EV Charger Cable Overview

Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, featuring excellent ergonomic design and professional appearance. The vehicle connector achieves IP67 protection rating, while the coupled connection with vehicle socket reaches IP54 rating. Constructed with copper alloy terminals featuring silver plating and V0 grade thermoplastic shell material, with customizable wire length and rated current options.

Technical Specifications

Electrical Parameters

Rated Voltage: 220V AC (single-phase) / 380V AC (three-phase)
Rated Current: 16A, 32A
Ambient Temperature: -35°C to +55°C
Ambient Humidity: 5% to 95%
Protection Rating: IP67 (Vehicle connector); IP54 (combined with socket-outlet)

Cable Construction

Cable Outer Sheath Material: TPE
Single-phase 16A: 3×2.5mm² + 1×0.75mm² (OD=11mm)
Single-phase 32A: 3×6mm² + 1×0.75mm² (OD=13.5mm)
Three-phase 16A: 5×2.5mm² + 1×0.75mm² (OD=13.5mm)
Three-phase 32A: 5×6mm² + 1×0.75mm² (OD=16.5mm)

Mechanical Properties

Insertion/Withdrawal Force: 10N-100N
Vehicle Drive Over Resistance: 10,000N
Connector Material: PC, PA
Flame Rating: UL94 V-0
Connection Terminal: Brass, silver plated
Insulation Resistance: ≥100MΩ
Dielectric Strength: 2000VAC for 1 minute
Insertion/Withdrawal Cycles: >10,000 cycles

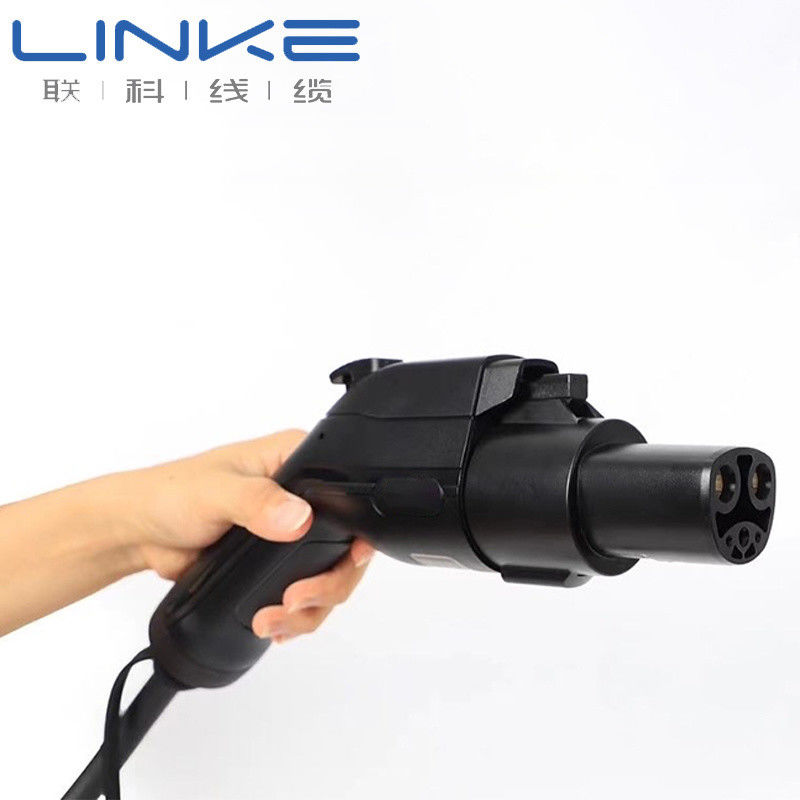

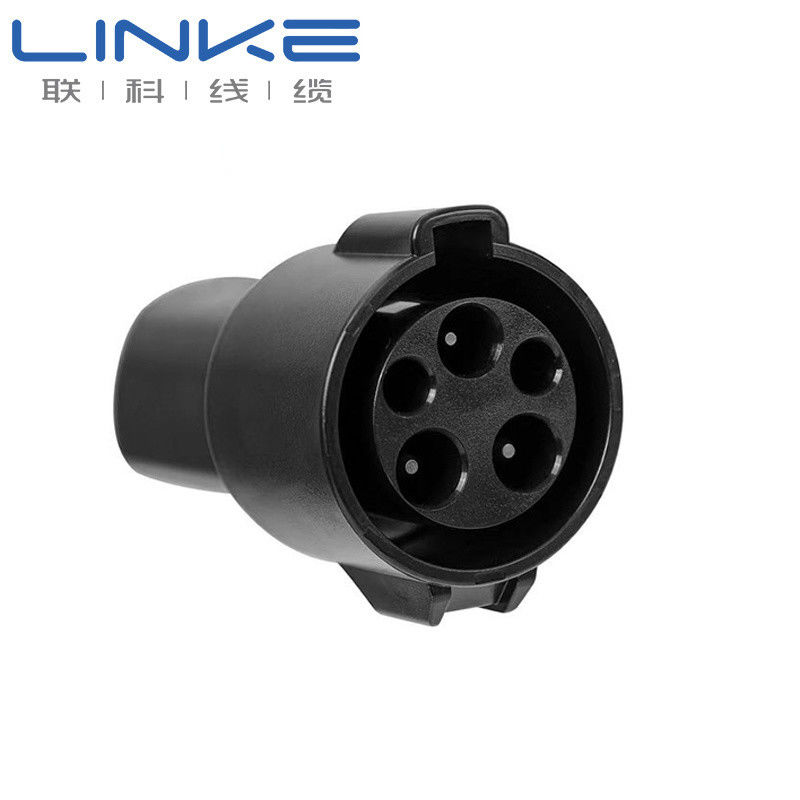

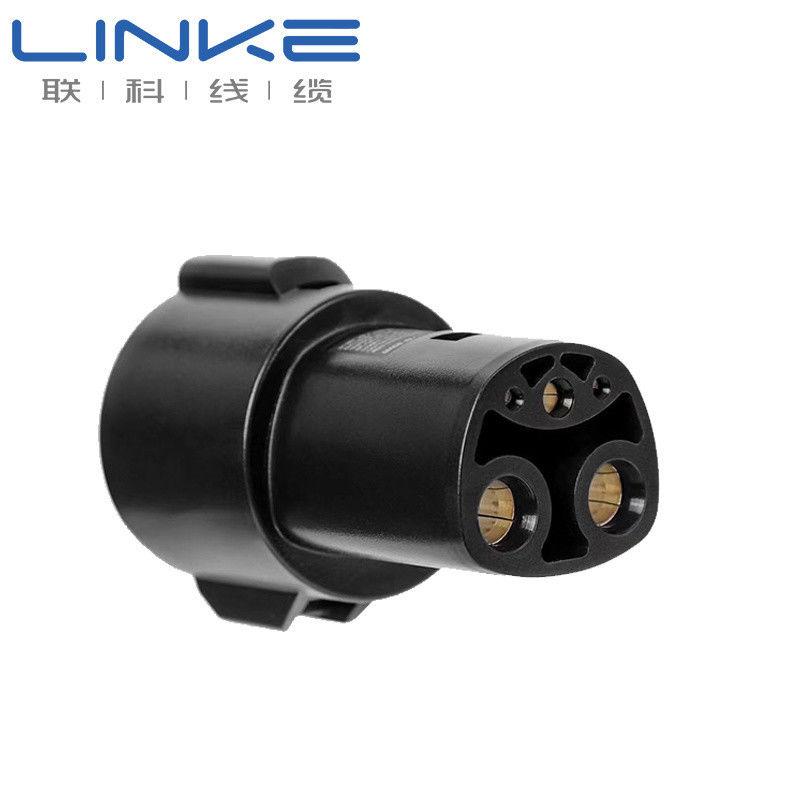

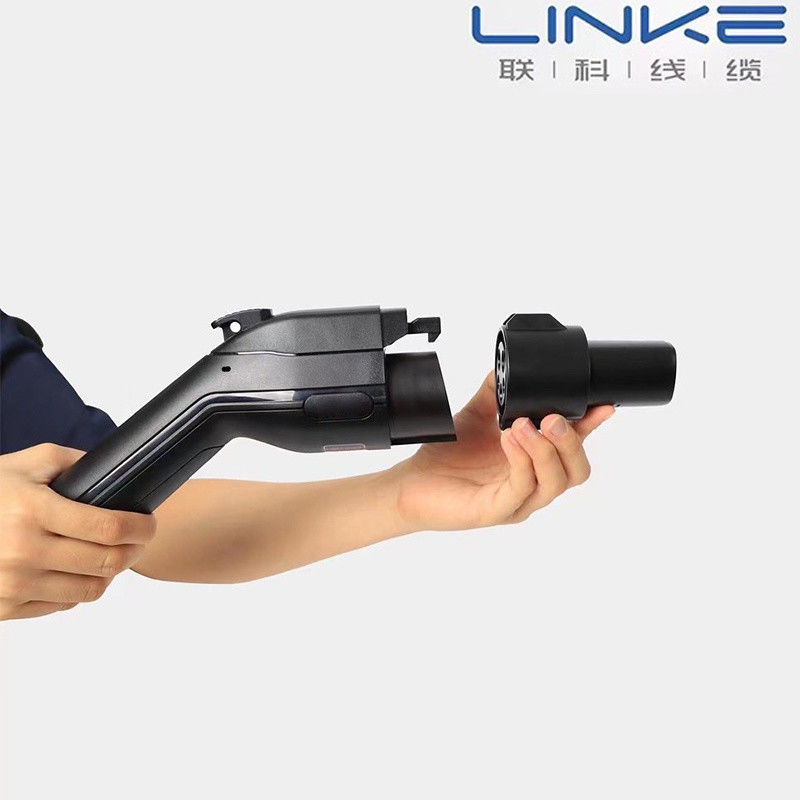

Product Images

Cable Technical Data

Type	Cable Size (mm²)	Conductor	Material	Cable OD (mm)	Standard Thickness (mm)	20°C Conductor Resistance (mΩ/m)
TEVB050-XX-027	0.5	Copper 16/(0.20±0.008)	XLPE	4.20±0.15	0.70	≤37.1
TEVB075-XX-041	0.75	24/(0.20±0.008)	XLPE	4.50±0.15	0.70	≤24.7
TEVB100-XX-006	1	32/(0.20±0.008)	XLPE	4.80±0.15	0.80	≤18.5
TEVB150-XX-036	1.5	49/(0.20±0.008)	XLPE	5.20±0.15	0.80	≤12.7
TEVB250-XX-295	2.5	49/(0.25±0.008)	XLPE	5.60±0.20	0.70	≤7.60
TEVB400-XX-140	4	133/(0.20±0.008)	XLPE	7.30±0.20	0.90	≤4.71
TEVB600-XX-093	6	190/(0.20±0.008)	XLPE	7.70±0.20	0.90	≤3.14
TEVB800-XX-002	8	259/(0.20±0.008)	XLPE	8.50±0.20	1.00	≤2.38
TEVBA10-XX-051	10	323/(0.20±0.008)	XLPE	9.60±0.30	1.00	≤1.82
TEVBA16-XX-044	16	513/(0.20±0.008)	XLPE	10.90±0.30	1.00	≤1.16
TEVBA25-XX-042	25	798/(0.20±0.008)	XLPE	13.50±0.30	1.20	≤0.743
TEVBA35-XX-043	35	1121/(0.20±0.008)	XLPE	14.50±0.30	1.20	≤0.527
TEVBA50-XX-050	50	1596/(0.20±0.008)	XLPE	17.00±0.40	1.30	≤0.368
TEVBA70-XX-054	70	2257/(0.20±0.008)	XLPE	21.00±0.50	1.30	≤0.259
TEVBA95-XX-014	95	1887/(0.254±0.008)	XLPE	22.0±0.40	1.60	≤0.196
TEVBA120-XX-016	120	2368/(0.254±0.008)	XLPE	27.00±1.0	1.60	≤0.153

Cable Printing: "EV-cable [size]mm² -40°C~+125°C 1500V DC N ATTENTION HIGH VOLTAGE LINKE CABLE->XLPE<"

Certifications & Standards

ISO9001, ISO13485, TS16949 Quality Management Systems
CNR - Appliance Wiring Material Certification
Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with complete control over production from beginning to end. We welcome factory visits and provide pickup service in Shenzhen.

How can I get a sample to test your quality?

Samples are provided free of charge. New customers are responsible for courier costs.

What's your Minimum Order Quantity?

Standard MOQ is 100 meters. Due to the cable's weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most cost-effective option.

Can I get a discount?

Discounts are available based on order quantity. We can offer price reductions and cover freight costs for larger orders. Please contact us for specific pricing.

Does your company accept OEM production?

Yes, we offer OEM services including company name printing and custom quality cards to promote your brand.
