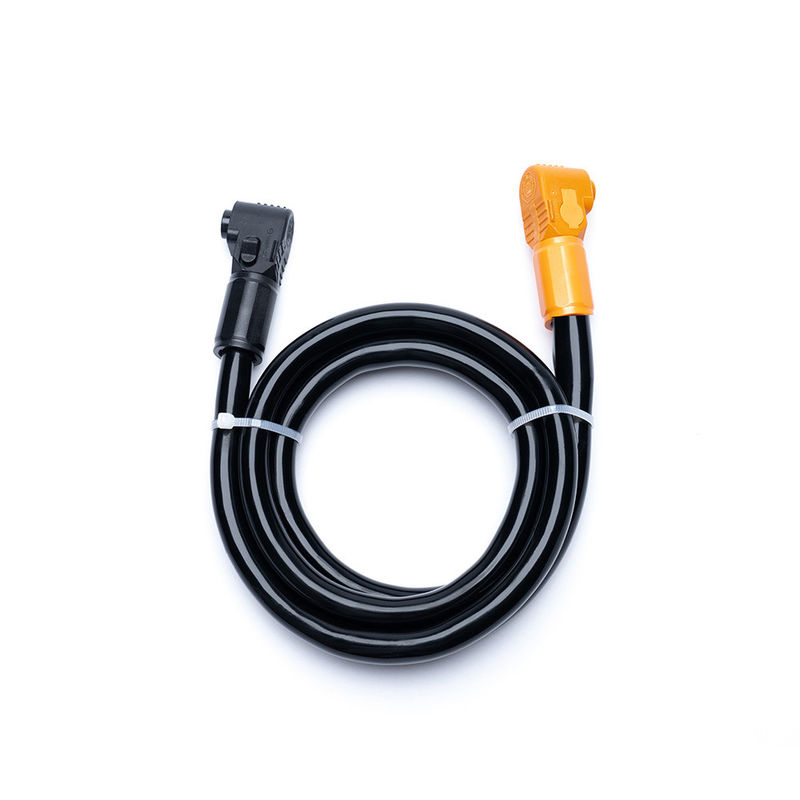

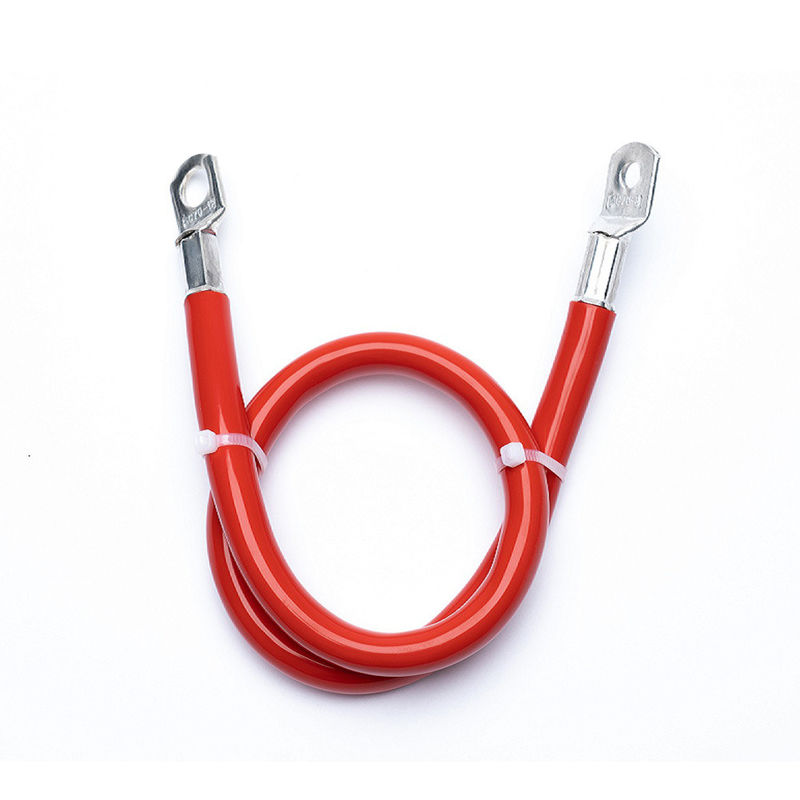

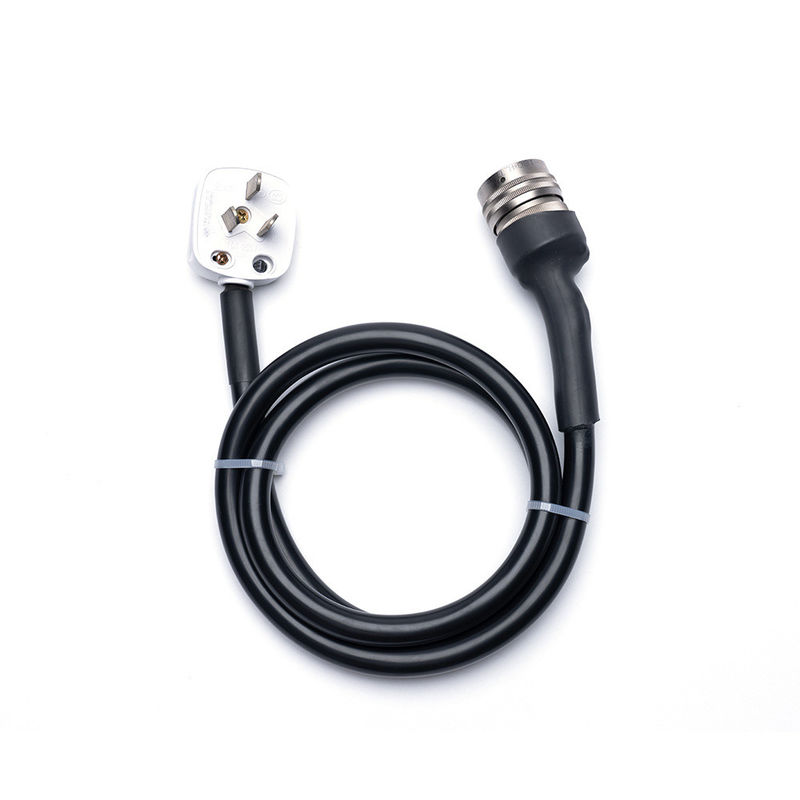

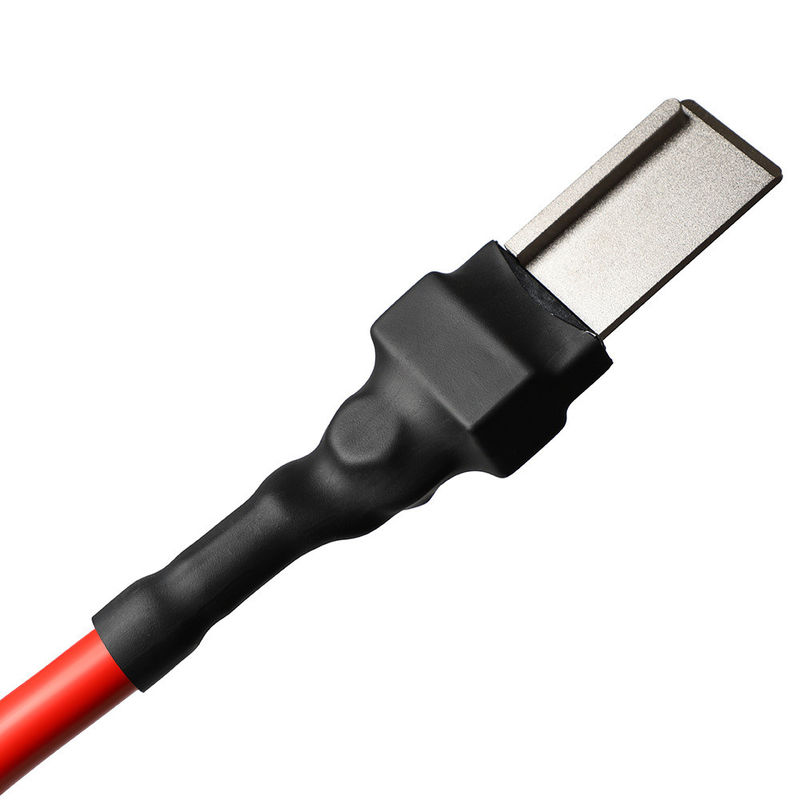

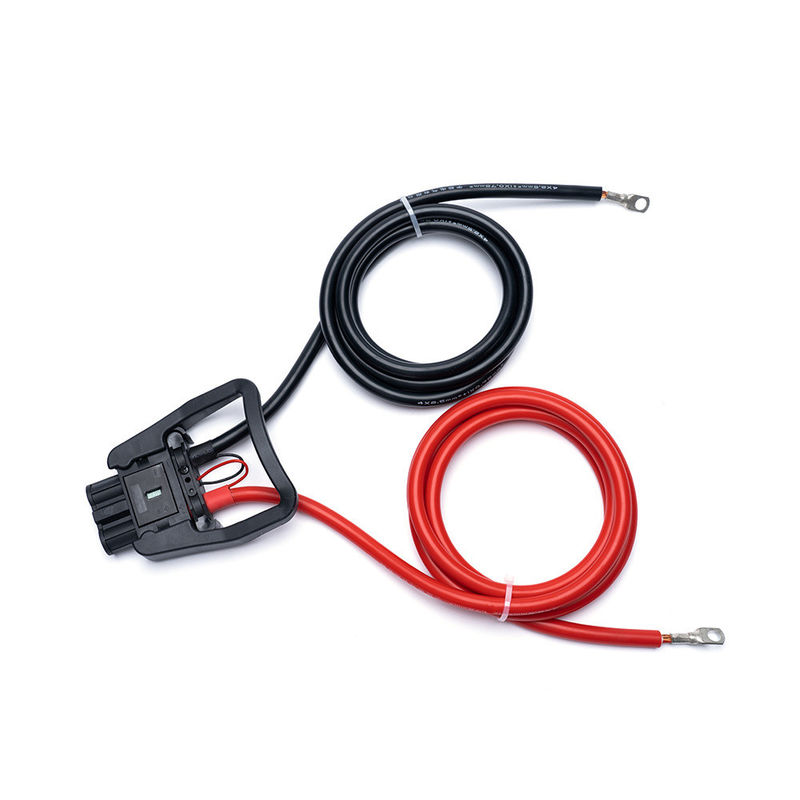

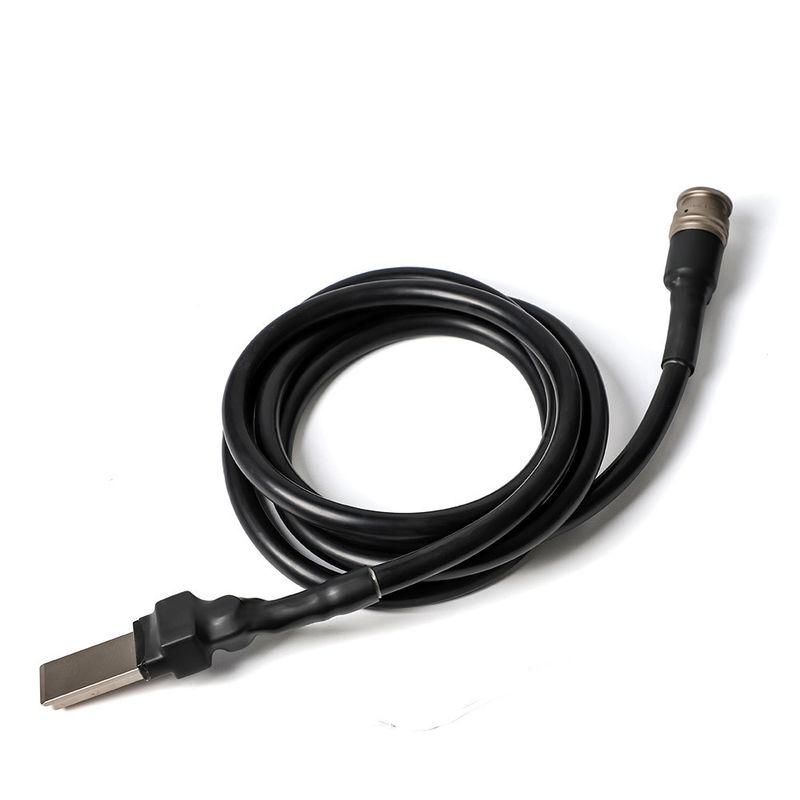

500A AMP XLPE Insulation Silicone Wire Assembly Cable Harness for High-Temperature Applications
| Product Range: |
Automotive wireharness,Appliance wireharness,Robot wireharness,Medical wireharness and etc. |
| Test: |
Professional breakover and pulling force test before shipment |
| Cable materials: |
Wire harness can be UL/CSA,CE, etc and pure copper |
| Cable color,length: |
According to the customers' requirements |
| Insulation: |
Rubber,Silica,PE,...etc |
| Connector and Terminal Type |
Original OEM or Replacement |
| Application |
Automotive,Appliance equipment,Medical equipment and etc |
| MOQ |
1000PCS |
| Samples |
Samples confirmed first before mass production |
| Certificates |
ISO9001-2015, IATF16949-2016, CE, RoHS, SGS, TUV |
| Lead time |
10-20days |
| Service |
OEM and ODM, we accept customization according to your requirement |
| Nominal Voltage |
300V,300/500V,600V,30V,450/750V etc… |
| Temperature Range |
-30ºC~+80ºC,-30ºC~+90ºC,-30ºC~+105ºC,-30ºC~+70ºC/90ºC,105/180ºC, 200ºC etc…. |
| Lead time |
Small orders under 500pcs is 5-7days,exceed 1000pcs 7-15days |
| Payment |
T/T, L/C,PayPal,Western Union |
Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C
2,Low viscosity appearance
Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Our certification:
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
FAQ
-
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
-
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
-
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
-
Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
-
Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
