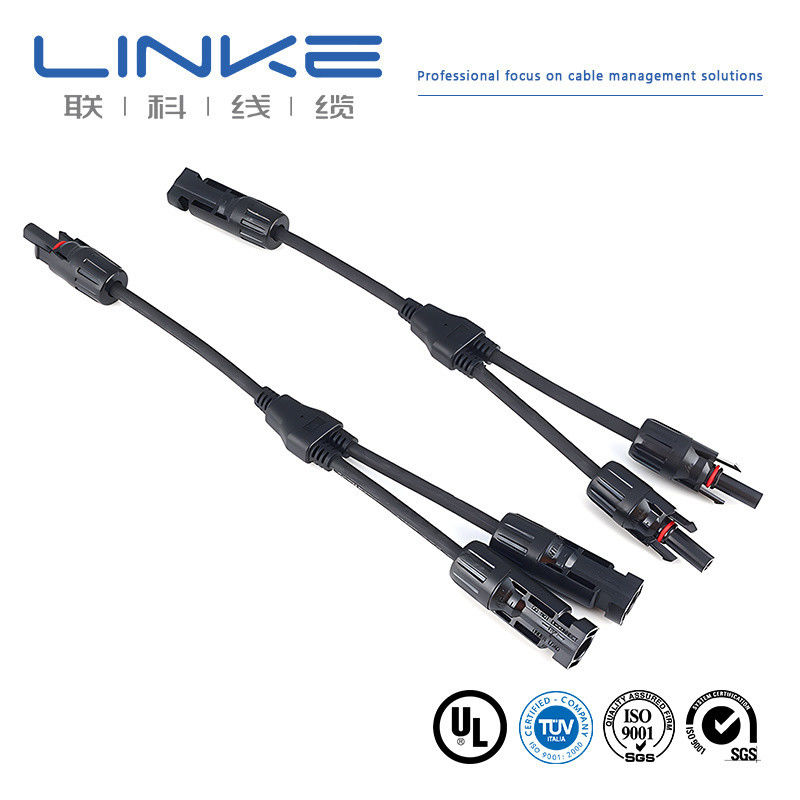

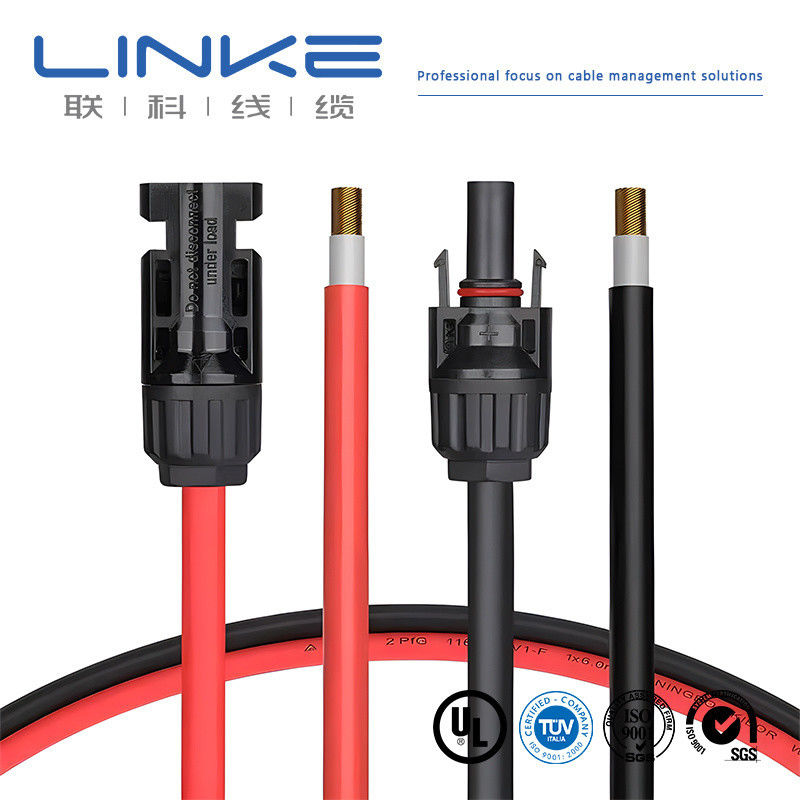

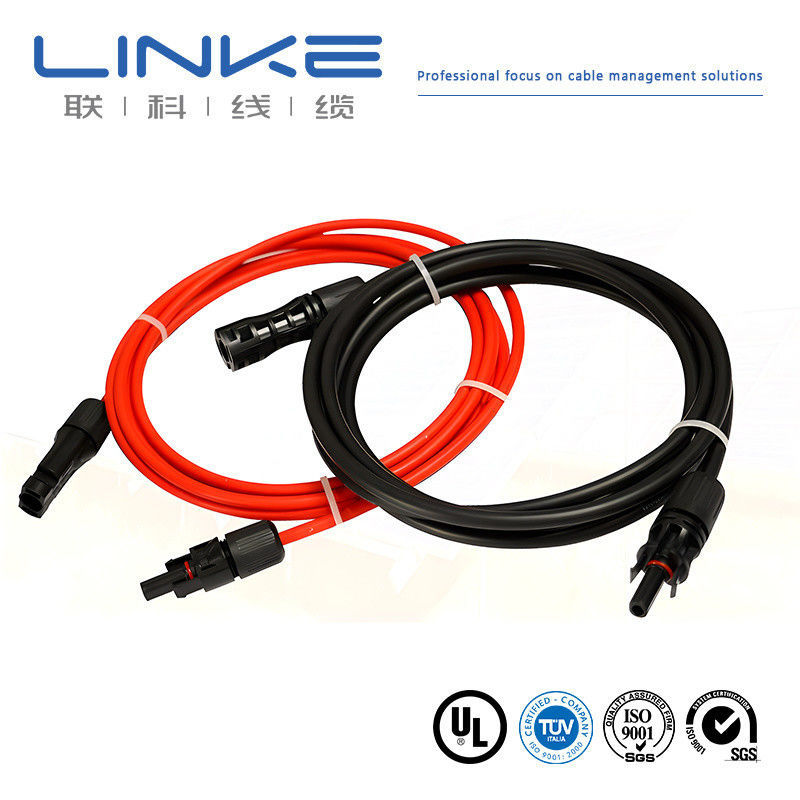

1. Used for wiring and connection of solar power stations or solar facilities and equipment, with comprehensive performance and strong weather resistance, suitable for use in various power station environments around the world.
2. As the connection cable of solar energy device, it can be installed and used outdoors in different climate conditions, and can adapt to dry and wet indoor working environment. The product is suitable for class II safety level, the cable operating temperature up to 90C, the cable can be used in parallel.
Product Specification
| Product Item |
Solar Photovoltaic Cable |
| Size(mm2) |
2.5/ 4/ 6/ 10 |
| Production Specification |
According to customer requirements |
| Insulation Material |
XLPE(XLPO) |
| Tempature Range |
-40°C--+125°C |
| Color |
Black/Red |
| Rated Voltage(U0/U) |
AC 600/1000V,DC 1000/1500V |
About Us
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Company Profile:
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable,
medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer
approach to develop better cables for customers and improve the quality of one's life.
Certifications
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
FAQ
1. Are you a manufacturer or trading company?We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
