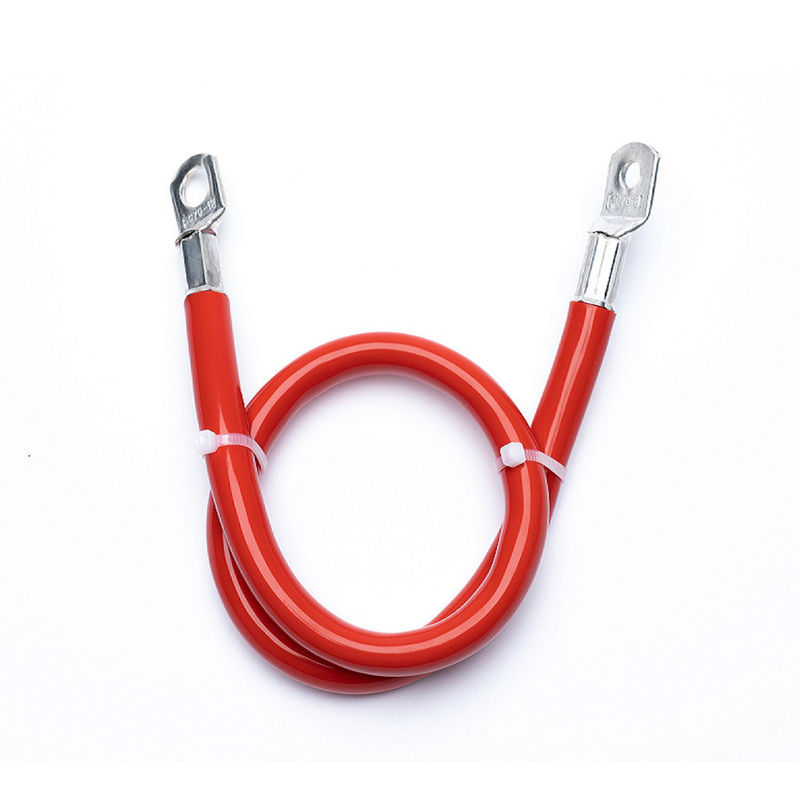

1000A AMP Silicone Insulation Automotive Wiring Harness Customized Length Car Battery Jumper Cable

US Currency Jumper Booster Cable

Electric Assembly Jumper Booster Cable

3mx16mm2 Jumper Booster Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

1000A AMP Silicone Insulation Automotive Wiring Harness Customized Length Car Battery Jumper Cable

Product Details

Conductor Material:

Copper/Tinned Copper

Rated Voltage:

300-600V

Temperature Range:

-60°C To 200°C

Conductor Size:

0.1-450mm²

Insulation Material:

Silicone

Current Rating:

1000A

Highlight:

US Currency Jumper Booster Cable

Electric Assembly Jumper Booster Cable

3mx16mm2 Jumper Booster Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

UL Certified LED Light Wire Harness Cable Assembly with Customized Insulation and Wide Temperature Range

Get Best Price

Video

Customizable Waterproof Low Voltage Electric Wire Harness Cable Assembly for Rail Transit

Get Best Price

Video

500A AMP XLPE Insulation Silicone Wire Assembly Cable Harness for High-Temperature Applications

Get Best Price

1000A AMP Silicone Insulation Automotive Wiring Harness Customized Length Car Battery Jumper Cable

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Product Specifications

Product Range:	Automotive wireharness,Appliance wireharness,Robot wireharness,Medical wireharness and etc.
Test:	Professional breakover and pulling force test before shipment
Cable materials:	Wire harness can be UL/CSA,CE, etc and pure copper
Cable color,length:	According to the customers' requirements
Insulation:	Rubber,Silica,PE,...etc
Connector and Terminal Type	Original OEM or Replacement
Application	Automotive,Appliance equipment,Medical equipment and etc
MOQ	1000PCS
Samples	Samples confirmed first before mass production
Certificates	ISO9001-2015, IATF16949-2016, CE, RoHS, SGS, TUV
Lead time	10-20days
Service	OEM and ODM, we accept customization according to your requirement
Nominal Voltage	300V,300/500V,600V,30V,450/750V etc…
Temperature Range	-30ºC~+80ºC,-30ºC~+90ºC,-30ºC~+105ºC,-30ºC~+70ºC/90ºC,105/180ºC, 200ºC etc….
Lead time	Small orders under 500pcs is 5-7days,exceed 1000pcs 7-15days
Payment	T/T, L/C,PayPal,Western Union

Technical Data

Style: EV-YJ 1.5mm²~95mm²
Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

Key Features

Conductor : Flexible Bare annealed copper wire

Insulation:Silicone

Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.

SQ MM sizes (European style) :4 sq mm to 240 sq mm

AWG sizes (North American style) :0AWG-10AWG,

Wide temperature range: -60°C to 200°C

Certifications

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269
(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,
UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?

It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!
