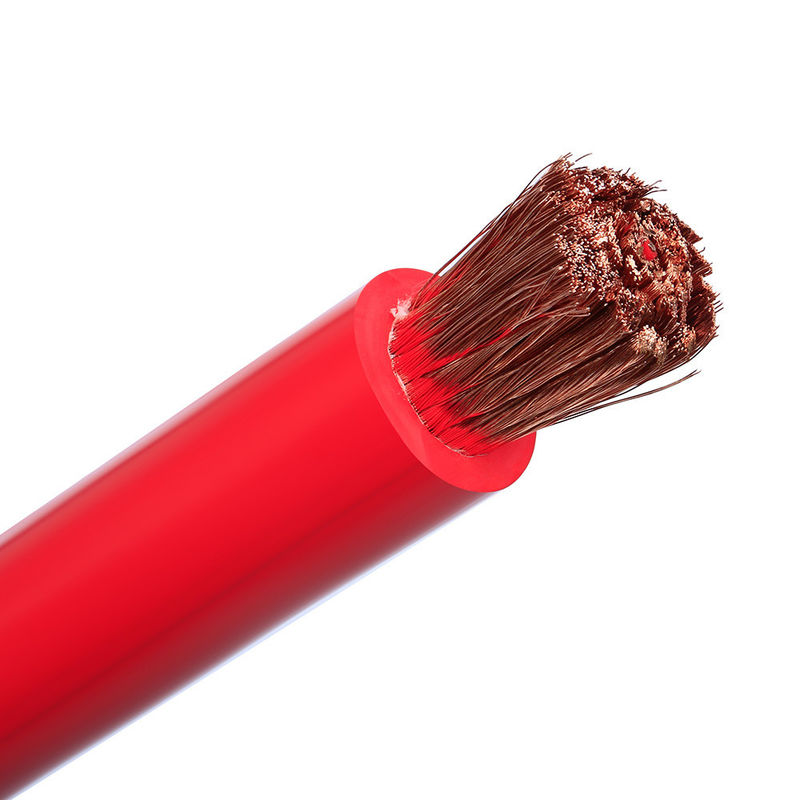

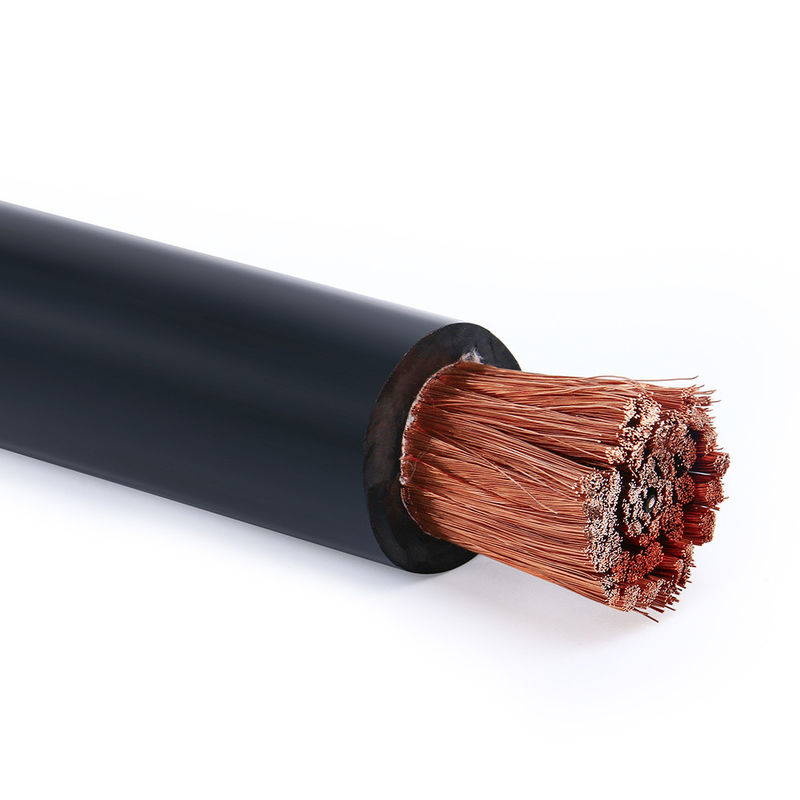

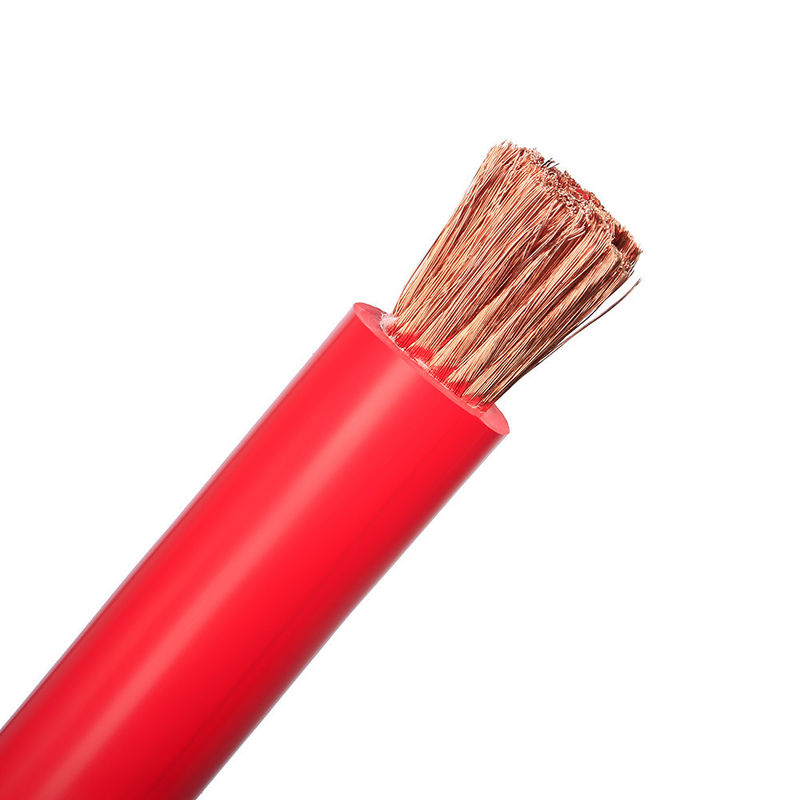

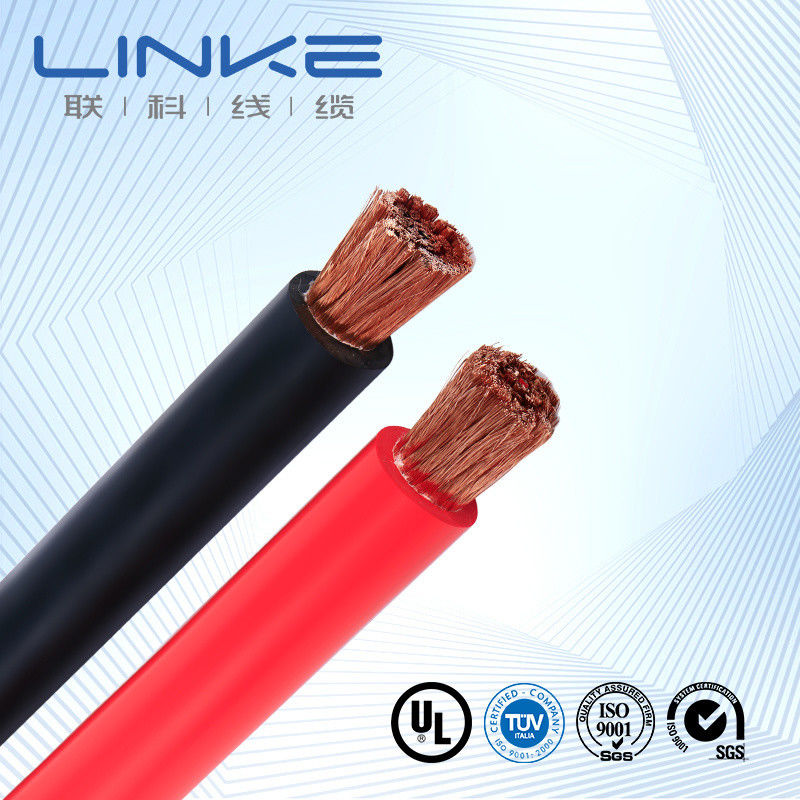

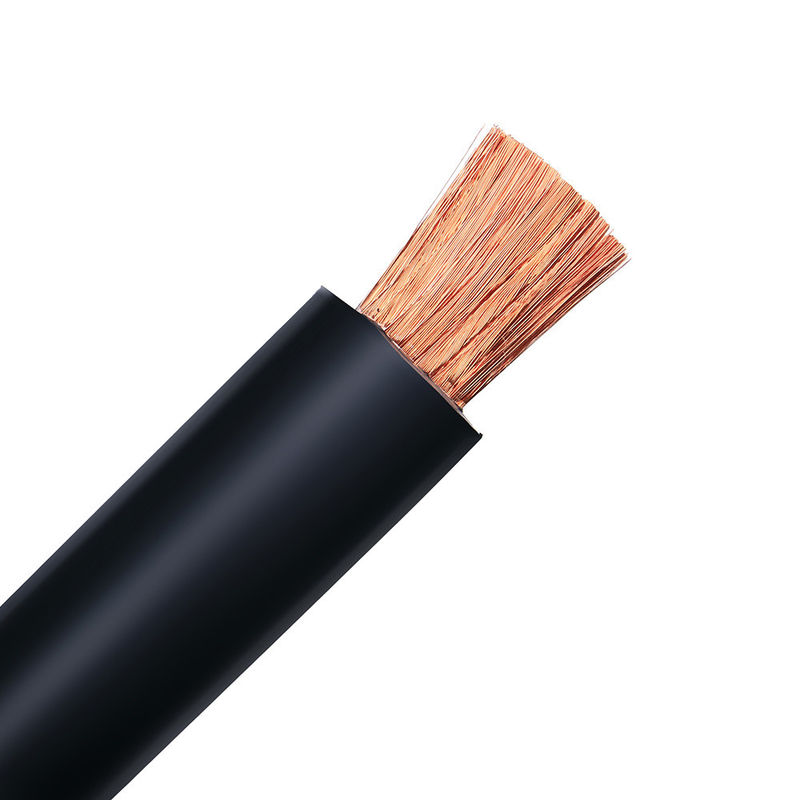

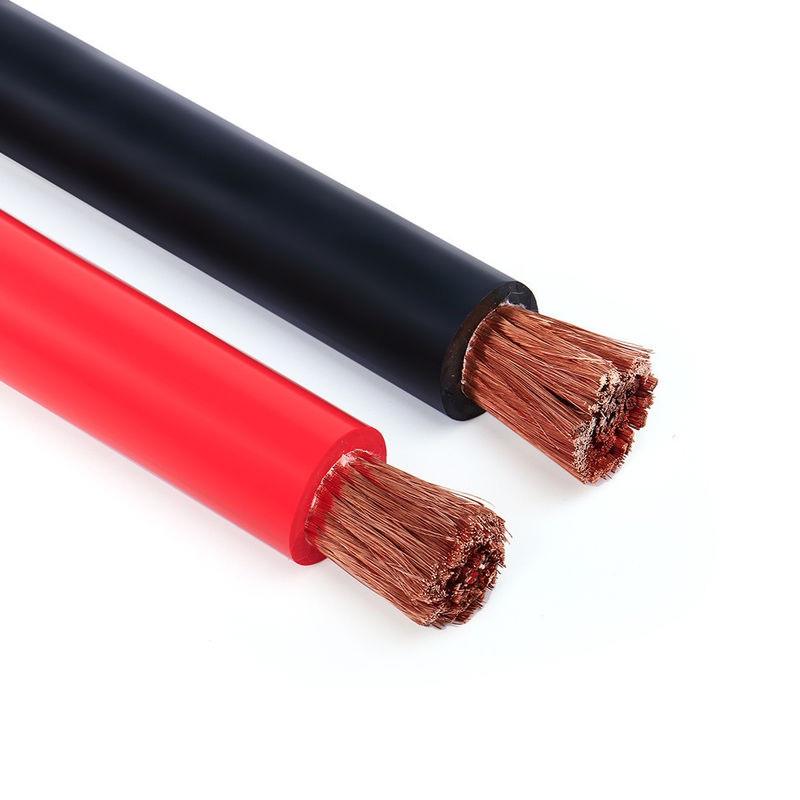

PVC Sheath Silicone Rubber Cable 69CM High Temperature Voltage Resistant

Battery and cabling systems are at the heart of all automobiles, whether they are powered by traditional internal combustion engines (ICE) or are the driving force in hybrid or electrical vehicles (HEV & EV).

In traditional ICE, cables must withstand huge fluctuations in temperatures under the hood and so must be perfectly insulated and fire-resistant at very high temperatures.

EV vehicles require an ever-increasing number of cables to ensure conductivity and manage temperature spikes due to a high throughput of electrical energy. Because of the sheer quantity of cables and the complexity of their inter-connectivity in the engine housing, EV cables must also be lightweight and highly flexible.

Finally, hybrid vehicles must withstand both the heat generated by ICE and ensure the power supply of their electrical motors in a very limited space.

The overriding advantage of silicone rubber as the insulation material of choice for battery cables is their unequaled ability, compared to all other insulation materials (PVC, polyethylene, etc.), to withstand huge temperature variations from -60C to +250°C.  cable insulation materials are tested to remain stable at 200°C for 3000 hours or 180°c for 3000 hours (depending on the requirements). This means that they can adapt to the heat generated by traditional motors and can optimize the Thermal Management Systems (TMS) of EVs, i.e. the ability to control the entire temperature system of battery-powered systems and optimize heat and power transfer, conduction and convection, to reduce thermal runaway.

Flexibility is another key reason for using silicone rubber for battery cables. This is a major consideration for the entire automotive industry, both OEMs and parts makers, in designing and assembling their engines, which have increasingly complex wiring in very tight motor housings, often requiring U-shaped or hairpin curves to connect different engine parts. This flexibility is an important factor in reducing manufacturing processing time and improving efficiency.

Silicone insulation materials for automotive cables are very lightweight compared to other materials that meet high temperature, thus contributing to energy savings and improving the environmental impact in all cars and, for EV vehicles in particular, increasing their overall level of autonomy, a major performance criterion for consumers.

Silicone insulation materials also provide the highest level of safety because of their fire-retardant properties and their unique capacity to self-extinguish, avoiding propagation when flames do ignite in the engine housing.

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.



No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass

Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and

provide professional solutions to the Cable&Wire,especially for the

different industry customers.It contains :



Humanoid robot cable,

AI power cable/data cable,

Semiconductor cable/industrial automatic cable,

Sensor cable,

New energy cable,

Medical beauty wire,

UL wire cable,



Linke Cable has diversified product development capabilities and technical capabilities to support diversified

customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We

have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485

(Medical apparatus and instruments),IATF 16949(Auto industry)



Certifications

• We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269
• (Single conductor,thermoplastic insulation)
• UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,
• UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
• ISO9001 and ISO13485,TS16949
• CNR- Appliance Wiring Material,
• Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
• Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
• Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

LINKE UL CERTIFICATION
