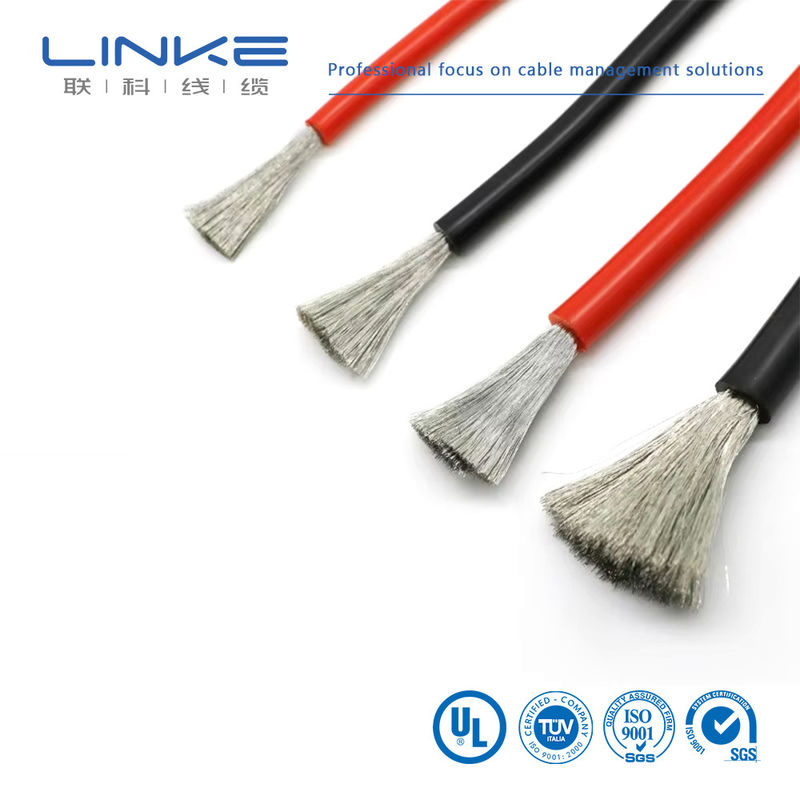

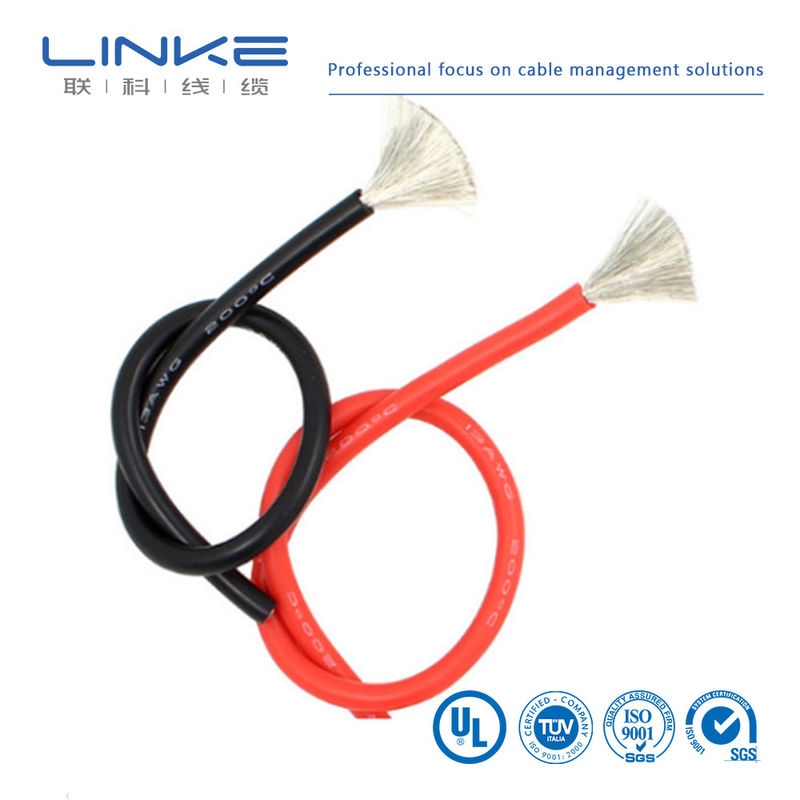

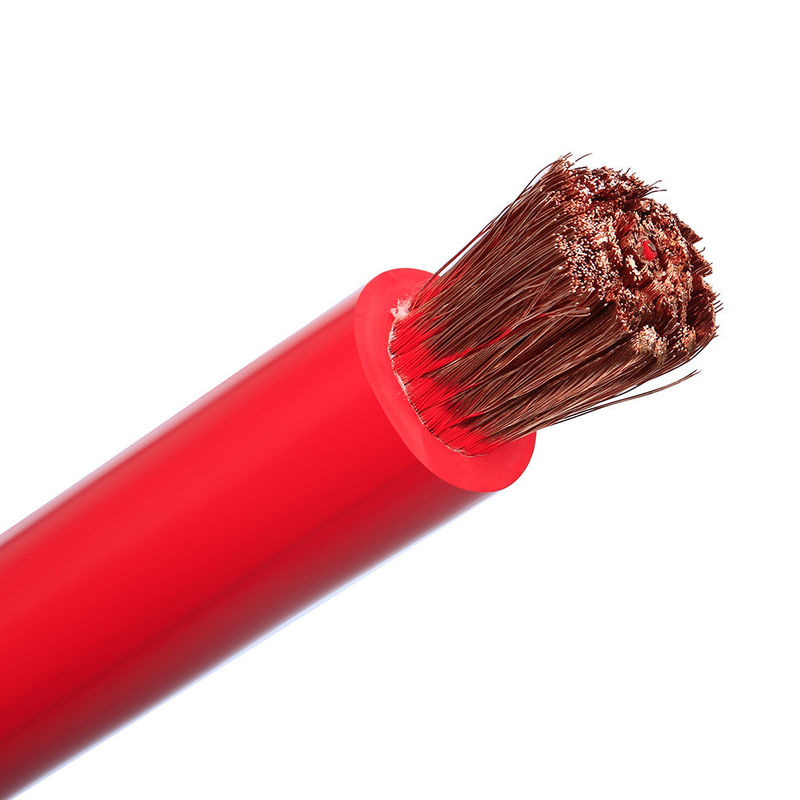

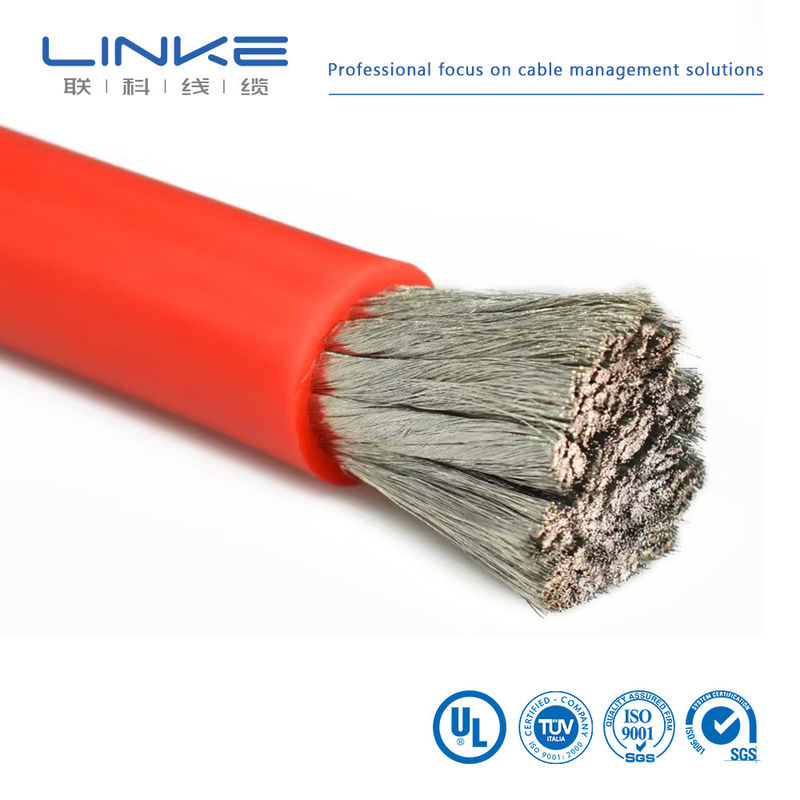

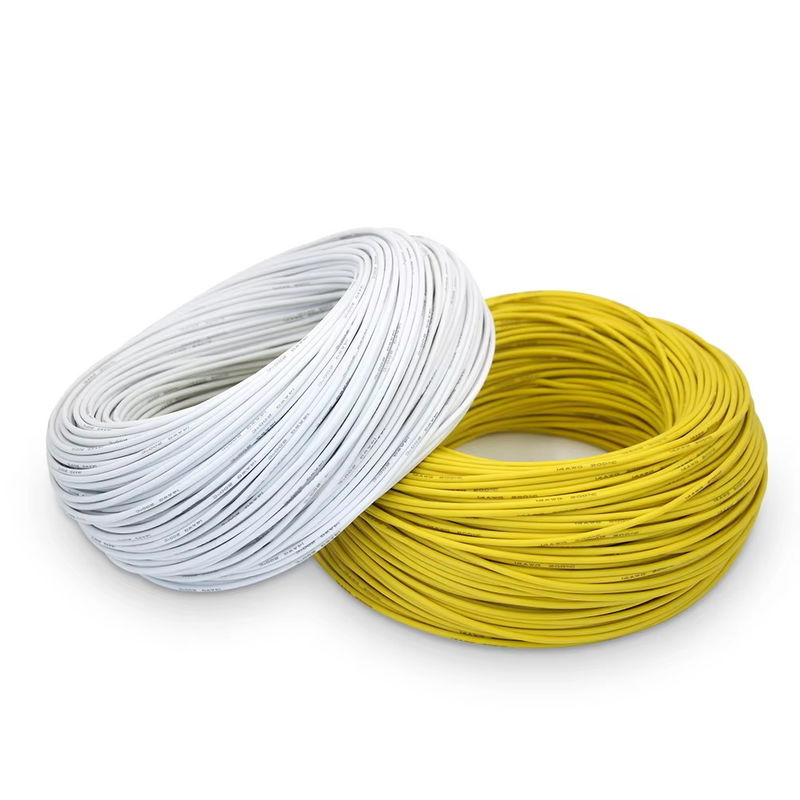

Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire

Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire

Stranded Conductor Silicone Rubber Cable

Flame Retardant Silicone Rubber Cable

UL758 Silicone Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Contact Us
Request A Quote
Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire
Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire
Product Details
Model NO.:
Silicone Rubber Cable
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
Silicone Rubber
Material Shape:
Round Wire
Range Of Application:
Flame Retardant
Name:
Silicone Rubber Cable
Conductor:
Tinned Copper
Filler:
Optional
Type:
Insulated
Conductor Type:
Twisted Wire
Application:
Overhead, Heating, Underground, Construction, Power Plant, Underground, Industrial
Samples:
US$ 1000/Meter 1 Meter(Min.Order) |
Customization:
Available
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Core:
Multiple
Conductor Material:
Copper/Tinned Copper
Exterior Material:
Customize：PVC、PE、LSFOH、silicone Rubber
Insulating Materials:
Customize:PVC、PE 、XLPE、EPR、SIR
Specifications:
0.1-450mm²
Rated Voltage:
300-600V
Rated Temperature:
-60± 200℃
Package:
By Roll
Lead Time:
7-15days
Highlight:

Stranded Conductor Silicone Rubber Cable

,

Flame Retardant Silicone Rubber Cable

,

UL758 Silicone Wire Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Quotation by specification
Packaging Details
According to requirement
Delivery Time
7-15day
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
RELATED PRODUCTS
Good price UL3135 Silicone Rubber Wire 30 28 26 24 22 20 18 16 14 12 10 AWG Insulated Soft Copper Electron LED Lamp Lighting Cable online Video

UL3135 Silicone Rubber Wire 30 28 26 24 22 20 18 16 14 12 10 AWG Insulated Soft Copper Electron LED Lamp Lighting Cable

Get Best Price
Good price High Temperature Voltage Resistant Silicone Rubber Cable 20AWG UL3122 Corrosion-resistant silicone wire online Video

High Temperature Voltage Resistant Silicone Rubber Cable 20AWG UL3122 Corrosion-resistant silicone wire

Get Best Price
Good price Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire online Video

Extra soft silicone wire 16 14 13 12 11 10 8 7 9 6 tinned copper 4/3/2AWG high temperature resistant wire

Get Best Price
Good price UL3135 Silicone Rubber Cable with High Temperature Resistant Insulation High flexibility silicone wire online Video

UL3135 Silicone Rubber Cable with High Temperature Resistant Insulation High flexibility silicone wire

Get Best Price
Contact Us
86-0769-81776230
86-18665106395
sales@linkecable.com
Contact Now
Product Description

Extra soft silicone wire 16 14 13 12 11/10/9/8/7/6 awg copper core color lithium battery aircraft model 4/3awg high temperature resistant wire



  • _customized
    yes
    type
    isolated
  • Conductor type
    Extra Soft High Temperature Silicone Wire
    brand name
    linke cable
  • winning material
    tinned copper
    insulating material
    silicone
  • source
    CN (source)
    qualification
    UL  ccc
  • temperature resistance
    -60℃-200℃
    Specification
    28 26 24 22 20 18 16 14 12 10 8 6 AWG
  • material
    silicone, tinned copper
    Scope of application
    Lithium battery, model aircraft, DIY
Model aircraft silicone wire
Specification Conductor structure Copper wire diameter Outer diameter
30 AWG 11/0.08AS 0.3 1.15
28 AWG 16/0.08AS 0.36 1.2
26 AWG 30/0.08AS 0.5 1.5
24 AWG 40/0.08AS 0.58 1.6
22AWG 60/0.08AS 0.71 1.7
20 AWG 100/0.08AS 0.92 1.8
18 AWG 150/0.08AS 1.13 2.3
17 AWG 210/0.08AS 1.33 2.7
16 AWG 252/0.08AS 1.46 3
15 AWG 300/0.08AS 1.6 3.2
14 AWG 400/0.08AS 1.84 3.5
13 AWG 500/0.08AS 2.06 4
12 AWG 680/0.08AS 2.4 4.5
11 AWG 750/0.08AS 2.53 5
10AWG 1050/0.08AS 2.994 5.5
9AWG 1200/0.08AS 3.2 6
8 AWG 1650/0.08AS 3.75 6.3
7AWG 2400/0.08AS 4.52 7.2
6 AWG 3200/0.08AS 5.22 8.5
5AWG 3998/0.08AS 5.84 9.5
4 AWG 500/0.08AS 6.53 11





























Product Description

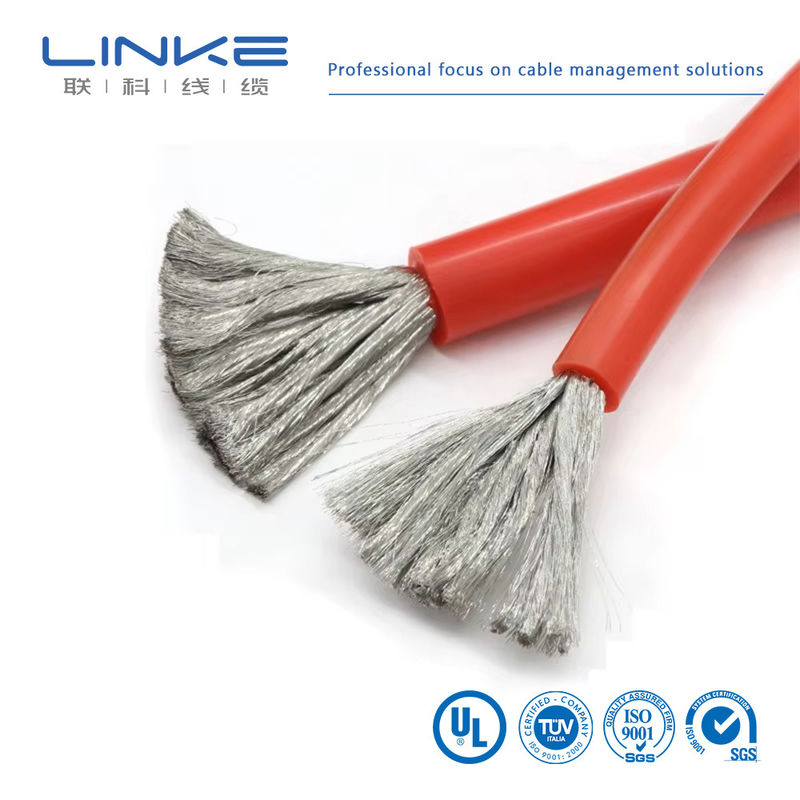

Conductor Multiple strands of tinned copper (bare copper optional) wire stranded, according to the sixth stranded conductor GB/T3956
Insulation  high and low temperature resistant silicone rubber

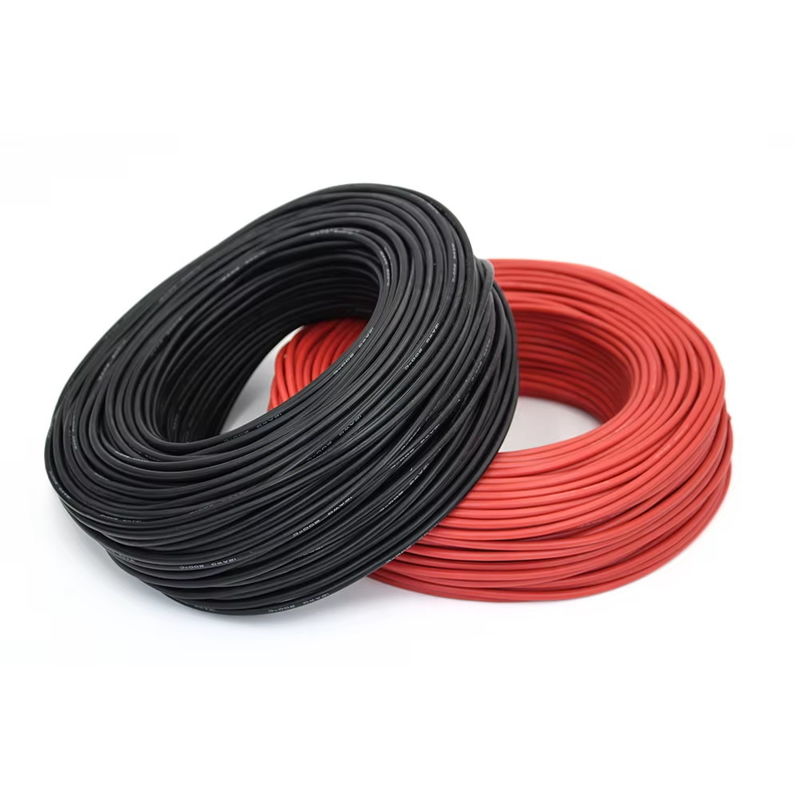

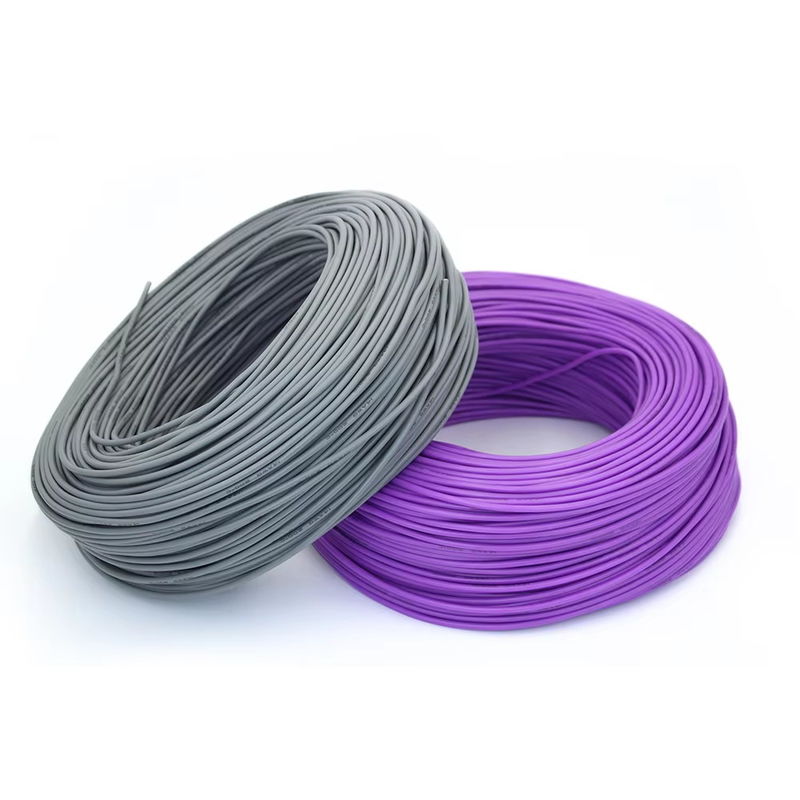

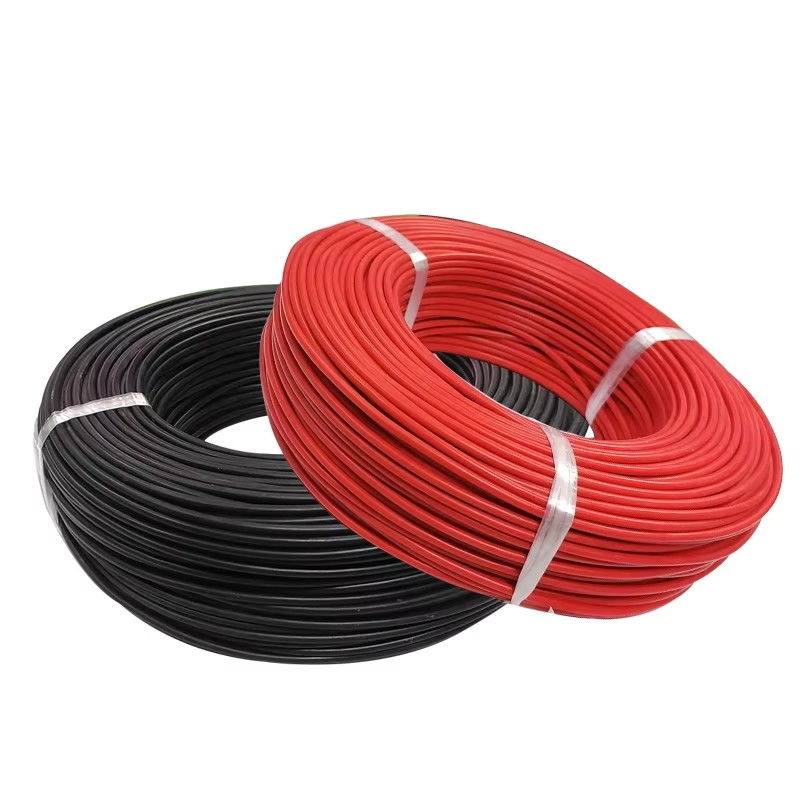

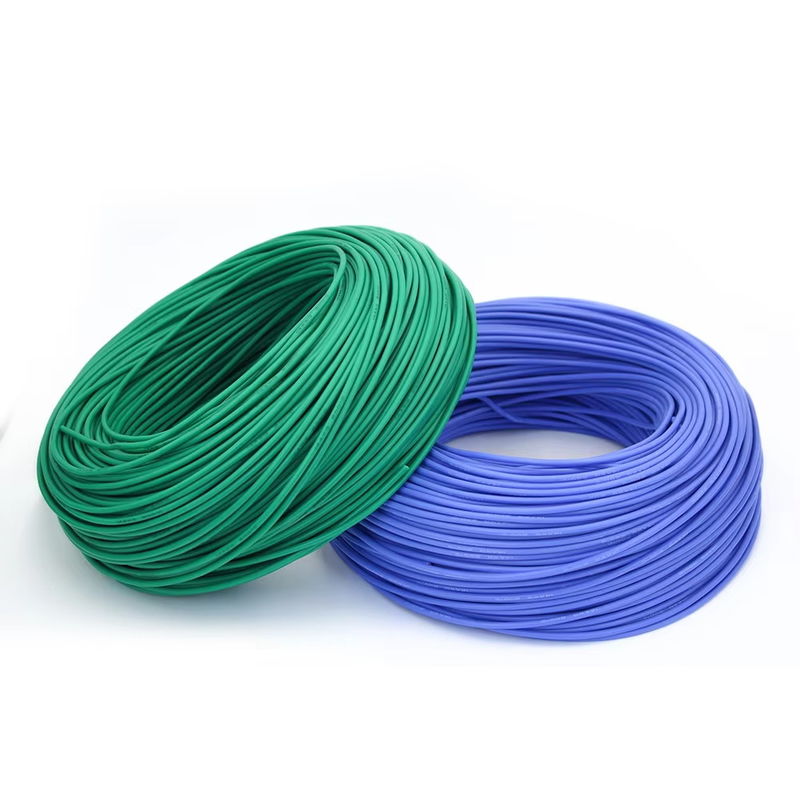

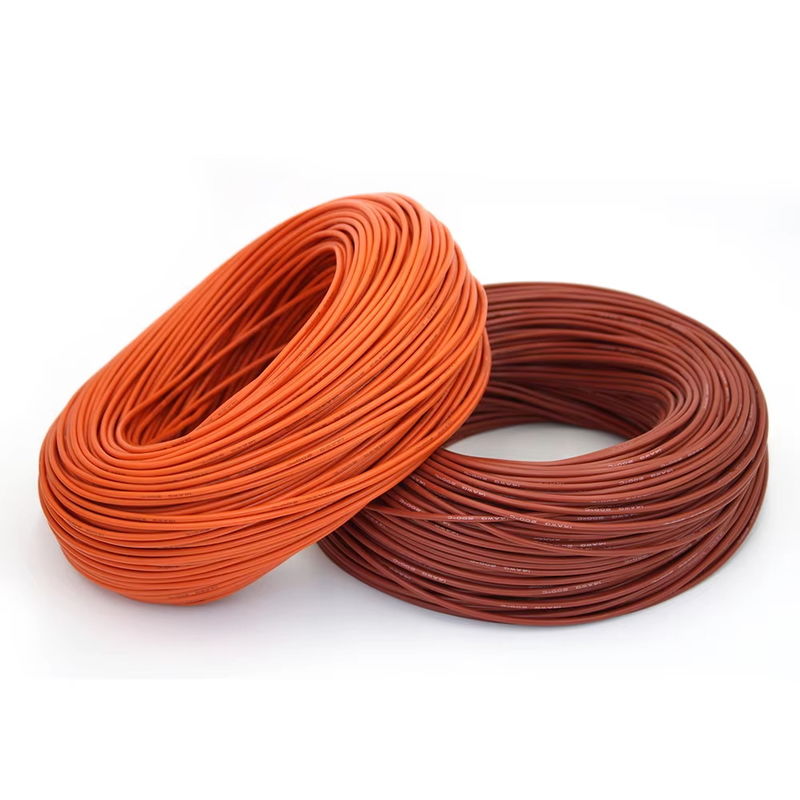

Insulation color Brown, blue, black, gray, purple, white, orange, red, yellow, green, pink, yellow-green, etc.
Application standards Q/IRMV2-2008, UL758
Rated voltage 300/500V
Test voltage insulation thickness ≤0.5mm: 2000V; Insulation thickness ≥0.5mm: 2500V

High Temperature Flexible Cable Tinned Copper Shielded Silicone Rubber Wire Cable



High Temperature Flexible Cable Tinned Copper Shielded Silicone Rubber Wire Cable

High Temperature Flexible Cable Tinned Copper Shielded Silicone Rubber Wire Cable
Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

wire and cable. Linke provide various cables&custom cable solutions for all over the world.

We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and  improve the quality of one's life.


Certifications



Single-conductor, thermoplastic insulation
1007 1330 1333 1591 1723 10064 10369
1015 1331 1569 1592 1901 10070 10483
1185 1332 1577 1672 10012 10269
Multiple-conductor, thermoplastic insulation
2095 2129 2468 2586 2725 20233 20280 20963
2103 2463 2517 2587 2835 20276 20549 21198
2104 2464 2576 2661 2919 20279 20886 21664
Single-conductor, thermoset insulation
3075 3173 3320 3386 3530 3689 30005
3123 3212 3321 3398 3577 3702
3132 3266 3331 3512 3644 3817
3135 3271 3385 3529 3674 3886





LINKE UL CERTIFICATION

High Temperature Flexible Cable Tinned Copper Shielded Silicone Rubber Wire Cable

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.


4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.


5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!


  • is_customized
    yes
    type
    isolated
  • Conductor type
    abandoned
    brand name
    Sakesi
  • winning material
    tinned copper
    insulating material
    silicone
  • source
    CN (source)
    qualification
    NONE
  • temperature resistance
    -60℃-200℃
    Specification
    28 26 24 22 20 18 16 14 12 10 8 6 AWG
  • material
    silicone, tinned copper
    Scope of application
    Lithium battery, model aircraft, DIY
