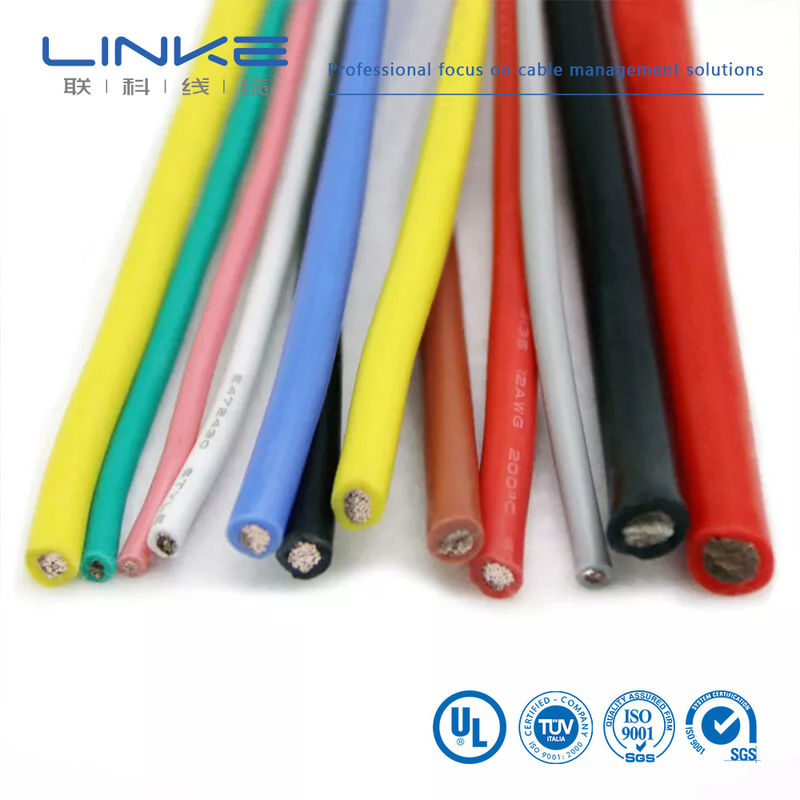

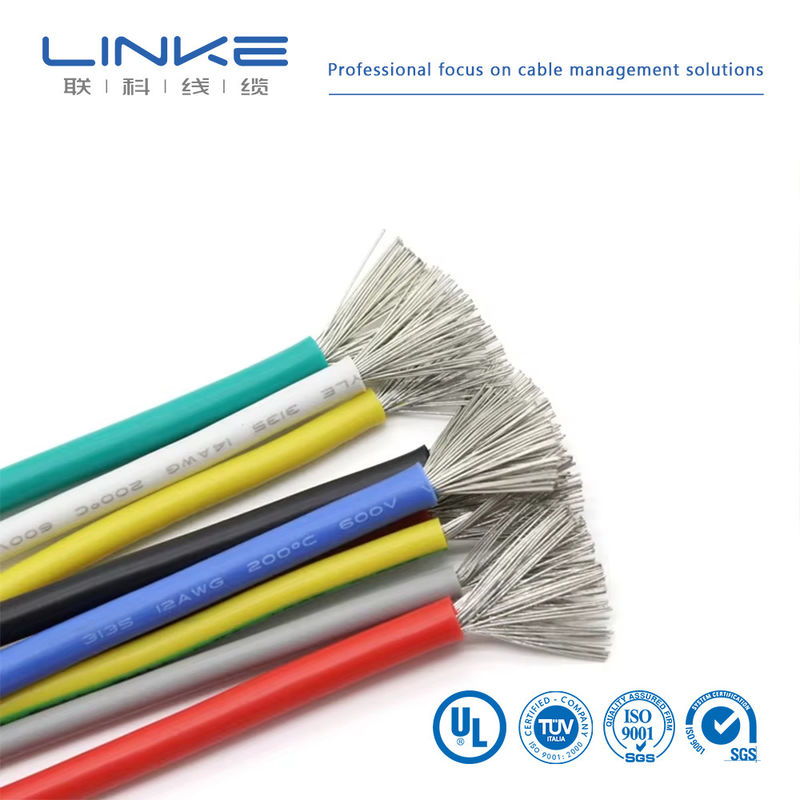

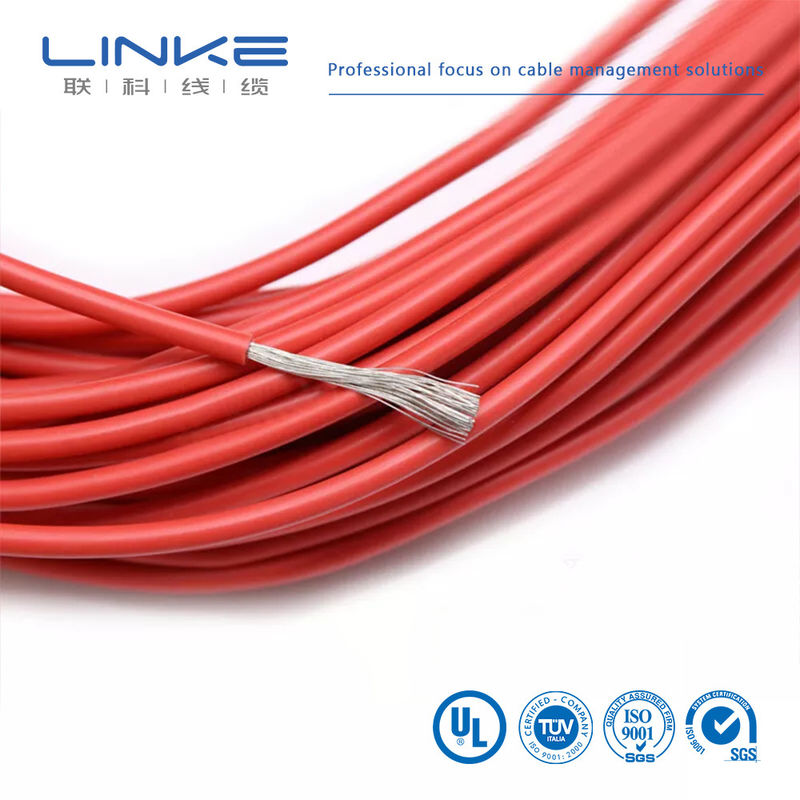

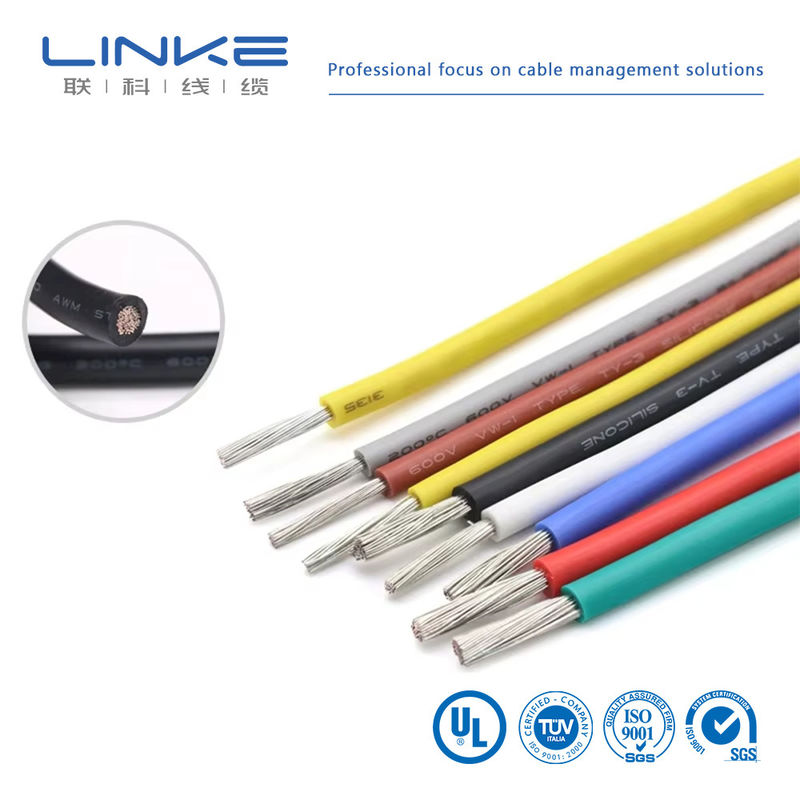

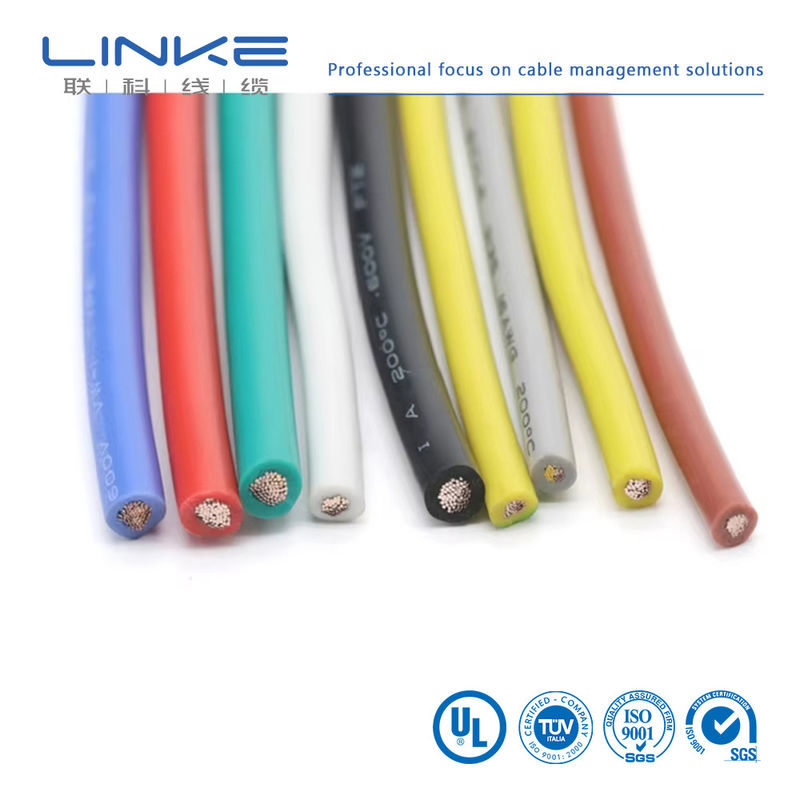

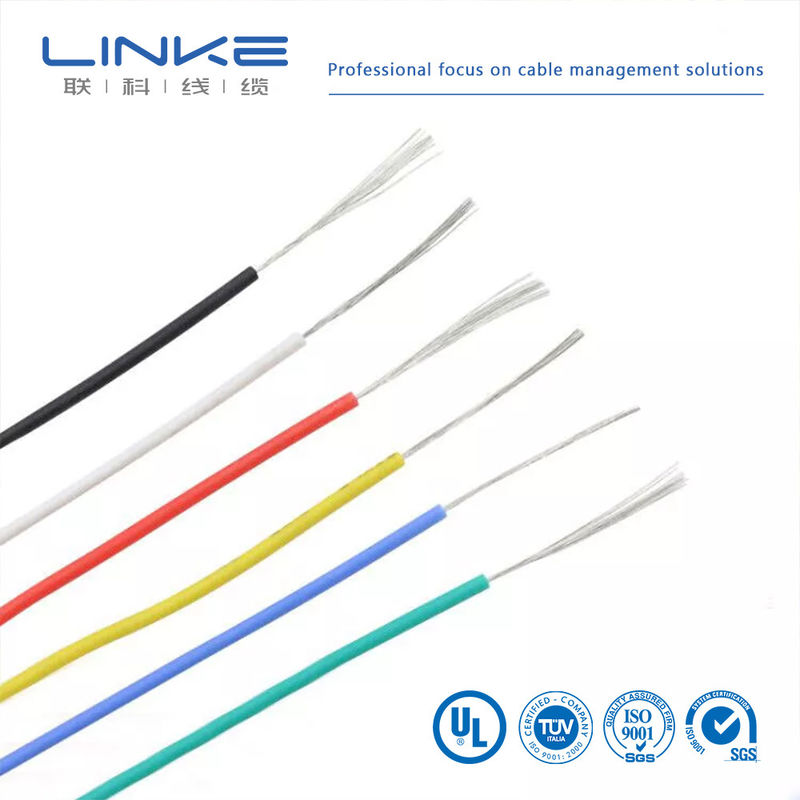

UL3135 Silicone Wire 10/12/14/16/18/20/24/26/28/30AWG Soft Tinned Copper Cable
Product Description
Wire brand: LINK CABLE
Product specification: UL3135 20AWG silicone wire
Wire conductor: 32/0.14TS tinned copper wire
Wire square: 0.5mm ²
Completed outer diameter: 2.48mm
Rated voltage: 600V
Temperature range: -60 ° C~200 ° C
Wire gauge: American gauge
Certification: UL3135 Silicone Wire Certification from the United States
Insulator: Silicone rubber
Outer diameter tolerance: ± 0.10mm

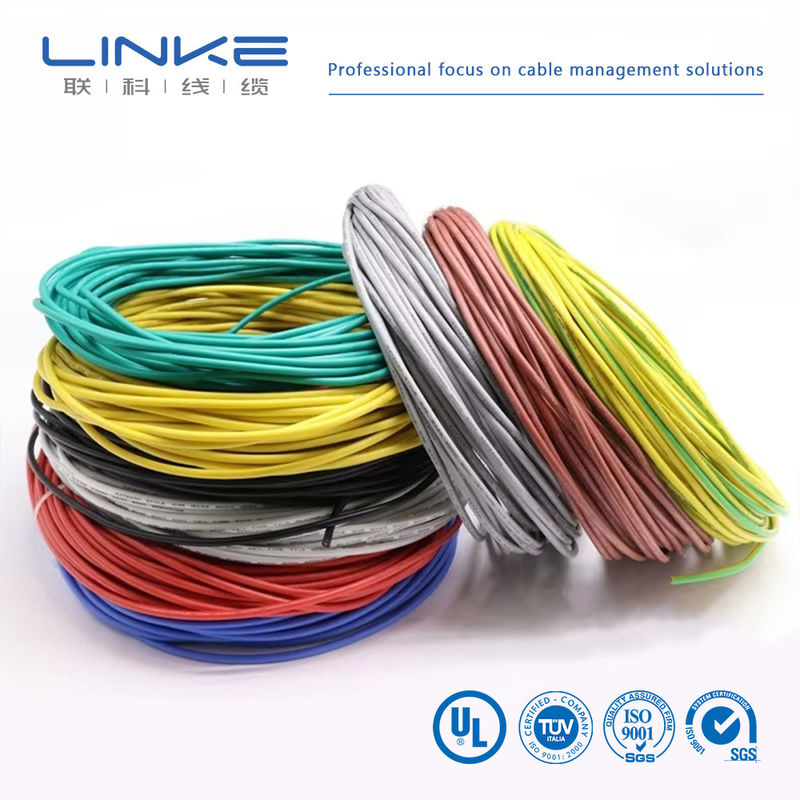

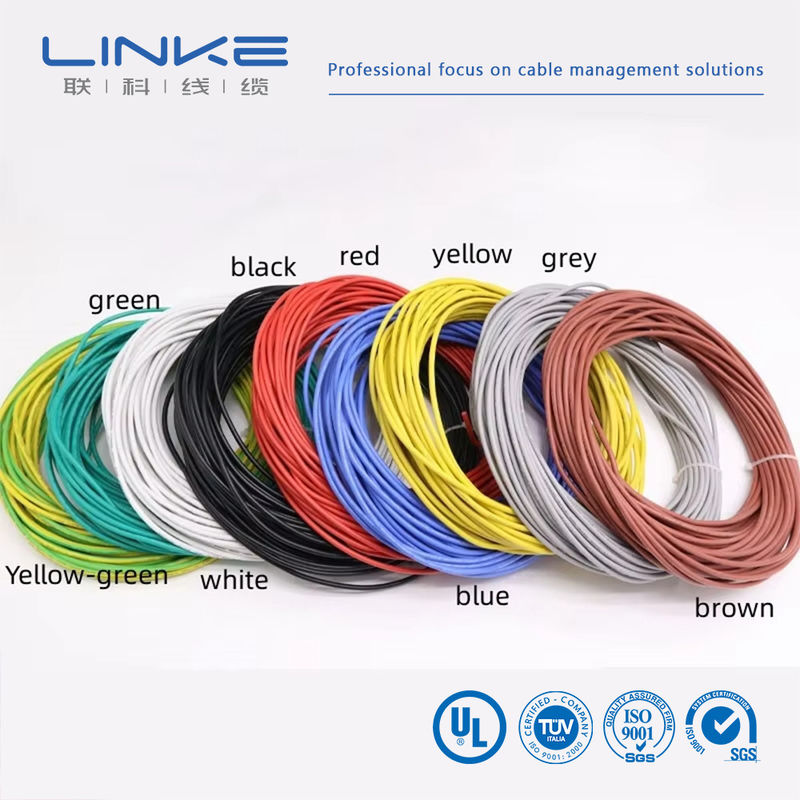

Wire colors: red, black, green, yellow, blue, brown, white, orange, transparent, yellow green

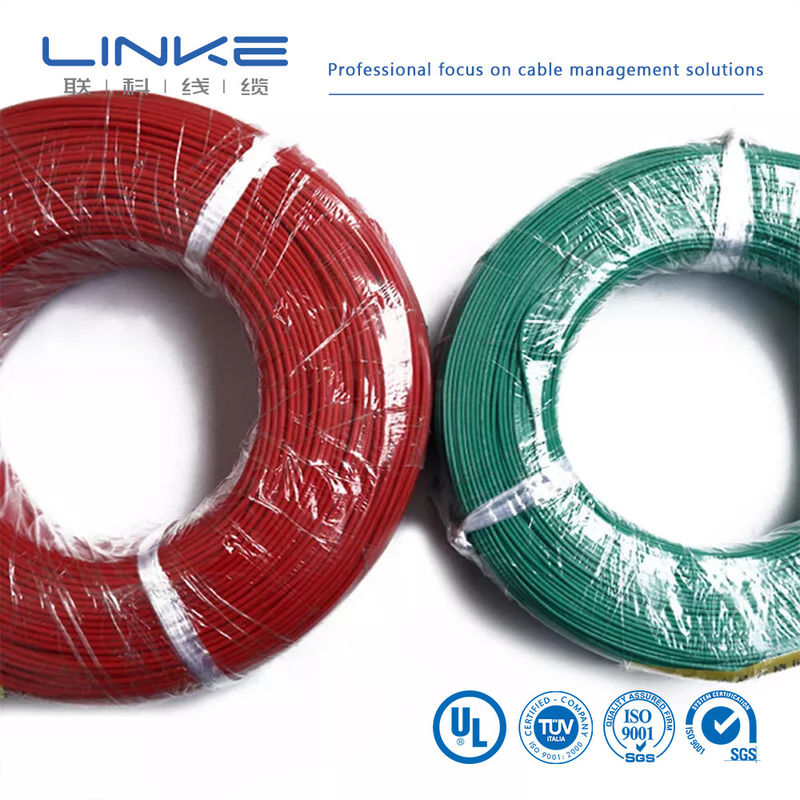

Product packaging: 305 meters per roll
Silicone product characteristics
1. High temperature performance. The prominent feature of silicone rubber is its high temperature stability. Although the strength of silicone rubber at room temperature is only half of natural rubber or some synthetic rubber, it can still maintain a certain degree of flexibility, resilience, and surface hardness in high temperature environments above 200 ℃, and there is no significant change in mechanical properties.
2. The glass transition temperature of low-temperature performance silicone rubber is generally -70~-50 ℃, and special formulations can reach -100 ℃, indicating its excellent low-temperature performance. This has significant implications for the aviation and aerospace industry.
3. The Si-O-Si bond in weather resistant silicone rubber is highly stable to oxygen, ozone, and ultraviolet radiation, and has excellent weather resistance without the addition of any additives.
4. Electrical performance. Silicone rubber has excellent insulation properties, as well as excellent resistance to corona discharge and arc.
5. Physical and mechanical properties. The physical and mechanical properties of silicone rubber at room temperature are inferior to general rubber, but its physical and mechanical properties are superior to general rubber at high temperatures of 150 ℃ and low temperatures of -50 ℃.
6. Oil and chemical resistance. Ordinary silicone rubber has moderate oil and solvent resistance.
7. Gas permeability performance. At room temperature, the permeability of silicone rubber to gases such as air, nitrogen, oxygen, and carbon dioxide is 30-50 times higher than that of natural rubber.
8. Physiological inertia. Silicone rubber is non-toxic, odorless, tasteless, and does not adhere to human tissues. It has anticoagulant properties and has very little reactivity to body tissues. Especially suitable as a medical material.
Scope of application
Silicone wires are suitable for connecting various household appliances, lighting fixtures, industrial machinery, electric heating products, power equipment, new energy products, mechanical equipment, electric vehicles, electronic products, and other products.
Company Profile:
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable,
medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer
approach to develop better cables for customers and improve the quality of one's life.
We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.
Certification:
| Single-conductor, thermoplastic insulation |
| 1007 |
1330 |
1333 |
1591 |
1723 |
10064 |
10369 |
|
| 1015 |
1331 |
1569 |
1592 |
1901 |
10070 |
10483 |
| 1185 |
1332 |
1577 |
1672 |
10012 |
10269 |
|
| Multiple-conductor, thermoplastic insulation |
| 2095 |
2129 |
2468 |
2586 |
2725 |
20233 |
20280 |
20963 |
| 2103 |
2463 |
2517 |
2587 |
2835 |
20276 |
20549 |
21198 |
| 2104 |
2464 |
2576 |
2661 |
2919 |
20279 |
20886 |
21664 |
| Single-conductor, thermoset insulation |
| 3075 |
3173 |
3320 |
3386 |
3530 |
3689 |
30005 |
|
| 3123 |
3212 |
3321 |
3398 |
3577 |
3702 |
|
| 3132 |
3266 |
3331 |
3512 |
3644 |
3817 |
| 3135 |
3271 |
3385 |
3529 |
3674 |
3886 |
FAQ:
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
