UL Certified EV Charger Cable with Tinned Copper Conductor and 300V Rated Voltage for Electric Vehicles

OEM Electric Vehicle Cable

Tinned Wire Core Electric Vehicle Cable

Electric Vehicle Cable 32A

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-269

Insulation Material:

XLPE

Material Shape:

Round Wire

Wire Core Material:

Tinned Wire

Name:

EV Charging Cable

Copper:

Tinned Copper

Core:

Multiple

Application:

Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car

Voltage:

Low And Medium Voltage Cable

Current:

300V

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Lead Time:

7-15days

Highlight:

OEM Electric Vehicle Cable

Tinned Wire Core Electric Vehicle Cable

Electric Vehicle Cable 32A

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Electric Wire HV DC AC Electric Electrical Vehicle EV Charger Cable(32A 16A )

Get Best Price

Video

UL Certified EV Charger Cable with Tinned Copper Conductor and 300V Rated Voltage for Electric Vehicles

Get Best Price

Video

Automotive Industrial Wire Cable Harness OEM ODM Auto Molex Jst Connector Plug EV Charger Cable

Get Best Price

Video

1000V Customized Copper Conductor EV Charging Cable with Energy Liquid Cooled TPU Sheath

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

UL 40A 50A 3x8AWG+1x18AWG EV Charger Cable

Electrical Specifications

Rated current: 16A
Working voltage: 250V AC
Insulation resistance: >1000MΩ
Thermal temperature rise: <50K
Withstand voltage: 2000V
Working temperature: -30℃ to +50℃
Compliant with IEC 62196-2 Electric Vehicle Charger Cable Standards

Product Overview

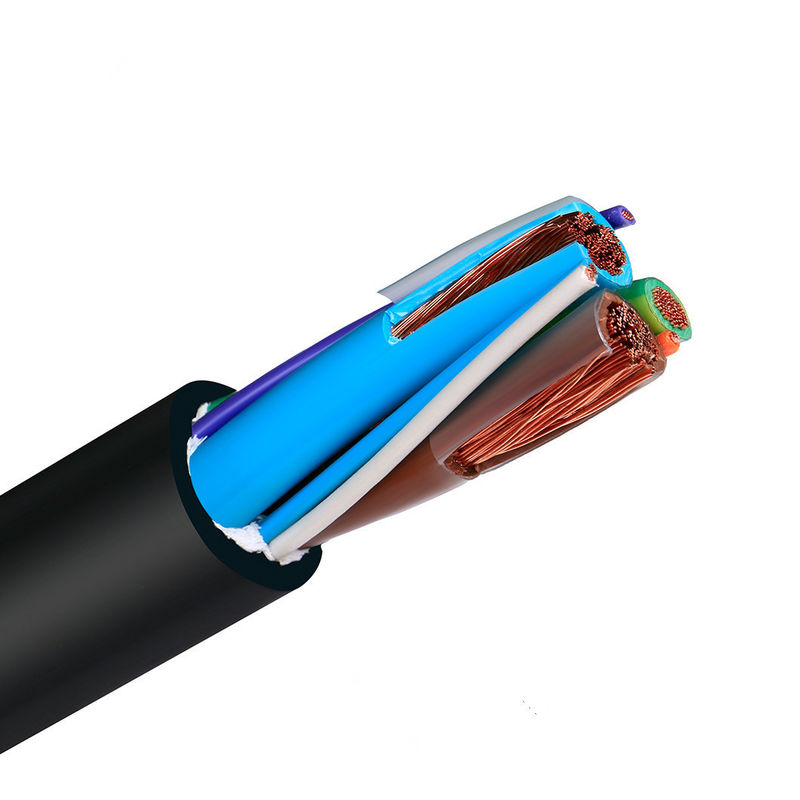

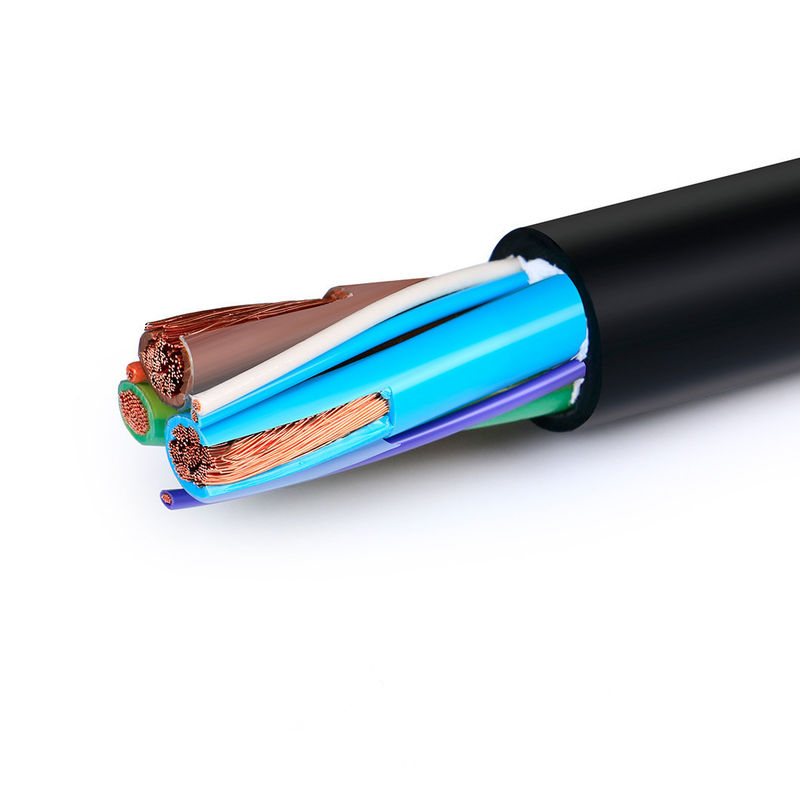

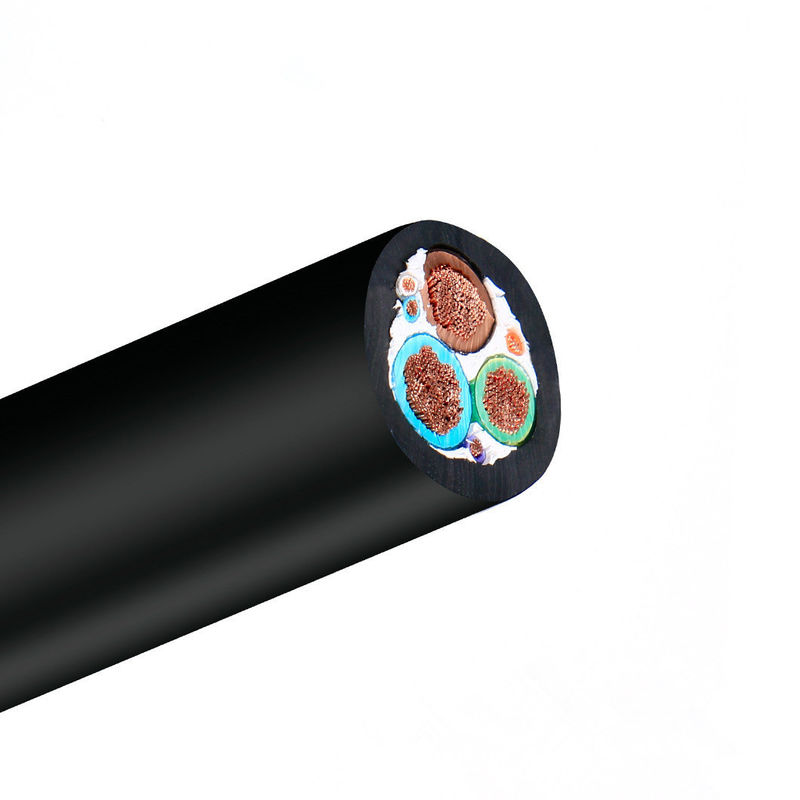

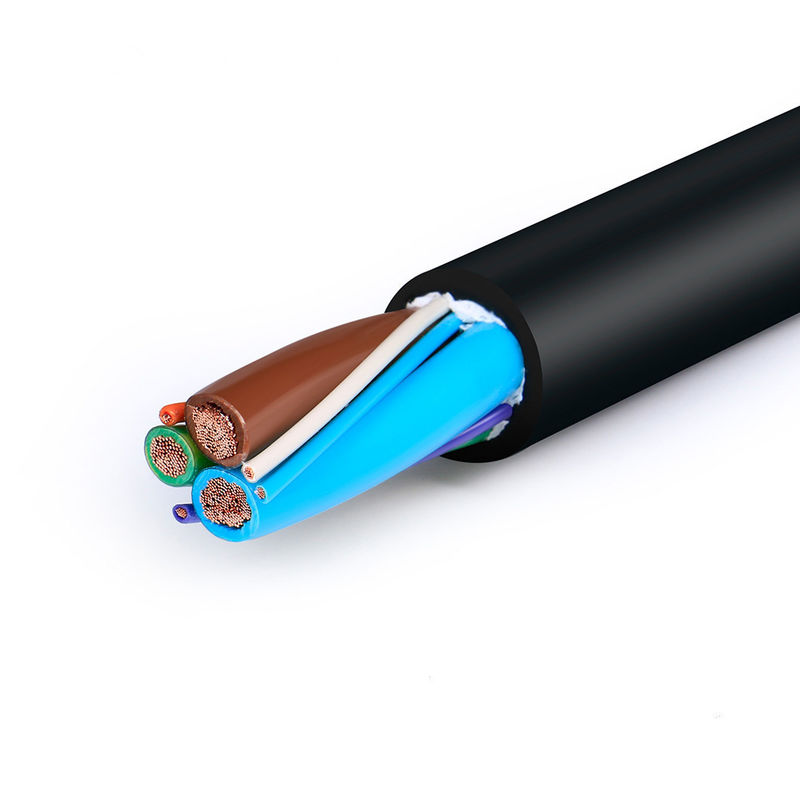

UL standard single-phase 32A electric vehicle charging cable 3*10AWG+1*18AWG

EV charging cable is a flexible cable that connects electric vehicles to charging stations or power sockets. Featuring high-quality oxygen-free copper conductors for excellent conductivity, TPE insulation material that is both soft and durable, and a high-performance TPE sheath with weather resistance, high/low temperature tolerance, and friction resistance. The cable offers superior flexibility, elasticity, high bending capability, and maintains performance in low temperatures without hardening.

Technical Specifications

Component	Specifications
Conductor	Material: Bare copper Rated temperature: -40℃ to 105℃ Rated voltage: 300V; 600V or 1000V
Insulation	Material: TPE or PVC Color: Black, White, Green/Yellow Flame Test: VW-1 test method per UL 2556 Minimum bending radius: ≥5*OD Dielectric voltage: 1.5kVac/1min per UL 2556 Cold bending: -40℃/4h no crack per UL 2556 Thermal shock: 150℃/1h no crack per UL 2556
Filling	Material: PP wire Oil resistance: IRM902, 60℃/168h tensile elongation ≥70% unaged value
Tape	Material: Non-woven fabric Compressive strength: S≤12AWG 4.45kN, 12AWG＜S≤2AWG 11.1kN, 2AWG＜S 15.6kN
Sheath	Material: TPE or PVC Color: Black or Orange Weather resistance: 720h xenon arc lamp test, no cracks Environmental compliance: RoHS 2.0 and REACH

Company Capabilities

We maintain a strong R&D team with 6 engineering professionals, each possessing over 10 years of wire and cable technology experience. Our engineering department provides professional cable solutions to ensure accurate and effective customer support. The quality control department includes 10 specialists who strictly supervise every step from incoming materials to shipping, guaranteeing 100% product quality. Our production team consists of over 50 experienced manufacturing professionals.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We manage your order from beginning to end. Welcome to visit us - we provide pickup service in Shenzhen.

How can I get a sample to test your quality?

Samples are provided free of charge. New customers are responsible for courier costs.

What's your Minimum Order Quantity?

Normally 100 meters. However, due to the cable's weight, we recommend ordering suitable quantities to minimize freight costs. Sea transportation is the most economical option.

Can I get a discount?

Discounts are available based on order quantity. We may also cover freight costs. Please contact us for details.

Does your company accept OEM production?

Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
