Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Automobile Wire Charging Harness

Hv Wiring Harness

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EVC02

Jacket:

Silicone

Use:

Charging

After-sales Service:

1 Year

Type:

Fast EV Charging Station

Warranty:

1year

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 50.00cm * 50.00cm

Package Gross Weight:

30.000kg

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

Automobile Wire Charging Harness

Hv Wiring Harness

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

305 Cable Length EV Charging Cable with IEC 62196-2 Type 2 and SAE J1772 Type 1 Connectors

Get Best Price

Video

UL 600V 16AMP 314AWG+118AWG AC EV Wire EV Charging Cable

Get Best Price

Video

2.5mm Tinned Copper Conductor Multiple Core Automotive Cable for Heavy-Duty Vehicle Wiring

Get Best Price

Video

Silicone Harness Wire EV Charger Cable

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

US Super Soft Automobile Wire Charging Energy Logistics Vehicle HV Wiring Harness

High-performance wiring harness designed for electric vehicle charging systems and logistics vehicles, featuring superior flexibility and durability.

Product Specifications

Cable Configuration

2C×80mm² + 1C×25mm² + 2C×4mm² + (3C×0.75mm²)(P2) + (7C×0.75mm²)

RoHS Compliant

Conductor Details

Item	Material	Size	O.D. (Ref.)
A: 2C×80mm²	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B: 1C×25mm²	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C: 1C×4mm²	Bared copper stranded	224/0.15±0.008mm + 10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D: (3C×0.75mm²)(P2)	Bared copper stranded	40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar	1.40±0.10mm
E: (7C×0.75mm²)	Bared copper stranded	40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar	1.40±0.10mm

Insulation Specifications

Material	Min. Average Thickness	Min. Thickness at Any Point	O.D.
Thermoplastic (EF2585, 85±3A)	1.60mm	1.34mm	15.60±0.40mm

Electrical Characteristics

Electrical Properties

Rated voltage: DC 1000V
Rated temperature: Jacket -40~90°C, Insulation -40~125°C
Max. conductor resistance (20°C): A:0.242Ω/km, B:0.78Ω/km, C:4.95Ω/km, D&E:26Ω/km
Insulation voltage withstand (Core A & B, 10m): AC 2.5kV/5min, leakage current ≤5mA
Completed cable voltage withstand (Core A to A & B, 10m): AC 3.5kV/15min, leakage current ≤5mA
Min. insulation resistance (20°C, Core A to A&B): 500MΩ.km

Physical Properties

Tensile strength: ≥20MPa
Elongation: ≥300%
High temperature pressure test: ≤50%
Heat shock test: No crack
Compatibility test: GB/T 33594
Flame test: GB/T 18380.12-2008
Min. bend radius: 6×OD
Abrasion resistance: ≥2000 times

Product Features

Conductor: Flexible bare annealed copper wire
Insulation: Silicone
Available in Black, Orange, Red, or Yellow Blue jacket
Single & double insulated options
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C
Low viscosity appearance

Product Images

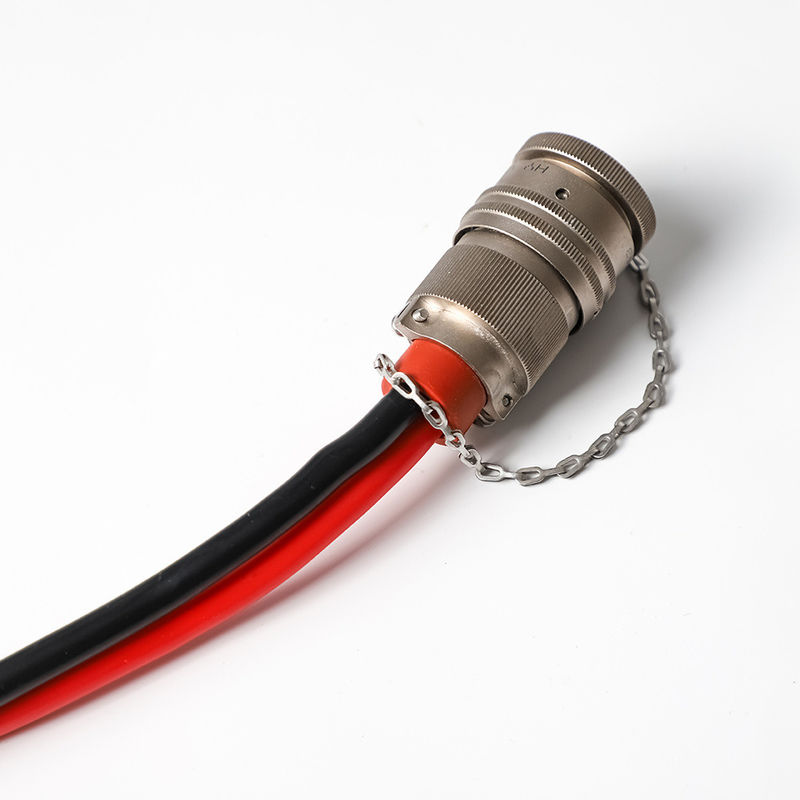

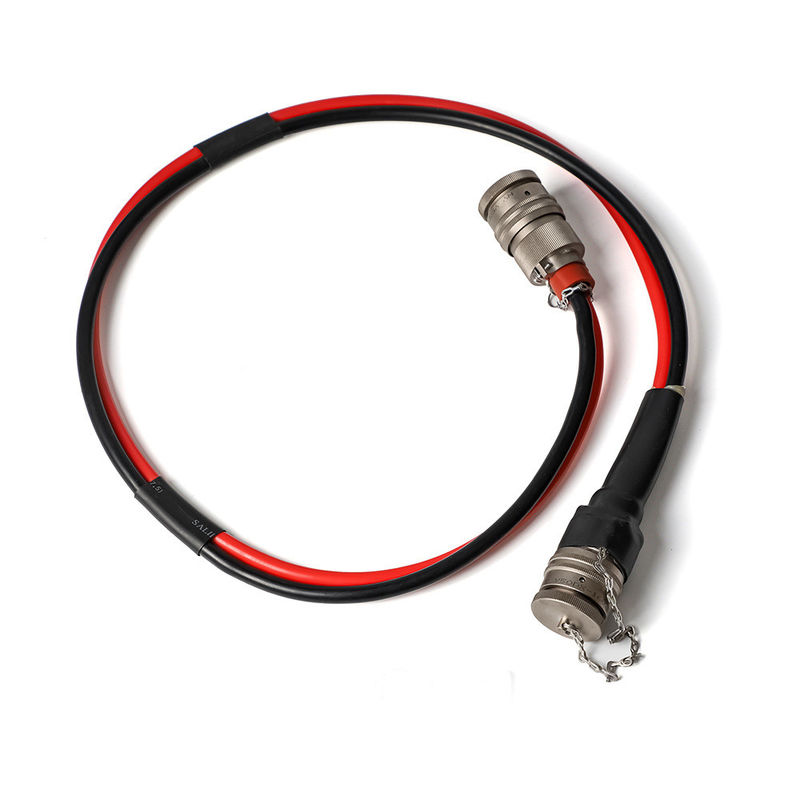

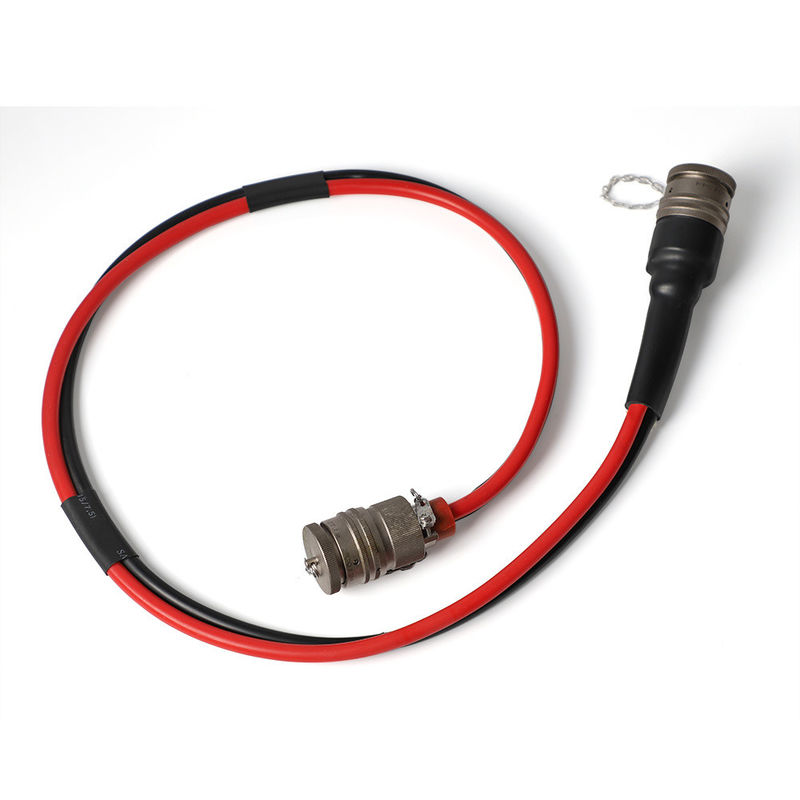

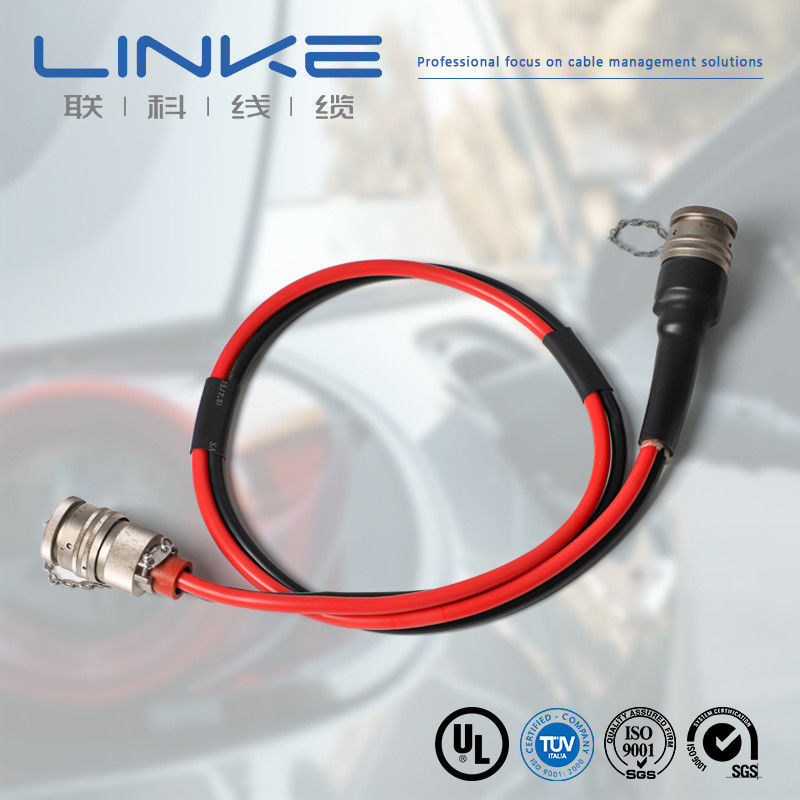

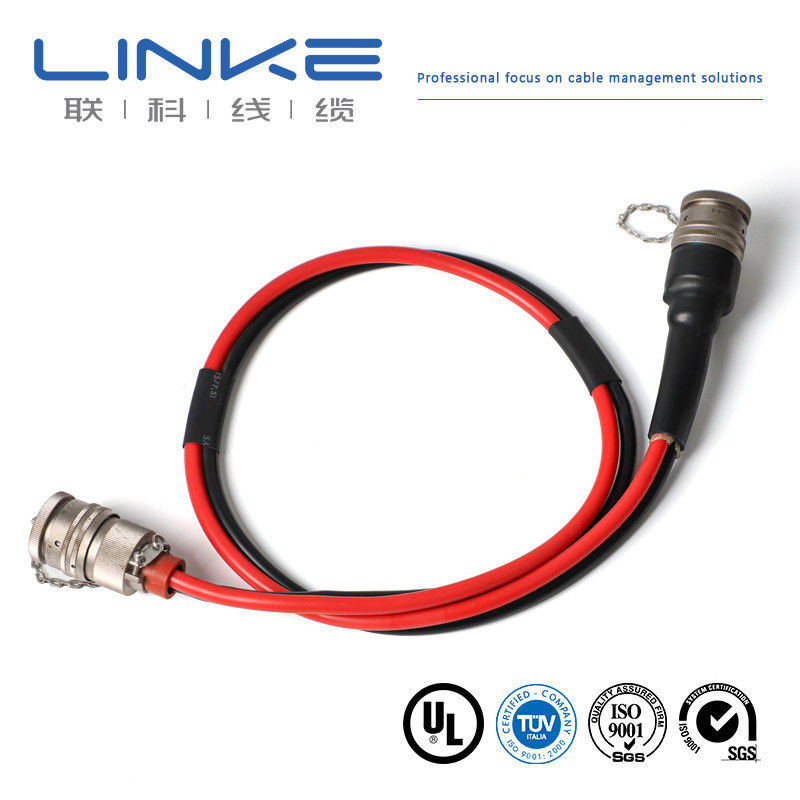

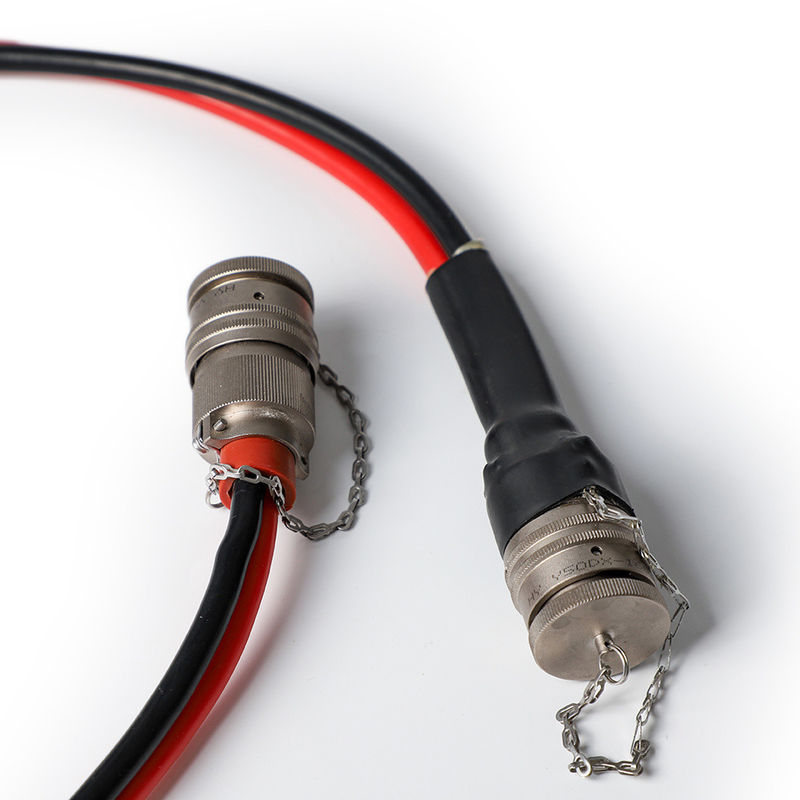

Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Certifications

Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
