1200A AMP Silicone Jacket EV Charging Cable with Customized Plug Type for Electric Vehicle Charging Assembly

EV Charging Pile Wire Harnesses

Silicone Jacket Energy EV Charging wire

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV15

AMP:

1200A

Color:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Jacket:

Silicone

Use:

Charging

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

EV Charging Pile Wire Harnesses

Silicone Jacket Energy EV Charging wire

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

32A 7kw 16A EV Charger Cable Electric Vehicle Charging Cable with TPE Jacket and Customizable Length

Get Best Price

Video

Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Get Best Price

Video

1200A AMP Silicone Jacket EV Charging Cable with Customized Plug Type for Electric Vehicle Charging Assembly

Get Best Price

Video

PVC Insulation 1000V High Voltage Power Cable with Tinned Copper Core for EV Charger

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Silicone Jacket Energy EV Charging Pile Wire Harnesses Assembly

High-performance EV charging cable assembly designed for reliable power transmission in electric vehicle charging applications.

Cable Specifications

Specification	Cable Name	EV Cable
Cable Spec	2C80mm²+1C25mm²+2C4mm²+(3C0.75mm²)(P2)+(7C*0.75mm²)
RoHS Compliant	Yes

Conductor Details

Item	Material	Size	O.D.(Ref.)
A: 2C*80mm²	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B: 1C*25mm²	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C: 1C*4mm²	Bared copper stranded	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D: (3C*0.75mm²)(P2)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	1.40±0.10mm
E: (7C*0.75mm²)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar	1.40±0.10mm

Insulation Properties

Material	Min. Average Thickness	Min. Thickness at Any Point	O.D.
Thermoplastic (EF2585,85±3A)	1.60mm	1.34mm	15.60±0.40mm

Electrical Characteristics

Parameter	Value
Rated Voltage	DC 1000V
Rated Temperature	Jacket -40~90ºC, Insulation -40~125ºC
Max. Conductor Resistance (20ºC)	A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage Withstand	AC 2.5kV/5min, leakage current ≤5mA
Completed Cable Voltage Withstand	AC 3.5kV/15min, leakage current ≤5mA
Min. Insulation Resistance (20ºC)	500MΩ.km

Physical Properties

Property	Value
Tensile Strength	≥20MPa
Elongation	≥300%
Min. Bend Radius	6*OD
Abrasion Resistance	≥2000 times

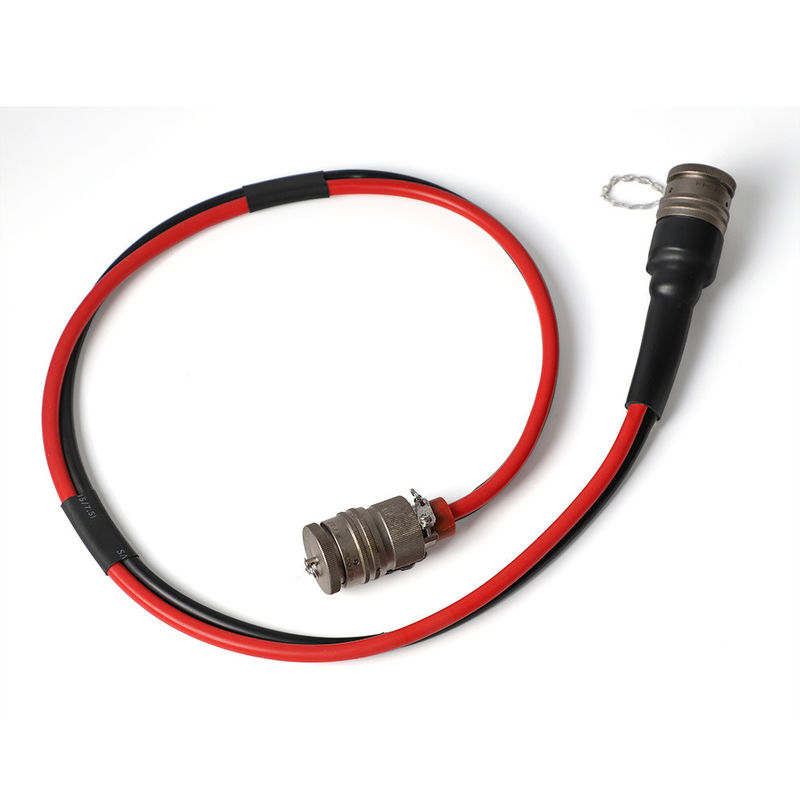

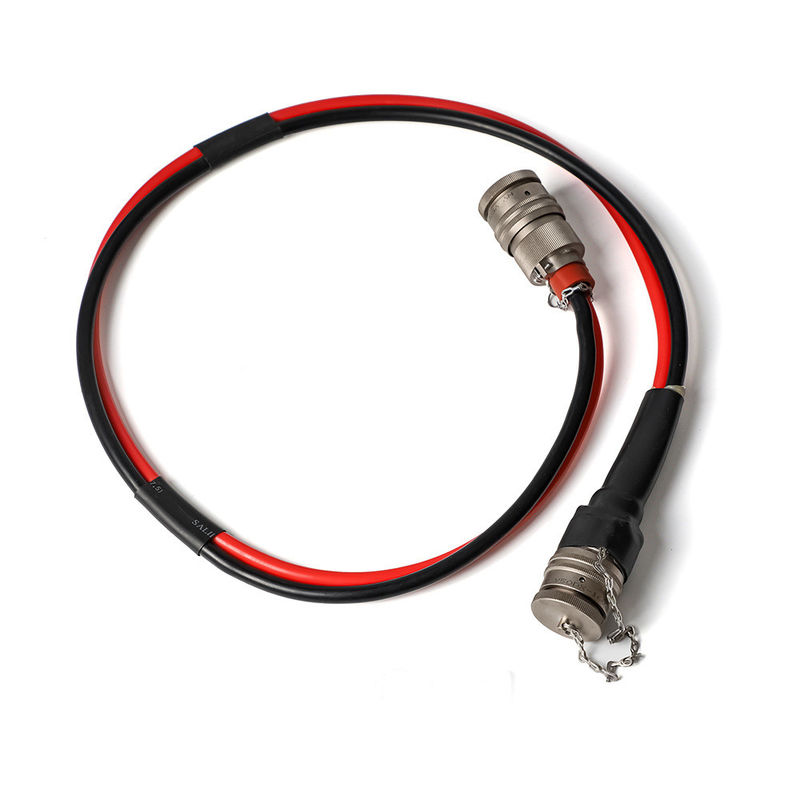

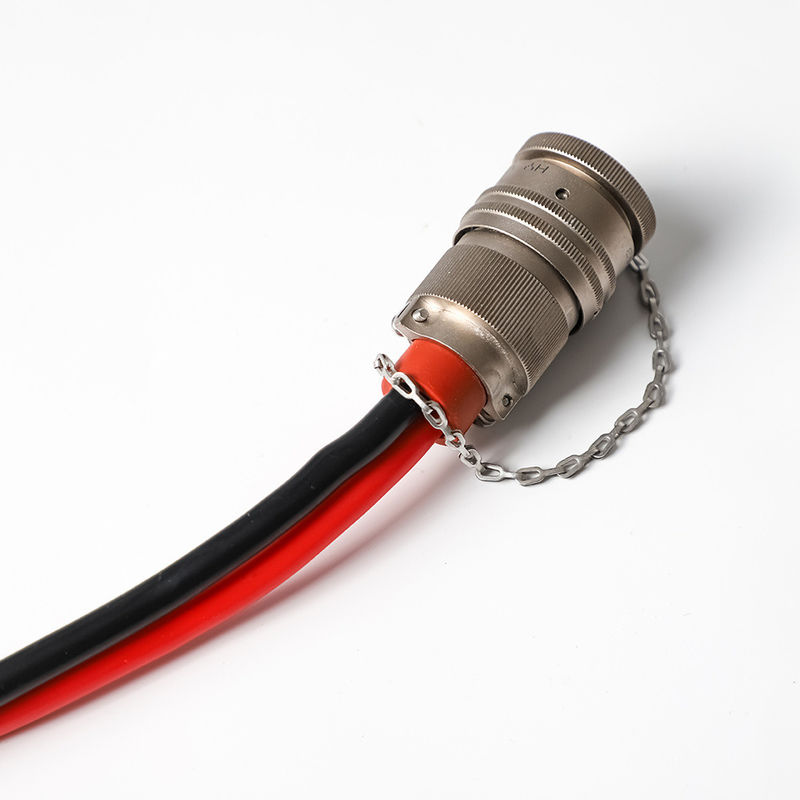

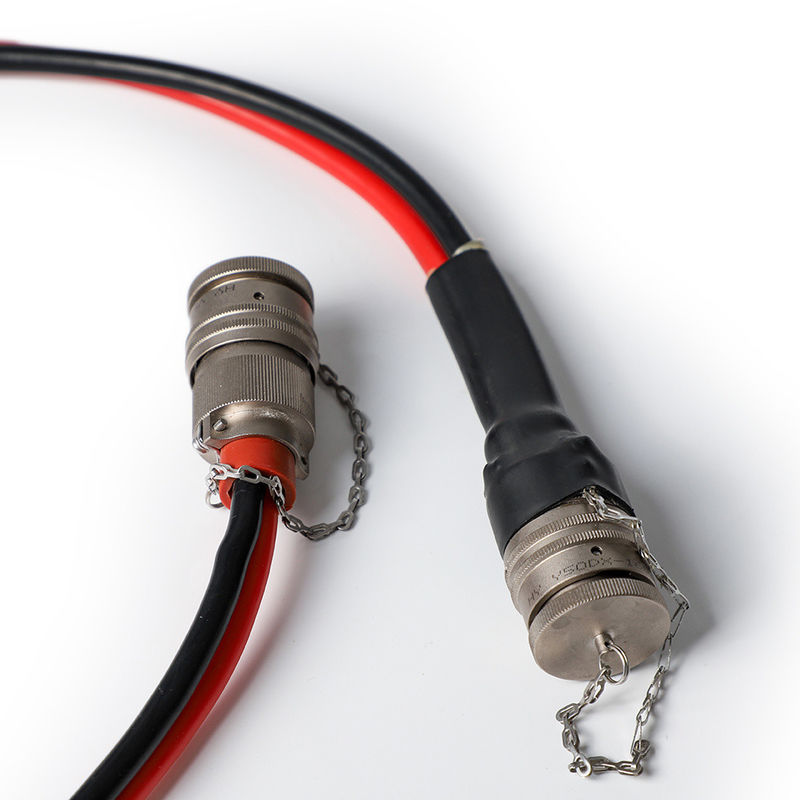

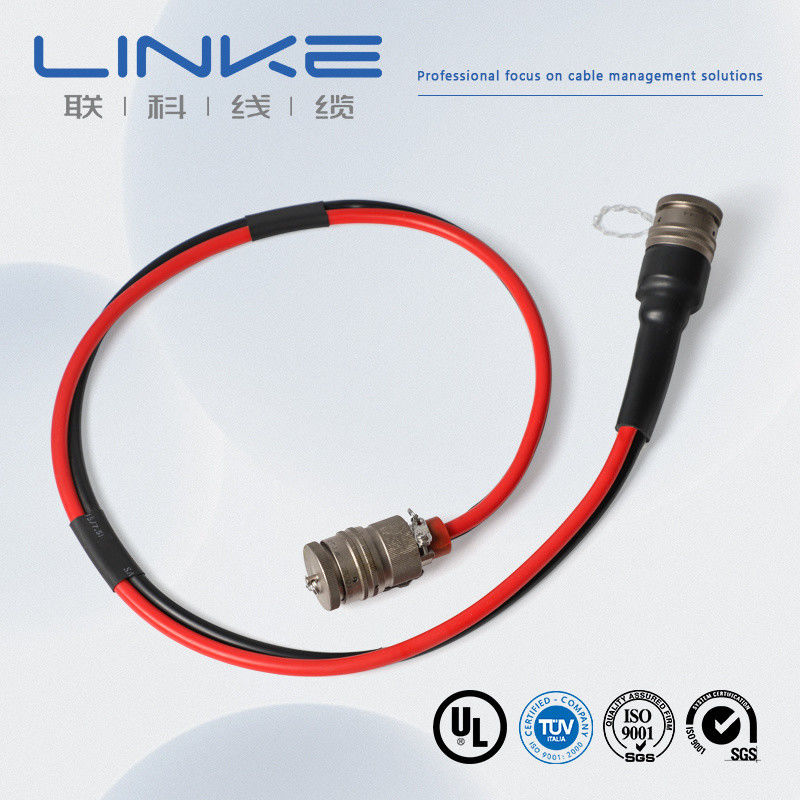

Product Images

1200A AMP Silicone Jacket EV Charging Cable with Customized Plug Type for Electric Vehicle Charging Assembly

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5* cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

1200A AMP Silicone Jacket EV Charging Cable with Customized Plug Type for Electric Vehicle Charging Assembly

Certifications & Standards

UL Standards: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
Additional UL Certifications: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
Quality Management: ISO9001, ISO13485, TS16949
CNR Appliance Wiring Material Compliance

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name and even customize the quality card to promote your company.
