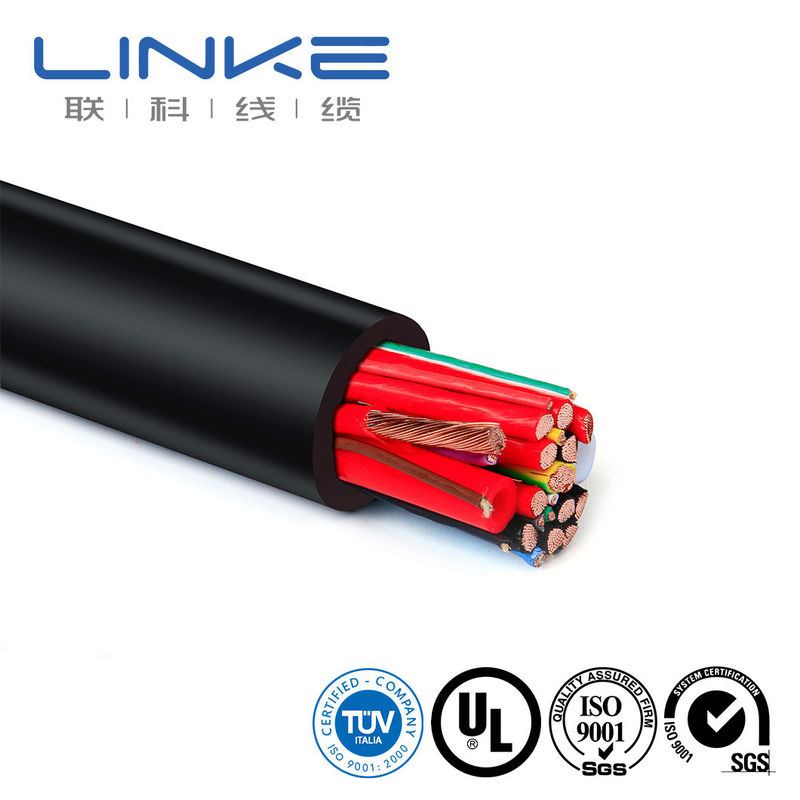

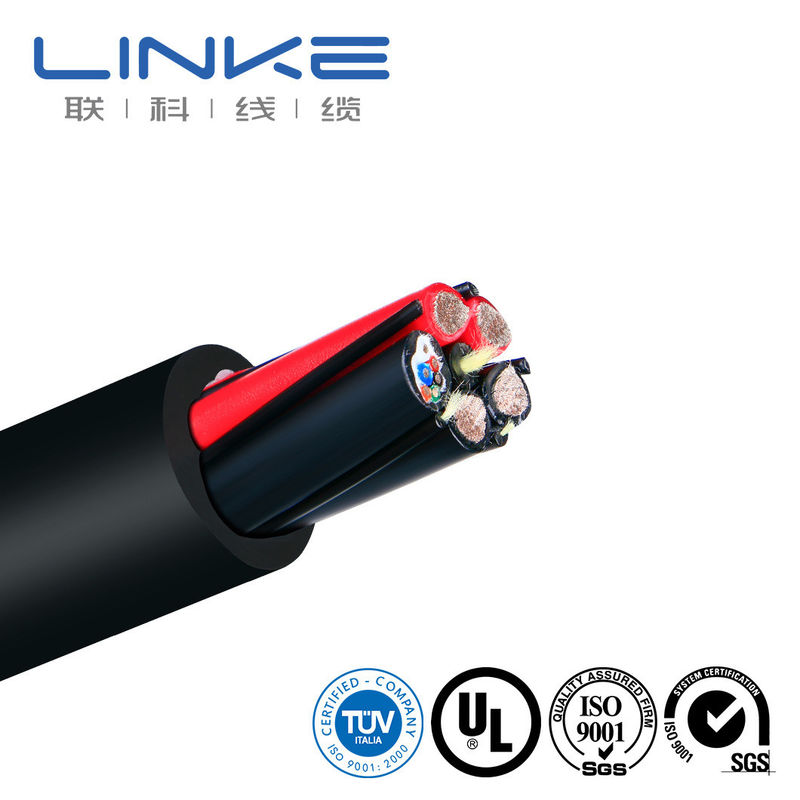

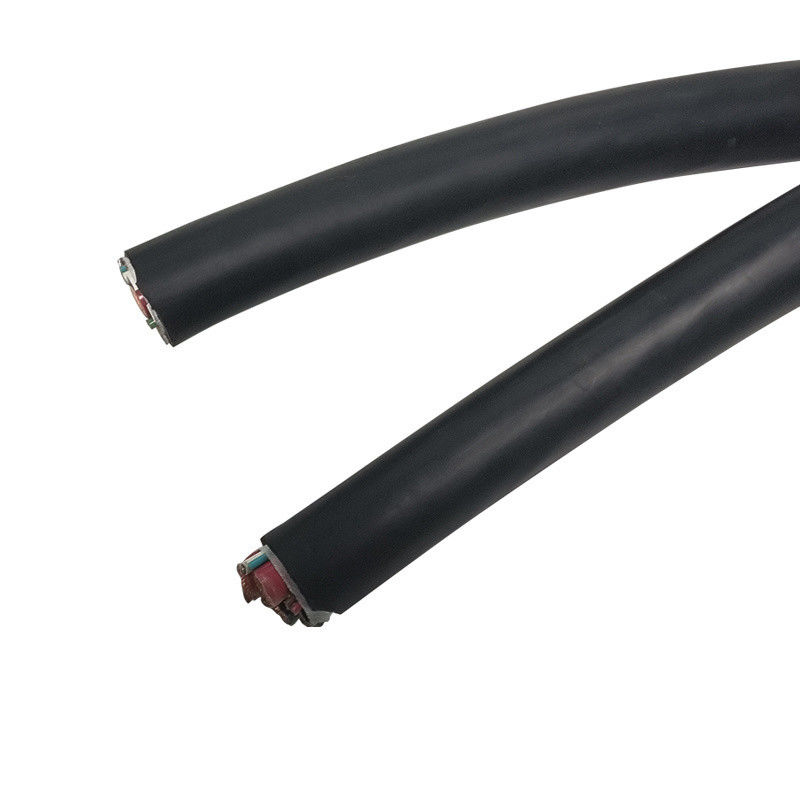

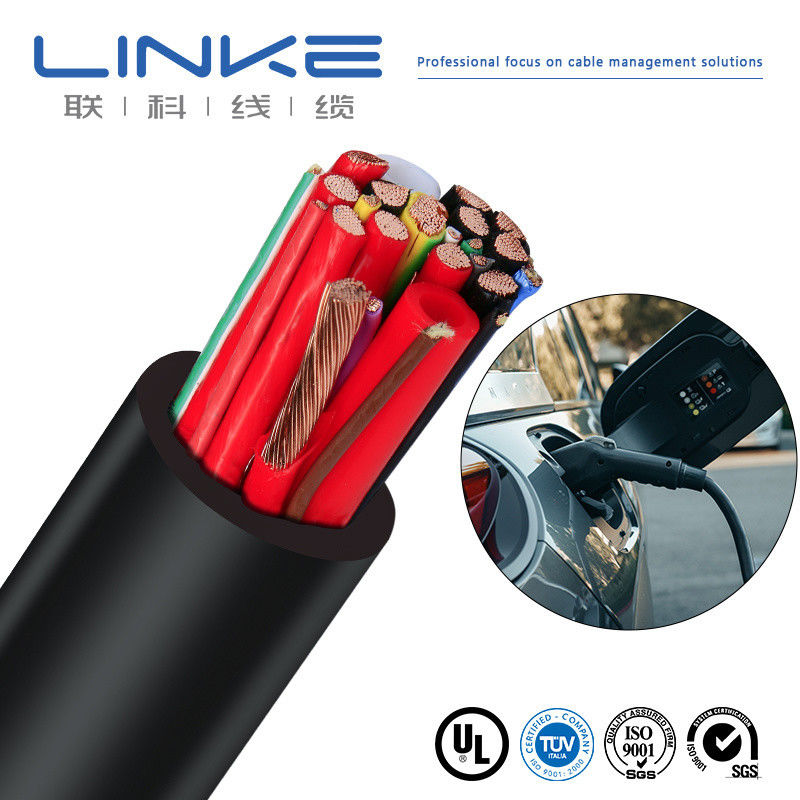

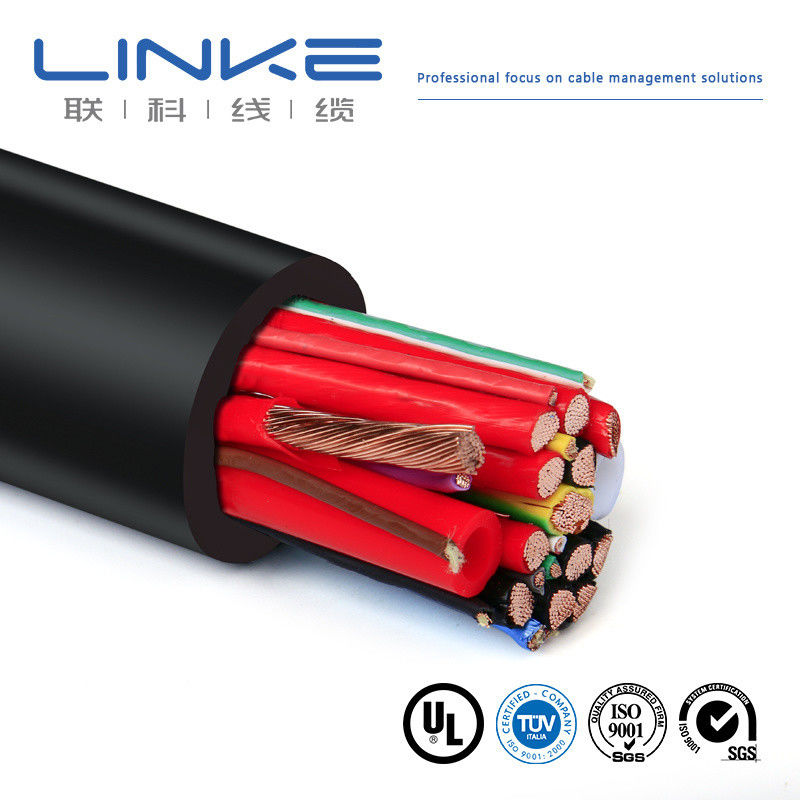

TUV Certified H07bz5-F 3G1.5mm sup2 2X0.5mm sup2 AC EV Charging Cable with Copper Core

TUV Certified H07bz5-F 3G1.5mm sup2 2X0.5mm sup2 AC EV Charging Cable with Copper Core

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
LK-C601
Color:
Black
Cable Length:
5m
Name:
EV Charging Cable
Core:
Copper
Insulated Material:
Silicone
Jacket:
PVC
Transport Package:
Carton/Roll
Specification:
Tinned Copper
Trademark:
LINKE
Origin:
China
HS Code:
8544492900
Supply Ability:
100000meter/Day
Package Size:
80.00cm * 80.00cm * 69.00cm
Package Gross Weight:
250.000kg
Lead Time:
10 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
Rated Current:
32A
Phase:
Three Phase
IP Grade:
IP65
Samples:
US$ 10/Meter 1 Meter(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

TUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging Cable

Product Description

Product Features:

√ It is used to connect charging between the car and the charging pile
√ Flexible and easy to bend
√ Good delay combustibility,Pass single vertical flame test
√ Excellent heat resistance, aging resistance, thermal overload resistance, low temperature resistance,
liquid resistance, oil resistance, damp heat resistance, UV resistance, ozone resistance, etc.

Standard: EN50620:2017;IEC62893-3:2017
Conductor: Bare or tinned copper stranded,comply with IEC60228/VDE0295 class 5 or class 6
Rated Voltage: 300V/500V;450V/750V
Min.Installation&Handling Temp.: ~35ºC(EN50620)                   ~25ºC(IEC62893) Max. Storage Temp.: 40ºC(EN50620)          45ºC(IEC62893)
Max.Temp. at Conductor: 90ºC Min. bend radius: 5D(D:OD)
Jacket: TPU or XLPE Insulation XLPE
RoHS: Approved Reach: Approved

Model Applicable flexible cord Certificate
H05BZ5-F
62893 IEC 121
3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm² (n=0~8) TUV
H05BZ6-F
62893 IEC 122
3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm²(n=0~8)
H07BZ5-F
62893 IEC 123
3G1.5mm²+n*0.5mm²~1.0mm²(n=0~8)
3~5G2.5mm²~35mm²+n*0.5mm²~1.0mm²(n=0~8)
H07BZ6-F
62893 IEC 124
3G1.5mm²+n*0.5mm²~1.0mm²(n=0~8)
3~5G2.5mm²~16mm²+n*0.5mm²~1.0mm²(n=0~8)
TUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging Cable



Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

wire and cable. Linke provide various cables&custom cable solutions for all over the world.

We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and  improve the quality of one's life.
TUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging CableTUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging Cable


Certifications

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

(Single conductor,thermoplastic insulation)

UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,

UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

TUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging CableTUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging Cable


FAQ


1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.


5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
