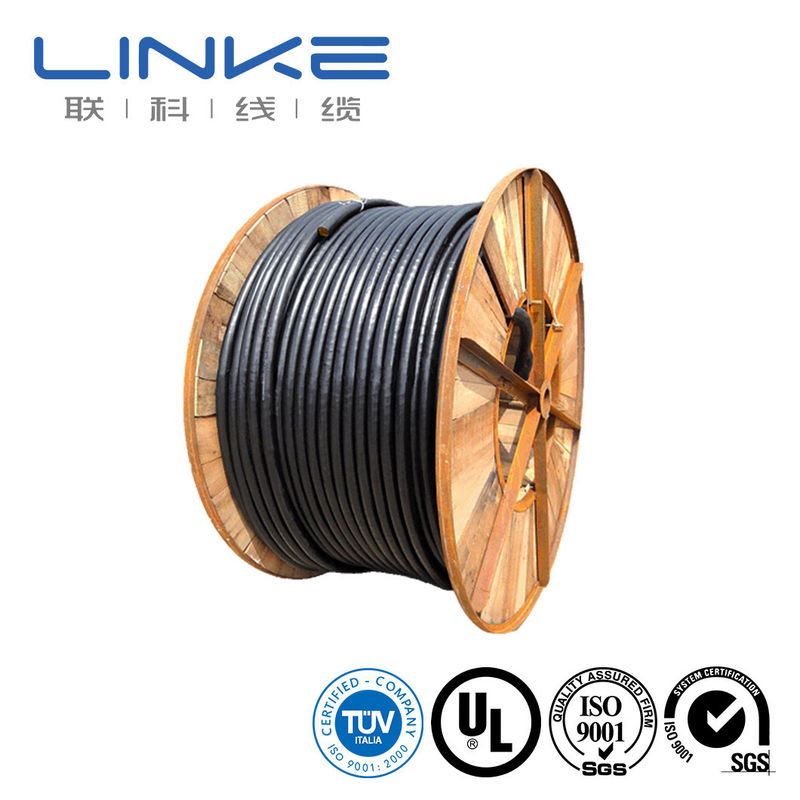

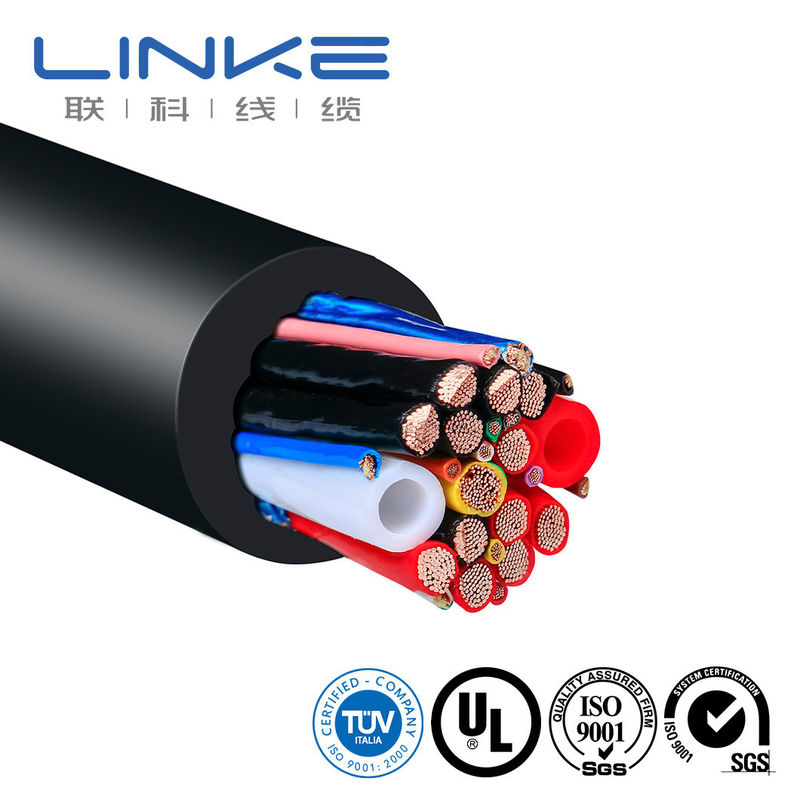

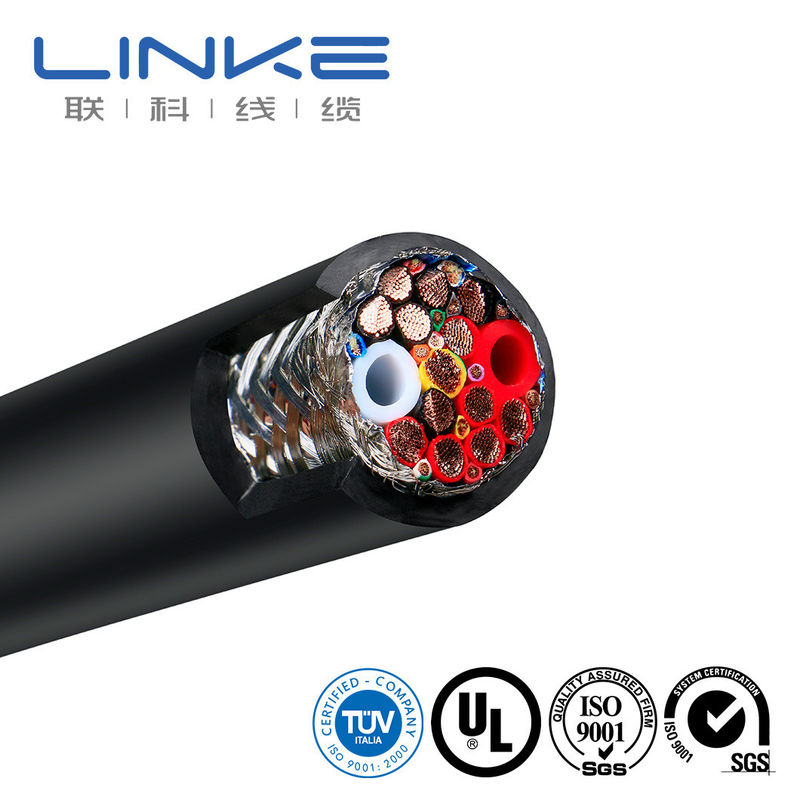

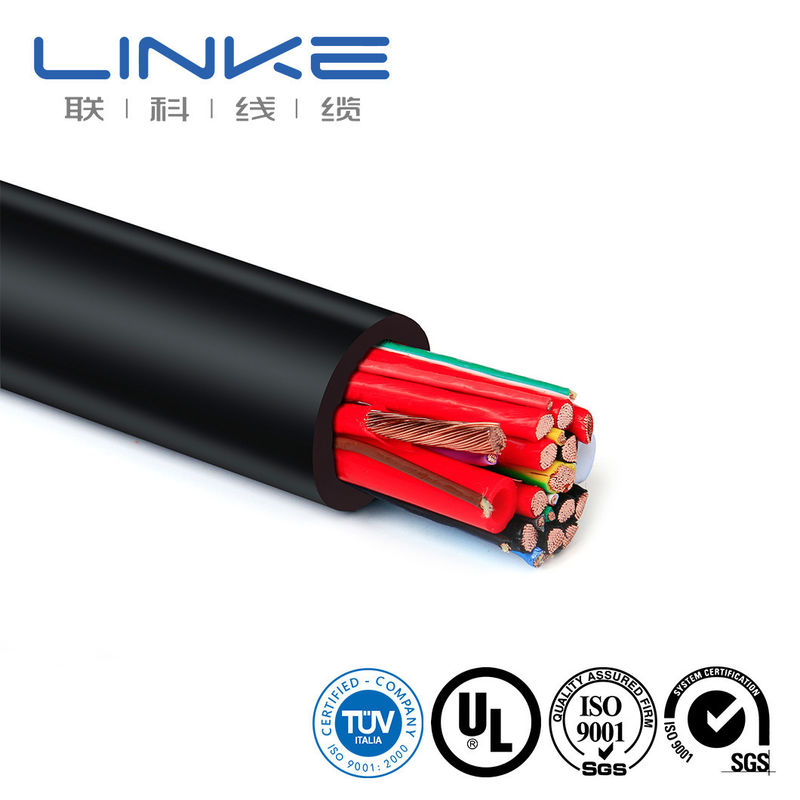

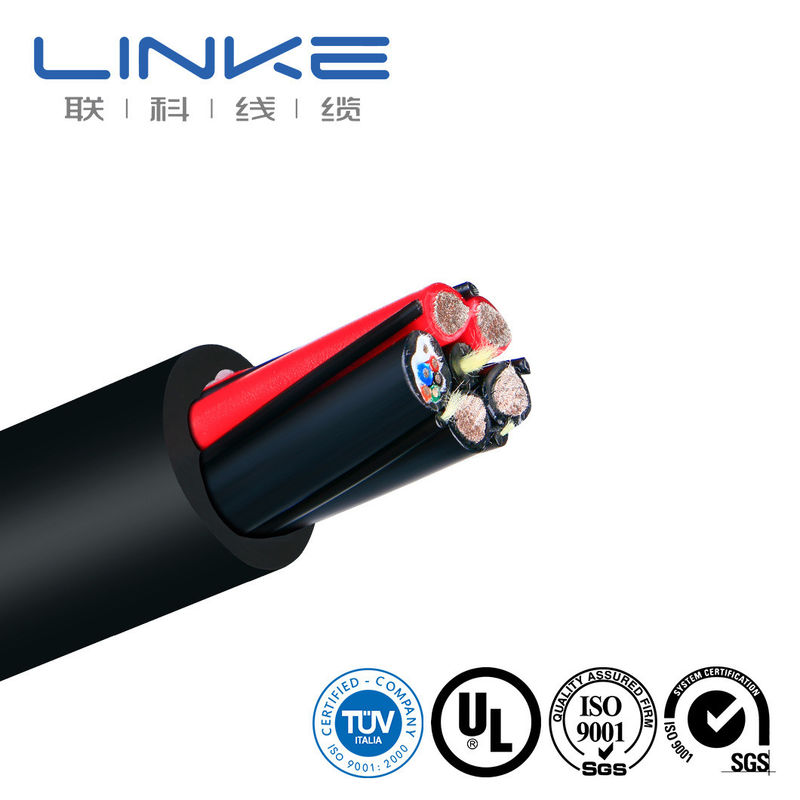

1000V Customized Copper Conductor EV Charging Cable with Energy Liquid Cooled TPU Sheath

Customized Copper Conductor EV Charging Cable

1000V EV Charging Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

OEM EV Cable

Customized:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Copper

Use:

Charging

Insulation:

Thermoplastic

Lead Time:

7-15days

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

AMP:

1200A

Color:

Customized

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Package:

By Roll

Core:

Multiple

Highlight:

Customized Copper Conductor EV Charging Cable

1000V EV Charging Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

1000V Customized Copper Conductor EV Charging Cable with Energy Liquid Cooled TPU Sheath

Get Best Price

Video

EV Flexible Cable with IEC 62196-2

Get Best Price

Video

Customizable EV Charging Cable with 600V~1000V Rated Voltage for Underground Application

Get Best Price

Video

Waterproof XLPE Insulated 1200A EV Charger Cable for High Voltage Electric Vehicle Charging

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

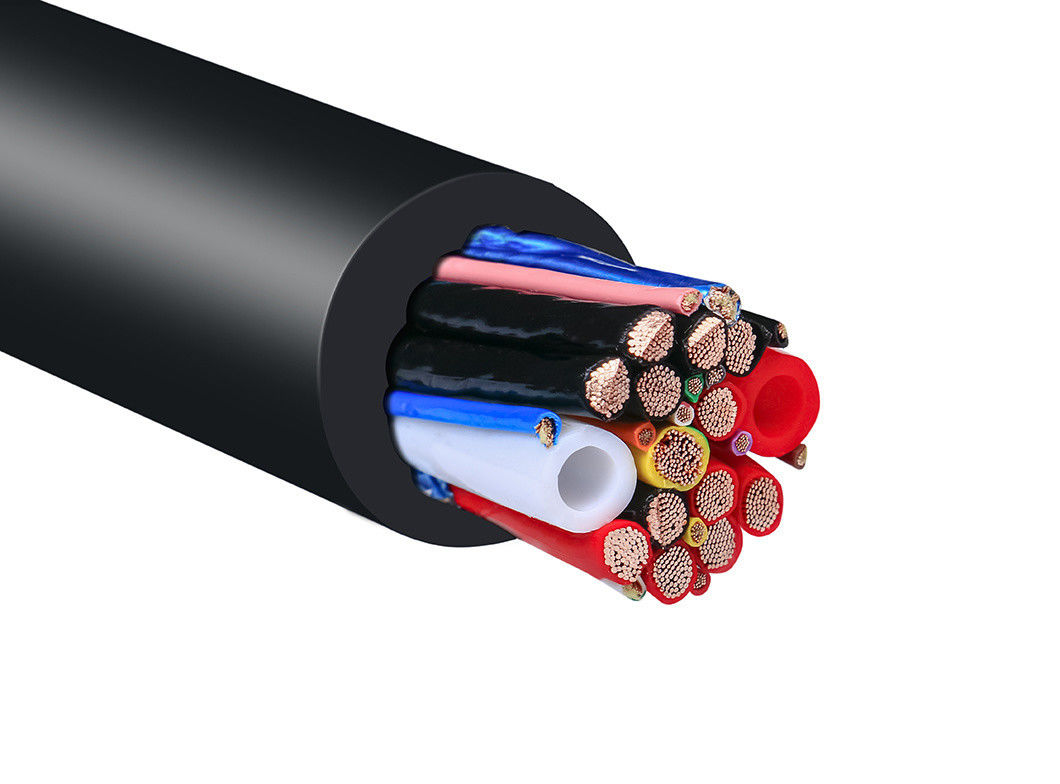

1000V Customized Copper Conductor EV Charging Cable with Energy Liquid Cooled TPU Sheath

Cable Structure Specifications

Model	Conductor (mm²)	Structure	Conductor DIA (mm)	Material	Insulation Thickness (mm)	Insulation Material	Insulation OD (mm)	20ºC Conductor Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	Copper	0.6	Silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	Copper	0.7	Silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	Copper	0.8	Silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	Copper	0.8	Silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	Copper	1.00	Silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	Copper	1.10	Silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	Copper	1.3	Silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	Copper	1.3	Silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	Copper	1.50	Silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	Copper	1.50	Silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	Copper	1.50	Silicone	17.50±0.50	≤0.196

Technical Specifications

Conductor: Flexible Bare Annealed Copper Wire
Insulation: TPU (Thermoplastic Polyurethane)
Color Options: Black, Orange, Red, Yellow, or Blue jacket
Available in single & double insulated configurations
European Sizes: 4 sq mm to 240 sq mm
North American Sizes: 0AWG to 10AWG
Temperature Range: -60°C to 200°C

Certifications & Compliance

UL Standards: 1007, 1185, 1672, 10070, 10483, 1015, 1569, 10012, 10269
Additional UL Standards: 2095, 2129, 2468, 2586, 2725, 20233, 20280, 20963, 2103, 2463, 2576, 2661, 2919, 20279, 20886, 21664
Quality Management: ISO9001, ISO13485, TS16949
CNR Appliance Wiring Material Compliance
Extruded PVC Insulated Single, rated 105ºC, 1000V
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name and even customize the quality card to promote your company.
