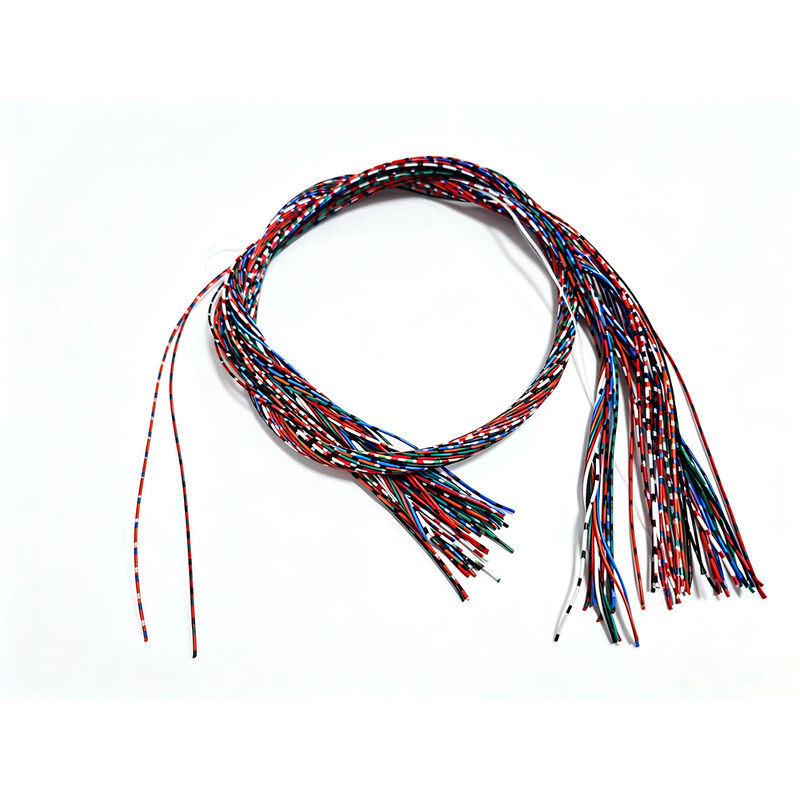

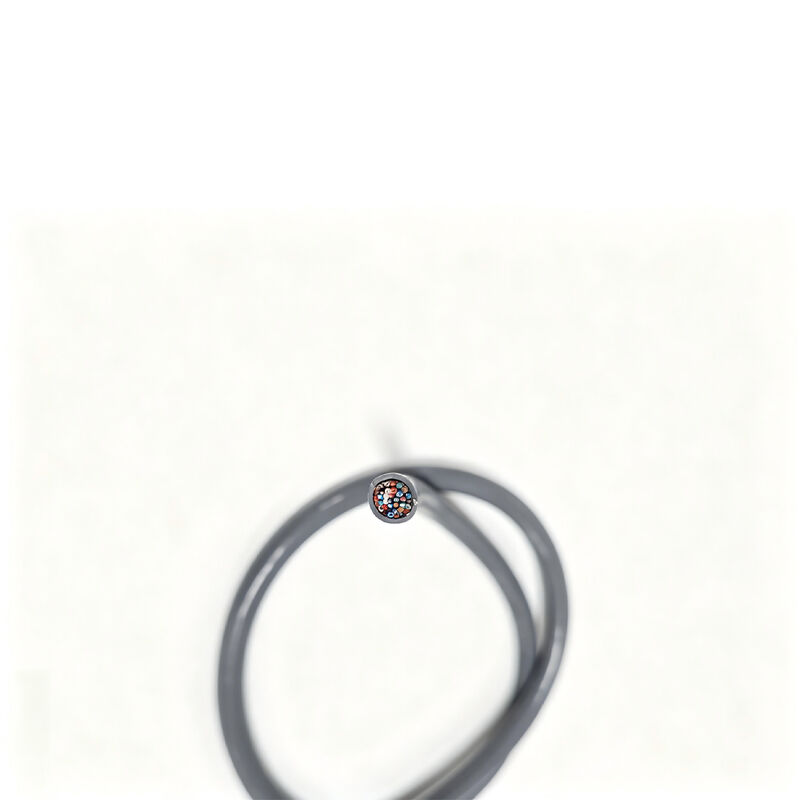

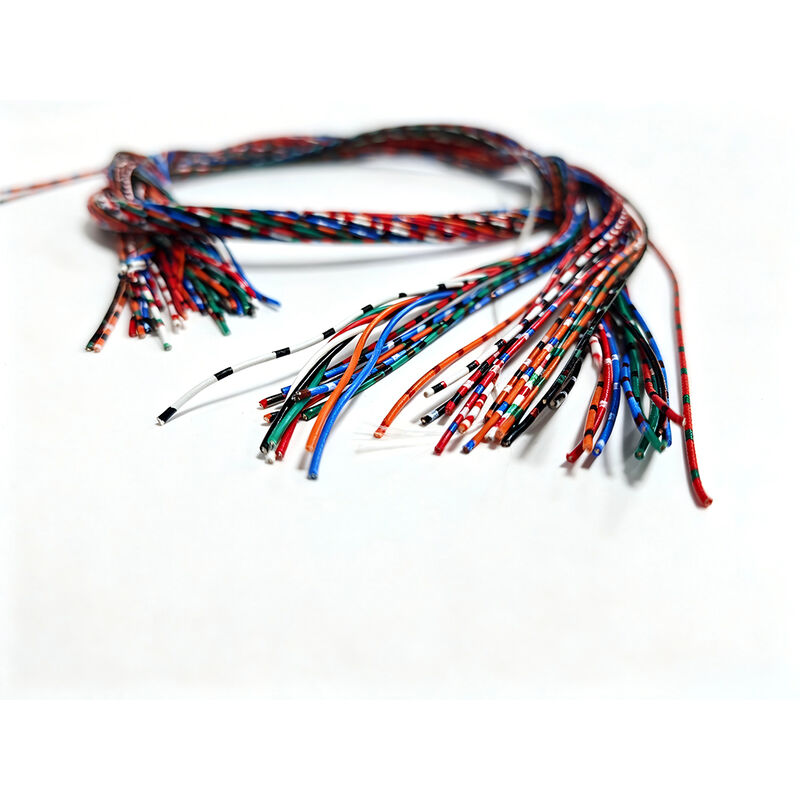

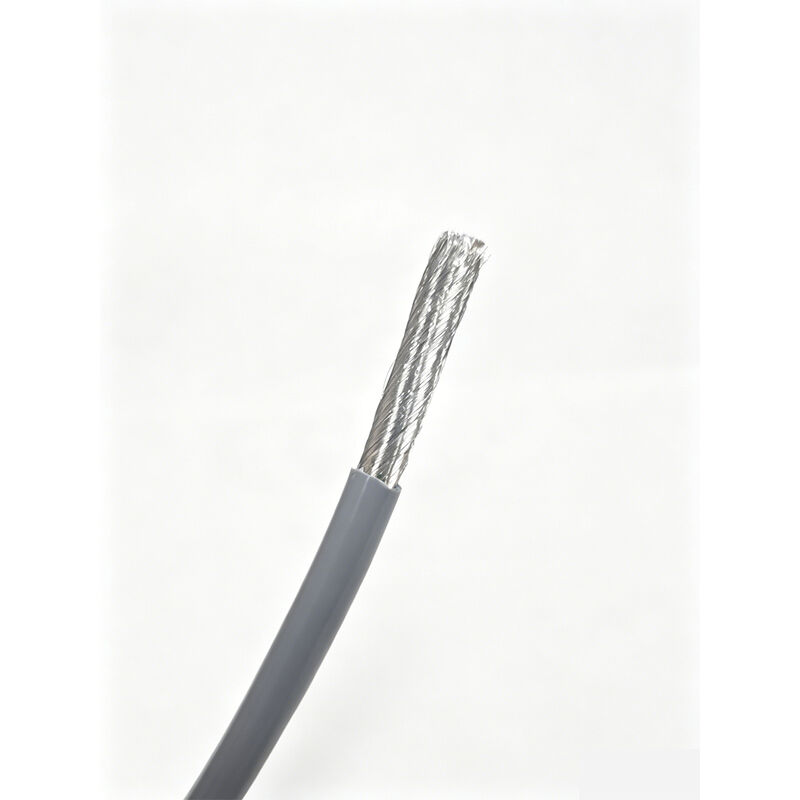

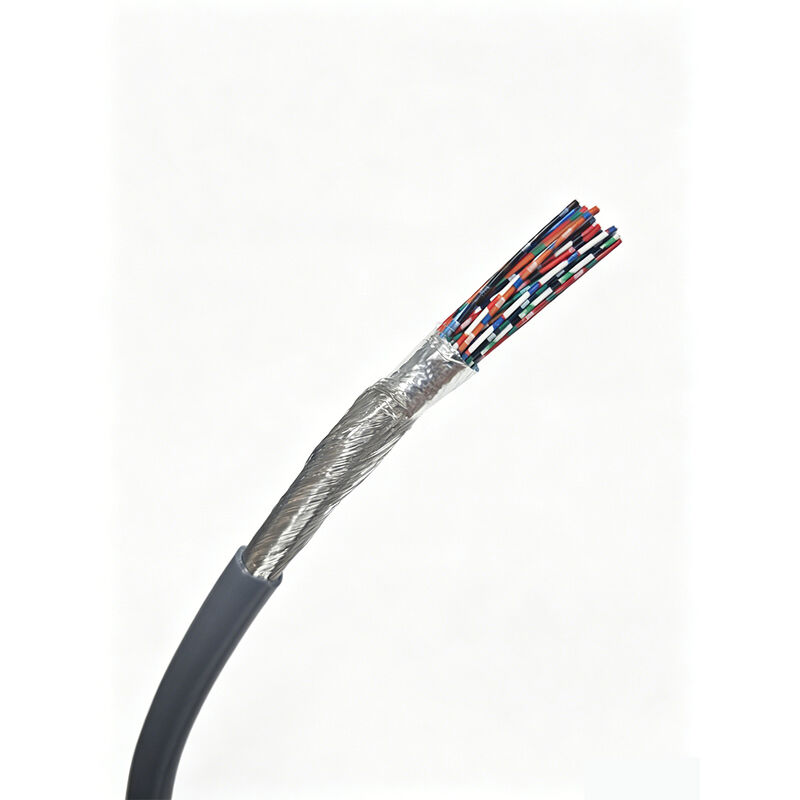

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electrical Wire Cable

UL2464 PVC insulated electrical wire

braid shielded industrial cable

UL electrical wire with PVC insulation

Place of Origin:

chain

Brand Name:

linke

Certification:

ISO9001,UL,CE

Request A Quote

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electrical Wire Cable

Product Details

Highlight:

UL2464 PVC insulated electrical wire

braid shielded industrial cable

UL electrical wire with PVC insulation

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Custom-made on demand

Packaging Details

Custom-made on demand

Delivery Time

5-8 day

Payment Terms

L/C,D/A,T/T,D/P,Western Union

Supply Ability

50000m/day

Customized Electrical Cable Assembly Automotive Wiring Harness for Machine

Get Best Price

Video

High Quality Coiled Cable for Truck 4460087000 PRO5310000

Get Best Price

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electrical Wire Cable

Get Best Price

Video

H05VV-F 3 Core 6mm Flexible Power Cable Fine Stranded Copper Conductor PVC Sheathed Multicore Electrical Wire

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electrical Wire Cable

Product Specifications

Supporting Services
Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper / bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage/etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
Temperature	Minus-70℃ to 350℃ (-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material, e.g., copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.

Quality Testing Results

No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table 2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position) 2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour 3. Place sample under pressure column of test fixture for 1 hour 4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor 2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length 2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath 2. Place specimens in aging oven at 158℃ for 168 hours 3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging 2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass

Company Capabilities

Linke Cable Technology (DongGuan) Co. Ltd. concentrates on R&D and provides professional solutions to the Cable & Wire industry, especially for different industry customers. Our product portfolio includes:

Humanoid robot cable
AI power cable/data cable
Semiconductor cable/industrial automatic cable
Sensor cable
New energy cable
Medical beauty wire
UL wire cable

Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs.

Product Certifications: UL 758, CCC, RoHS, REACH, CE
Quality Management Systems: ISO 9001-2015 (All products), ISO 13485 (Medical apparatus and instruments), IATF 16949 (Auto industry)
