Construction
Technical Specifications

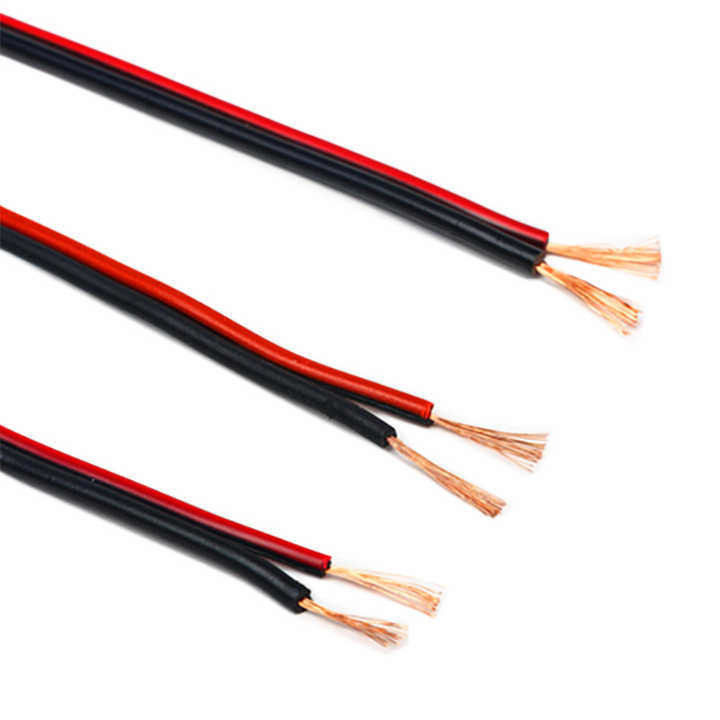

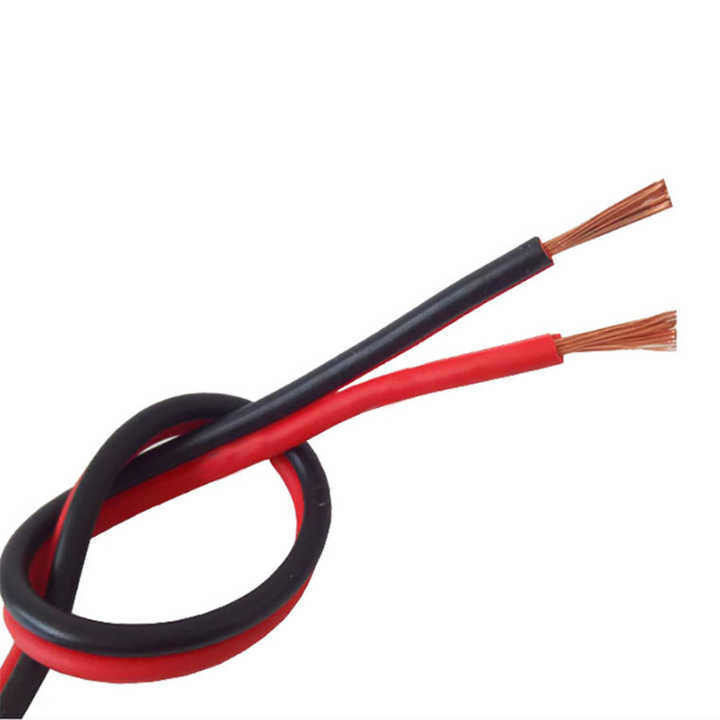

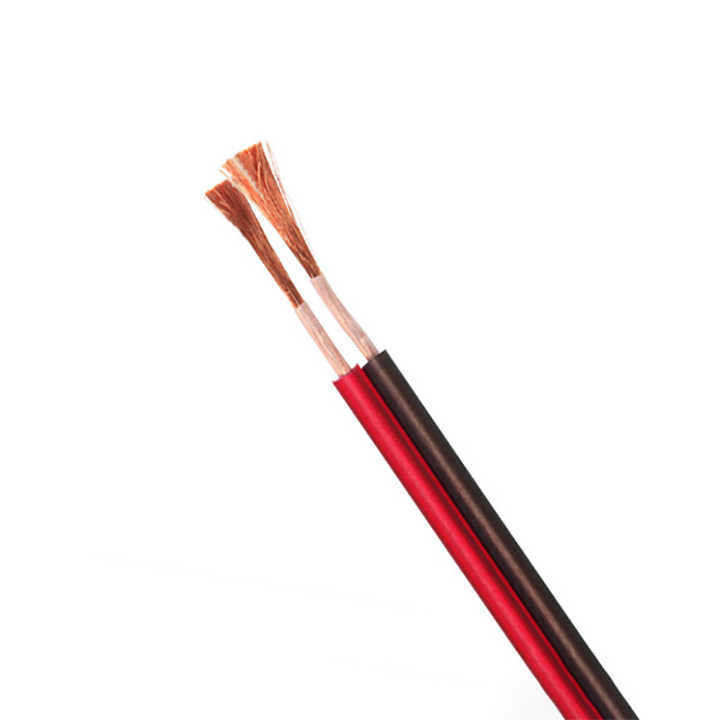

| UL Style & C(UL) Type | Size | Conductor Construction | Stranding Diameter (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | Standard Put-up |
|---|
| UL2468 | 30X2 | 7/0.10 | 0.31 | 0.40 | 1.15X2.30 | 2000ft/610m |
| UL2468 | 28X2 | 7/0.12 | 0.37 | 0.40 | 1.25X2.50 | 2000ft/610m |
| UL2468 | 26X2 | 7/0.16 | 0.49 | 0.40 | 1.35X2.70 | 2000ft/610m |
| UL2468 | 24X2 | 11/0.16 | 0.61 | 0.40 | 1.50X3.00 | 2000ft/610m |
| UL2468 | 22X2 | 17/0.16 | 0.76 | 0.40 | 1.75X3.50 | 2000ft/610m |
| UL2468 | 20X2 | 26/0.16 | 0.94 | 0.40 | 2.00X4.00 | 2000ft/610m |
| UL2468 | 18X2 | 41/0.16 | 1.18 | 0.40 | 2.20X4.40 | 2000ft/610m |
| UL2468 | 16X2 | 26/0.254 | 1.49 | 0.40 | 2.40X4.80 | 2000ft/610m |
| Brand | LINKE | Cross Section (mm²) | 0.01-500mm² |
| Wire Gauge (AWG) | [e.g., 24AWG, 28AWG] | Conductor | Tinned Copper /bare copper, based on client's requirements |
| Insulation material | PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other | Jacket Material | [PVC/PU/Rubber/Braid/etc.] |
| Certifications | RoHS/REACH/UL/CE/IP68/etc | Custom Length | [e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type | [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] | Shielding | [Shielded/Unshielded/Braid Shield] |
| Impedance | [e.g., 75Ω (for coaxial cables)] | Printing/Logo | [Text/Label/Logo, max. 20 characters] |
| Bend Radius | [e.g., ≥5× cable diameter] | Current Rating | [e.g., 5A] |
| Voltage Rating | [e.g., 30V AC/DC] | Connector Material | [Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors | [e.g., USB Type-C, 3.5mm Jack, RJ45] | Jacket | XLPE or PE or PVC RUBBER |
| Delivery Time | 7-14 days after confirming the order | Colors | [Black/White/Red/Custom Pantone/etc.] |
| temperature | Minus-70℃to 350℃(-70℃ ~ 350℃) | Package | Roll/box/plate/Custom |
| Supporting Services | custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer with full control over production from start to finish. Visitors are welcome - we provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for new clients, who only need to cover the courier costs.
What's your Minimum Order Quantity?
Standard MOQ is 100m. Due to the cable's weight, we recommend ordering suitable quantities to optimize shipping costs, with sea transport being the most economical option.
Can I get a discount?
Discounts are available based on order quantity, and we may offer freight subsidies. Please contact us for details.
Does your company accept OEM production?
Yes, we offer OEM services including custom printing of your company name and quality cards to promote your brand.
