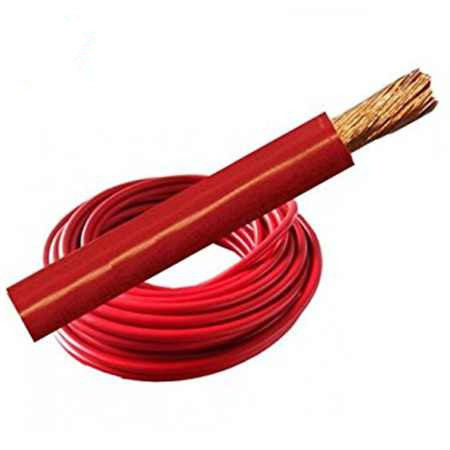

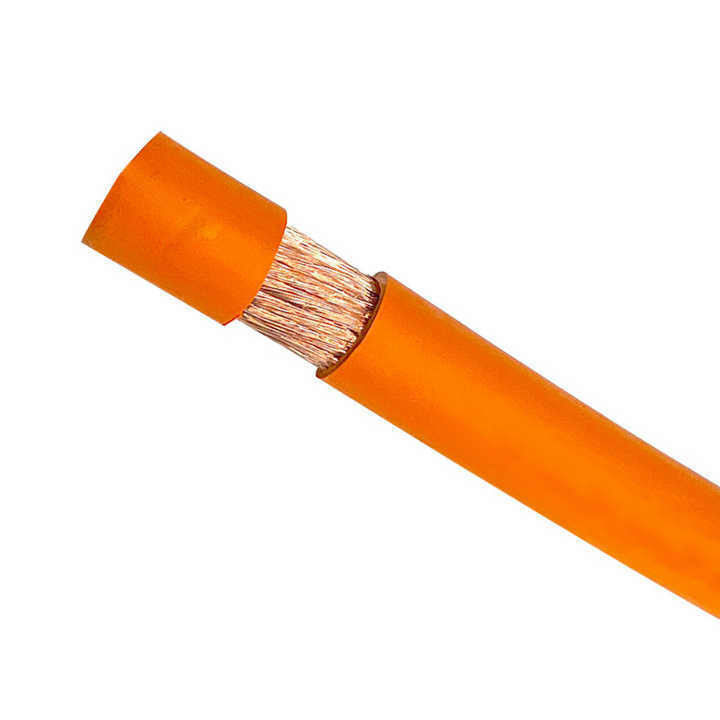

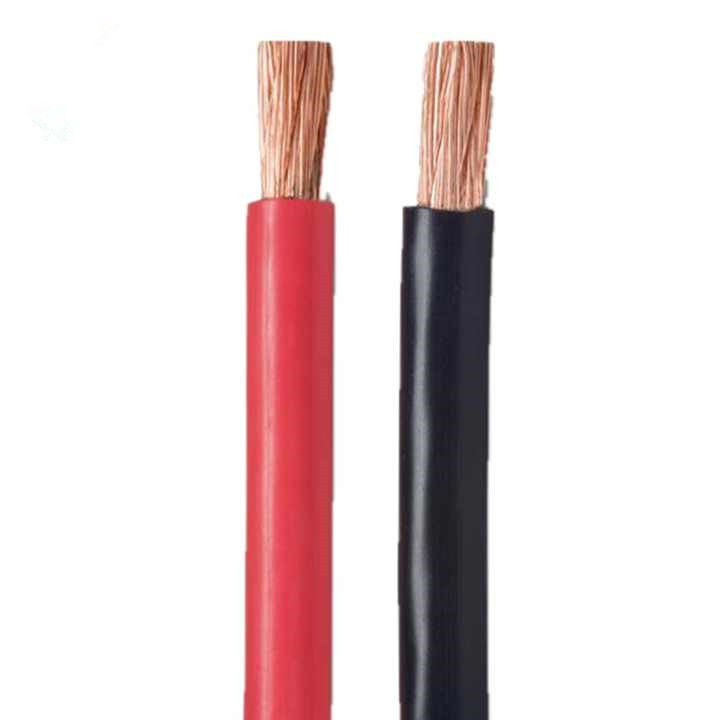

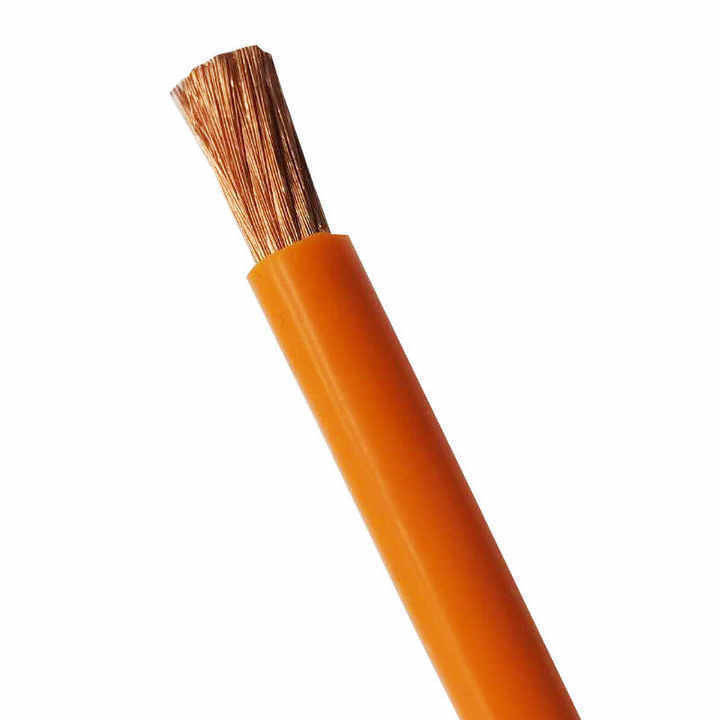

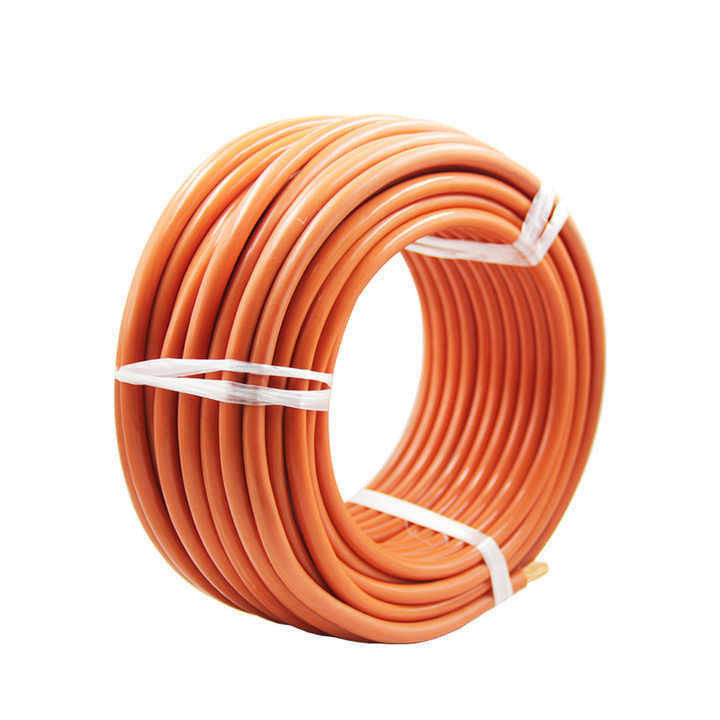

Tinned Copper Single Core XLPE Insulation Automotive Car EV Charging Cable
Premium flexible stranded construction with low smoke zero halogen properties for automotive and electric vehicle charging applications.
Click to explore our trending hot products. They enjoy great popularity worldwide with stable performance and fast delivery.
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and provide professional solutions to the Cable&Wire,especially for the different industry customers.It contains :
- Humanoid robot cable
- AI power cable/data cable
- Semiconductor cable/industrial automatic cable
- Sensor cable
- New energy cable
- Medical beauty wire
- UL wire cable
Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485(Medical apparatus and instruments),IATF 16949(Auto industry)
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
We operate an independent quality testing laboratory with complete testing facilities and standardized procedures. Our full set of product testing standards covers all key performance and safety indicators. Through systematic and rigorous inspection, we effectively control product quality, reduce risks, and provide you with safe, stable and high-quality products you can trust.
| No. |
Test Item |
Test Condition |
Test Requirement |
Test Data |
Result |
| 1 |
Structure Inspection |
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness |
Comply with wire size table |
Refer to test record |
Pass |
| 2 |
Thermal Shock |
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample |
No cracks on the sample surface |
No cracks |
Pass |
| 3 |
Heat Deformation |
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position |
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% |
Refer to test record |
Pass |
| 4 |
FT2 |
Apply a standard flame at a height of 125mm once |
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials |
Refer to test record |
Pass |
| 5 |
Aging |
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength |
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging |
Refer to test record |
Pass |
| 6 |
Cold Bend |
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box |
No cracks on the sample surface |
No cracks |
Pass |
| 7 |
Conductor Resistance |
Measure resistance of one-meter core conductor with DC resistance meter |
At 20℃, resistance of 8AWG ≤ 2.23Ω/km |
Refer to test record |
Pass |
Cable Characteristics
Low viscosity appearance with excellent performance characteristics:
- Maximum continuous operating temperature: 125°C
- Small outer diameter design
- Oil resistant, heat resistant, and low temperature resistant
- Flame retardant and wear-resistant construction
- Superior mechanical properties
- Heat shrinkage test: shrinkage length ≤ 2mm at both ends
- Flame retardancy: passes self-extinguishing test after 15-second burn
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Certifications & Standards
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer with complete control over production from beginning to end. We welcome visits to our facility and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are provided free of charge. New customers are responsible for courier costs.
What's your Minimum Order Quantity?
Minimum order quantity is normally 100 meters. Due to the cable's weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most economical option.
Can I get a discount?
Discounts are available based on order quantity. We may also cover freight costs for larger orders. Please contact us for specific pricing.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
