1500V Al-Mylar Shielded Customizable EV Charging Cable with Silicone Rubber Insulation

XLPE Shielding Cable

Automotive XLPE Shielding Cable

Automotive XLPE Cable

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Jacket:

Silicone

Insulation:

XLPE

Type:

Insulated

Conductor Type:

Twisted Wire

Voltage Rating:

600V

Sheath Material:

FEP

Rated Voltage:

3000V

Current:

DC & AC

Property:

High Temperature Resistance

Amp:

1200A

Material:

Silicone Rubber

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Colour:

Customize

Customization:

Available

Highlight:

XLPE Shielding Cable

Automotive XLPE Shielding Cable

Automotive XLPE Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

FL2g 16 25mm Silicon Heat Resistance Car Wire for Car Battery Lead Germany Standard Round Wire Material

Get Best Price

Video

Super Soft Silicone Rubber Cable with Wide Temperature Range (-60 to +200°C) and Multiple AWG Sizes for Industrial Use

Get Best Price

Video

Premium Silicone Rubber Cable with 300V Voltage and 0.1-450mm² Specifications for 300-600V Rated Voltage Applications

Get Best Price

Signal Wiring Harness Cable Assembly for Custom Automotive Wire Harness Manufacturing New energy charging pile

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

DC 1500V Electric Vehicle Silicone Rubber Al-Mylar Shielded EV Charging Connection Cable

Product Specifications

Product Item	EV-XLPE Cable
Country of Origin	China
Production Specification	Customizable to requirements
Insulation Material	XLPE
Rated Temperature	-40°C to +125°C
Color Options	Yellow, Green, Black, Red, Grey, Brown, Blue, Orange, White, Transparent
Rated Voltage (U0/U)	1500V

Technical Specifications

Size (mm²)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Conductor Resistance (Ω/KM)
4	133/0.20BS	2.80	0.80	4.40±0.20	≤4.70
6	190/0.20BS	3.40	0.80	5.00±0.20	≤3.10
10	259/0.20BS	4.50	1.00	6.50±0.30	≤1.82
16	323/0.20BS	5.70	1.20	8.10±0.30	≤1.16
25	513/0.20BS	7.20	1.40	10.00±0.30	≤0.743
35	798/0.20BS	8.50	1.40	11.30±0.40	≤0.527
50	1121/0.20BS	10.50	1.60	13.70±0.50	≤0.368
70	1596/0.20BS	12.50	1.80	16.00±0.50	≤0.259
95	2257/0.20BS	14.80	2.00	18.80±0.70	≤0.196
120	1887/0.254BS	16.50	2.20	20.80±0.70	≤0.153

High Voltage EV Cable Applications

Electric vehicle high-voltage lines are designed for connecting charging ports, batteries, battery interiors, engines, and battery energy storage equipment. These cables serve as power transmission carriers in demanding automotive environments, requiring exceptional performance characteristics.

Cable Specifications

Model	High Voltage EV Cable
Conductor	Class 5 copper conductor
No. of Cores	Single core
Conductor Type	Stranded
Insulation	XLPE
Jacket (Sheath)	XLPE
Standards	BS EN 50618:2014
DC Voltage	1.5 KV
AC Voltage	1.0/1.0 KV
Conductor Size Range	4-150 mm²
Color Options	Black or custom
Operating Temperature	-40°C to +150°C

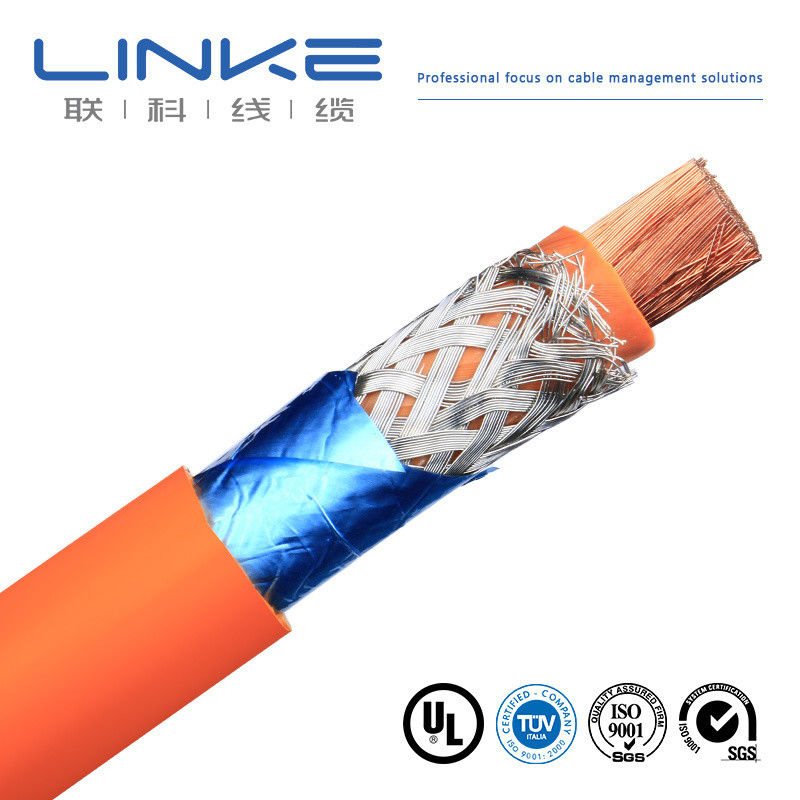

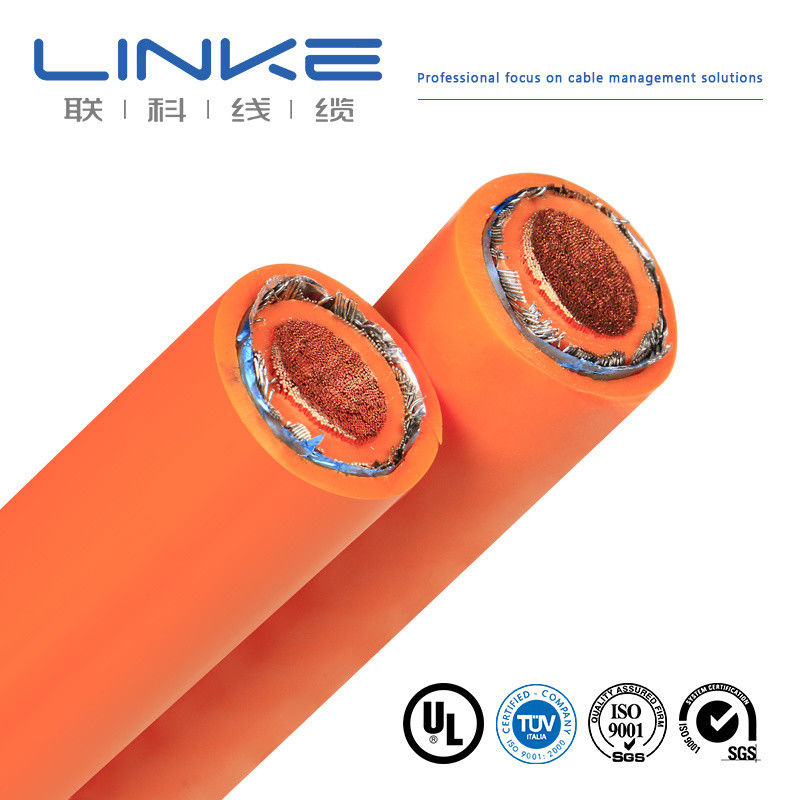

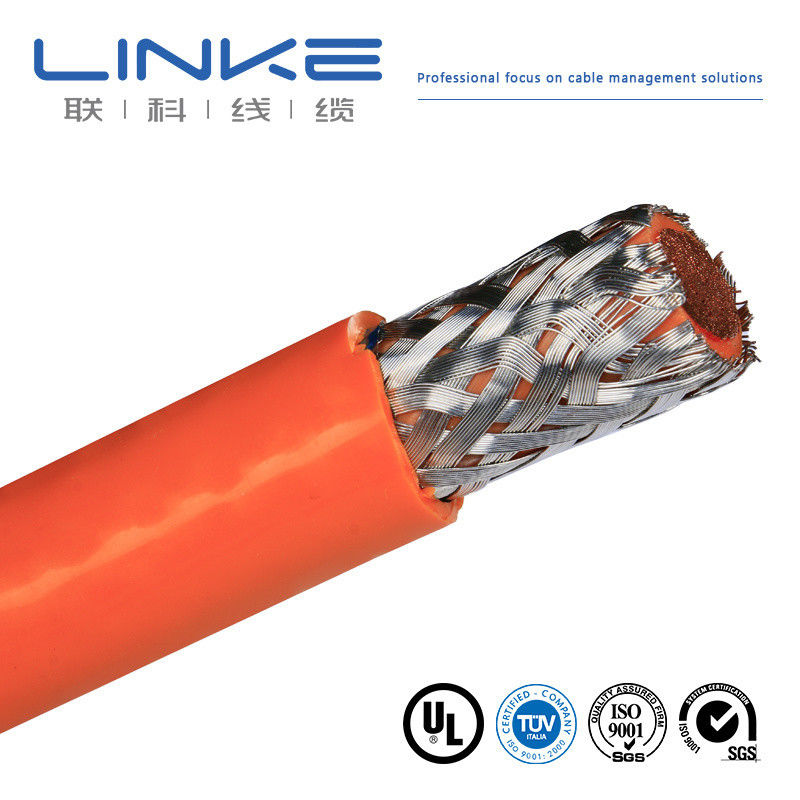

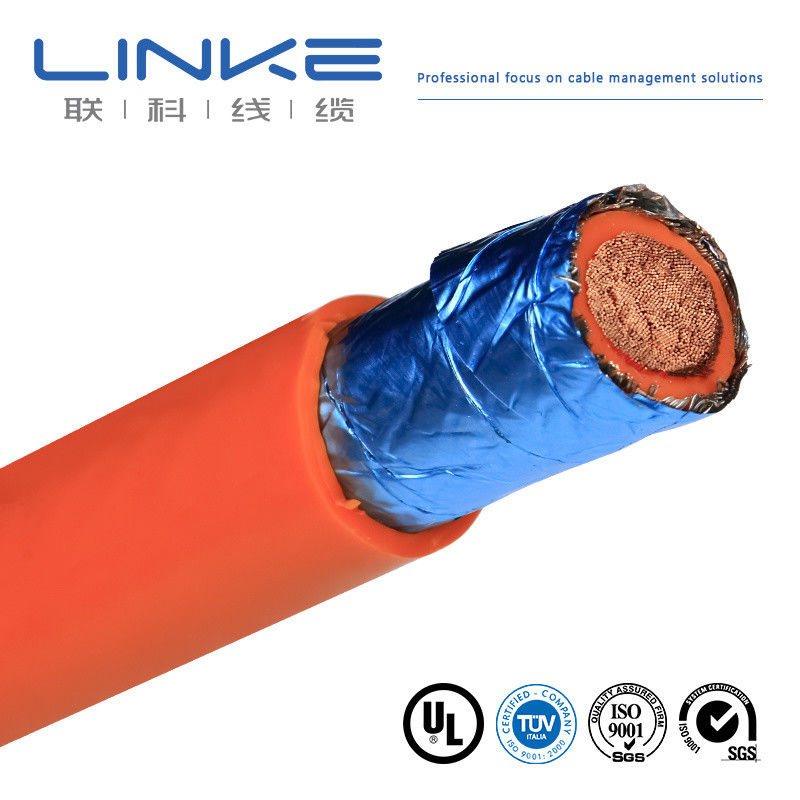

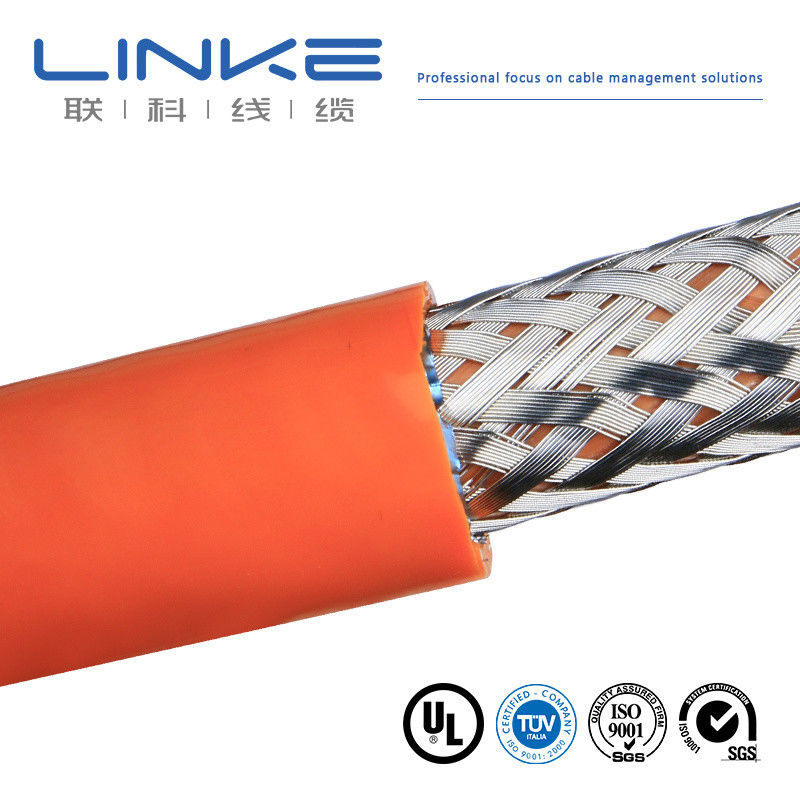

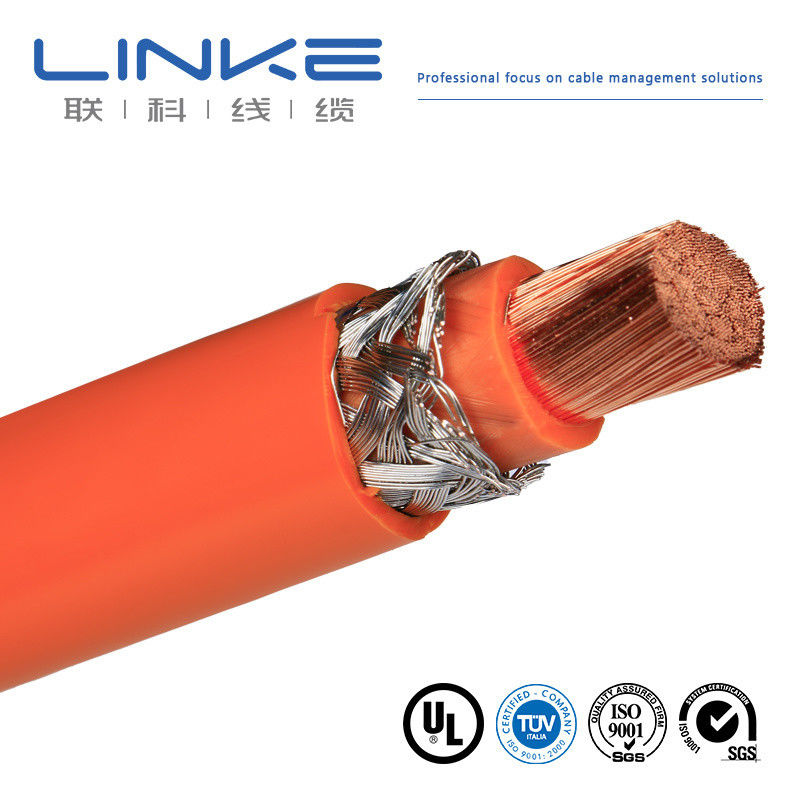

Product Images

Company Capabilities

Our dedicated team includes:

R&D Department: 6 engineers with 10+ years of wire and cable expertise
Quality Control: 10 inspectors ensuring 100% quality from materials to shipping
Production Staff: 50+ experienced manufacturing professionals

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer with complete control over production processes. We welcome factory visits and provide transportation from Shenzhen.

2. How can I get a sample to test your quality?

Samples are provided free of charge, with new clients responsible for courier costs.

3. What's your Minimum Order Quantity?

Standard MOQ is 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs, with sea transport being the most economical option.

4. Can I get a discount?

Discounts are available based on order quantity and may include freight considerations.

5. Does your company accept OEM production?

Yes, we offer OEM services including company branding on products and customized quality cards.

For More Information: Please feel free to contact our sales team for technical specifications, pricing, and custom solutions.
