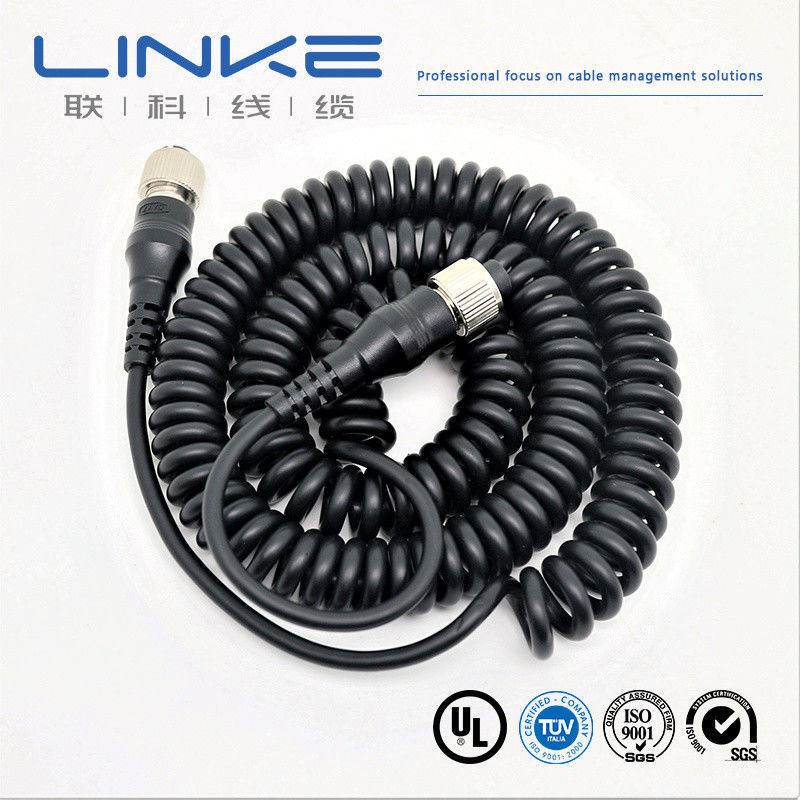

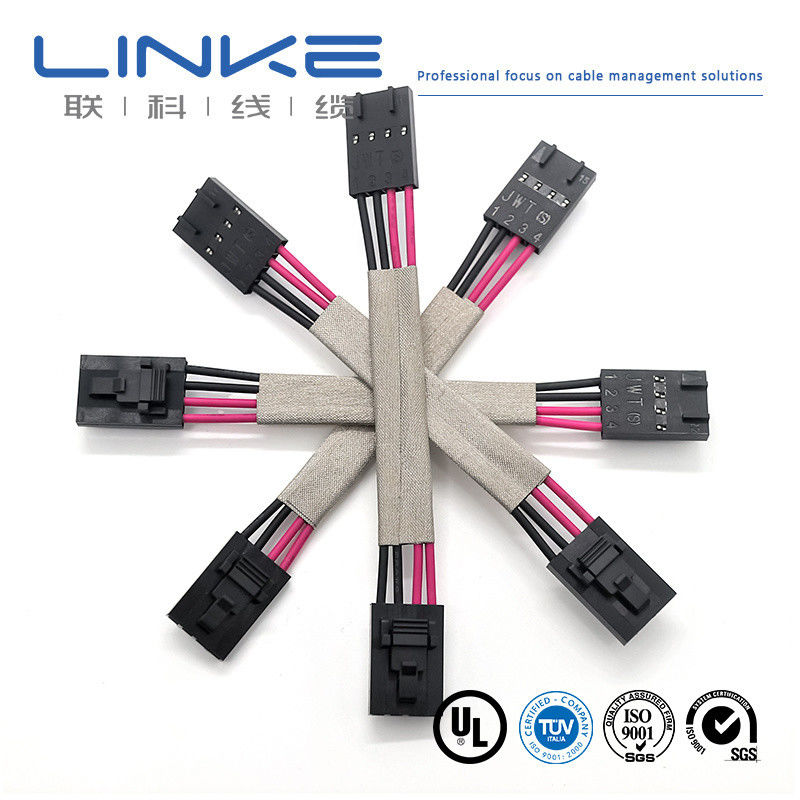

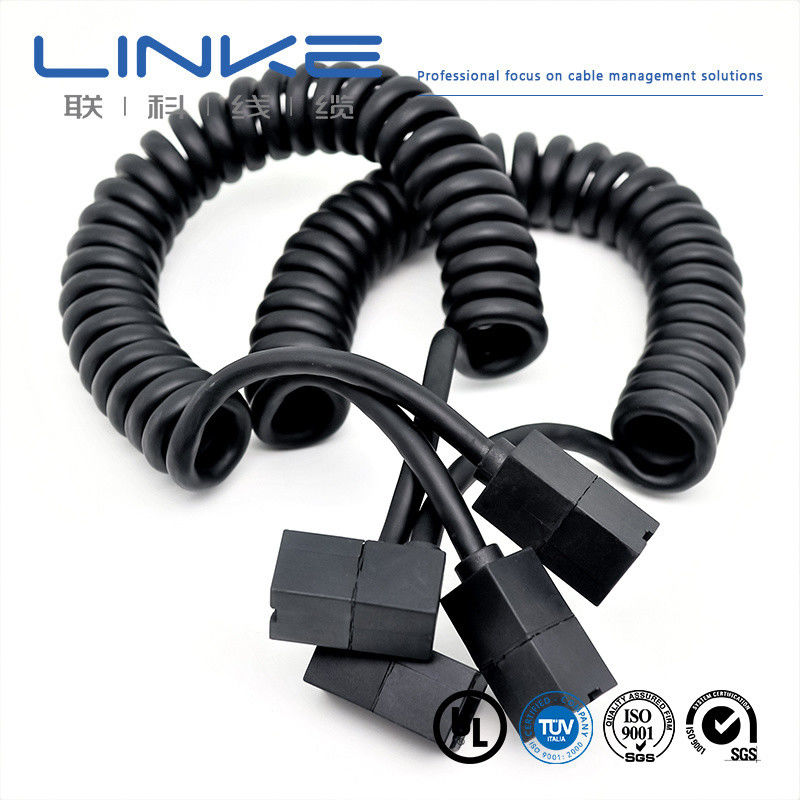

Enhanced signal transmission cables designed specifically for high-end medical equipment applications.
Product Specifications
| Material |
Constantan, nickel chromium, zinc white copper, and other copper-nickel alloys |
| Structure |
Silicone single-core heating wire, silicone multi-core heating wire, silicone single-core spiral heating wire |
| Internal Winding Process |
Heating wire wound on glass fiber or polyester wire |
| Test Standard |
UL758 related standards on heating wires |
| Curve Test |
More than 5000 times, no abnormality (tested according to UL, IEC standards) |
| Bending Test |
Less than 25,000 times, no abnormality (tested according to UL, IEC standards) |
| Wire Diameter Range |
φ1.8~5.0mm |
| Product Life |
Above 10,000 hours |
Applications
Used for internal configuration cables of various high-end medical equipment and communication cables of external medical equipment.
Available Types
- Various types of special-shaped wires including round, flat, square configurations
- Materials include TPE, TPU, environmentally friendly PVC and other covering materials
- Custom internal structures designed according to customer requirements
- Enhanced performance using KEVLAR or Technora aramid fiber
Key Features
- High temperature resistance, corrosion resistance, dirt resistance, easy to clean
- Excellent insulation, strong conductivity, stable signal transmission
- Superior anti-noise effect and strong anti-interference capabilities
- Soft wire construction with excellent feel and tangle-resistant design
- Compact structure with novel appearance for easy portability
- Strong tensile strength, high swing cycle resistance, chemical resistance
- Compliant with RoHS, REACH, California 65 standard and SONY-GP environmental requirements
- Optimized structural design for easy peeling and welding with higher reliability
- Custom design and development according to customer product characteristics
Medical Equipment Transmission Cable Characteristics
High-performance wires or cables designed specifically for medical devices, used for transmitting data and electricity with the following advanced features:
- Safety: Complies with strict standards including ISO 13485, CE marking for patient and operator safety
- Reliability: Withstands long-term use and repeated disinfection while maintaining stable performance
- Accuracy: Maintains high precision in transmitting data and power for medical equipment requirements
- Corrosion Resistance: Resistant to disinfectants and chemicals present in medical environments
- Environmental Friendliness: Complies with environmental standards, free from harmful substances
- Compatibility: Compatible with various medical devices including monitoring, surgical, and imaging equipment
- Resilience and Durability: Adapts to stretching, bending, and pressure in medical environments
Medical cable refers to specialized cables designed for medical applications, transmitting signals or power in diagnostic imaging machines, patient monitoring systems, surgical instruments, and medical sensors. These cables are constructed with materials meeting strict regulatory requirements, providing reliable and accurate transmission while ensuring patient safety and compliance with medical device regulations. They feature specialized designs to withstand unique environmental conditions including sterilization processes, with flexibility for easy routing and shielding to prevent external interference.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
