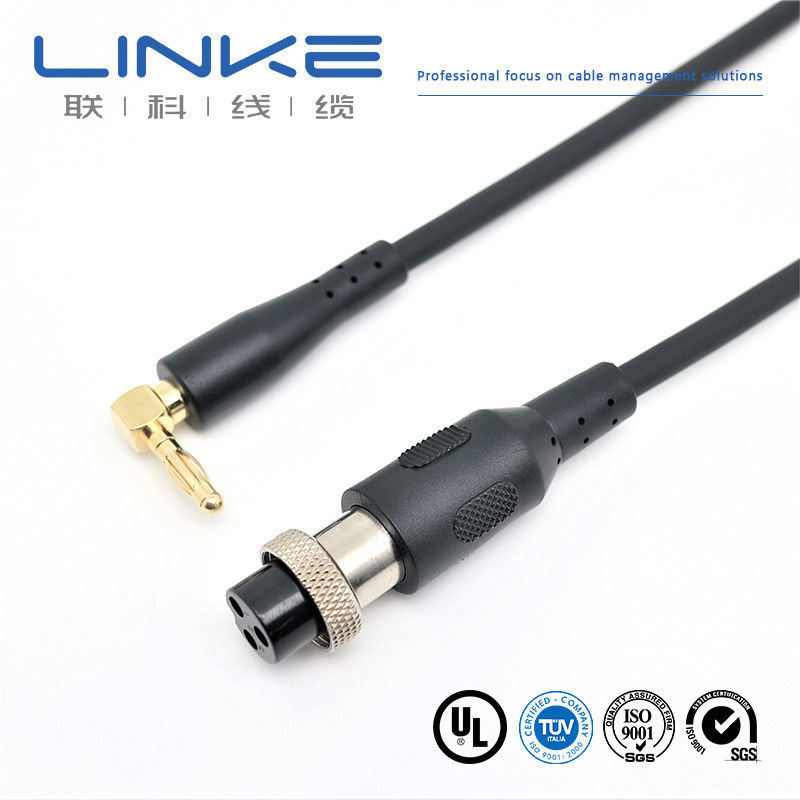

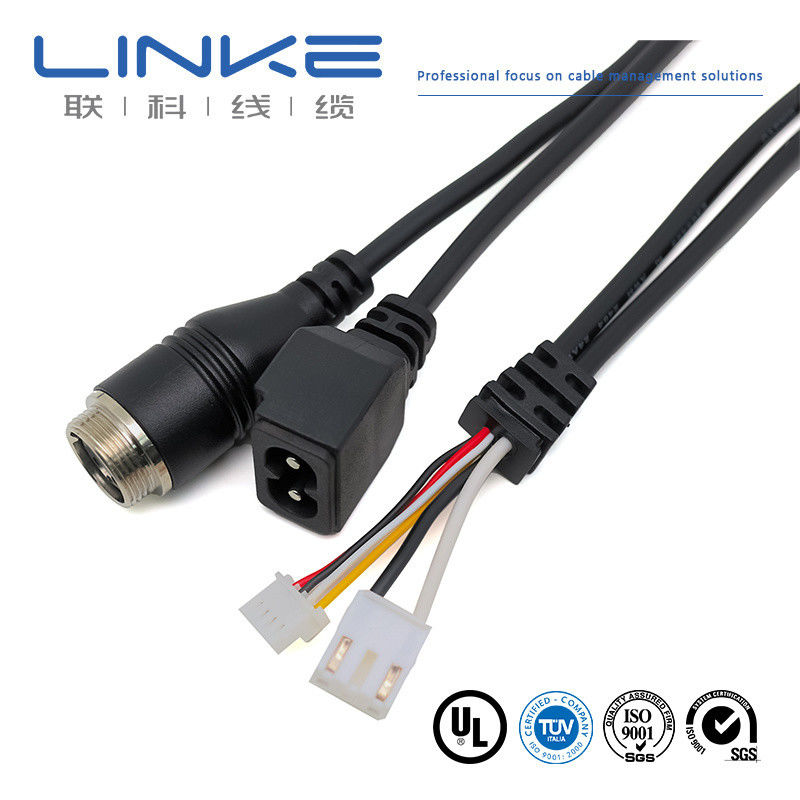

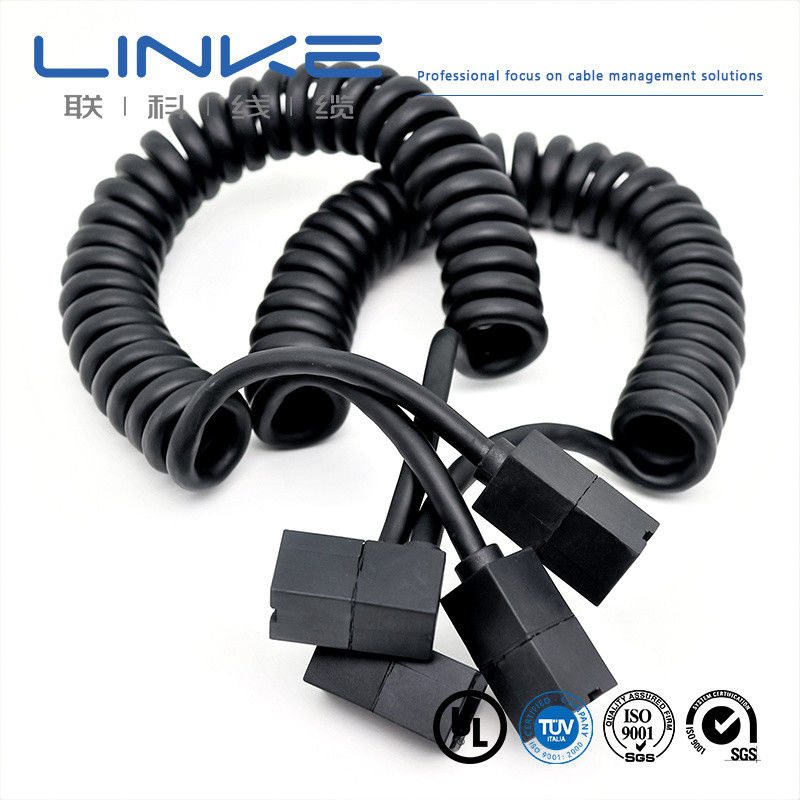

Round Parallel Flat Coiled Medical Cable for High Voltage Wiring Harness
Customized medical equipment connection cable designed for high-performance applications in medical device connectivity.
| Material |
Constantan, nickel chromium, zinc white copper, and other copper-nickel alloys |
| Structure |
Silicone single-core heating wire, silicone multi-core heating wire, silicone single-core spiral heating wire |
| Internal Winding Process |
Heating wire is wound on glass fiber or polyester wire |
| Test Standard |
UL758 related standards on heating wires |
| Curve Test |
More than 5000 times, no abnormality (test according to UL, IEC test standards) |
| Bending Test |
Less than 25,000 times, no abnormality (test according to UL, IEC test standards) |
| Wire Diameter Range |
φ1.8~5.0mm |
| Product Life |
Above 10000H |
Applications
Used for internal configuration cables of various high-end medical equipment and communication cables of external medical equipment.
Available Types

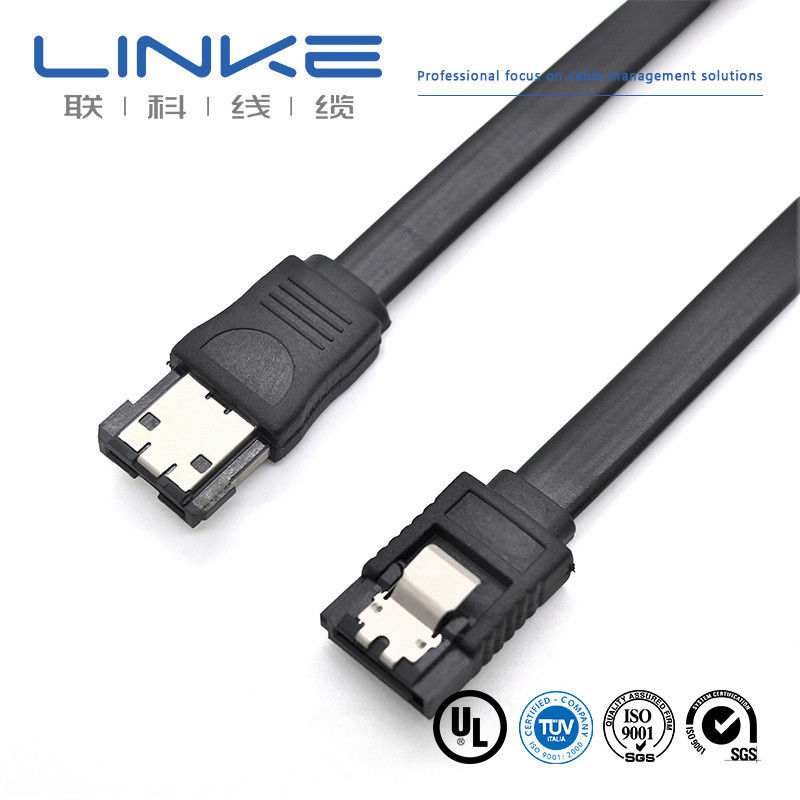

- Various types of special-shaped wires including round, flat, square configurations
- Materials include TPE, TPU, environmentally friendly PVC and other covering materials
- Internal structure can be designed according to customer requirements
- KEVLAR or Technora aramid fiber reinforcement for enhanced performance
Product Features
- High temperature resistance, corrosion resistance, dirt resistance, easy to clean
- Good insulation, strong conductivity, stable signal transmission
- Excellent anti-noise effect and strong anti-interference capabilities
- Soft wire construction with good feel and tangle-resistant design
- Compact structure with novel appearance for easy portability
- Strong tensile strength with high swing cycle durability
- Resistant to chemicals including gasoline, alcohol, and cosmetics
- Excellent weather resistance and long service life
- Compliant with RoHS, REACH, California 65, and SONY-GP environmental standards
- Optimized structural design for easier peeling and welding
- Custom design and development according to customer product characteristics
Medical Equipment Transmission Cable Characteristics
- Safety: Complies with strict standards including ISO 13485 and CE marking
- Reliability: Withstands long-term use and repeated disinfection while maintaining stable performance
- Accuracy: Maintains high precision in data and power transmission
- Corrosion Resistance: Resistant to disinfectants and medical chemicals
- Environmental Friendliness:1 Complies with environmental standards, free from harmful substances
- Compatibility: Compatible with various medical devices including monitoring, surgical, and imaging equipment
- Resilience and Durability: Adapts to stretching, bending, and pressure in medical environments
Medical equipment transmission cables are essential components designed to meet strict quality and safety requirements, ensuring proper operation of medical devices and patient safety.
Medical cables are specifically engineered for medical applications, transmitting signals or power in diagnostic imaging machines, patient monitoring systems, surgical instruments, and medical sensors. These cables feature materials that meet strict regulatory requirements and provide reliable transmission while ensuring patient safety and compliance with medical device regulations.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
| No. |
Test Item |
Test Condition |
Test Requirement |
Test Data |
Result |
| 1 |
Structure Inspection |
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness |
Comply with wire size table |
Refer to test record |
Pass |
| 2 |
Thermal Shock |
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample |
No cracks on the sample surface |
No cracks |
Pass |
| 3 |
Heat Deformation |
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position |
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% |
Refer to test record |
Pass |
| 4 |
FT2 |
Apply a standard flame at a height of 125mm once |
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials |
Refer to test record |
Pass |
| 5 |
Aging |
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength |
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging |
Refer to test record |
Pass |
| 6 |
Cold Bend |
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box |
No cracks on the sample surface |
No cracks |
Pass |
| 7 |
Conductor Resistance |
Measure resistance of one-meter core conductor with DC resistance meter |
At 20℃, resistance of 8AWG ≤ 2.23Ω/km |
Refer to test record |
Pass |
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We manage your order from initial production to final delivery. We welcome visits to our facility and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are provided free of charge. New customers are responsible for courier costs.
What's your Minimum Order Quantity?
Normally 100 meters. Due to the cable's weight, we recommend ordering appropriate quantities to optimize freight costs. Sea transportation is the most economical option.
Can I get a discount?
Discounts are available based on order quantity. We may also cover freight costs for larger orders. Please contact us for details.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
