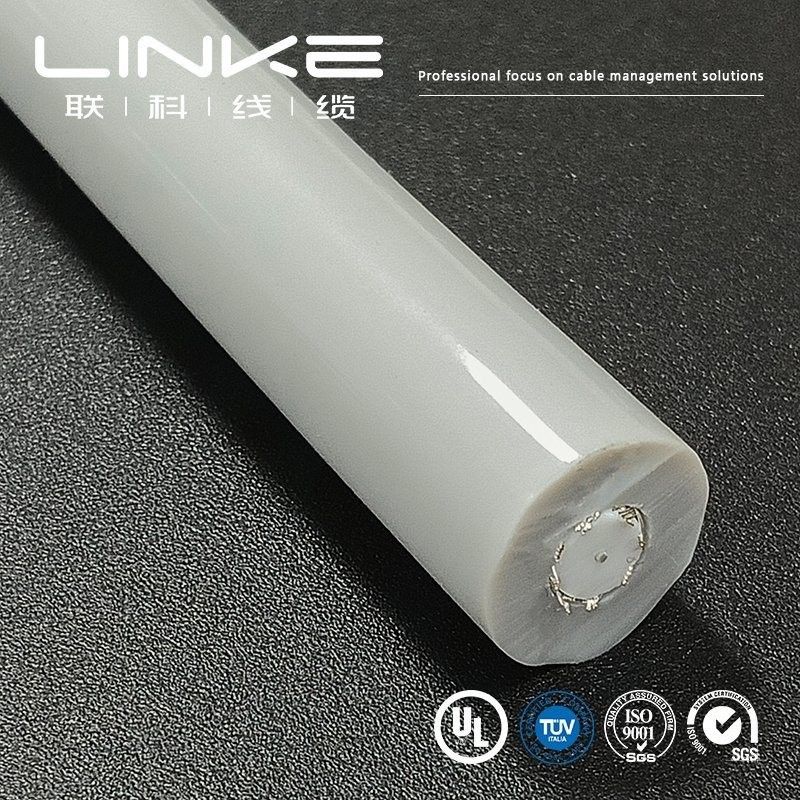

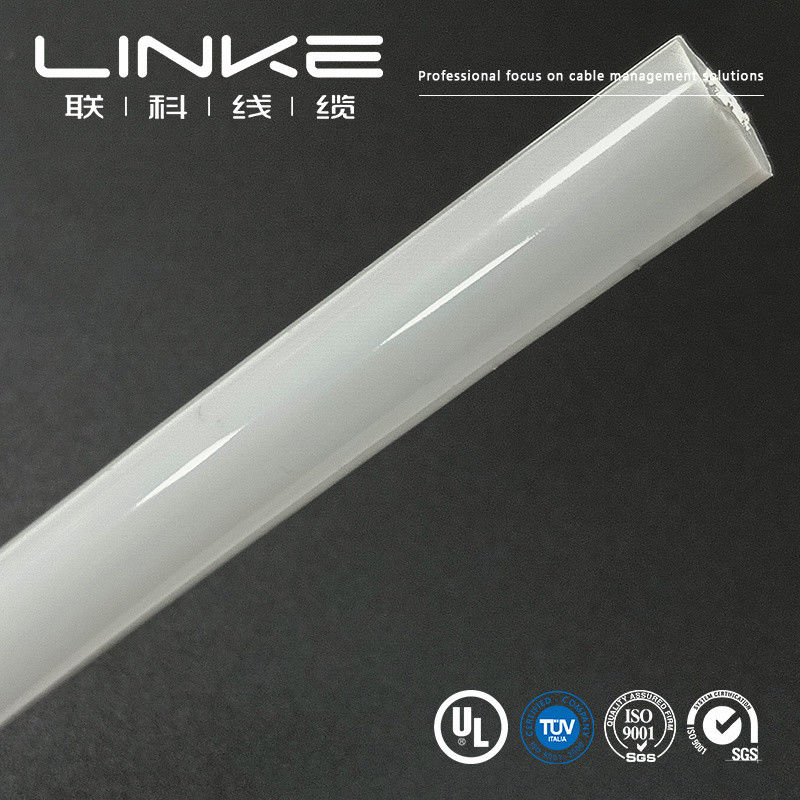

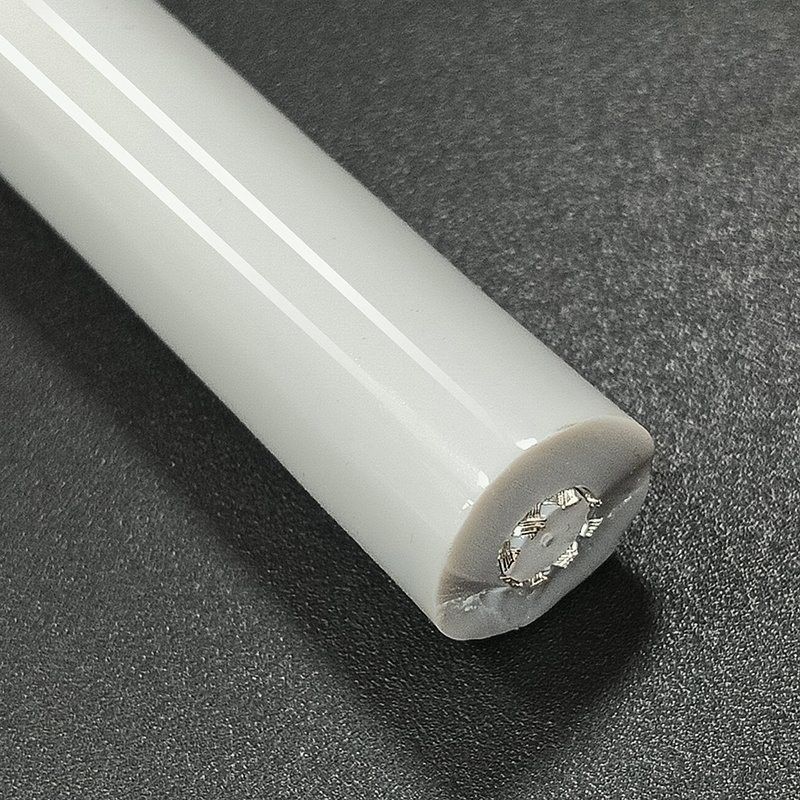

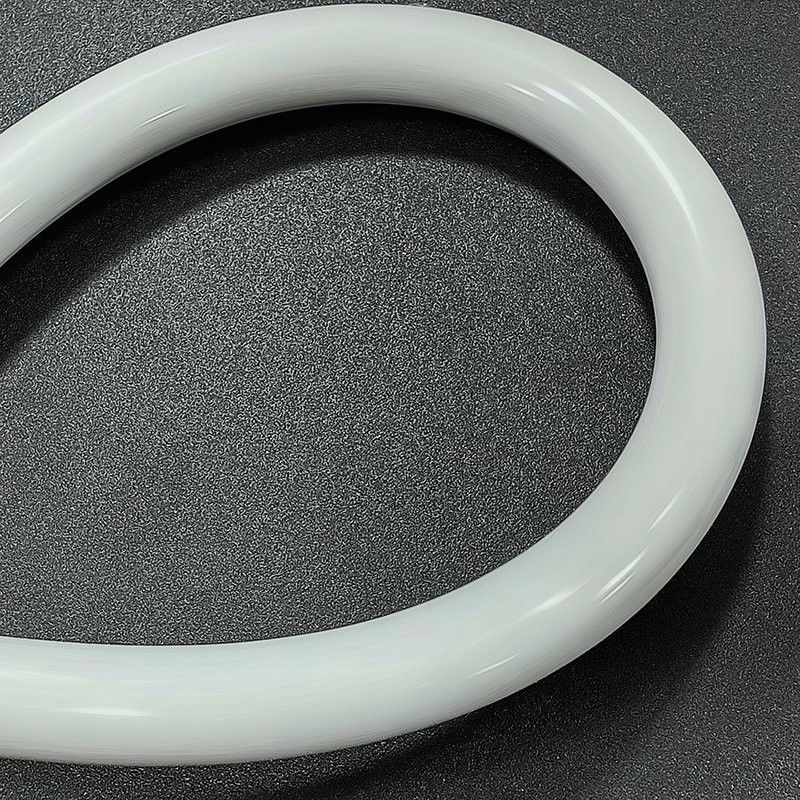

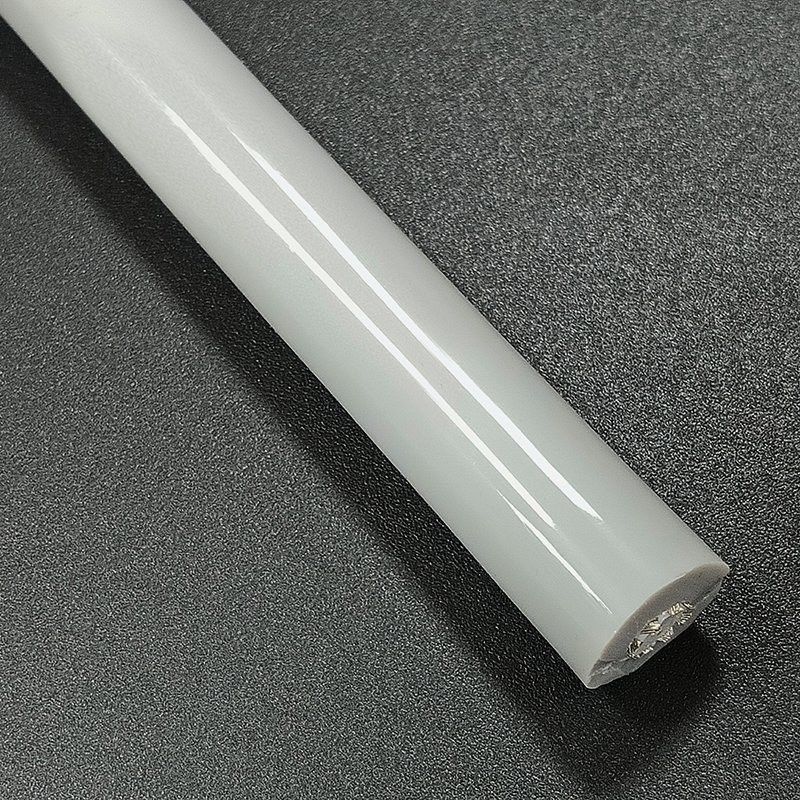

High Voltage Silicone Rubber Medical Cable 5000V
Medical cables are specifically engineered for medical applications, transmitting signals or power in diagnostic imaging machines, patient monitoring systems, surgical instruments, and medical sensors. These cables feature materials that meet strict regulatory requirements, ensuring reliable electrical transmission while maintaining patient safety and compliance with medical device regulations.
Product Specifications
| Material |
Constantan, nickel chromium, zinc white copper, and other copper-nickel alloys |
| Structure |
Silicone single-core heating wire, silicone multi-core heating wire, silicone single-core spiral heating wire |
| Internal Winding Process |
Heating wire wound on glass fiber or polyester wire |
| Test Standard |
UL758 related standards on heating wires |
| Curve Test |
More than 5000 times, no abnormality (test according to UL, IEC test standards) |
| Bending Test |
Less than 25,000 times, no abnormality (test according to UL, IEC test standards) |
| Wire Diameter Range |
φ1.8~20.0mm |
| Product Life |
Above 10000H |
Medical Cable Features
- Resistance to sterilization processes
- Enhanced flexibility for easy routing
- Shielding to prevent interference from external sources
- Reliable transmission of vital information for diagnosis and treatment
- Compliance with medical device regulations
Quality Certifications
UL Certifications: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation), UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
Quality Standards: ISO9001, ISO13485, TS16949
CNR Appliance Wiring Material: Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2. Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2. Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We manage your order from beginning to end. Welcome to visit us - we provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. However, cable is heavy so we recommend ordering suitable quantities to avoid high freight costs. Sea transportation is the most cost-effective option.
Can I get a discount?
Discounts depend on order quantity. We can offer discounts and cover freight costs for larger orders. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and even customize quality cards to promote your brand.
