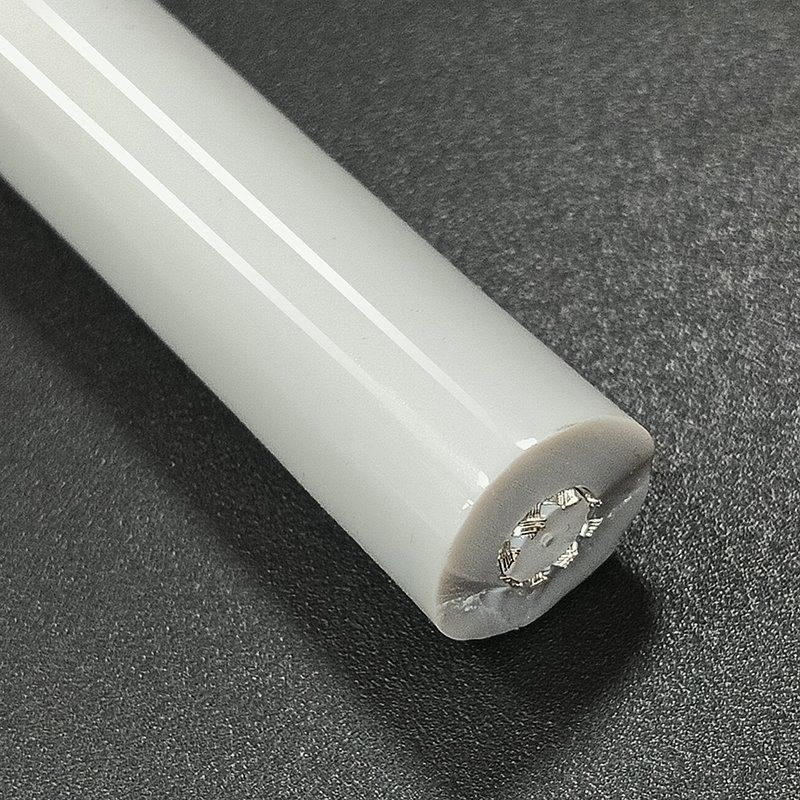

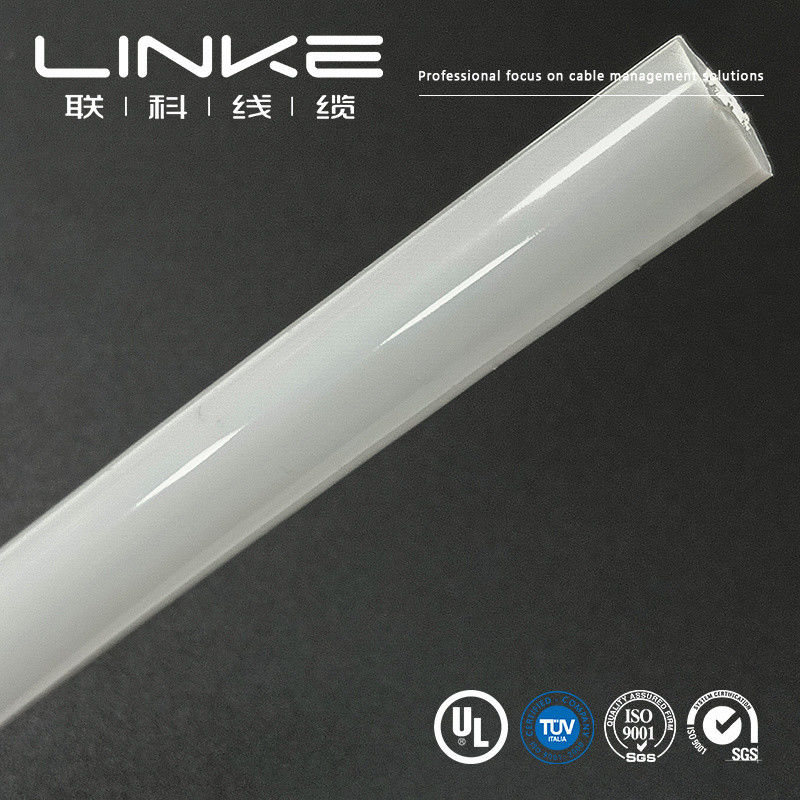

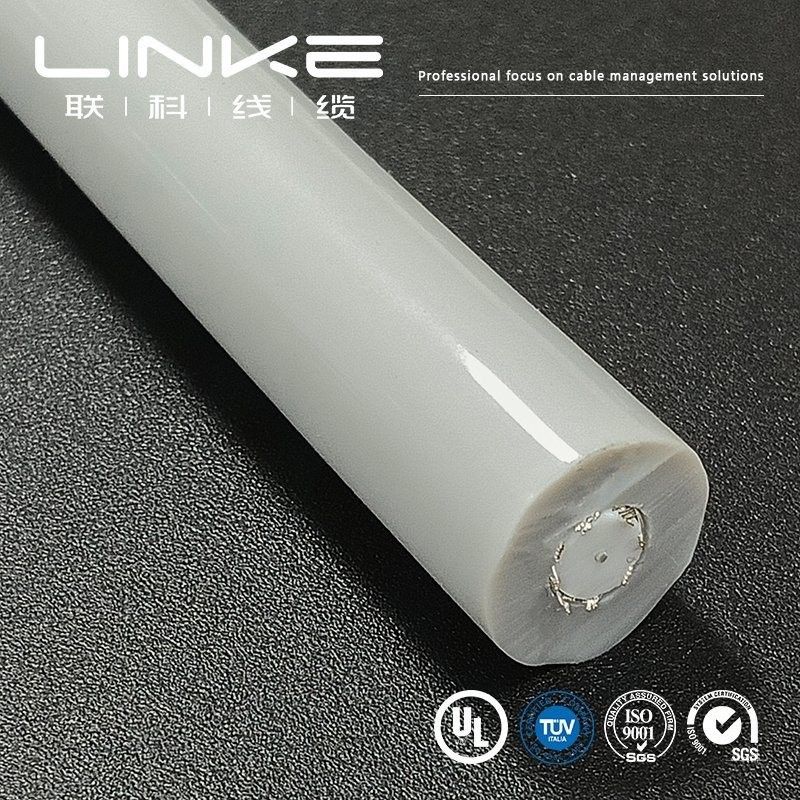

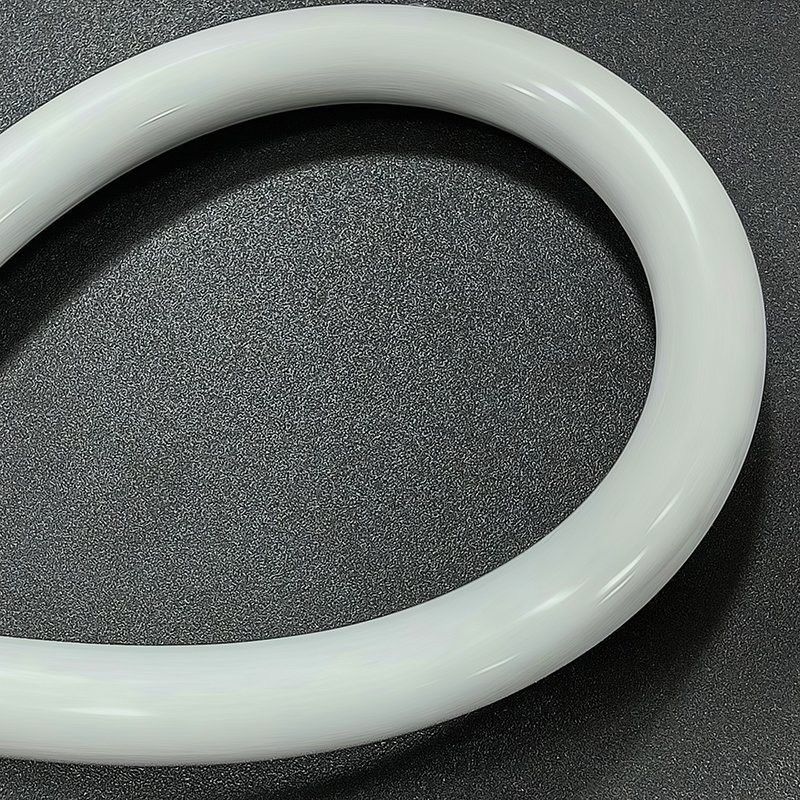

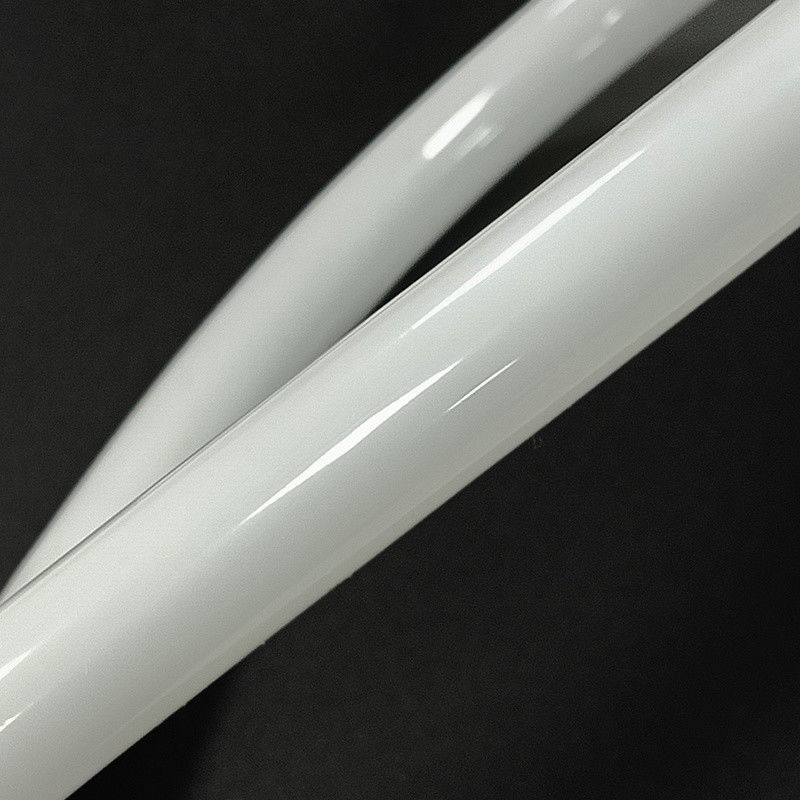

1000V Voltage Silicone Rubber Round Wire Medical Cable for Medical Equipment Device

1000V Voltage Silicone Rubber Round Wire Medical Cable for Medical Equipment Device

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
Electric Cable
Conductor Material:
Glass Fiber Cord
Sheath Material:
Silicone
Insulation Material:
Silicone Rubber
Material Shape:
Round Wire
Range Of Application:
Medical Device
Brand:
Linke
Name:
Medical Cable
Core:
Glass Fiber Cord
Insulated Material:
Silicone/PVC/TPU/XLPE
Color:
Customized
Conductor:
Glass Fiber Cord
Transport Package:
Carton
Specification:
55*50*50CM
Trademark:
LINKE
Origin:
China
HS Code:
8544492900
Supply Ability:
20000meter/Day
Package Size:
55.00cm * 50.00cm * 50.00cm
Package Gross Weight:
3.000kg
Lead Time:
10 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
Type:
Insulated
Conductor Type:
Stranded
Application:
Medical
Samples:
US$ 50/Meter 1 Meter(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
每天几W米
Product Description

1000V Voltage Silicone Rubber Round Wire Medical Cable for Medical Equipment Device



Material: Constantan, nickel chromium, zinc white copper, and other copper-nickel alloys.
Structure : Silicone single-core heating wire, silicone multi-core heating wire, silicone single-core spiral heating wire.
Internal winding process: Heating wire is wound on glass fiber or polyester wire.
Test standard: ISO13485 related standards on heating wires.
Curve test: More than 5000 times, no abnormality (test according to UL, IEC test standards)
Bending test: Less than 25,000 times, no abnormality (test according to UL, IEC test standards)
Wire diameter range: φ1.8~20.0mm


Product life: Above 10000H





1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device
Medical cable refers to a type of cable specifically designed and used in medical applications. These cables are used to transmit signals or power in various medical devices and equipment, such as diagnostic imaging machines, patient monitoring systems, surgical instruments, and medical sensors. Medical cables are constructed with materials that meet the strict regulatory requirements and standards for medical equipment. They are designed to provide reliable and accurate transmission of electrical signals or power while ensuring patient safety and compliance with medical device regulations. These cables often have specialized features to withstand the unique environmental conditions encountered in medical settings, such as resistance to sterilization processes, flexibility for easy routing, and shielding to prevent interference from external sources. Overall, medical cables play a crucial role in ensuring the proper functioning and safe operation of medical devices, connecting various components within the medical equipment and facilitating the transmission of vital information for diagnosis, treatment, and patient monitoring.

validation, mass production to value-added services.

Overall Capability

 Product Range: Standard and customized high temperature and high power cable
 Temperature Range: From -100 degree Celsius to 450 degree Celsius
 Voltage Range: from 30V up to 50KV
 Minimum Wall Thickness:0.0375mm
 Conductor Size Range: From 40AWG to 200mm2

 Core wire: From single core to 50 core wires inside jacket

Conductor and Braiding Material

  1. Bare Copper
  2. Tin-plated Copper
  3. Overcoat Copper - Tinned copper strands covered by tin coating
  4. Top coated Copper - Bare copper strands covered by tin coating
  5. Silver-plated Copper - Silver plated to copper strands
  6. Nickel-plated Copper -Nickel plated to copper strands
  7. Hybrid conductor construction
  8. Tinsel conductor
  9. Carbon Fiber, glass fiber yarn
  10. Other specialty conductors

Insulation Material

  1. Teflon (PTFE, PFA, ETFE, FEP)
  2. Silicone Rubber
  3. PVC, XLPVC
  4. PE, FRPE, XLPE, TPE, TPU
  5. Fiberglass yarn, Mica Tape
  6. Other specialty compounds

Manufacturing Process

Copper Stranding,  Wire Extrusion, Core Wire Cabling, Braiding, Wrapping, Jacket Extrusion

Most-used UL cable

    UL



1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device


1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.
1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,

UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device1000V High-Voltage Silicone Rubber Electrical Medical Cable for Medical Equipment Device


FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
