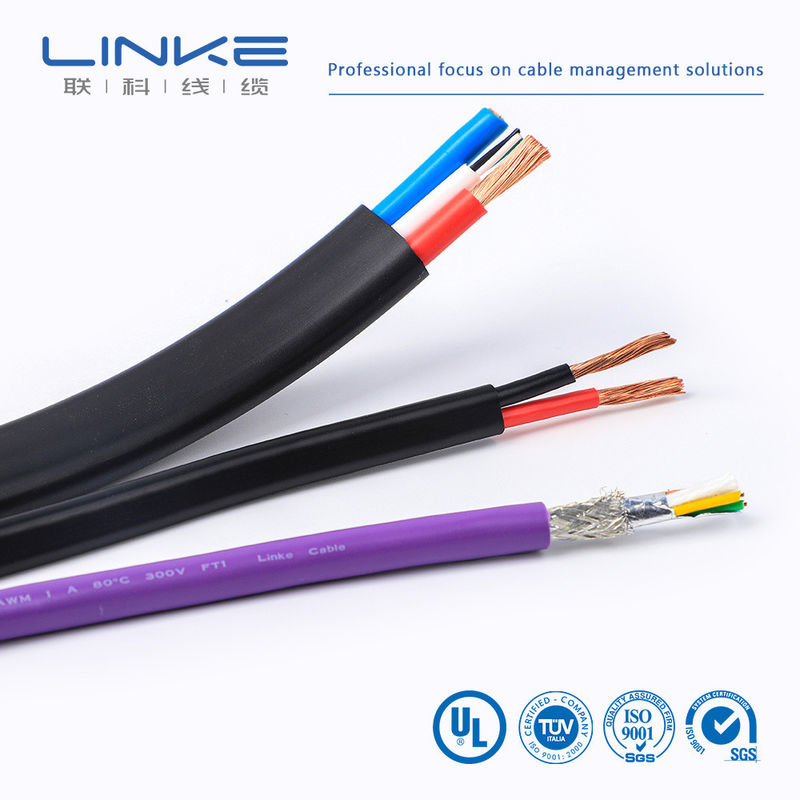

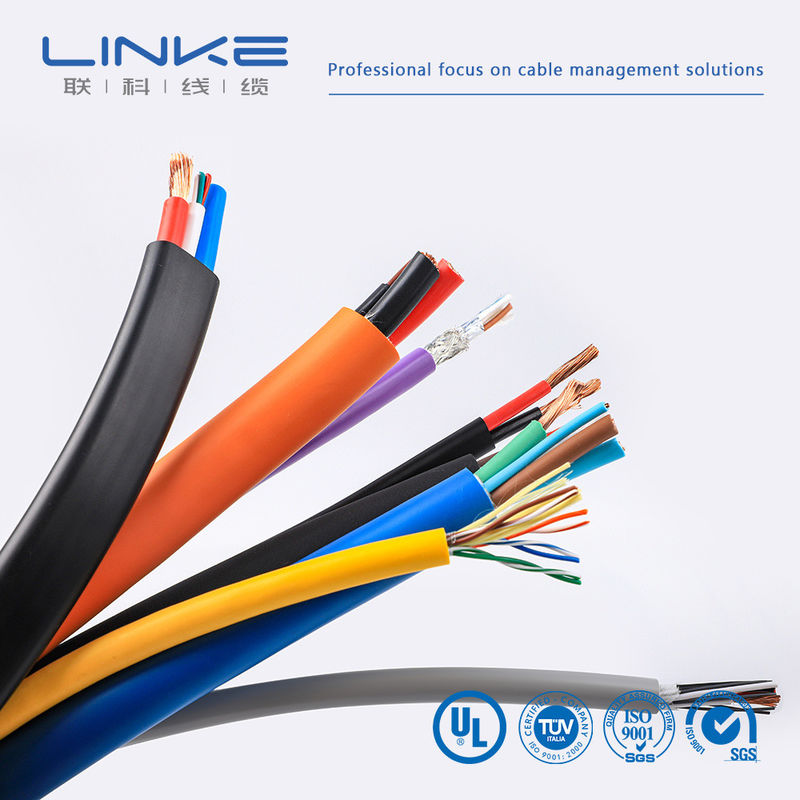

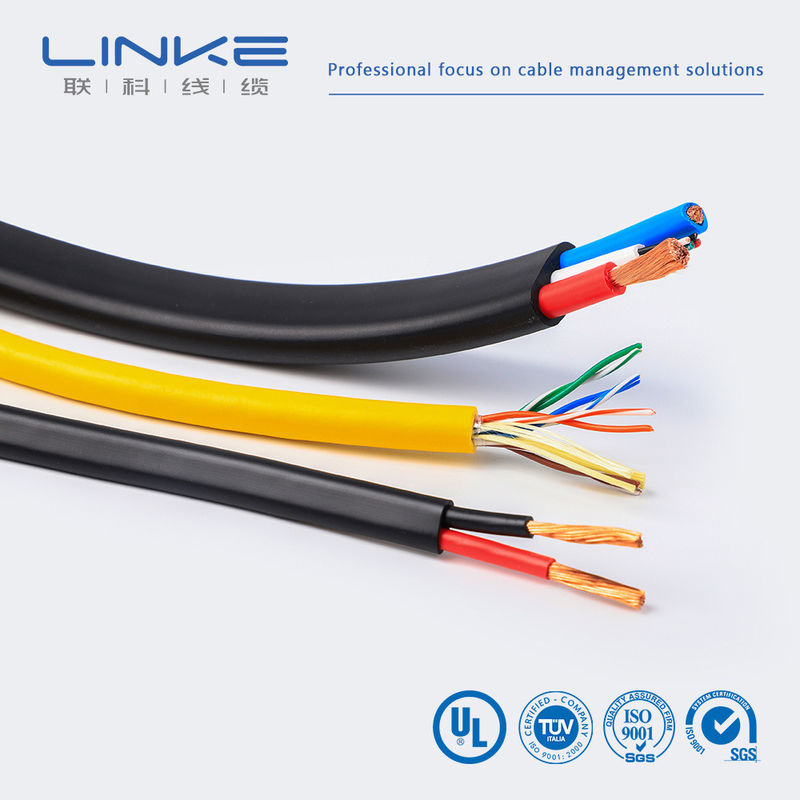

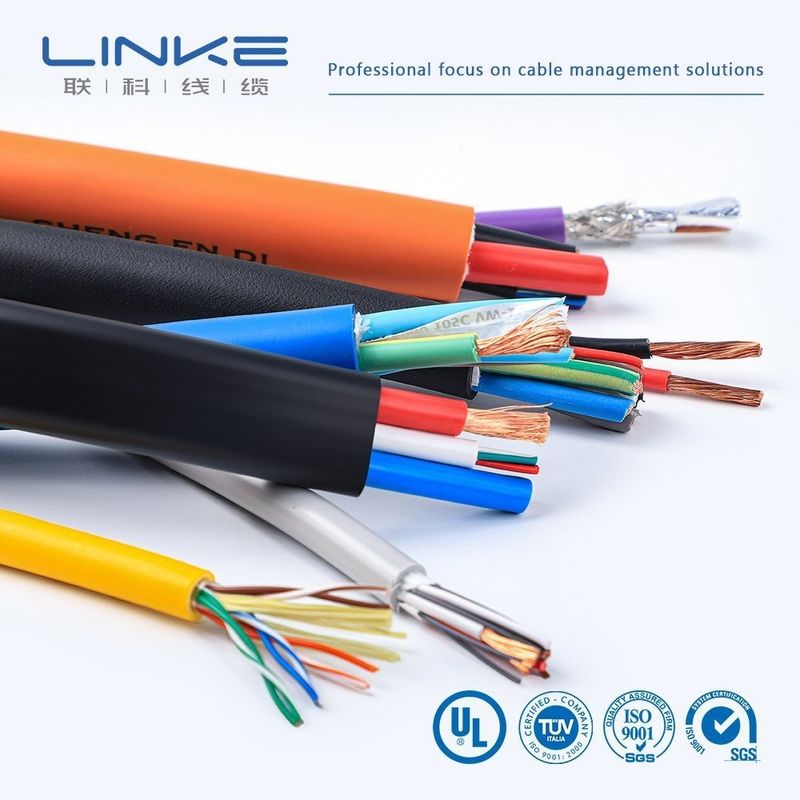

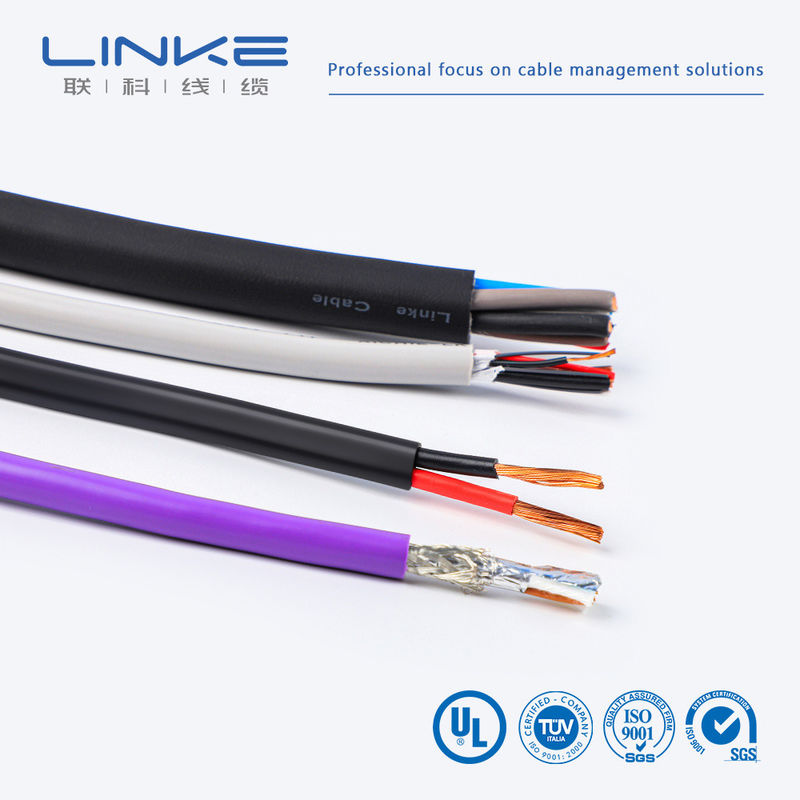

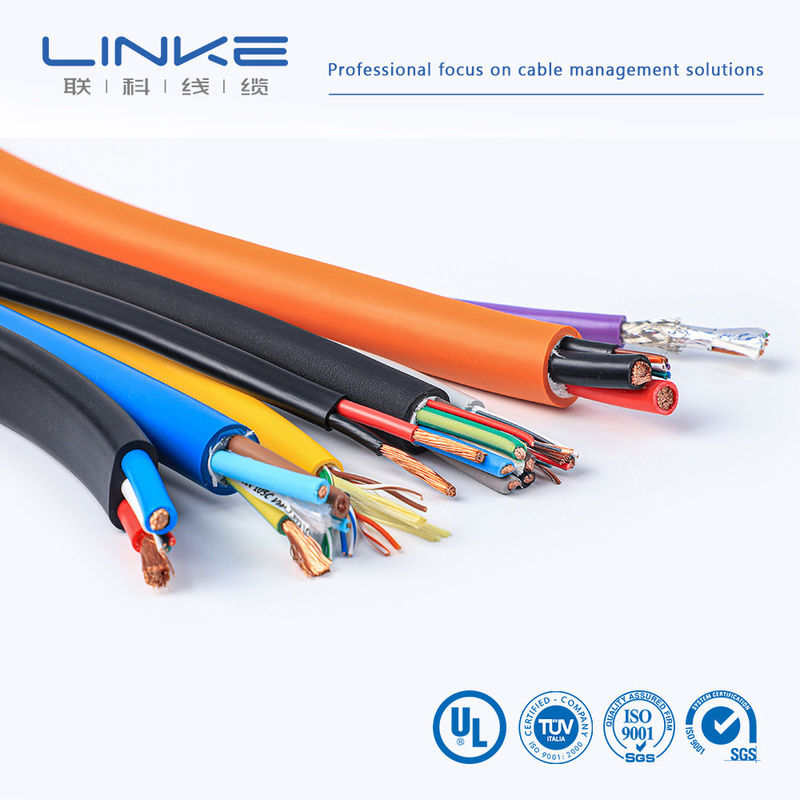

Flame Retardant UL Certified 300V/500V Industrial Control Shielded Cable for Electric Equipment

PVC Insulated Industrial Control Cable

Soft Copper Wire PVC Insulated Cable

60227 IEC 52 53rvv Industrial Control Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

60227 IEC52(RVV) 60227 IEC53(RVV)

Conductor Material:

Copper

Sheath Material:

PVC

Material Shape:

Round Wire

Range Of Application:

Electric Equipment Internal Wiring

Voltage:

300V/300V

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Highlight:

PVC Insulated Industrial Control Cable

Soft Copper Wire PVC Insulated Cable

60227 IEC 52 53rvv Industrial Control Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Copper Armoured Low Voltage Power Cable PVC Insulated 600V Rated for Underground Industrial Use

Get Best Price

Video

High Temperature Electric Thermo Copper Wire for Industrial Control Cable with UL Certification

Get Best Price

Video

Customized Industrial Control Cable for High Power Processing OEM Spiral Cable with UL Certification

Get Best Price

Video

Optimal Performance 22AWG Underwater Cable with Water-Blocking Yarn and Vectran Fiber

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Flame Retardant UL Certified Control Cable Igus Alternative CF10-UL Shielded Cable

Product Overview

Key Specifications

RVV implementation of standard GB/T5023.5-2008
Rated voltage: 602271EC52 (300/300V) or 2271EC53 (300/500V)
PVC sheath and insulation
Conductor: multiple core return naked copper stranded
Maximum operating temperature: 70℃
CCC certified product

Applications

Suitable for control signal transmission lines, electrical equipment, instrumentation, automation equipment, security and anti-theft alarm systems, high-rise building intercom systems, and household lighting connection lines.

Product Model Specifications

Product Name	Product Model	Rated Voltage	Specifications	Number of Cores
General purpose single core hard conductor sheathless cable	60227 IEC 01 (BV)	450/750V	1.5~50	Single core
General purpose single core flexible conductor sheathless cable	60227 IEC 02(RV)	450/750V	1.5~50	Single core
Single core flexible conductor sheathless cable	60227 IEC 06(RV)	300/500V	0.5~1.0	Single core
Copper core PVC insulated flexible cable	BVR	450/750V	1.0~50	Single core
Copper core PVC insulated PVC sheathed shielded flexible wire	RVVP	300/300V	0.3~6.0	2-16 cores
Copper core PVC insulated PVC sheathed flexible cable	RVV	300/500V	0.3-2.5	6-16 cores
Ordinary PVC sheathed wire	60227 IEC 53(RVV)	300/500V	0.75-2.5	2-5 cores, round

Detailed Product Parameters

Color	Conductor	Normal Sections	Certification	Rated Voltage
White, black, grey or OEM	Flexible Copper	0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm², 4.0mm², 6.0mm²	CCC, CE, ISO9001	300/300V 300/500V

Technical Specifications

Voltage Grade (V)	Cross-sectional Area (mm²)	Conductor Combination (mm)	Insulation Thickness (mm)	Maximum Overall Diameter (mm)
300/500V	2x1.0	32/0.2	0.6	8.0
300/500V	2x1.5	48/0.2	0.7	9.0
300/500V	2x2.5	80/0.2	0.8	11.0
300/500V	2x4.0	128/0.2	0.8	12.4
300/500V	2x6.0	192/0.2	1.0	13.4
300/500V	3x1.0	32/0.2	0.6	9.4
300/500V	3x1.5	48/0.2	0.7	11.0
300/500V	3x2.5	80/0.2	0.8	13.0
300/500V	3x4.0	128/0.2	0.8	14.6
300/500V	3x6.0	192/0.2	1.0	16.0
300/500V	4x1.0	32/0.2	0.6	10.0
300/500V	4x1.5	48/0.2	0.7	12.0
300/500V	4x2.5	80/0.2	0.8	14.0
300/500V	4x4.0	128/0.2	0.8	16.5
300/500V	4x6.0	192/0.2	1.0	18.5
300/500V	5x1.0	32/0.2	0.6	10.0
300/500V	5x1.5	48/0.2	0.7	12.0
300/500V	5x2.5	80/0.2	0.8	14.0
300/500V	5x4.0	128/0.2	0.8	16.5
300/500V	5x6.0	192/0.2	1.0	18.5

Manufacturer Profile

Dongguan Jingtong Wire and Cable Technology Co., Ltd. upholds the spirit of "fine copper seiko, Mingde". We have a strong R&D team with 6 engineering professionals, each with over 10 years of experience in wire and cable technology. Our quality control department includes 10 specialists who strictly supervise every step from incoming materials to shipping, ensuring 100% product quality. With over 50 experienced production staff, we provide comprehensive wire and cable solutions.
