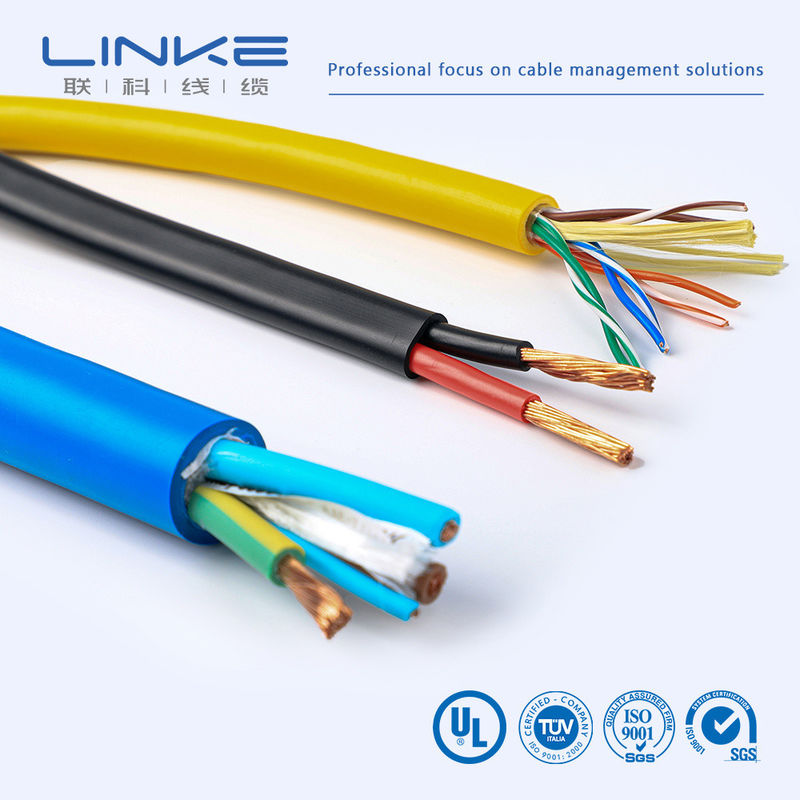

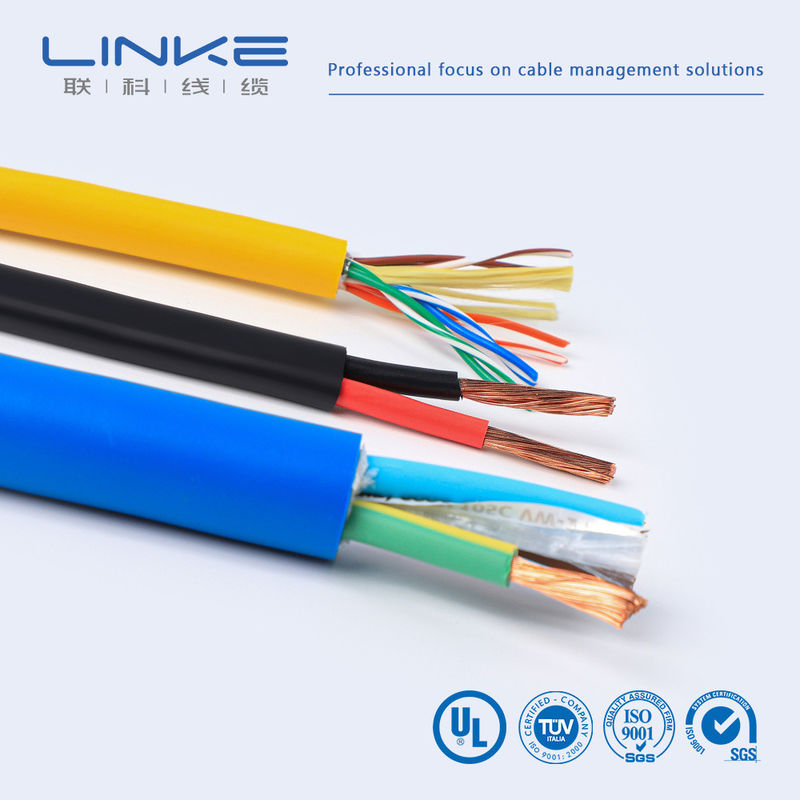

PVC Insulated Copper Core Cable rated for 300V/500V applications
Product Specifications
| Product Item |
60227 IEC06(RV) |
| Country of Origin |
China |
| Production Specification |
According to customer requirements |
| Insulation Material |
PVC |
| Rated Temperature |
70°C |
| Available Colors |
Yellow, Green, Black, Red, Grey, Brown, Blue, Orange, White and Transparent |
| Rated Voltage (U0/U) |
300V/300V |
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading cable manufacturer in China with over 10 years of experience in R&D, production, and marketing of wire and cable solutions. We specialize in providing custom cable solutions for global clients, including EV charging cables, medical cables, silicone cables, spring cables, braided cables, towlobe cables, UL wires, and automotive cables.
Our engineer-to-engineer approach ensures we develop superior cables that enhance quality and performance for our customers' applications.
Quality Assurance
Our dedicated team ensures exceptional quality throughout the manufacturing process:
- R&D Team: 6 engineers with over 10 years of cable technology experience
- Quality Control: 10 professionals monitoring every step from materials to shipping
- Production Staff: 50+ experienced manufacturing personnel
Facilities Overview
- Modern Office Environment
- Professional Team
- Advanced Production Workshop
- Comprehensive Cable Testing Laboratory
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
Certifications & Standards
Single-conductor, Thermoplastic Insulation
1007 1330 1333 1591 1723 10064 10369 1015 1331 1569 1592 1901 10070 10483 1185 1332 1577 1672 10012 10269
Multiple-conductor, Thermoplastic Insulation
2095 2129 2468 2586 2725 20233 20280 20963 2103 2463 2517 2587 2835 20276 20549 21198 2104 2464 2576 2661 2919 20279 20886 21664
Single-conductor, Thermoset Insulation
3075 3173 3320 3386 3530 3689 30005 3123 3212 3321 3398 3577 3702 3132 3266 3331 3512 3644 3817 3135 3271 3385 3529 3674 3886
Additional certifications include: ISO9001, ISO13485, TS16949, and various CNR standards for appliance wiring materials and extruded cable types.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer controlling all aspects of production from start to finish. We welcome visits to our facility and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are provided free of charge. New customers are responsible for courier costs.
What's your Minimum Order Quantity?
Minimum order is 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs, with sea transportation being the most economical option.
Can I get a discount?
Discounts are available based on order quantity. We may also cover freight costs for larger orders.
Does your company accept OEM production?
Yes, we offer OEM services including custom printing of company names and quality cards to promote your brand.
