PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor

PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor

Armoured Electrical Power Cable

Tinned Copper Conductor PVC Insulated Cable

600V Electrical Power Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Contact Us
Request A Quote

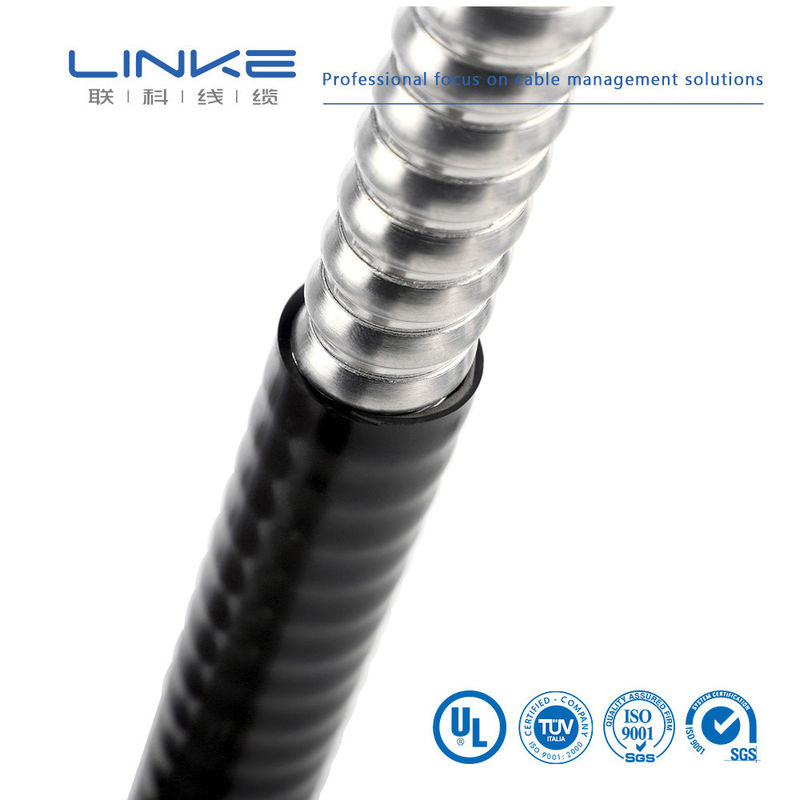

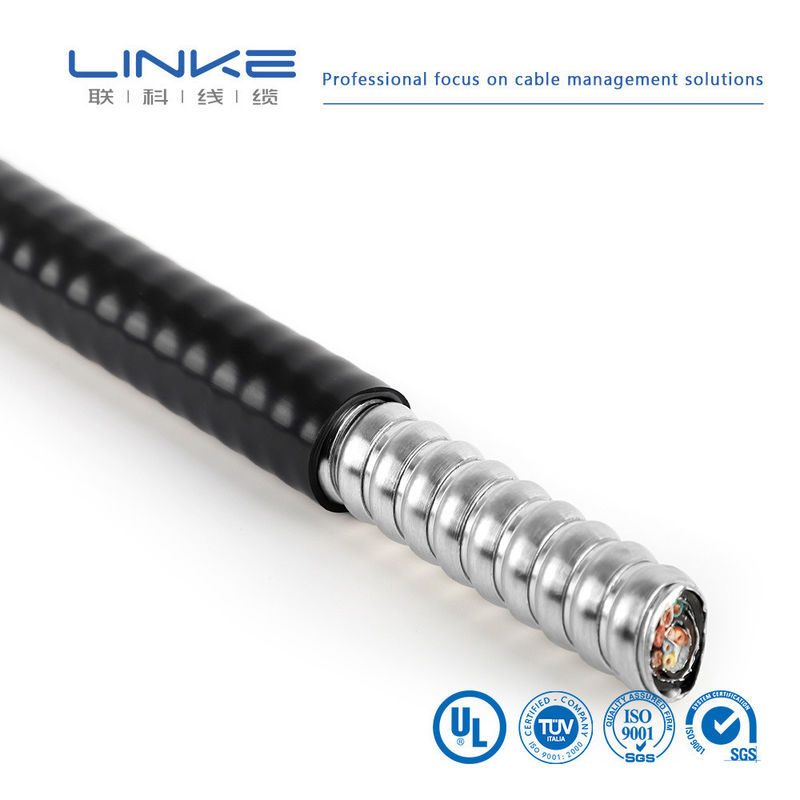

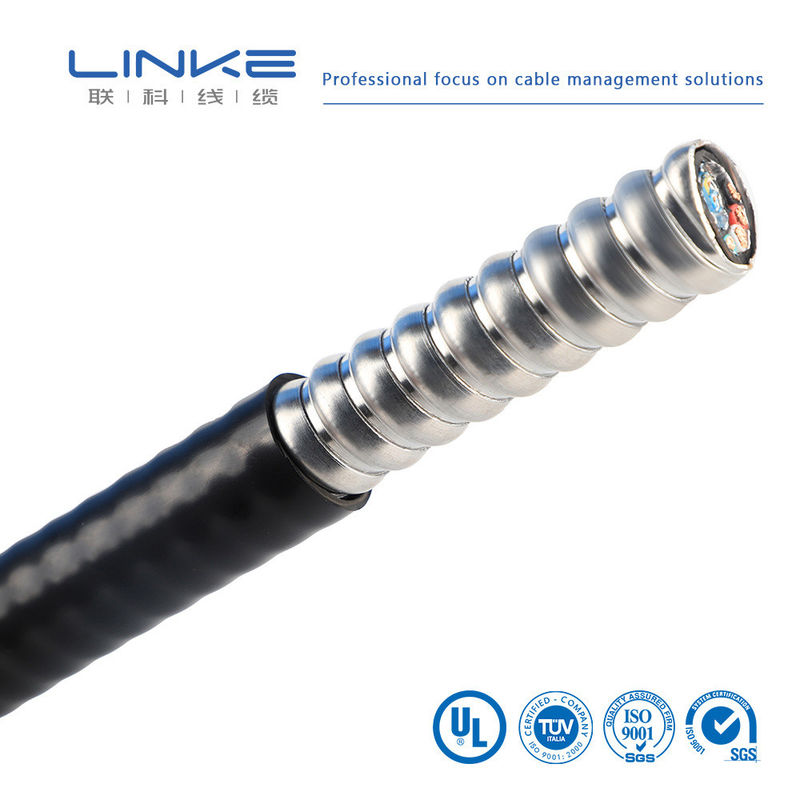

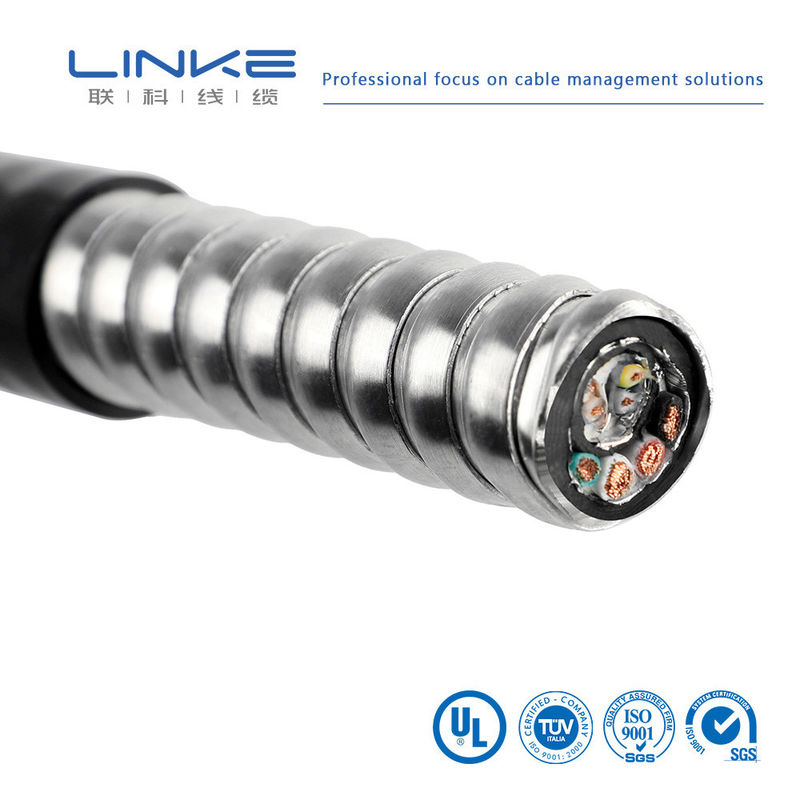

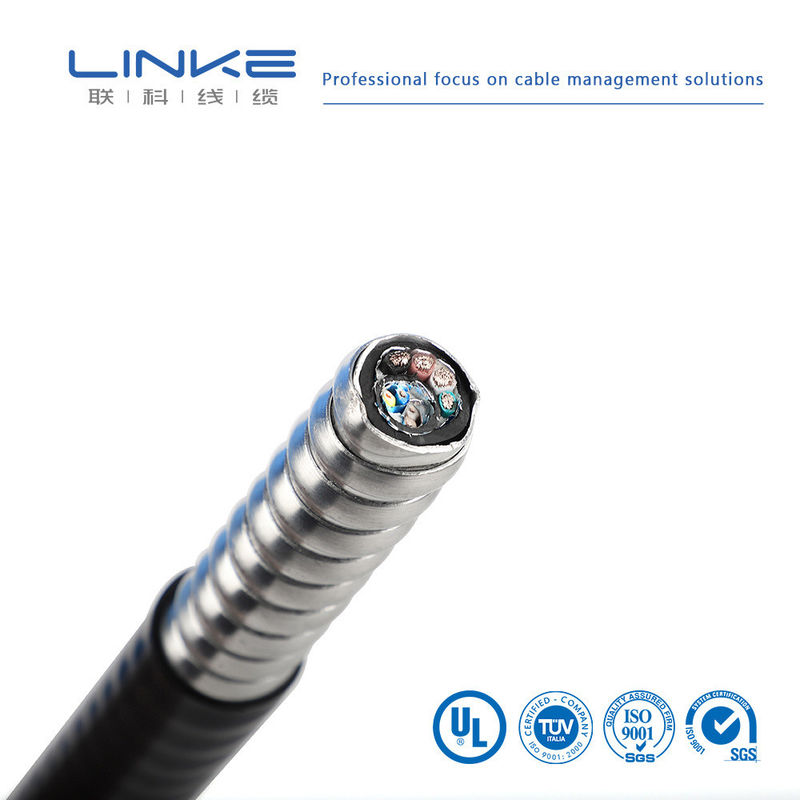

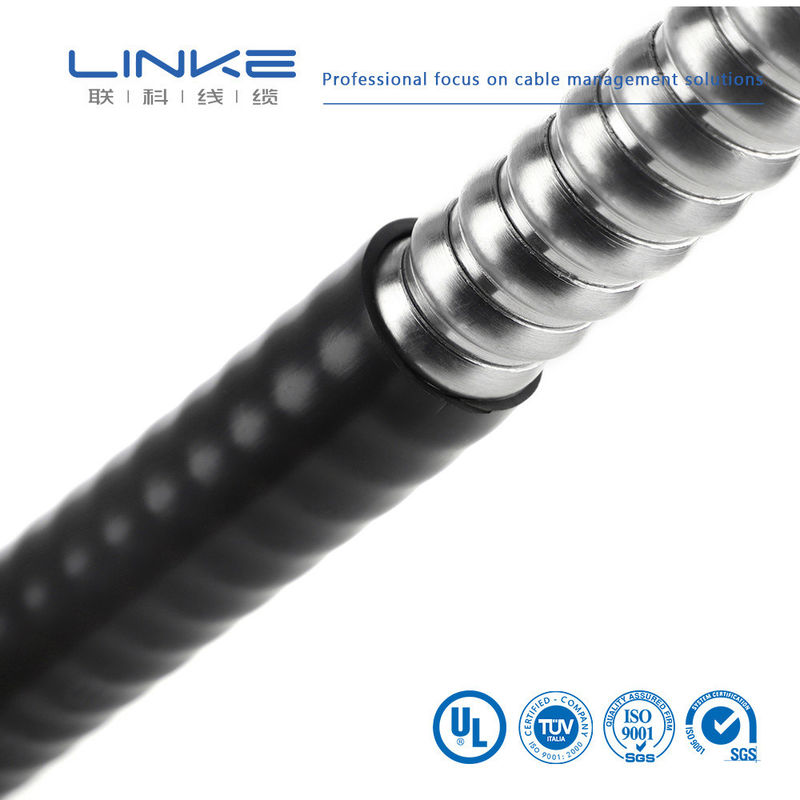

PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor
PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor PVC Insulated Armoured Electrical Power Cable with Tinned Copper Conductor
Product Details
Model NO.:
Armoured Cable
Insulation Material:
PVC
Sheath Material:
PVC
Wire Core Material:
Bare Copper Wire
Conductor Material:
Copper/Tinned Copper
Conductor Type:
Twisted Wire
Exterior Material:
Customize：PVC、PE、LSFOH、silicone Rubber
Insulating Materials:
Customize:PVC、PE 、XLPE、EPR、SIR
Colour:
Customize
Package:
By Roll
Currency:
US$
Lead Time:
7-15days
Highlight:

Armoured Electrical Power Cable

,

Tinned Copper Conductor PVC Insulated Cable

,

600V Electrical Power Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
RELATED PRODUCTS
Good price Multi-core wire Semiconductor equipment control cable Communication cable Silicone Rubber Power Cable YGC JGG JHXG JGGRP online Video

Multi-core wire Semiconductor equipment control cable Communication cable Silicone Rubber Power Cable YGC JGG JHXG JGGRP

Get Best Price
Good price Soft Copper Wire PVC Insulated Industrial Control Cable 60227 IEC 52 53rvv Multi-core control cable online Video

Soft Copper Wire PVC Insulated Industrial Control Cable 60227 IEC 52 53rvv Multi-core control cable

Get Best Price
Good price Copper Armoured Electrical Low Voltage Power Cable PVC Insulated For Industrial Underground armored cable online Video

Copper Armoured Electrical Low Voltage Power Cable PVC Insulated For Industrial Underground armored cable

Get Best Price
Good price Twisted Wire Highly Flexible 24AWG Tinned Copper Coated Silicone Rubber Insulated Electric Cable online

Twisted Wire Highly Flexible 24AWG Tinned Copper Coated Silicone Rubber Insulated Electric Cable

Get Best Price
Contact Us
86-0769-81776230
86-18665106395
sales@linkecable.com
Contact Now
Product Description
XLPE/PVC/AIA/PVC Multi-conductor Armoured Control Cable
600 V, TECK90


TECK90 armored control cable (600 V)TECK90 armored control cable (600 V)

application:

Armored control cables are designed for ventilated, non ventilated, and ladder type cable trays, used for exposed and concealed wiring in dry, humid, or damp places. Cables also have excellent compression resistance, oil resistance, and chemical resistance, ensuring a longer service life. Typical vertical installations of this armored power cable include mines, high-rise commercial buildings, built-in tunnels, and vertical cable trays.

TECK90 armored control cable (600 V)TECK90 armored control cable (600 V)TECK90 armored control cable (600 V)



XLPE/PVC/GSIA/PVC three-core unshielded armored power cable

    • Product Certification:

      • TECK90 armored control cable (600 V) Structure:

        • Conductor: 14 AWG B grade bare copper compressed concentric circles conforming to ASTM B8
        • Insulation: RW90 type cross-linked polyethylene (XLPE)
        • Colour Coding: According to ICEA Method 4; individual conductors painted black and conductor number surface printed with contrasting ink.
        • Ground (bonding) conductor: The conductor consists of an uninsulated stranded bare copper conductor.
        • Inner Jacket: Flame Retardant, Moisture and Sunlight Resistant Polyvinyl Chloride (PVC) - Black
        • Armor: Aluminum Interlock Armor (AIA)
        • Overall Jacket: Acid-Flame Check Flame Retardant, Moisture and Sunlight Resistant Polyvinyl Chloride (PVC) - Black
        • Options:
          • Galvanized Steel Interlocking Armor (GSIA)
          • Other structures available on request

        TECK90 armored control cable (600 V) Features:

        • Rated to 90°C wet or dry
        • Meets cold bending and impact tests at -40 °C
Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.

Low to High Voltage Tinned-Copper Conductor PVC Insulated Armoured Electrical Power Cable

LINKE UL CERTIFICATION
Low to High Voltage Tinned-Copper Conductor PVC Insulated Armoured Electrical Power Cable

Low to High Voltage Tinned-Copper Conductor PVC Insulated Armoured Electrical Power CableLow to High Voltage Tinned-Copper Conductor PVC Insulated Armoured Electrical Power Cable



FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.


4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.


5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
