PUR Jacket Shielded Twisted Pair Camera Tether Cable
High-performance copper conductor PVC industrial cable designed for robotic and high-flex data transmission applications, featuring customizable communication wire solutions.
Performance Specifications
- Exceeds ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA standards
- Complies with YD/T 1019 standard
- Bandwidth: ≥500 MHz
- Supports 10G Base-T with backward compatibility for CAT6 and CAT5e systems
Technical Parameters & Characteristics
- Wire gauge: 23AWG
- Conductor material: 99.99% oxygen-free copper
- Insulating material: High density polyethylene (HDPE)
- Outer sheath material: PVC (Low smoke halogen-free LSZH optional)
- Customizable options: CM/CMR/CMP available
- Cable outer diameter: 7.8±0.5mm
- Core structure: Cross keel core
- Jacket color: Customizable
- Gross weight: 17.9Kg
- Maximum tensile force: 110N
- Installation temperature: 0°C to +50°C
- Operating temperature: -20°C to +60°C

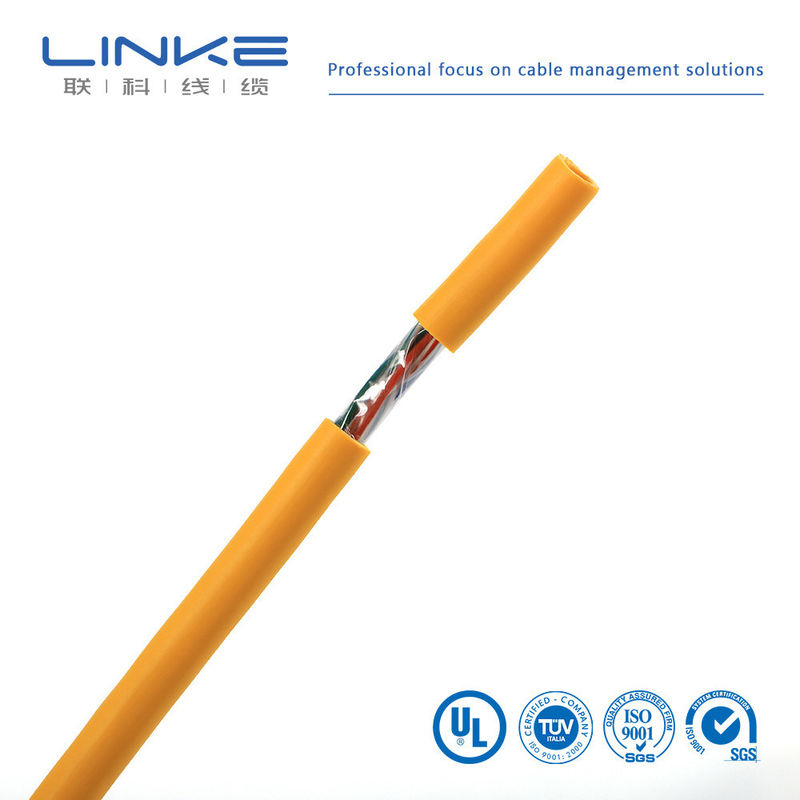

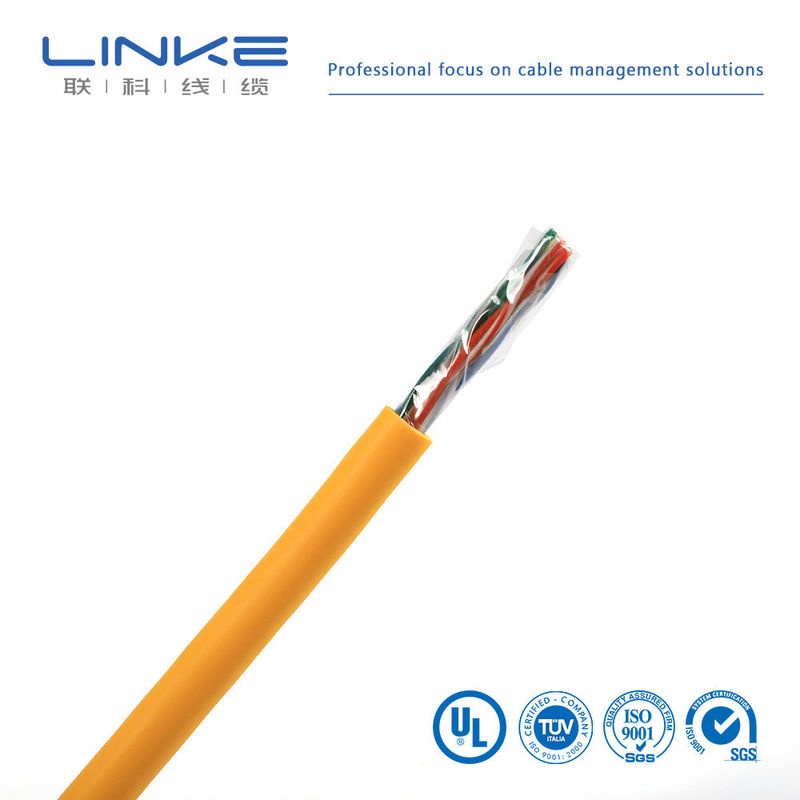

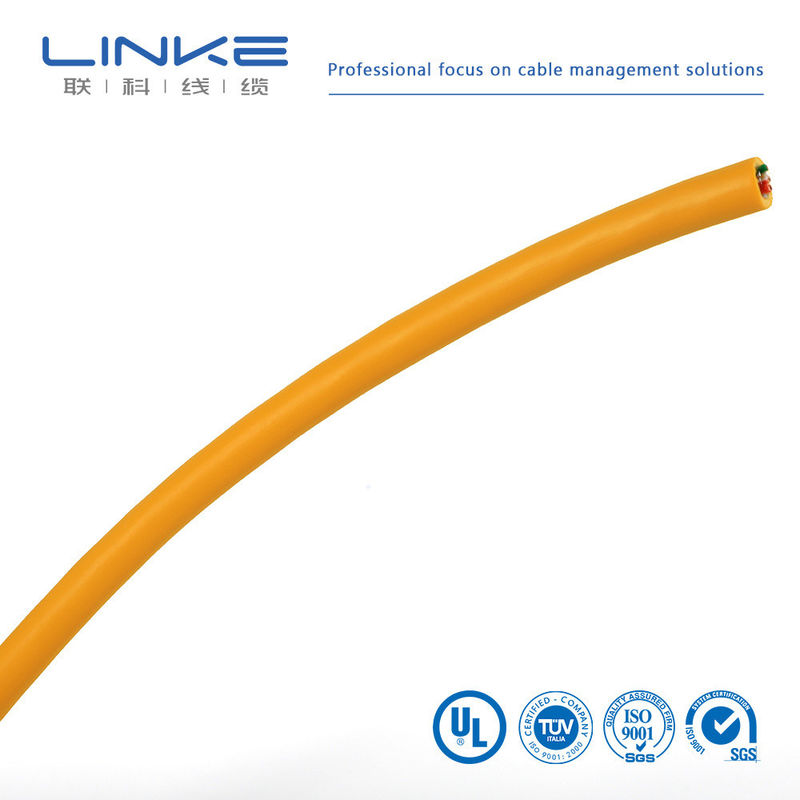

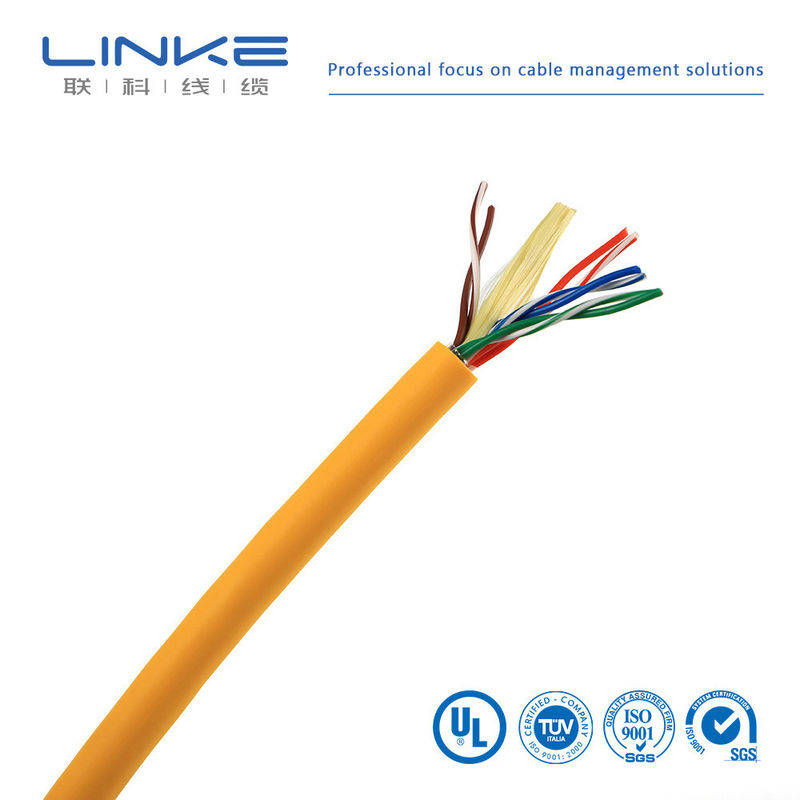

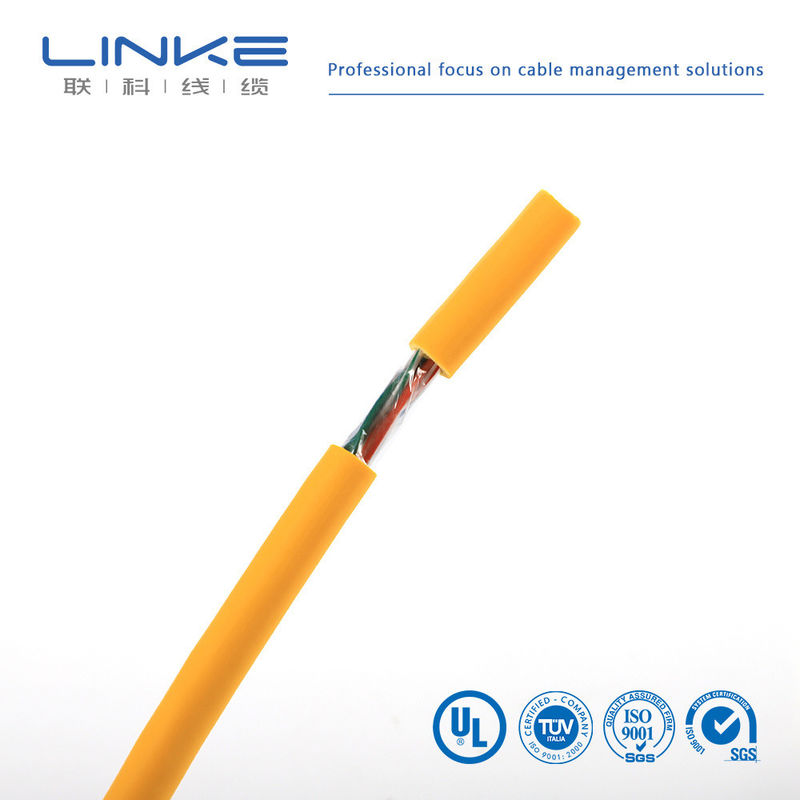

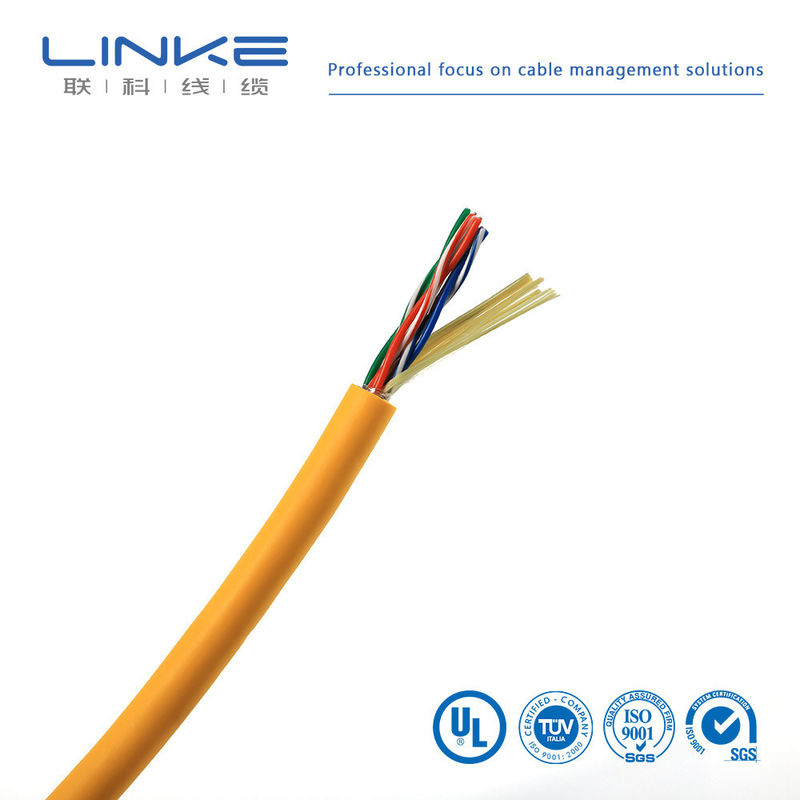

Product Images
Network UTP Patch Cords
Our UTP patch cords feature high-performance modular plugs with snagless design to protect RJ45 connector locking clips during installation.
CAT5e UTP Network Patch Cords
| Cable Type | Cat5e Snagless |
| Shielding Type | Unshielded (U/UTP) |
| Cable Jacket | PVC CM (Round) |
| Length | 3ft (0.9m) Including Plugs |
| Data Rate Support | 10/100/1000Base-T |
| Standard Bandwidth | 100MHz |
| Conductor Type | Stranded Pure Bare Copper |
| Connectors | RJ45 (Male) |
| Gauge (AWG) | 24 (7/0.20mm) |
| Cable Outer Diameter | 5.5± 0.4mm |
| PoE Compatibility | PoE/PoE+ |
| Wire Scheme | T568B, Straight |
| Operating Temperature | -20°C to +75°C (-4°F to 167°F) |
| Installation Temperature | -10°C to +50°C (14°F to 122°F) |
CAT6 UTP Network Patch Cords
| Cable Type | Cat6 Snagless |
| Shielding Type | Unshielded (U/UTP) |
| Cable Jacket | PVC CM (Round) |
| Length | 3ft (0.9m) Including Plugs |
| Data Rate Support | 1000Base-T and Maximum to 10GBase-T |
| Standard Bandwidth | 250MHz |
| Conductor Type | Stranded Pure Bare Copper |
| Connectors | RJ45 (Male) |
| Gauge (AWG) | 24 (7/0.20mm) |
| Cable Outer Diameter | 6.1 ± 0.4mm |
| PoE Compatibility | PoE/PoE+ |
| Wire Scheme | T568B, Straight |
| Operating Temperature | -20°C to +75°C (-4°F to 167°F) |
| Installation Temperature | -10°C to +50°C (14°F to 122°F) |
Mechanical Parameters
| Parameter | PVC | LSZH Low Smoke Halogen-Free |
|---|
| Tensile strength before aging | ≥13.5Mpa | ≥10.0Mpa |
| Elongation before aging | ≥150% | ≥125% |
| Aging time | 100℃ * 24 hours * 7 days |
| Tensile strength after aging | ≥12.5Mpa | ≥8Mpa |
| Elongation after aging | ≥125% | ≥100% |
| Cold bending (-20±2℃ * 4 hours) | 8 times the outer diameter of the cable without cracking |
Electrical Parameters
| Transmission delay difference | ≤25ns / 100m |
| Transmission speed | 74% |
| Unbalanced capacitance to ground | Maximum 330pf / 100m |
| DC resistance | Maximum 9.5Ω / 100m |
| DC resistance unbalance | Maximum 2% |
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading cable manufacturer in China with over 10 years of experience in R&D, production, and marketing of wire and cable solutions.
We specialize in providing custom cable solutions including EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, and more for global markets.
Certifications & Standards
Our products meet rigorous quality standards and hold numerous certifications:
UL Certifications
Single conductor, thermoplastic insulation: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
Multiple-conductor, thermoplastic insulation
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, UL2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
Additional certifications: ISO9001, ISO13485, TS16949, CNR Appliance Wiring Material
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer controlling all aspects of production from beginning to end. We welcome visits to our facility in Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is recommended for larger orders.
Can I get a discount?
Discounts are available based on order quantity. Please contact us for pricing details.
Does your company accept OEM production?
Yes, we offer OEM services including custom printing of company names and quality cards.
