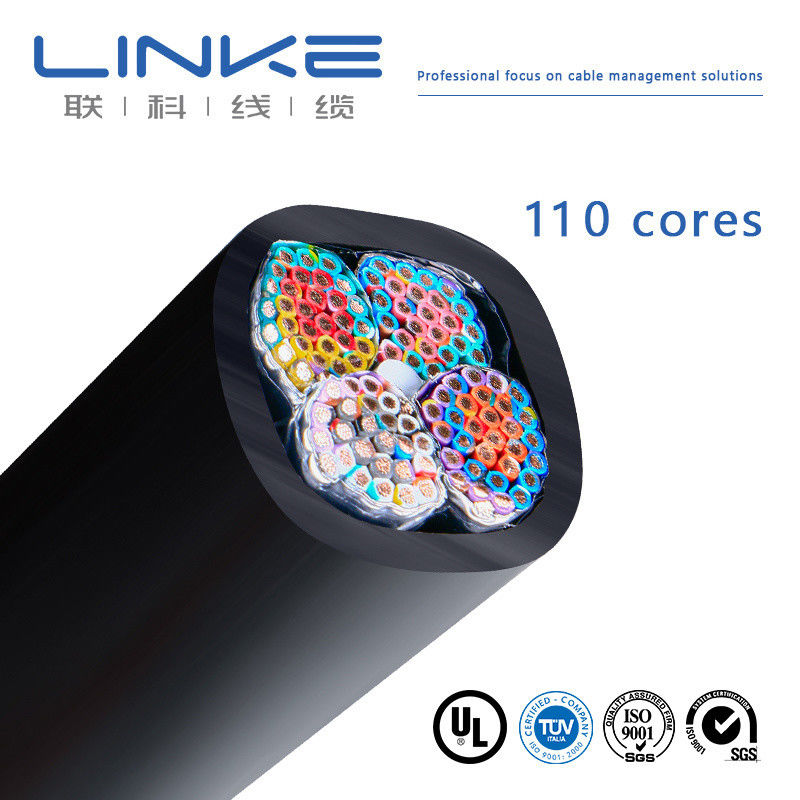

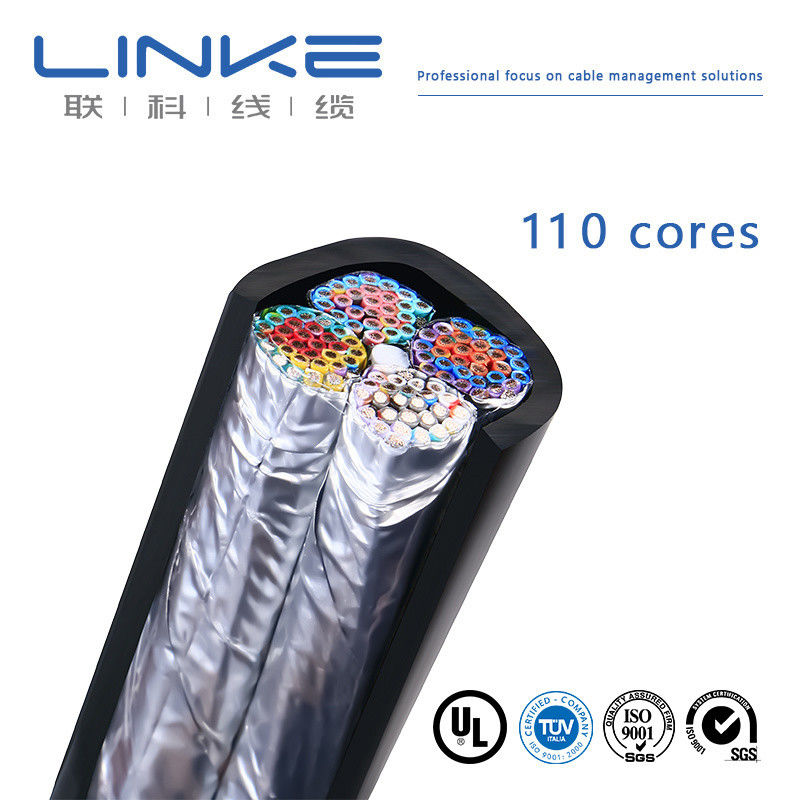

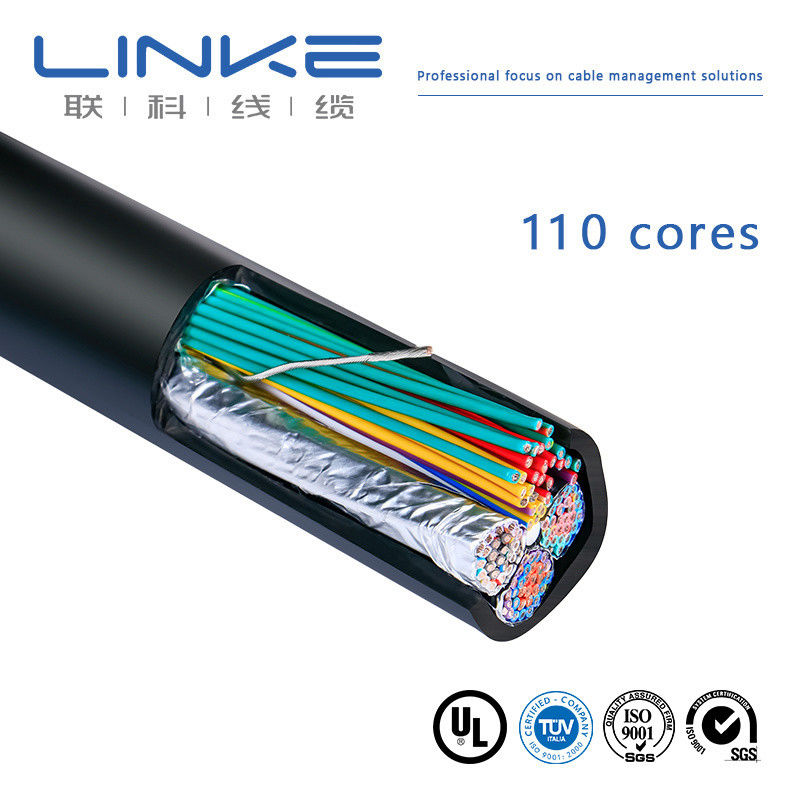

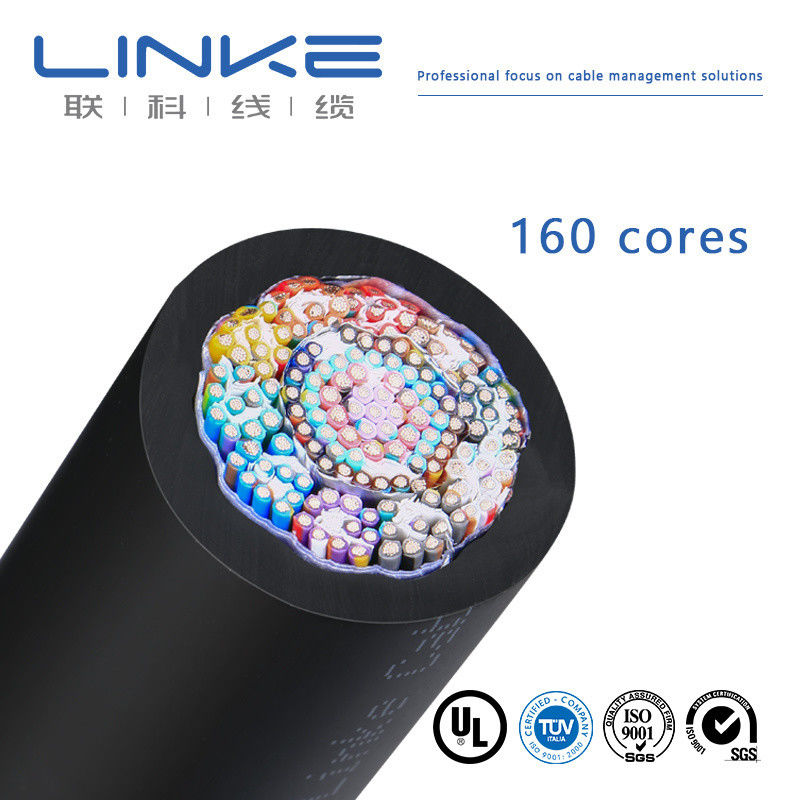

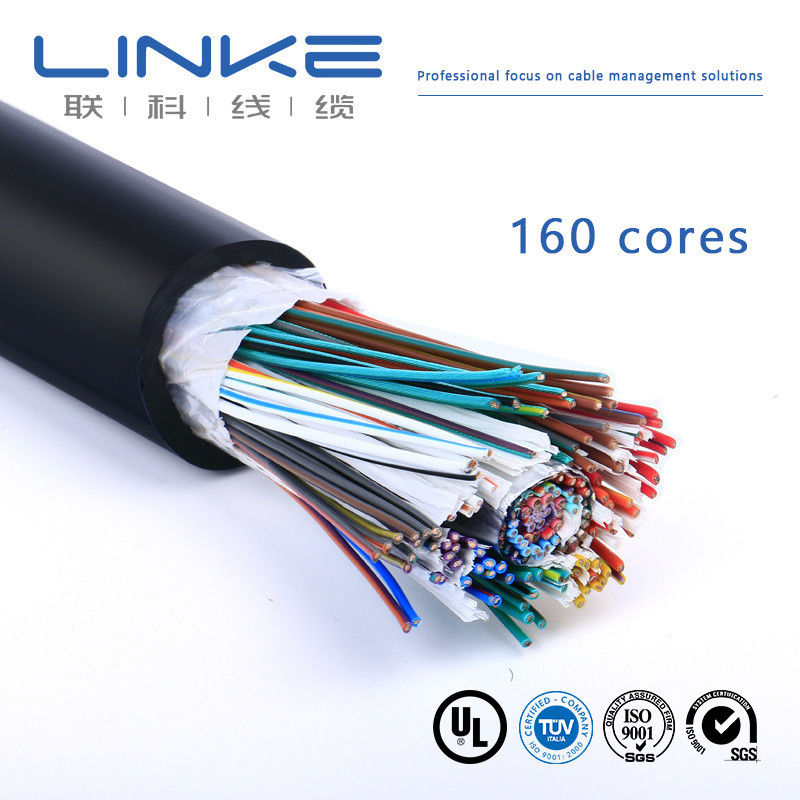

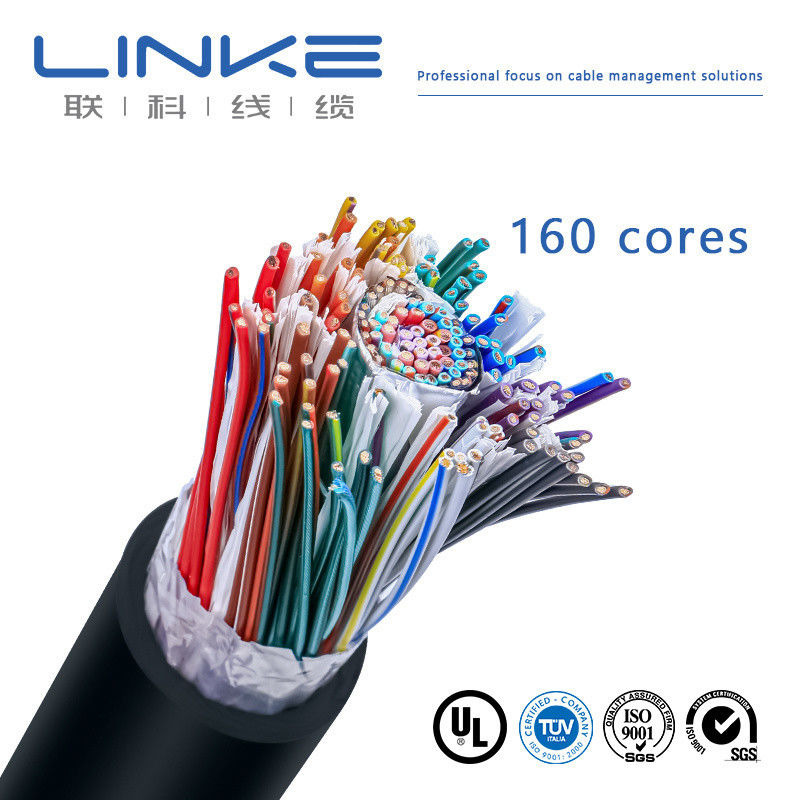

110 cores Semiconductor Control Wire UL2464 Multi-Core Wire
Product Description
It iscomposed of multiple thin wires and has
characteristics such as high tenperature resistance,
wera resistance,corrosion resistance,etc.
Product Specification
PVC wire&Cable
UL Style Number:2464
Specifications
Rated voltage: 300V
Rated Temperature: 80℃
Standard: UL758/UL1581
Applications
Internal wiring or external interconnection of electronic equipment.
Marking:E364879 AWM 2464 **AWG VW-1 80℃ 300V C AWM I A 80℃ 300V FT1 Linke Cable
| Conductor |
Insulation |
Core |
Shield
|
Jacket |
Max.
Conductor Resistance
(Ω/KM)
|
|
Size
(AWG)
|
Construction
(No./mm)
|
Diameter
(mm)
|
Nominal thickness
(mm)
|
Diameter
(mm)
|
Optional |
Shield Rate
(%)
|
Nominal thickness(mm)
|
Diameter
(mm)
|
Bare copper
|
Tinned copper
|
| 26 |
7/0.16 |
0.48 |
0.23 |
1.00±0.10 |
2 |
Optional |
0.76 |
3.50±0.10 |
140 |
150 |
| 3 |
3.70±0.15 |
| 4 |
3.90±0.15 |
| 24 |
7/0.20 |
0.60 |
0.23 |
1.10±0.10 |
2 |
Optional |
0.76 |
3.70±0.15 |
87.6 |
94.2 |
| 3 |
3.90±0.15 |
| 4 |
4.20±0.15 |
| 22 |
7/0.254 |
0.78 |
0.23 |
1.30±0.10 |
2 |
Optional |
0.76 |
4.10±0.15 |
55.4 |
59.4 |
| 3 |
4.30±0.15 |
| 4 |
4.70±0.15 |
| 20 |
26/0.16 |
0.94 |
0.23 |
1.50±0.10 |
2 |
Optional |
0.76 |
4.50±0.15 |
34.6 |
36.7 |
| 3 |
4.80±0.15 |
| 4 |
5.10±0.15 |
| 18 |
41/0.16 |
1.18 |
0.23 |
1.80±0.10 |
2 |
Optional |
0.76 |
5.10±0.15 |
21.8 |
23.2 |
| 3 |
5.40±0.15 |
| 4 |
5.90±0.15 |
| 16 |
26/0.254 |
1.49 |
0.23 |
2.10±0.10 |
2 |
Optional |
0.76 |
5.70±0.15 |
13.7 |
14.6 |
| 3 |
6.00±0.15 |
| 4 |
6.60±0.15 |
| Core A. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx30C |
| Insulation: |
| PVC-001 (various colors) |
|
A1.red A2.red note black A3.red note brown A4.red note orange
A5.red note yellow A6.red note green A7.red note blue A8.red note purple A9.red note gray A10.red note white
A11.yellow A12.yellow note black A13.yellow note brown A14.yellow note red
A15.Yellow Note Orange A16.Yellow Note Green A17.Yellow Note Blue A18.Yellow Note Purple A19.Yellow Note Gray A20.Yellow Note White
A21.green A22.green note black A23.green note brown A24.green note red
A25.Green Note Orange A26.Green Note Yellow A27.Green Note Blue A28.Green Note Purple A29.Green Note Gray A30.Green Note White
|
|
|
| Cable formation: (core A) |
| Wrap: Clear Mylar W=30mm, &=0.025mmx1C |
| Ground: Tinned soft copper wire 19/0.16±0.003mmx1C (ground between mylar and aluminum foil) |
| Wrap: Silver single-sided AL W=30mm, &=0.050mmx1C (AL side inward) |
|
| Core B. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx30C |
| Insulation: |
| PVC-001 (various colors) |
|
B1.Orange B2.Orange note black B3.Orange note brown B4.Orange note red B5.Orange note yellow B6.Orange note green B7.Orange note blue
B8. orange note purple B9. orange note gray B10. orange note white B11. blue B12. blue note black B13. blue note brown B14. blue note red
B15. blue note orange B16. blue note yellow B17. blue note green B18. blue note purple B19. blue note gray B20. blue note white
B21. purple B22. purple note black B23. purple note brown B24. purple note red B25. purple note orange B26. purple note yellow B27. purple note green
B28. purple blue B29. purple gray B30. purple white
|
|
|
| Cable formation: (Core B) |
| Wrap: Clear Mylar W=30mm, &=0.025mmx1C |
| Ground: Tinned soft copper wire 19/0.16±0.003mmx1C (ground between mylar and aluminum foil) |
| Wrap: Silver single-sided AL W=30mm, &=0.050mmx1C (AL side inward) |
|
| Core C. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx25C |
| Insulation: |
| PVC-001 (various colors) |
|
C1.Gray C2.Gray Note Black C3.Gray Note Brown C4.Gray Note Red C5.Gray Note Orange C6.Gray Note Yellow C7.Gray Note Green C8.Gray Note Blue
C9. gray note purple C10. gray note white C11. white C12. white note black C13. white note brown C14. white note red C15. white note orange
C16.White Note Yellow C17.White Note Green C18.White Note Blue C19.White Note Purple C20.White Note Gray
C21. light purple C22. light purple with black C23. light purple with brown C24. light purple with red C25. light purple with orange
|
| Cable formation: (core C) |
| Wrap: Clear Mylar W=30mm, &=0.025mmx1C |
| Ground: Tinned soft copper wire 19/0.16±0.003mmx1C (ground between mylar and aluminum foil) |
| Wrap: Silver single-sided AL W=30mm, &=0.050mmx1C (AL side inward) |
|
| Core D. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx25C |
| Insulation: |
| PVC-001 (various colors) |
|
D1.Pink D2.Pink Note Black D3.Pink Note Brown D4.Pink Note Red D5.Pink Note Orange D6.Pink Note Yellow D7.Pink Note Green D8.Pink Note Blue D9.
Pink Note Purple D10.Pink Note Gray D11.Pink Note White
D12. light blue note black D13. light blue note brown D14. light blue note red D15. light blue note orange D16. light blue note yellow D17. light blue note green D18.
light blue note purple D19. light blue note gray D20. light blue note white D21. light green note black D22. light green note brown D23. light green note red D24.
light green note orange D25. light green note yellow
|
| Cable formation: (core D) |
| Wrap: Clear Mylar W=30mm, &=0.025mmx1C |
| Ground: Tinned soft copper wire 19/0.16±0.003mmx1C (ground between mylar and aluminum foil) |
| Wrap: Silver single-sided AL W=30mm, &=0.050mmx1C (AL side inward) |
|
| Total cable formation: (core A+B+C+D) |
| Filling: Filling strip with PVC-001 white φ=2.90mm (center filling) |
|
Wrap: Transparent Mylar W=60mm, &=0.025mmx1C
|
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable.
Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable,
medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer
approach to develop better cables for customers and improve the quality of one's life.
Exhibition:
About Us
We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.
Certifications
| Single-conductor, thermoplastic insulation |
| 1007 |
1330 |
1333 |
1591 |
1723 |
10064 |
10369 |
|
| 1015 |
1331 |
1569 |
1592 |
1901 |
10070 |
10483 |
| 1185 |
1332 |
1577 |
1672 |
10012 |
10269 |
|
| Multiple-conductor, thermoplastic insulation |
| 2095 |
2129 |
2468 |
2586 |
2725 |
20233 |
20280 |
20963 |
| 2103 |
2463 |
2517 |
2587 |
2835 |
20276 |
20549 |
21198 |
| 2104 |
2464 |
2576 |
2661 |
2919 |
20279 |
20886 |
21664 |
| Single-conductor, thermoset insulation |
| 3075 |
3173 |
3320 |
3386 |
3530 |
3689 |
30005 |
|
| 3123 |
3212 |
3321 |
3398 |
3577 |
3702 |
|
| 3132 |
3266 |
3331 |
3512 |
3644 |
3817 |
| 3135 |
3271 |
3385 |
3529 |
3674 |
3886 |
