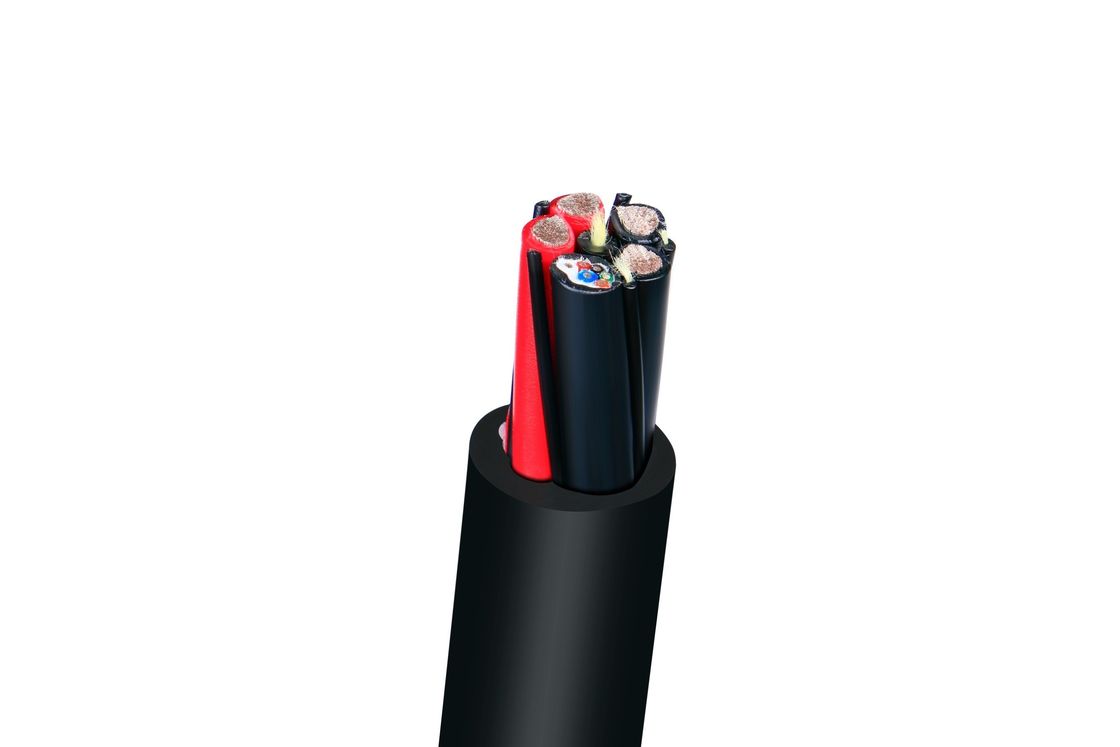

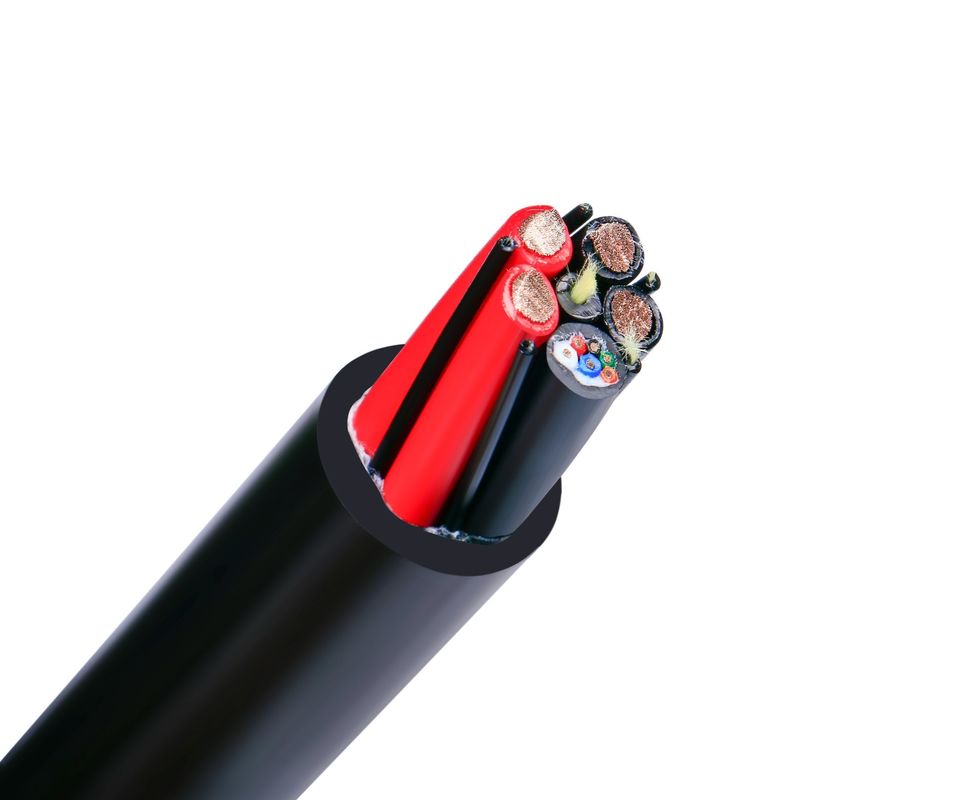

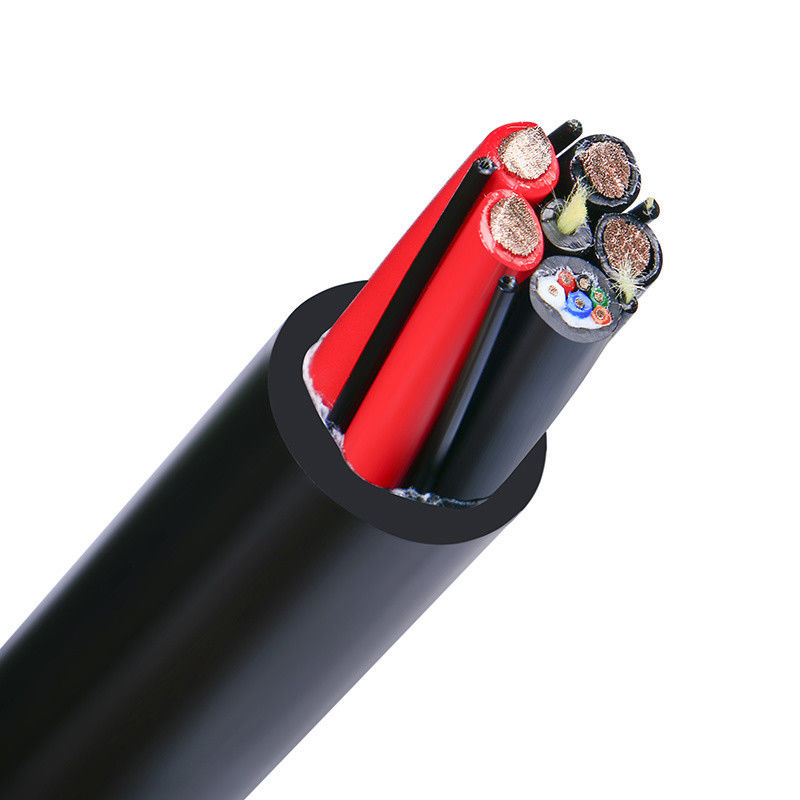

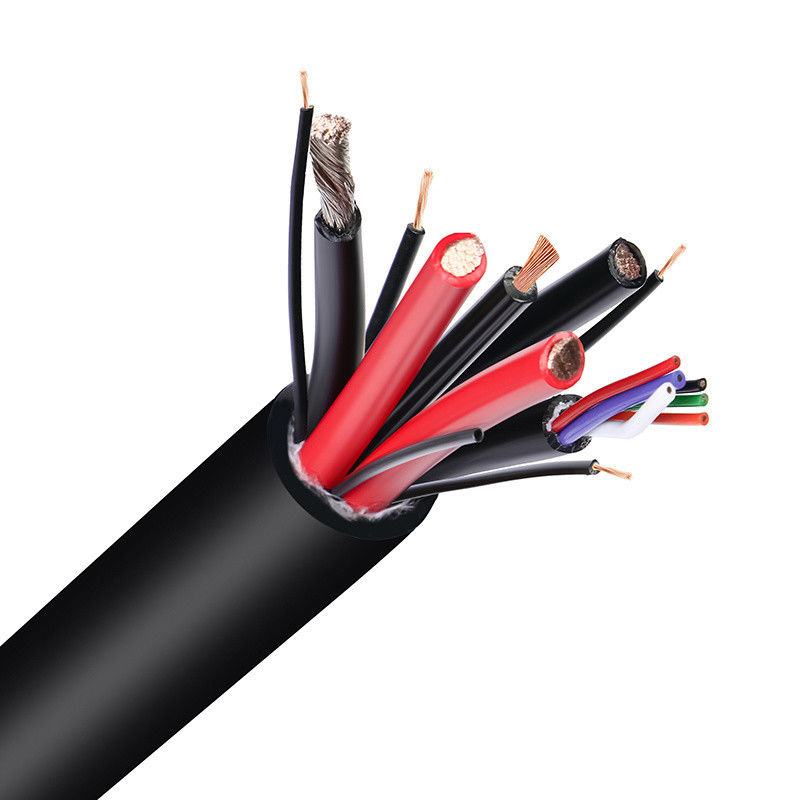

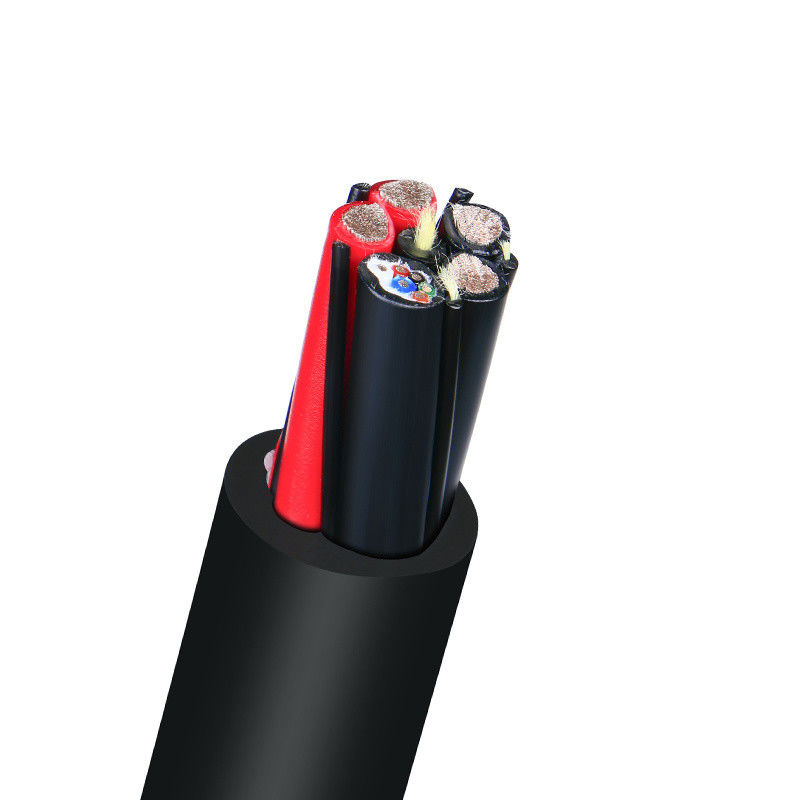

Custom Automotive Waterproof Coaxial Wire Data Cable For Radio Antenna Stranded Conductor
Waterproof Cable is used for the signal transmission, controlling and measuring system of the electric apparatus and the power distribute apparatus in the field of metallurgy, power and petrochemistry, The rated voltage is up to 450/750V.
Selection table for water-resistant cables
750V, blue, submersible-pump cable
750 V, blue, submersible pump cable
H07 RN8-F waterproof rubber-sheathed cable, harmonized type
WATERPROOF CABLE SPECIFICATIONS
| 4CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS) | ||||||||
|---|---|---|---|---|---|---|---|---|
| CONDUCTOR | RUBBER INSULATION | RUBBER SHEATH | Conductor Resistance at 20°C (max) ohms/ km | CURRENT | ||||
| Nominal | Nos. & Dia. | Nominal | Nominal | Nominal | Approx. Overall | Rating at 40°C | ||
| Area in | of wire | Thickness | Core Dia. | Thickness | Dimensions | Amps. | ||
| Sq. mm. | Nos. / mm | mm | mm | mm | Thickness | Width | ||
| mm | mm | |||||||
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.3 | 6 | 15.8 | 12.1 | 14 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.3 | 6.5 | 18 | 7.41 | 18 |
| 4 | 56/0.30 | 1 | 4.5 | 1.45 | 7.6 | 21 | 4.95 | 26 |
| 6 | 85/0.30 | 1 | 5.3 | 1.5 | 7.9 | 24.3 | 3.3 | 31 |
| 10 | 140/0.30 | 1 | 6.5 | 1.8 | 9.9 | 29.7 | 1.91 | 42 |
| 16 | 226/0.30 | 1 | 8 | 1.95 | 11.8 | 36 | 1.21 | 57 |
| 25 | 354/0.30 | 1.2 | 10.1 | 2 | 14.7 | 45.1 | 0.78 | 72 |
| 35 | 495/0.30 | 1.2 | 11.5 | 2 | 16.2 | 50.1 | 0.554 | 90 |
| 50 | 703/0.30 | 1.4 | 13.6 | 2.2 | 18.3 | 58.1 | 0.386 | 115 |
| 70 | 440/0.45 | 1.4 | 15.3 | 2.2 | 20 | 66.5 | 0.272 | 143 |
| 95 | 475/0.50 | 1.6 | 18 | 2.4 | 23.5 | 77.3 | 0.206 | 165 |
| Waterproof Cable Specification | |
|---|---|
| Extreme temperature range: | (-40oC to 105oC) can withstand the extremes of automotive environments |
| Waterproof Cable range: | 0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands |
| High strand counts | High strand counts |
| Conductor Type | Stranded 99.99% OFC (oxygen free copper), and tin plated copper,copper coated al |
| Material | Environmentally friendly, quality, glossy material Tinned, Silver or Nickel plated copper etc. |
| Waterproof Cable Colour: | Customized |
| Packing | carton packing, pallet packing , wooden / plastic reels |
| We can manufacture Waterproof Cable as per customers' requirement. | |
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of
wire and cable. Linke provide various cables&custom cable solutions for all over the world.
We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,
towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-
engineer approach to develop better cables for customers and improve the quality of one's life.
| Single-conductor, thermoplastic insulation | |||||||
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 | |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 | |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 | ||
| Multiple-conductor, thermoplastic insulation | |||||||
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| Single-conductor, thermoset insulation | |||||||
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 | |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 | ||
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 | ||
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 | ||
