Trailer Round Low Voltage Cable 7 Cores for Industrial Electronic System
Product Specifications
| Product Form |
Injection molding after socket, stamping terminal |
| Protection Level |
IP65 (other requirements available upon request) |
| Wire Material |
PVC, rubber, silicone, etc. (customizable) |
| Product Certification |
CCC, VDE, UL, ROHS and other certified wires available |
| Cable Inner Section |
0.3, 0.5, 0.75, 1.0, 1.5, 2.5 (mm²), etc. |
| Color |
Black, white, yellow, red, green, transparent, etc. |
| Length |
Custom lengths available (standard net line length: 20cm each, total plug-in length: ~40cm) |
Key Features
- Waterproof, moisture-proof, rain-proof, sun-proof and corrosion-resistant
- Flame retardant, anti-oxidation, and environmentally friendly (green production lines)
- Simplified production process: Streamlines electronic product assembly and mass production
- Easy maintenance: No need to cut cables - simply unscrew connector ends for convenient servicing
- Design flexibility: Enables greater engineering flexibility in new product design and system integration
Applications
All products use environmentally friendly high-temperature resistant materials meeting ROHS standards with formal environmental documentation available.
Primary Uses:
- Outdoor LED product connections: LED light bars, spot lighting, wall washers, billboard lighting, tunnel lighting, flood lighting, street lighting, and outdoor displays
- Coastal, river, lake, underwater projects, mining, underground projects, solar water heaters, solar/wind power generation
- Food industry, mechanical equipment, aviation, aerospace, defense, communication, and power fields
Certifications & Standards
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

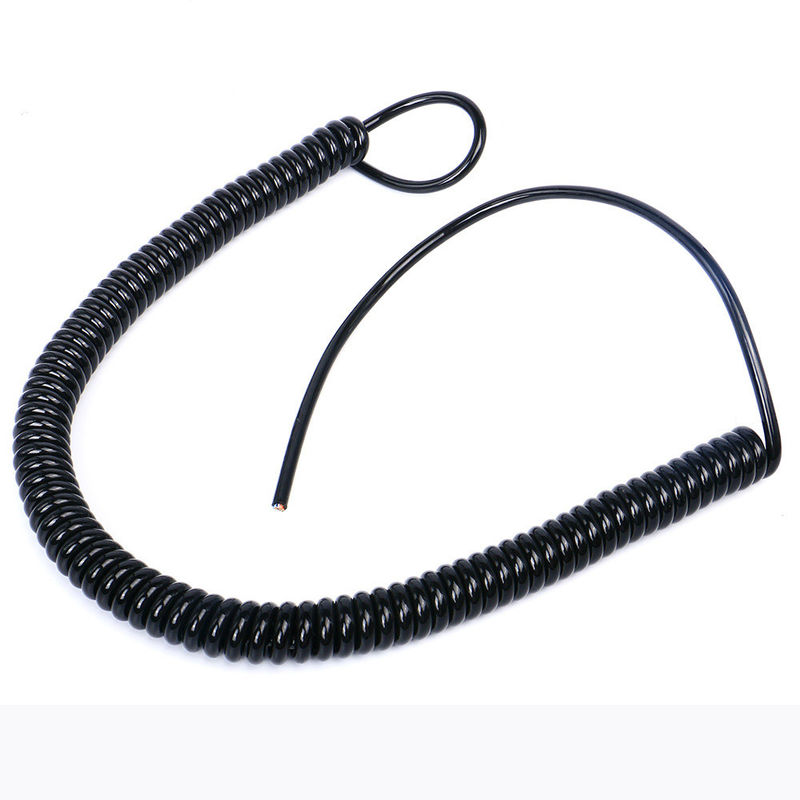

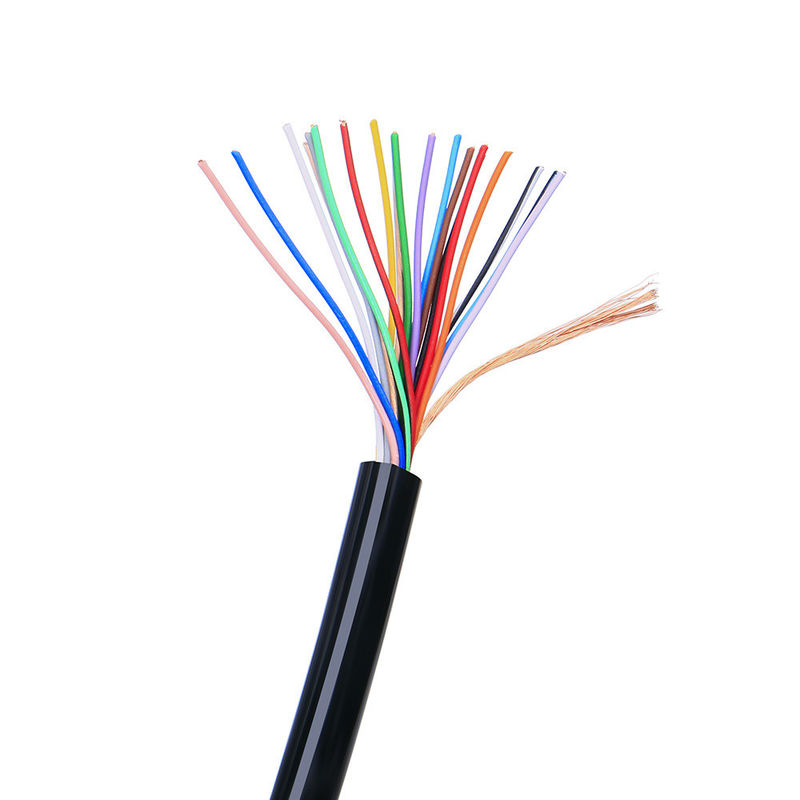

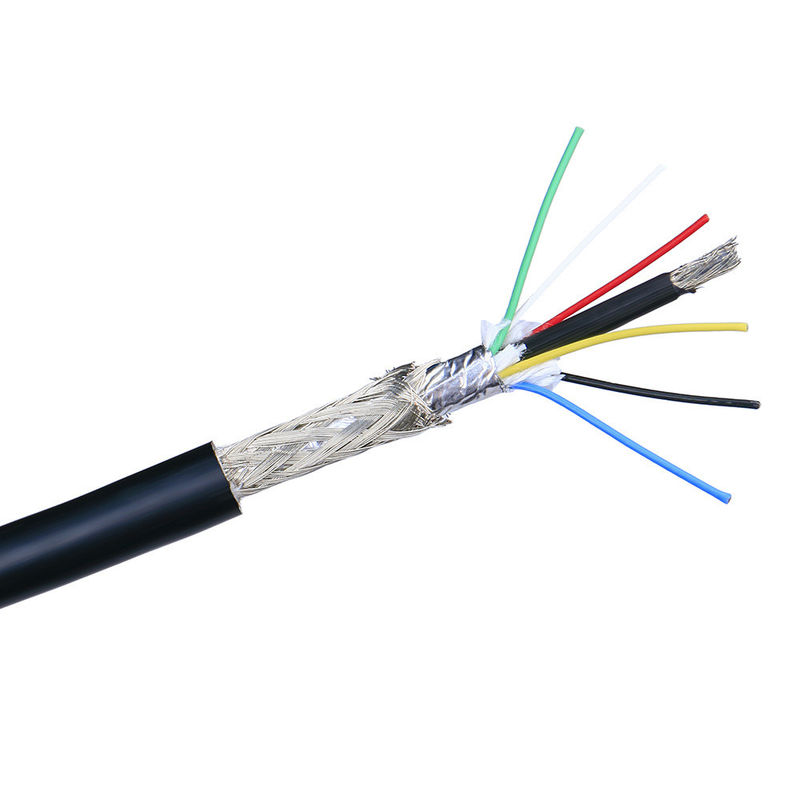

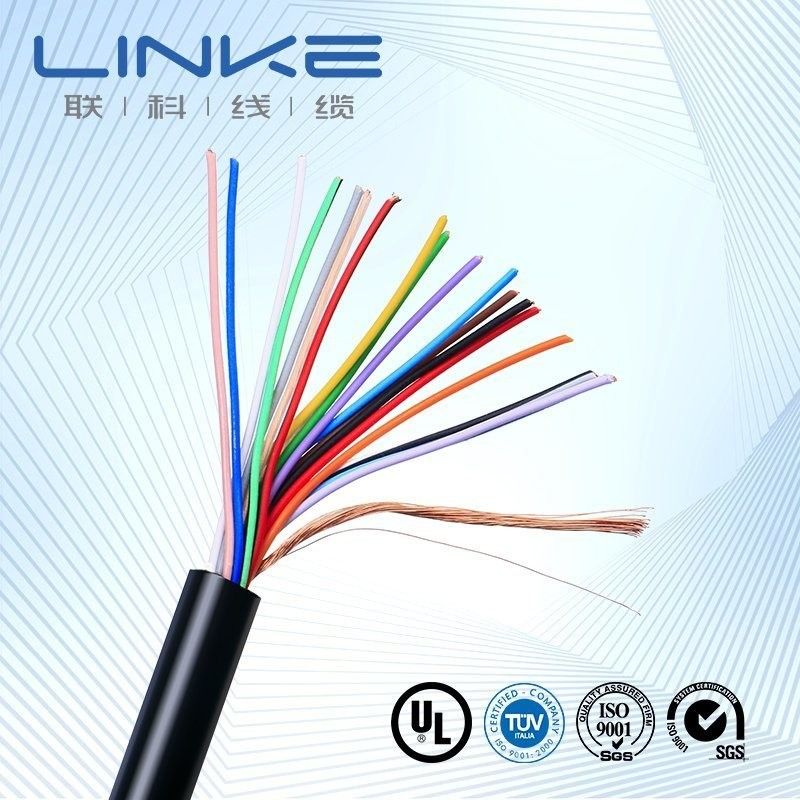

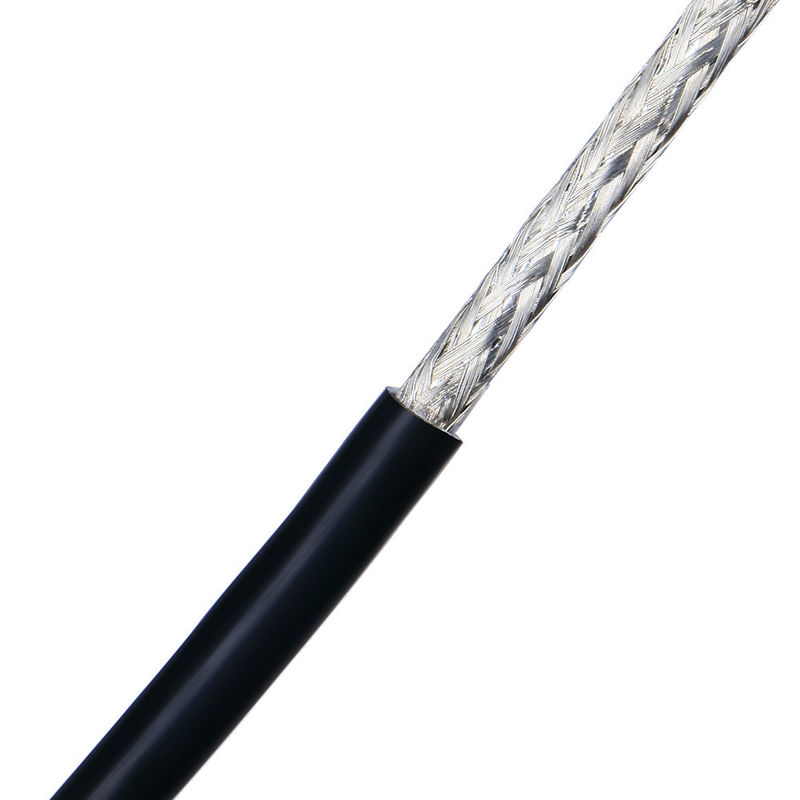

Product Images
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We control your order from beginning to end. Welcome to visit us - we provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for you. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. However, cable is heavy so we recommend ordering suitable quantities to avoid high freight. Sea transportation is the best option.
Can I get a discount?
Discounts depend on your quantity. We can offer discounts and cover freight costs. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and even customize quality cards to promote your company.
