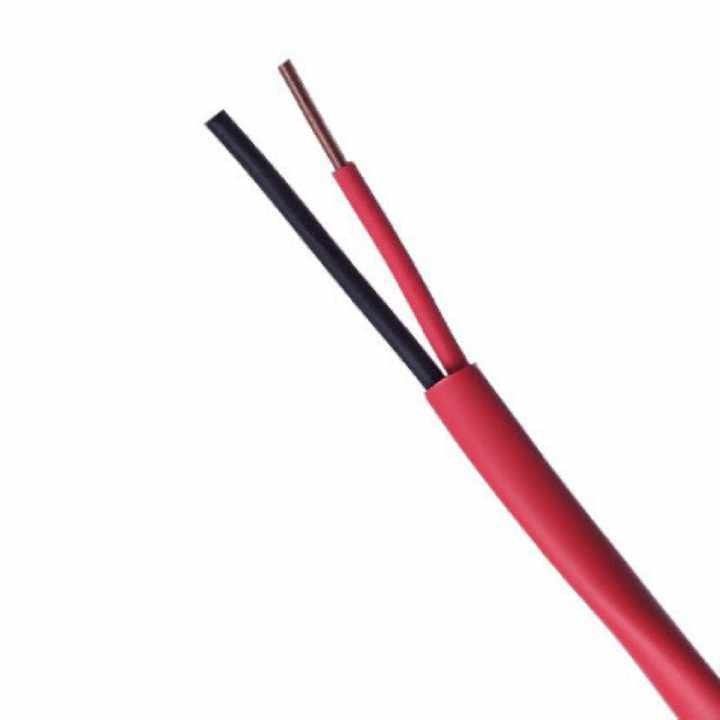

Fire Resistance Cable 14AWG Bare Stranded Tinned Copper Fire Alarm Cable
Fixed laying of PVC insulated high-voltage cables for transmission and distribution lines with rated voltage below 35KV.
Click to explore our trending hot products. They enjoy great popularity worldwide with stable performance and fast delivery.
Key Specifications
- Conductor: Copper or aluminum
- Available in armored and non-armored power cables
- Rated voltage: High voltage 8.7/15kV, 26/35kV; Low voltage 0.6/1kV
- PVC or polyethylene sheath
- Number of cable cores: One core (single core), three cores
- Specification: 50-800mm²
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and provide professional solutions to the Cable&Wire,especially for the different industry customers.It contains :
- Humanoid robot cable,
- AI power cable/data cable,
- Semiconductor cable/industrial automatic cable,
- Sensor cable,
- New energy cable,
- Medical beauty wire,
- UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485(Medical apparatus and instruments),IATF 16949(Auto industry)
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
We operate an independent quality testing laboratory with complete testing facilities and standardized procedures. Our full set of product testing standards covers all key performance and safety indicators. Through systematic and rigorous inspection, we effectively control product quality, reduce risks, and provide you with safe, stable and high-quality products you can trust.
| No. |
Test Item |
Test Condition |
Test Requirement |
Test Data |
Result |
| 1 |
Structure Inspection |
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness |
Comply with wire size table |
Refer to test record |
Pass |
| 2 |
Thermal Shock |
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample |
No cracks on the sample surface |
No cracks |
Pass |
| 3 |
Heat Deformation |
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position |
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% |
Refer to test record |
Pass |
| 4 |
FT2 |
Apply a standard flame at a height of 125mm once |
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials |
Refer to test record |
Pass |
| 5 |
Aging |
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength |
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging |
Refer to test record |
Pass |
| 6 |
Cold Bend |
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box |
No cracks on the sample surface |
No cracks |
Pass |
| 7 |
Conductor Resistance |
Measure resistance of one-meter core conductor with DC resistance meter |
At 20℃, resistance of 8AWG ≤ 2.23Ω/km |
Refer to test record |
Pass |
Product Specifications
| Product Item |
Security Fire Resistance Cable 14AWG Bare Stranded Copper Fire Alarm Cable |
| Country of Origin |
China |
| Production Specification |
According to customer requirements |
| Insulation Material |
PVC |
| Rated Temperature |
105°C |
| Color |
Yellow, Green, Black, Red, Grey, Brown, Blue, Orange, White and Transparent |
| Rated Voltage (U0/U) |
300V |

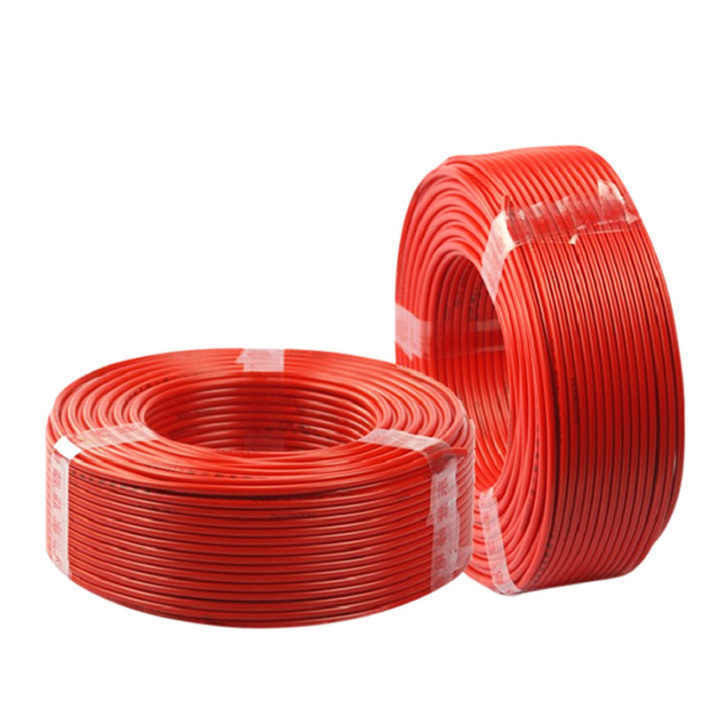

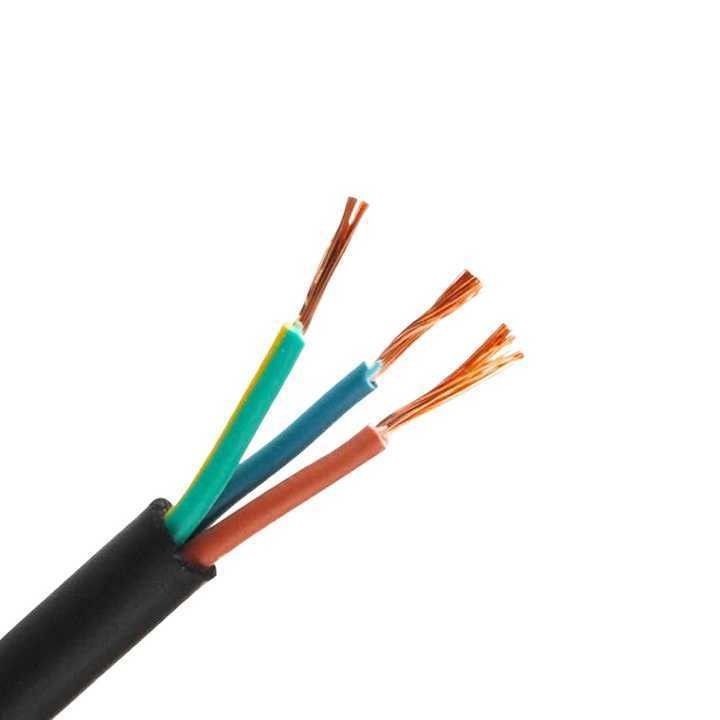

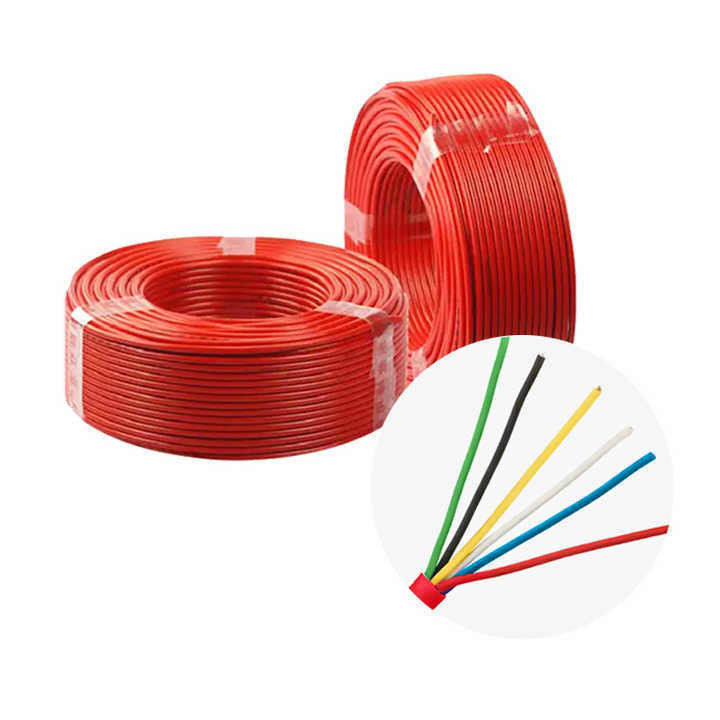

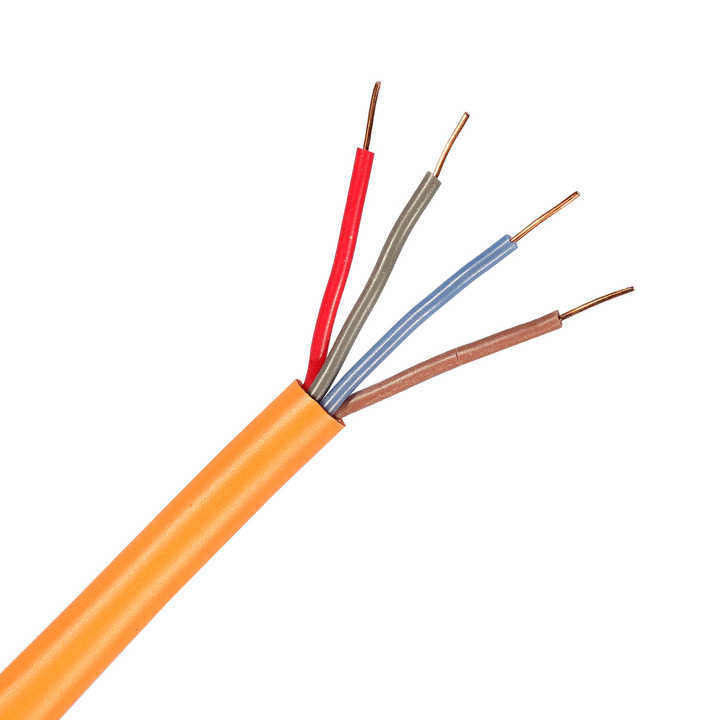

Product Exhibition
Quality Assurance & Manufacturing Excellence
We maintain a strong R&D team with 6 engineering professionals, each possessing over 10 years of specialized experience in wire and cable technology. Our team focuses on providing accurate and effective cable solutions tailored to customer requirements.
Our quality control department employs 10 dedicated staff who rigorously supervise every production step from incoming materials to shipping, ensuring 100% product quality upon delivery. With over 50 experienced production personnel, we maintain consistent manufacturing excellence.
Certifications & Compliance
ISO9001, ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, controlling your order from beginning to end. We welcome visits and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most cost-effective option.
Can I get a discount?
Discounts depend on order quantity. We can offer competitive pricing and freight arrangements. Please contact us for specific quotes.
Does your company accept OEM production?
Yes, we support OEM production including company name printing and custom quality cards to promote your brand.
