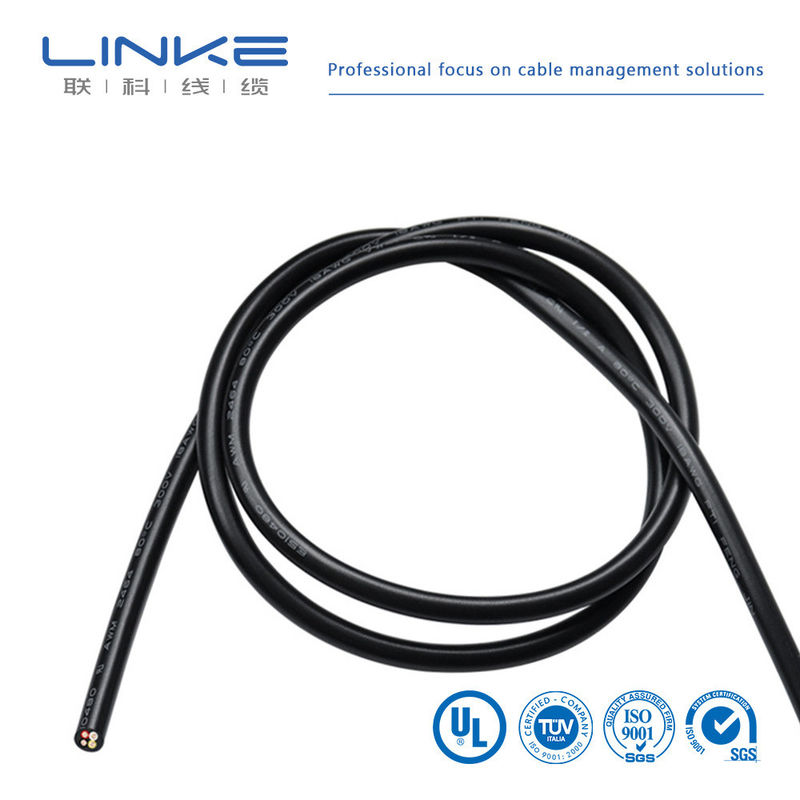

UL1569 PVC Insulated Tinned Copper Single Core Cable
UL Certified PVC insulated tinned copper single core cable designed for electronic wiring applications, compliant with UL758/UL1581 standards.
Product Specifications
UL Style Number: 1569
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL758/UL1581
Marking: E364879 AWM 1569 AWG VW-1 105℃ 300V C AWM I A 105℃ 300V FT1 Linke Cable
Applications
Internal wiring of appliances and electronic equipment.
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM)
Bare Copper | Max. Conductor Resistance (Ω/KM)
Tinned Copper |
|---|
| 32 | 7/0.08 | 0.24 | 0.38 | 1.00±0.05 | 563.5 | 588.9 |
| 30 | 7/0.10 | 0.30 | 0.38 | 1.10±0.05 | 354 | 381 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20±0.10 | 223 | 239 |
| 26 | 7/0.16 | 0.48 | 0.38 | 1.30±0.10 | 140 | 150 |
| 24 | 7/0.20 | 0.60 | 0.38 | 1.40±0.10 | 87.6 | 94.2 |
| 22 | 7/0.254 | 0.78 | 0.38 | 1.60±0.10 | 55.4 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.38 | 1.80±0.10 | 34.6 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.38 | 2.10±0.10 | 21.8 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.40±0.10 | 13.7 | 14.6 |
| 14 | 41/0.254 | 1.88 | 0.38 | 2.80±0.10 | 8.62 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.38 | 3.30±0.10 | 5.43 | 5.64 |
| 10 | 105/0.254 | 3.00 | 0.38 | 3.90±0.15 | 3.409 | 3.546 |
Available Colors
Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Yellow/Green, Transparent
Customization Options
Wire specifications can be customized according to your specific requirements.
Product Features
- Conductor: Flexible bare annealed copper wire
- Insulation Options: PVC, TPU, XLPE, Silicone
- Jacket Colors: Choice of Black, Orange, Red, Yellow, Blue - single & double insulated
- SQ MM Sizes (European style): 0.1-100SQ
- AWG Sizes (North American style): 1AWG-30AWG
- Temperature Range: -60°C to 200°C
