Detailed Photos
Rated temperature:80ºC
Rated voltage:30 V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
SR-PVC insulation, comply with ROHS, REACH environmental standard
Tinned or bare copper wire braid shield
PVC jacket, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FT1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:Internal wiring or external interconnection of electronic equipment
|
UL TYPE
|
Conductor
|
Insulation
|
Max.cond.
Resistance
|
|
(Dielectric Strength)
|
|
20276
|
AWG
|
Construction
(No./mm)
|
cores.No
|
Thickness
(mm)
|
OD
(mm)
|
(No./mm)
|
OD
|
(Vac,1min)
|
|
30
|
7/0.10
|
Above2cores
|
0.20
|
Above0.70
|
16/4/0.10
|
Above3.50
|
2000
|
|
28
|
7/0.127
|
0.23
|
Above0.90
|
16/4/0.10
|
Above3.60
|
2000
|
|
26
|
7/0.16
|
0.48
|
Above1.00
|
16/4/0.10
|
Above3.80
|
2000
|
|
24
|
11/0.16
|
0.61
|
Above1.10
|
16/4/0.10
|
Above4.00
|
2000
|
|
22
|
17/0.16
|
0.76
|
Above1.30
|
16/4/0.10
|
Above4.20
|
2000
|
|
Note: the specific chip number and shielding can be customized according to customer needs.
|

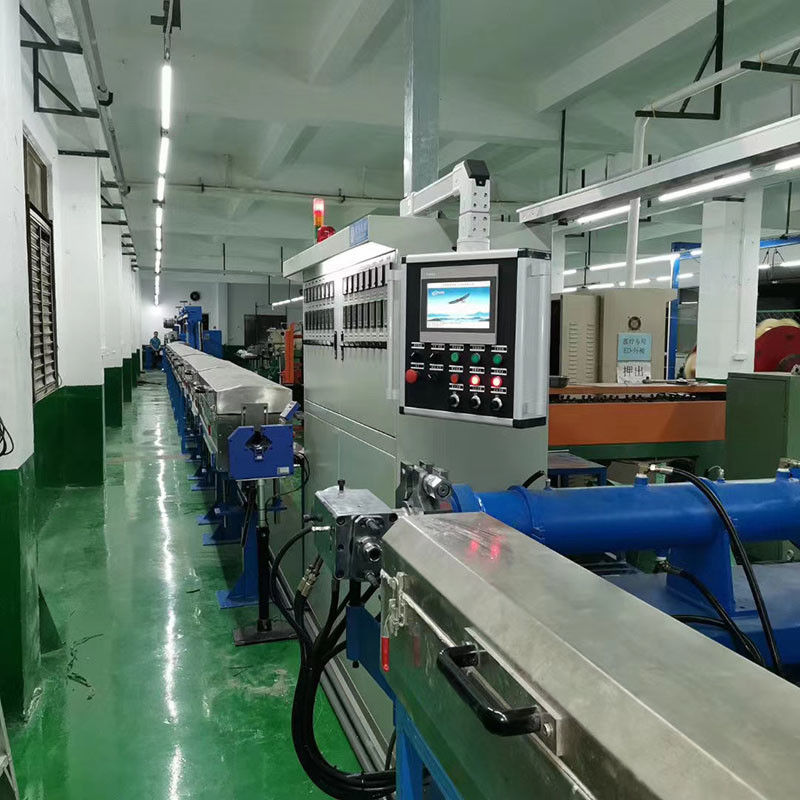

Company Profile
we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable,
automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable,
communications & coaxial cable's R&D and production.
In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the
best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom
service for your product or application from Linke Cable.

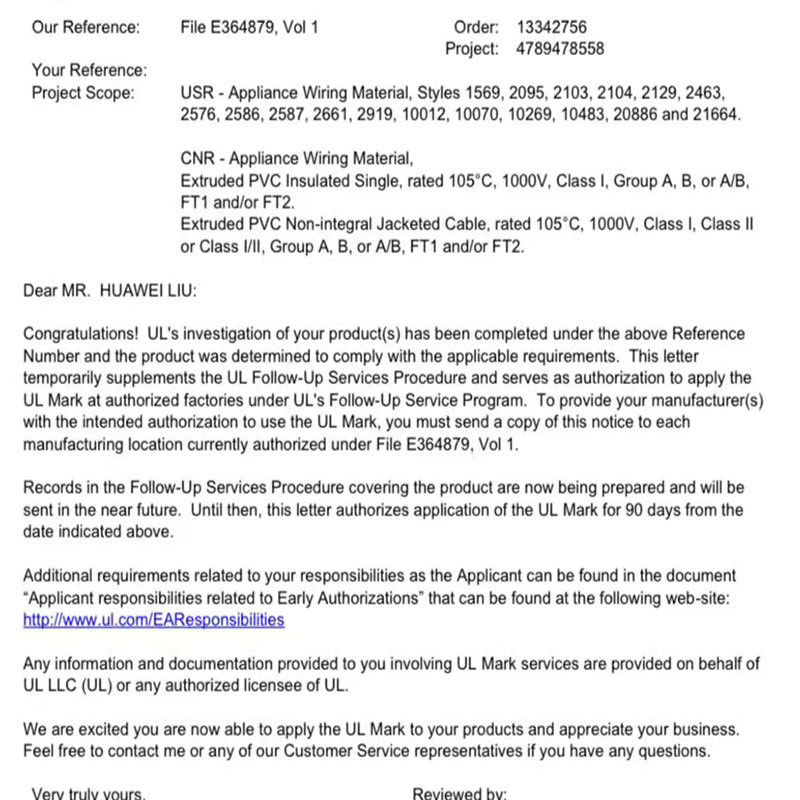

Certifications
We past UL1569,2095,2103,2104,2129,2463,2576,2586,2587,2661,2919,10012,10070,10269,10483,20886 and 21664.
ISO9001 and ISO13485
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
