Shielded High Voltage Cable for Electric Vehicles with 600V/900V and 1000V/1500V Ratings

Corrosion Resistance Copper Conductor Cable

Flry-B Automotive Wire Cable

Copper Conductor Automotive Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

FLRY-B

Conductor Material:

Copper

Sheath Material:

PVC

Insulation Material:

Xlpvc

Material Shape:

Round Wire

Range Of Application:

Multimedia, DVD Player, Speaker, Microphone

Voltage:

60V DC/25V AC

Lead Time:

7-15days

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Highlight:

Corrosion Resistance Copper Conductor Cable

Flry-B Automotive Wire Cable

Copper Conductor Automotive Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

32A 5p 2c10AWG 1c10AWG 3c*18AWG EV Charging Eve Cable Multi-Conductor EV Cable Flexible EV Charging Cable

Get Best Price

Type 2 to Type 2 250V/480V 16A/32A Electric Vehicles Charging Cable Assembly Product

Get Best Price

Video

Hot Sale Automotive Wire AVSS Low Voltage 0.5-1.25 mm Single Conductor with PVC Insulation for Car Internal Wiring JASO D611 Compliant 80°C Rated Temperature

Get Best Price

Video

Automobile Steering System Wire Cable Harness With Connector IATF16949 OEM

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

High and Low Voltage Cables for Electric Vehicles - Shielded & Unshielded High Voltage Silicone Cables

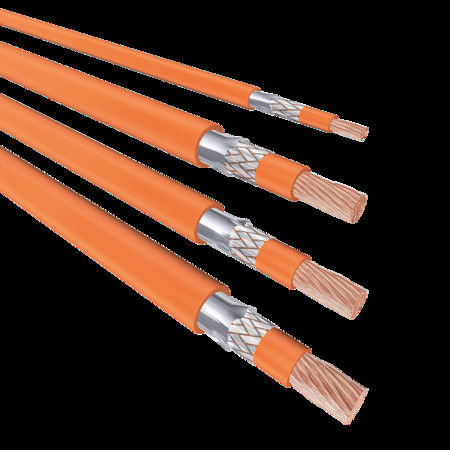

XLPE Shielded High Voltage Copper Core Cable

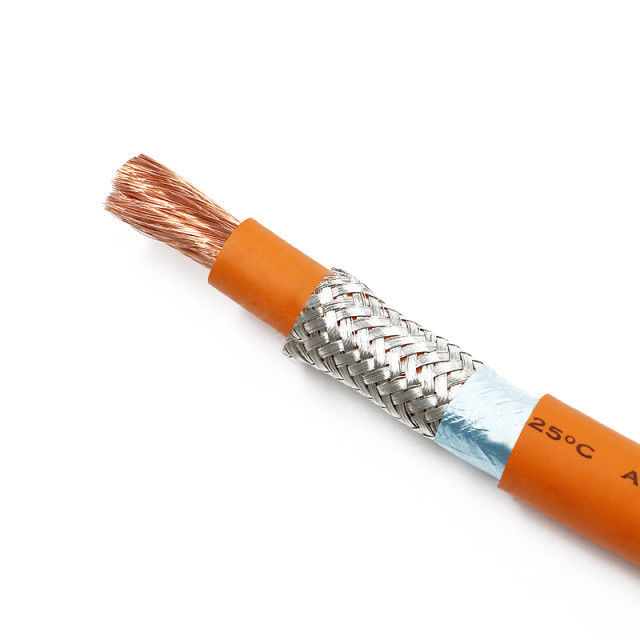

Product Structure

Conductor: Bare copper/Tinned copper
Tape: Polyester tape/Aluminum foil
Braid: Tinned copper
Insulation/sheath: XLPE/XLPO (orange)

Features

Rated temperature: -40℃~125℃/150℃
Rated voltage: AC/DC: 600/900v, 1000/1500V
Short-term aging: 240h (QC/T 1037 compliant)
Long-term aging: 3000h (QC/T 1037 compliant)
Withstand voltage: 2.1kV/1min (600/900v), 3.5kV/1min (1000/1500v)
Tear resistance: >20N/mm
Minimum bending radius: 5D (OD ≤ 20mm), 6D (OD > 20mm)
Environmental compliance: RoHS & REACH

XLPE Shielded High Voltage Copper Core Cable Parameters

Product series	Cable specifications (mm²)	Max conductor resistance (mΩ/m at 20℃)	Rated voltage (AC/DC)	Cut off flow Ref (A)	Complete outer diameter Ref (mm)	Temperature resistance
EV shielded cable	2.5	7.60	600V/900V 1000V11500V	30	6.0	-40℃~125℃/150℃
EV shielded cable	4	4.71	600V/900V 1000V1500V	40	6.8	-40℃~125℃/150℃
EV shielded cable	6	3.14	600V/900V 1000V/1500V	52	8.0	-40℃~125℃/150℃
EV shielded cable	10	1.82	600V/900V 1000V/1500V	75	9.5	-40℃~125℃/150℃
EV shielded cable	16	1.16	600V/900V 1000V/1500V	100	11.2	-40℃~125℃/150℃
EV shielded cable	25	0.743	600V/900V 1000V/1500V	125	13.5	-40℃~125℃/150℃
EV shielded cable	35	0.527	600V/900V 1000V1500V	165	14.5	-40℃~125℃/150℃
EV shielded cable	50	0.368	600V/900V 1000V/1500V	215	17.5	-40℃~125℃/150℃
EV shielded cable	70	0.259	600V/900V 1000V/1500V	260	19.5	-40℃~125℃/150℃
EV shielded cable	95	0.196	600V/900V 1000V11500V	320	21.8	-40℃~125℃/150℃
EV shielded cable	120	0.153	600V/900V 1000V/1500V	370	24.5	-40℃~125℃/150℃

Note: Product specifications, dimensions and structures may change due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

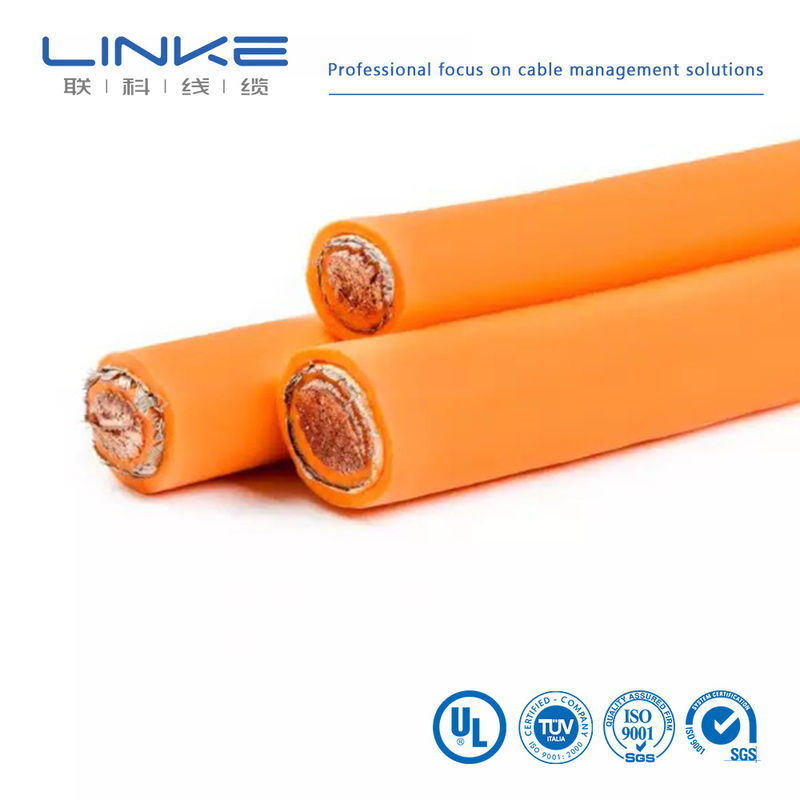

XLPE Unshielded High Voltage Copper Core Cable

Product Structure

Conductor: Bare copper/Tinned copper
Insulation: XLPE or XLPO (orange)

Features

Rated temperature: -40℃~125/150℃
Rated voltage: AC/DC: 600/900V, 1000/1500V
Burning test: Flames extinguished at 70S, Keep unburned at least 50mm
Withstand voltage: 1.0kV/30min. Rise to 5.0kV/5min. (600/900v), Continue Rise to 8.0kV (1000/1500V)
Oil resistance: IRM902, IRM903, Gasoline for 20h in each, Variation of OD≤15%, No cracks
Tear resistance: >20N/mm
Minimum bending radius: 5D (OD ≤ 20mm), 6D (OD > 20mm)
Environmental compliance: RoHS & REACH

Cable Use Environment

The warehouse where the cables are stored must not have harmful gases that damage the insulation/sheath and corrode the metal. During normal use, avoid contact with acids, alkalis and mineral oils. Avoid using them in open air or exposed environments, and under temperature conditions that don't meet wire and cable standards.

XLPE Unshielded High Voltage Copper Core Cable Parameters

Product series	Cable specifications (mm²)	Max conductor resistance (mΩ/m at 20℃)	Rated voltage (AC/DC)	Cut off flow Ref (A)	Complete outer diameter Ref (mm)	Temperature resistance
EV unshielded cable	2.5	7.60	600V/900V 1000V11500V	30	3.70	-40℃~125℃/150℃
EV unshielded cable	4	4.71	600V/900V 1000V1500V	40	4.50	-40℃~125℃/150℃
EV unshielded cable	6	3.14	600V/900V 1000V/1500V	52	5.00	-40℃~125℃/150℃
EV unshielded cable	10	1.82	600V/900V 1000V/1500V	75	6.50	-40℃~125℃/150℃
EV unshielded cable	16	1.16	600V/900V 1000V/1500V	100	8.30	-40℃~125℃/150℃
EV unshielded cable	25	0.743	600V/900V 1000V/1500V	125	10.20	-40℃~125℃/150℃
EV unshielded cable	35	0.527	600V/900V 1000V1500V	165	11.50	-40℃~125℃/150℃
EV unshielded cable	50	0.368	600V/900V 1000V/1500V	215	13.50	-40℃~125℃/150℃
EV unshielded cable	70	0.259	600V/900V 1000V/1500V	260	15.50	-40℃~125℃/150℃
EV unshielded cable	95	0.196	600V/900V 1000V11500V	320	17.50	-40℃~125℃/150℃
EV unshielded cable	120	0.153	600V/900V 1000V/1500V	370	19.50	-40℃~125℃/150℃

Note: Product specifications, dimensions and structures may change due to technological progress. Similar specifications can be designed according to customer requirements.

Silicone Rubber High Voltage Unshielded Copper Cable

Product Structure

Conductor: Bare copper/Tinned copper
Insulation: Silicone rubber (orange)

Features

Rated temperature: -40℃~175/200℃
Rated voltage: AC/DC: 600/900v, 1000/1500V
Burning test: Flames extinguished at 70S, Keep unburned at least 50mm
Withstand voltage: 1.0kV/30min. Rise to 5.0kV/5min. (600/900v) Continue Rise to 8.0kV (1000/1500v)
Oil resistance: IRM902, IRM903, Gasoline for 20h in each, Variation of OD≤15%, No cracks
Tear resistance: >15N/mm
Minimum bending radius: 5D (OD ≤ 20mm), 6D (OD > 20mm)
Environmental compliance: RoHS & REACH

Cable Use Environment

Silicone Rubber High Voltage Unshielded Copper Cable Parameters

Product series	Cable specifications (mm²)	Max conductor resistance (mΩ/m at 20℃)	Rated voltage (AC/DC)	Cut off flow Ref (A)	Complete outer diameter Ref (mm)	Temperature resistance
EV unshielded cable	2.5	7.60	600V/900V 1000V11500V	30	3.70	-40℃~125℃/150℃
EV unshielded cable	4	4.71	600V/900V 1000V1500V	40	4.50	-40℃~125℃/150℃
EV unshielded cable	6	3.14	600V/900V 1000V/1500V	52	5.00	-40℃~125℃/150℃
EV unshielded cable	10	1.82	600V/900V 1000V/1500V	75	6.50	-40℃~125℃/150℃
EV unshielded cable	16	1.16	600V/900V 1000V/1500V	100	8.30	-40℃~125℃/150℃
EV unshielded cable	25	0.743	600V/900V 1000V/1500V	125	10.20	-40℃~125℃/150℃
EV unshielded cable	35	0.527	600V/900V 1000V1500V	165	11.50	-40℃~125℃/150℃
EV unshielded cable	50	0.368	600V/900V 1000V/1500V	215	13.50	-40℃~125℃/150℃
EV unshielded cable	70	0.259	600V/900V 1000V/1500V	260	15.50	-40℃~125℃/150℃
EV unshielded cable	95	0.196	600V/900V 1000V11500V	320	17.50	-40℃~125℃/150℃
EV unshielded cable	120	0.153	600V/900V 1000V/1500V	370	19.50	-40℃~125℃/150℃

Silicone Rubber High Voltage Shielded Copper Cable

Product Structure

Conductor: Bare copper/Tinned copper
Packing tape: Aluminum foil
Braid: Tinned copper
Insulation/sheath: Silicone rubber (orange)

Features

Rated temperature: -40℃~175/200℃
Rated voltage: AC/DC 600/900v, 1000/1500v
Burning test: Flames extinguished at 70S, Keep unburned at least 50mm
Withstand voltage: 1.0kV/30min. Rise to 5.0kV/5min.(600/900v) Continue Rise to 8.0kV (1000/1500V)
Oil resistance: IRM902, IRM90, Gasoline for 20h in each, variation of OD≤15%, No cracks
Tear resistance: >15N/mm
Minimum bending radius: 5D (OD≤20mm), 6D (OD>20mm)
Environmental compliance: RoHS & REACH

Silicone Rubber High Voltage Shielded Copper Cable Parameters

Product series	Cable specifications (mm²)	Max conductor resistance (mΩ/m at 20℃)	Rated voltage (AC/DC)	Cut off flow Ref (A)	Complete outer diameter Ref (mm)	Temperature resistance
EV shielded cable	2.5	7.60	600V/900V 1000V11500V	30	6.0	-40℃~125℃/150℃
EV shielded cable	4	4.71	600V/900V 1000V1500V	40	6.8	-40℃~125℃/150℃
EV shielded cable	6	3.14	600V/900V 1000V/1500V	52	8.0	-40℃~125℃/150℃
EV shielded cable	10	1.82	600V/900V 1000V/1500V	75	9.5	-40℃~125℃/150℃
EV shielded cable	16	1.16	600V/900V 1000V/1500V	100	11.2	-40℃~125℃/150℃
EV shielded cable	25	0.743	600V/900V 1000V/1500V	125	13.5	-40℃~125℃/150℃
EV shielded cable	35	0.527	600V/900V 1000V1500V	165	14.5	-40℃~125℃/150℃
EV shielded cable	50	0.368	600V/900V 1000V/1500V	215	17.5	-40℃~125℃/150℃
EV shielded cable	70	0.259	600V/900V 1000V/1500V	260	19.5	-40℃~125℃/150℃
EV shielded cable	95	0.196	600V/900V 1000V11500V	320	21.8	-40℃~125℃/150℃
EV shielded cable	120	0.153	600V/900V 1000V/1500V	370	24.5	-40℃~125℃/150℃
