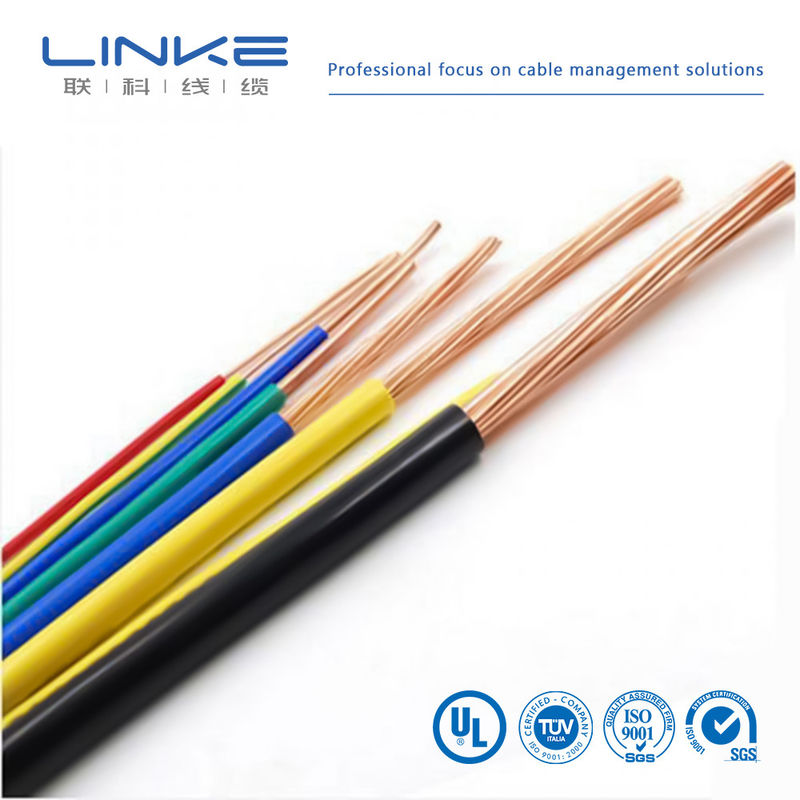

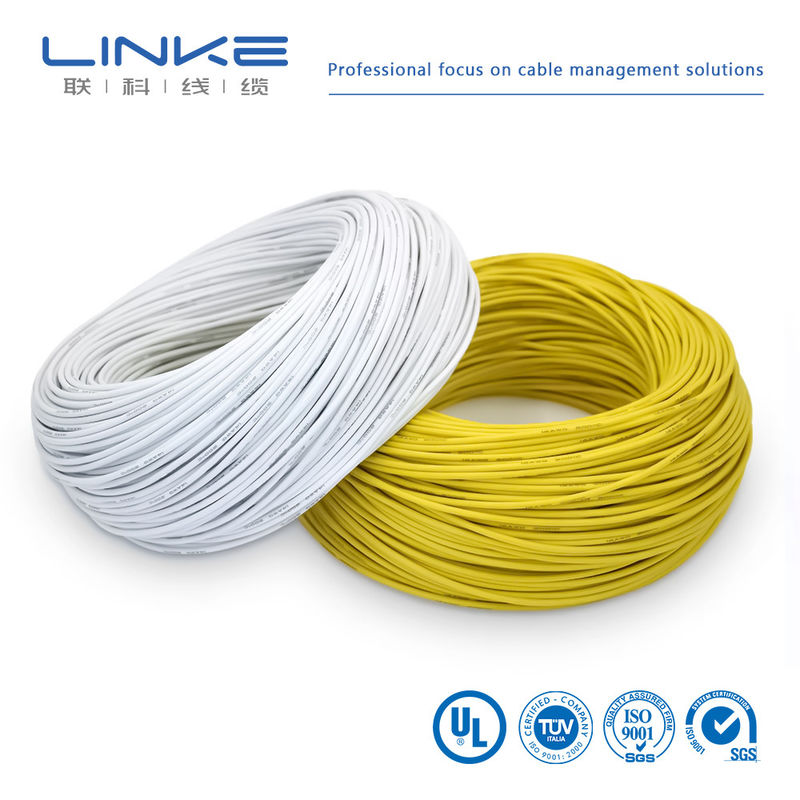

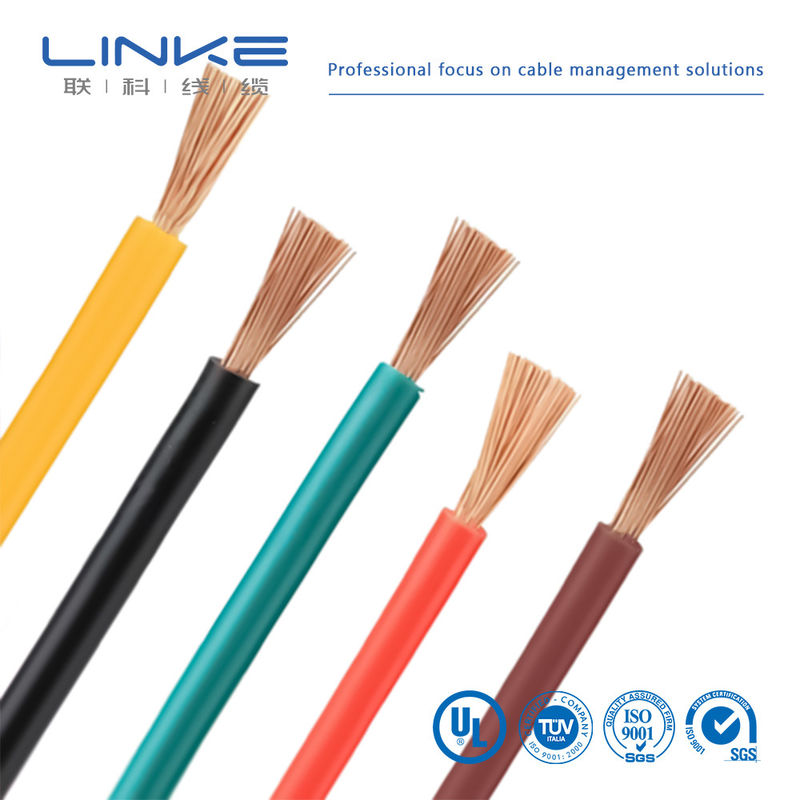

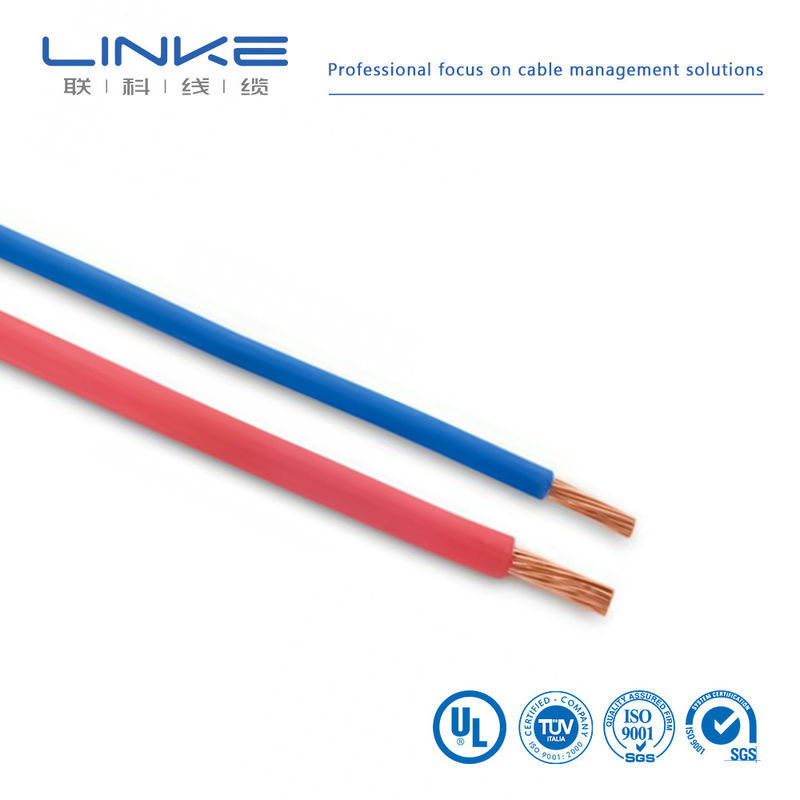

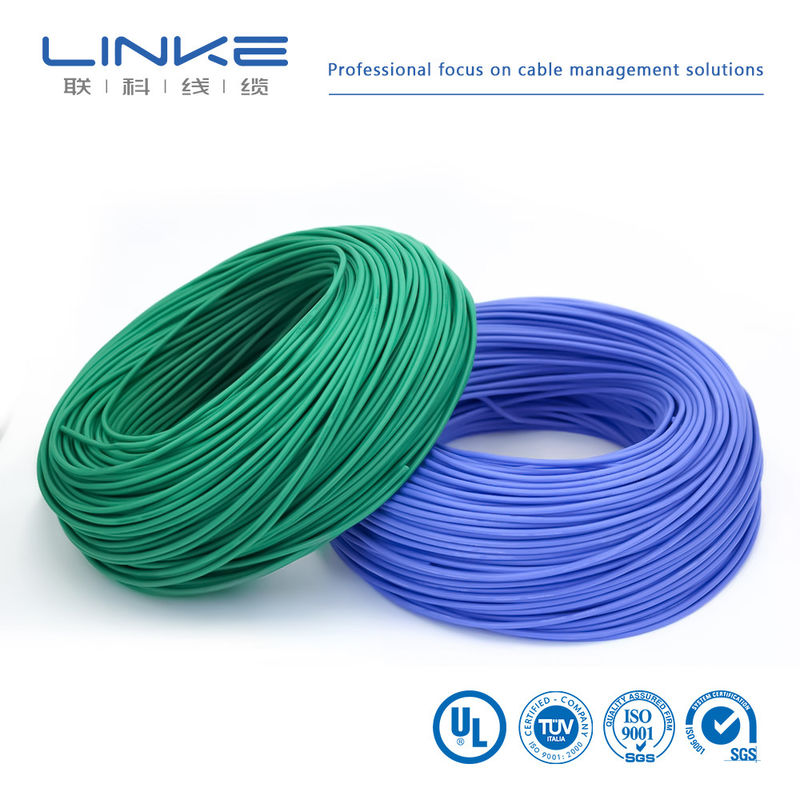

Product Specifications
- Rated temperature: 80℃
- Rate value: 60V DC & 25V AC
- Standard: JASO D611
- Conductor options: Solid or stranded, tinned or bare copper
- PVC insulation
- Application: General automotive wiring and cabling
Technical Parameters
| TYPE |
Conductor Area (mm²) |
Wire Core Qty |
Wire Diameter (mm) |
Conductor Outer Diameter (mm) |
Insulation Thickness (mm) |
Wire O.D (mm) |
Max Cond. Resistance (Ω/km,20℃) |
| AV HEB HDEB |
2f |
37 |
0.26 |
1.80 |
0.60 |
3.2 |
9.50 |
|
3 |
58 |
0.26 |
2.30 |
0.70 |
3.9 |
6.06 |
|
|
61 |
0.26 |
2.40 |
0.70 |
3.9 |
5.76 |
|
5f |
7/9 |
0.32 |
3.10 |
0.80 |
4.7 |
3.71 |
|
|
7/30 |
0.18 |
3.40 |
0.80 |
4.7 |
3.56 |
|
8f |
7/22 |
0.26 |
4.20 |
0.90 |
5.7 |
3.32 |
|
9f |
7/16 |
0.32 |
4.20 |
1.00 |
6.4 |
2.09 |
|
10f |
19/6 |
0.32 |
4.20 |
1.00 |
6.6 |
2.05 |
|
10 |
62 |
0.45 |
4.10 |
0.90 |
6.6 |
1.87 |
|
|
63 |
0.450 |
4.50 |
1.00 |
6.6 |
1.84 |
|
|
7/9 |
0.450 |
4.50 |
1.00 |
6.6 |
1.84 |
|
15f |
19/9 |
0.32 |
5.30 |
1.10 |
7.5 |
1.37 |
|
20f |
19/13 |
0.32 |
6.50 |
1.10 |
8.6 |
0.946 |
|
30f |
19/19 |
0.32 |
7.80 |
1.40 |
10.8 |
0.647 |
|
40f |
19/26 |
0.32 |
9.10 |
1.40 |
12.3 |
0.437 |
|
50f |
19/32 |
0.32 |
10.10 |
1.60 |
13.5 |
0.384 |
|
60f |
19/39 |
0.32 |
11.10 |
1.60 |
14.5 |
0.315 |
|
85f |
19/56 |
0.32 |
13.10 |
2.00 |
17.2 |
0.220 |
|
100f |
19/71 |
0.32 |
14.90 |
2.00 |
19.0 |
0.173 |
Note: f denotes a soft structured conductor.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
About Linke Cable Technology Co., Ltd
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable.
Linke provides various cables & custom cable solutions worldwide. We specialize in:
- EV charging cable
- Medical cable
- Silicone cable
- Spring cable
- Braided cable
- Towlobe cable
- UL wire
- Automotive cable
At Linke Cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of life.
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Company Capabilities
We have a strong R&D team of 6 engineers, each with more than 10 years of experience in wire and cable technology, providing accurate and effective solutions. Our quality control department has 10 staff members who strictly supervise each production step from incoming materials to shipping, ensuring 100% quality products. Our production team consists of over 50 experienced workers.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please contact us.
5. Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
