Tinned Copper UL3858 Silicone Rubber Cable High Voltage Power Cable with 3000V Rated Voltage

Tinned Copper Silicone Rubber Cable

3000V High Voltage Power Cable

UL3858 Silicone Rubber Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

UL3858

Conductor Material:

Copper

Sheath Material:

Silicone Rubber

Material Shape:

Round Wire

Range Of Application:

Internal Wiring Of Vehicle

Rated Voltage:

3000V

Copper:

Tinned Copper

Core:

Multiple

Lead Time:

7-15days

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Package:

By Roll

Highlight:

Tinned Copper Silicone Rubber Cable

3000V High Voltage Power Cable

UL3858 Silicone Rubber Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Waterproof Flexible Silicone Rubber Cable with High Temperature Resistance for Industrial Applications

Get Best Price

Video

Wear Resistant High Flexibility Silicone Insulated Copper Cable with High Temperature Resistance for Electrical Installations

Get Best Price

Video

Heat Resistant Silicone Cable with Multiple Core 0.5mm Flexible Silicone Wire for High Temperature Applications

Get Best Price

Video

Signal Wiring Harness Cable Assembly for Custom Automotive Wire Harness Manufacturing New energy charging pile

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

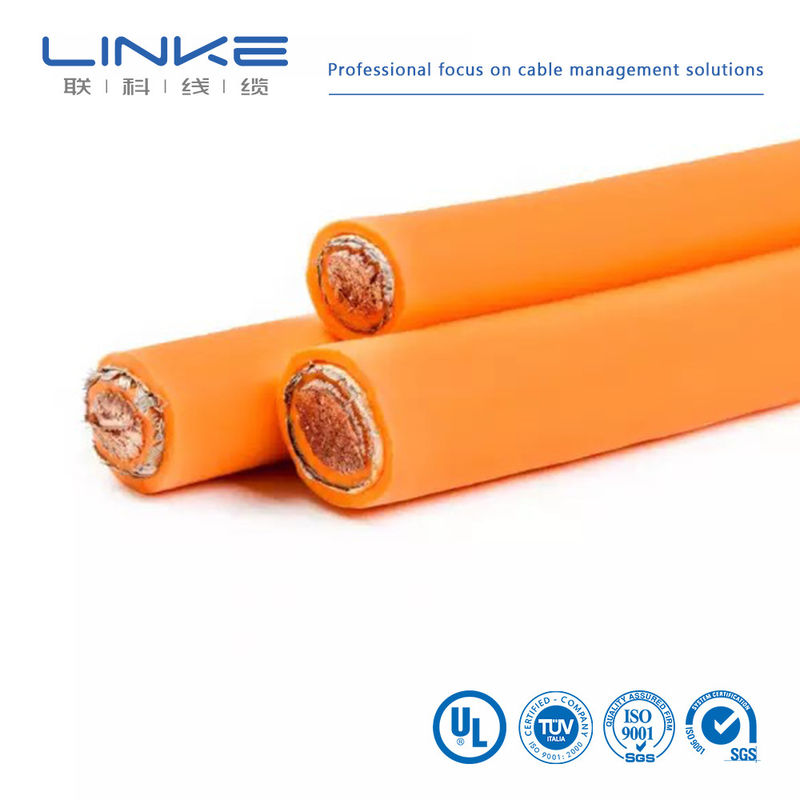

Tinned Copper Silicone Rubber Cable UL3858 High Voltage Power Cable

SILICONE RUBBER WIRE

EV Cable - Special Silicone Rubber Cable for Electric Vehicles

UL3858/AWM Style 3858 certified silicone rubber cable designed specifically for electric vehicles and high voltage applications.

Stranded Tinned Copper Conductor
Silicone Rubber Sheath Insulation
Rated Temperature: 150°C
Rated Voltage: 3000V AC
Flexible, High Temperature Resistant, Cold-Resistant
UL Verified Certification

Product Applications

AWM 3858 wire is engineered for high voltage applications in electric vehicles and electric buses, where high abrasion resistance, superior voltage resistance, and flexibility are essential. Ideal for high power and high temperature environments including:

Electric Vehicle High Voltage Box
Electronic Control Drive MCU
Charging Socket PLUG
Battery Management System (BMS)

Non-Shielded Type Specifications

AWM 3858 Silicone Rubber Heat-Resistant Wire 150°C (Non-Shielded Type) 3000V AC

Size mm² (AWG)	Sheath Thickness	Braided Shielded	Overall Diameter	Amp/Current
4mm² (12AWG)	Aver. 0.75mm	Non	Approx. 4.1mm	28 A
5.5mm² (10AWG)	Aver. 0.75mm	Non	Approx. 4.6mm	35 A
6mm² (10AWG)	Aver. 0.75mm	Non	Approx. 4.8mm	40 A
8mm² (8AWG)	Aver. 1.40mm	Non	Approx. 6.5mm	55 A
14mm² (6AWG)	Aver. 1.40mm	Non	Approx. 7.7mm	93 A
22mm² (4AWG)	Aver. 1.40mm	Non	Approx. 9.8mm	119 A
38mm² (2AWG)	Aver. 1.75mm	Non	Approx. 12.7mm	166 A
50mm² (1/0AWG)	Aver. 1.75mm	Non	Approx. 14.2mm	255 A
60mm² (2/0AWG)	Aver. 1.75mm	Non	Approx. 15.1mm	303 A
80mm² (3/0AWG)	Aver. 1.75mm	Non	Approx. 17.0mm	356 A
100mm² (4/0AWG)	Aver. 1.75mm	Non	Approx. 18.7mm	401 A
125mm² (4/0AWG)	Aver. 1.75mm	Non	Approx. 19.3mm	448 A

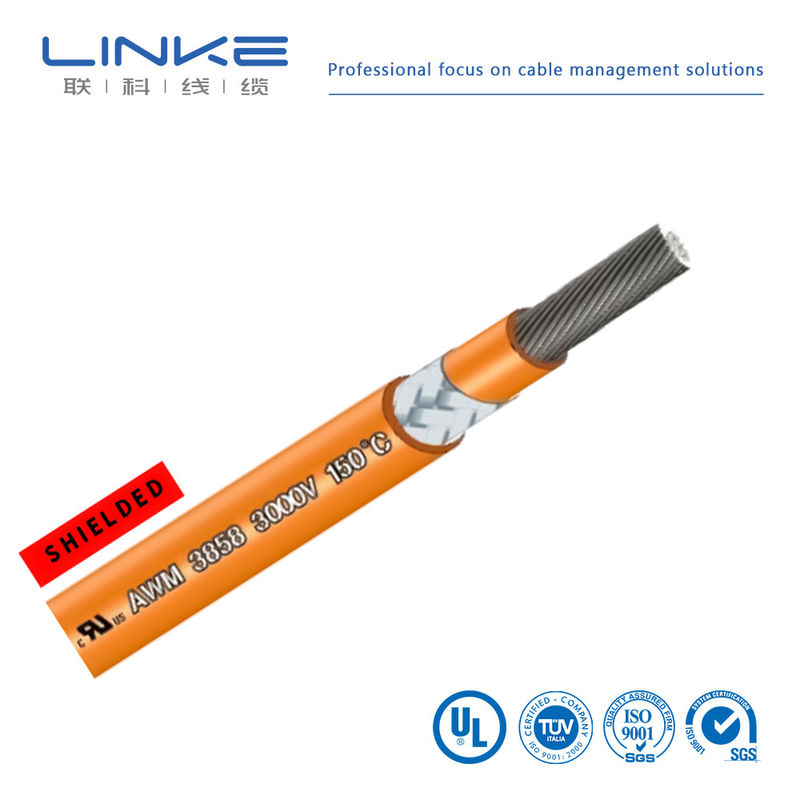

Shielded Type Specifications

AWM 3858 Silicone Rubber Heat-Resistant Wire 150°C (Shielded Type) 3000V AC

Size mm² (AWG)	Sheath Thickness	Braided Shielded	Overall Diameter	Amp/Current
4mm² (12AWG)	Aver. 0.75mm	Yes	Approx. 6.1mm	28 A
5.5mm² (10AWG)	Aver. 0.75mm	Yes	Approx. 6.6mm	35 A
6mm² (10AWG)	Aver. 0.75mm	Yes	Approx. 6.8mm	40 A
8mm² (8AWG)	Aver. 1.40mm	Yes	Approx. 9.8mm	55 A
14mm² (6AWG)	Aver. 1.40mm	Yes	Approx. 11.0mm	93 A
22mm² (4AWG)	Aver. 1.40mm	Yes	Approx. 13.1mm	119 A
38mm² (2AWG)	Aver. 1.75mm	Yes	Approx. 16.7mm	166 A
50mm² (1/0AWG)	Aver. 1.75mm	Yes	Approx. 18.2mm	255 A
60mm² (2/0AWG)	Aver. 1.75mm	Yes	Approx. 19.1mm	303 A
80mm² (3/0AWG)	Aver. 1.75mm	Yes	Approx. 21.0mm	356 A
100mm² (4/0AWG)	Aver. 1.75mm	Yes	Approx. 22.7mm	401 A
125mm² (4/0AWG)	Aver. 1.75mm	Yes	Approx. 23.3mm	448 A

Manufacturing Excellence

Our dedicated team ensures superior quality and precision in every cable we produce:

R&D Team: 6 experienced engineers with over 10 years of expertise in wire and cable technology
Quality Control: 10 professionals supervising every step from raw materials to shipping
Production Staff: Over 50 skilled workers with extensive manufacturing experience
Commitment: 100% quality assurance for all customer deliveries

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name and even customize quality cards to promote your company.
