Name: Automobile Silicone Rubber Cable Silicone AC High Voltage Wire
Brand: Linke Cable Technology (DongGuan) CO.,LTD
Availability: InStock

Please leave your correct email and detailed requirements (20-3,000 characters).

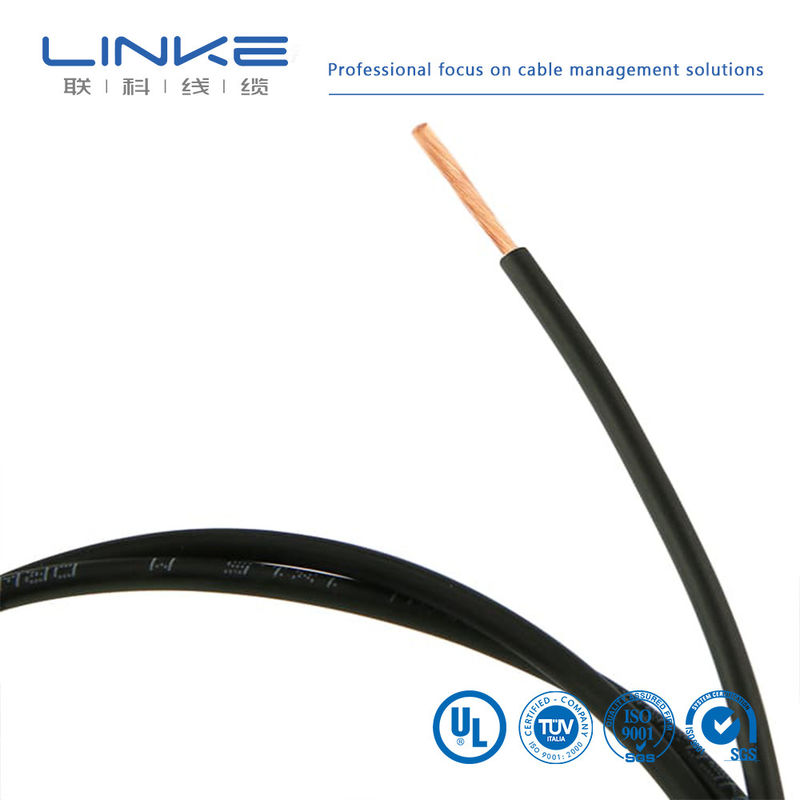

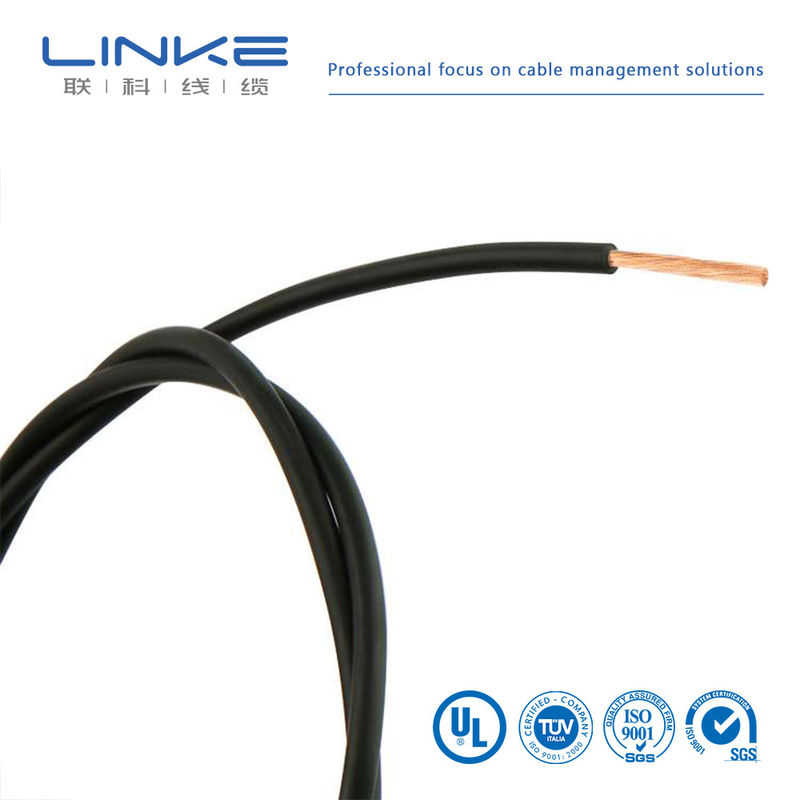

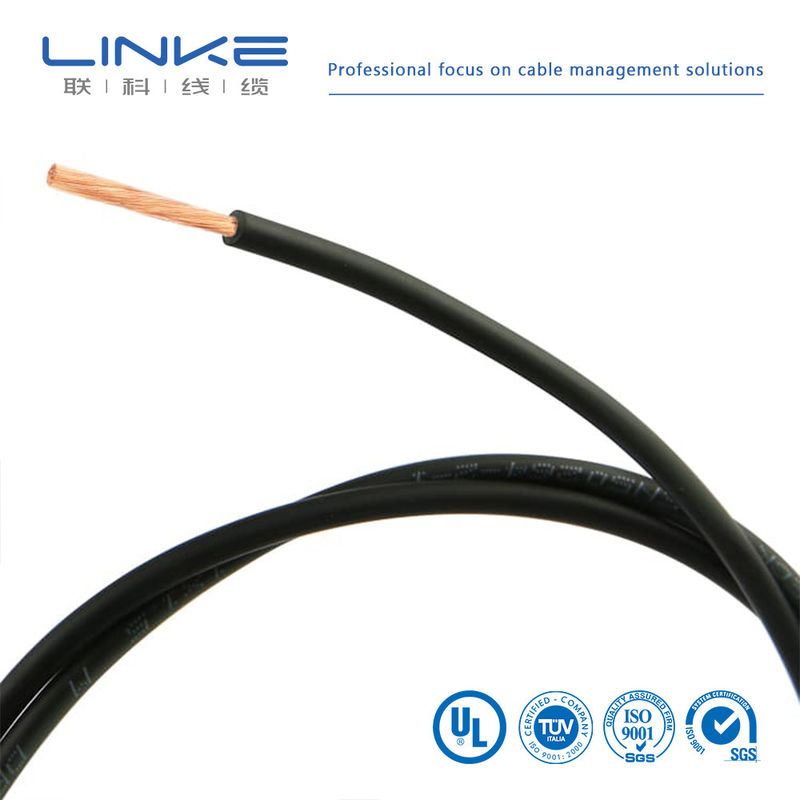

Automobile Silicone Rubber Cable Silicone AC High Voltage Wire

Average outer diameter

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.
Automobile Silicone Rubber Cable Silicone AC High Voltage Wire 0

Tel：86-0769-81776230

Phone：86-18665106395

Email：sales@linkecable.com

About Us

Company Profile

Factory Tour

Quality Control

Sitemap

Events

news

Cases

Linke Cable Technology (DongGuan) CO.,LTD

We'll get back to you as soon as possible.

Voltage level	Conductor nominal cross section mm 2	Conductor structure NO./mm	Average outer diameter mm	DC resistance of conductor at 20℃ Ω/km	Packing length (m)
1KV	0.50	16/0.20	3.30	40.1	100
	0.75	24/0.20	3.60	26.7	100
	1.00	32/0.20	3.70	20.0	100
	1.50	48/0.20	4.0	13.7	100
	2.00	40/0.25	4.30	10.0	100
	2.50	49/0.25	4.40	8.21	100
	4.00	56/0.30	5.60	5.09	100
	6.00	84/0.30	6.60	3.39	100
	10.0	84/0.40	7.80	1.95	100
	16.0	126/0.40	9.00	1.24	100
	25.0	196/0.40	11.20	0.795	100
	35.0	494/0.30	12.8	0.565	100
	50.0	396/0.40	15.0	0.393	100
	70.0	551/0.40	17.2	0.277	100
	95.0	760/0.40	19.80	0.210	100
	120.0	608/0.50	21.50	0.164	100
	150.0	760/0.50	23.40	0.132	100
	185.0	925/0.50	25.20	0.108	100
3KV	0.50	16/0.20	4.50	40.1	100
	0.75	24/0.20	4.80	26.7	100
	1.00	32/0.20	5.20	20.0	100
	1.50	48/0.20	5.60	13.7	100
	2.00	40/0.25	5.90	10.0	100
	2.50	49/0.25	6.40	8.21	100
	4.00	56/0.30	7.60	5.09	100
	6.00	84/0.30	8.40	3.39	100
	10.0	84/0.40	9.40	1.95	100
	16.0	126/0.40	11.0	1.24	100
	25.0	196/0.40	12.80	0.795	100
6KV	0.50	16/0.20	5.90	40.1	100
	0.75	24/0.20	6.20	26.7	100
	1.00	32/0.20	6.30	20.0	100
	1.50	48/0.20	7.20	13.7	100
	2.00	40/0.25	7.50	10.0	100
	2.50	49/0.25	8.0	8.21	100
	4.00	56/0.30	8.80	5.09	100
	6.00	84/0.30	10.0	3.39	100
	10.0	84/0.40	11.0	1.95	100
	16.0	126/0.40	12.80	1.24	100
	25.0	196/0.40	14.60	0.795	100
10KV	0.30	7/0.26	9.00	71.2	100
	0.50	16/0.20	9.00	40.1	100
	0.75	24/0.20	9.00	26.7	100
	1.00	32/0.20	9.00	20.0	100
	1.50	30/0.25	9.00	13.7	100
	2.00	40/0.25	10.0	10.0	100
	2.50	49/0.25	10.0	8.21	100
	4.00	56/0.30	10.0	5.09	100
	6.00	84/0.30	11.0	3.39	100
	10.0	84/0.40	12.0	1.95	100
	16.0	126/0.40	13.8	1.24	100
	25.0	196/0.40	15.60	0.795	100
35KV	4.00	56/0.30	18.0	5.09	100
	6.00	84/0.30	18.0	3.39	100
	10.0	84/0.40	19.0	1.95	100
	16.0	126/0.40	20.0	1.24	100
	25.0	196/0.40	21.0	0.795	100
	35.0	494/0.30	23.0	0.565	100
	50.0	396/0.40	25.0	0.393	100
	70.0	551/0.40	27.0	0.277	100
	95.0	760/0.40	29.0	0.210	100
