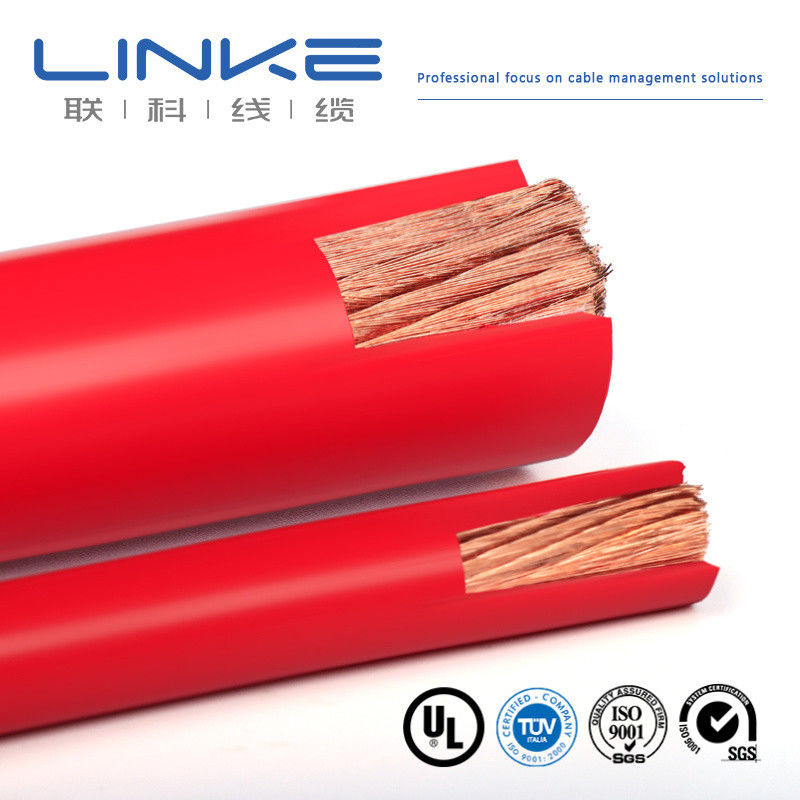

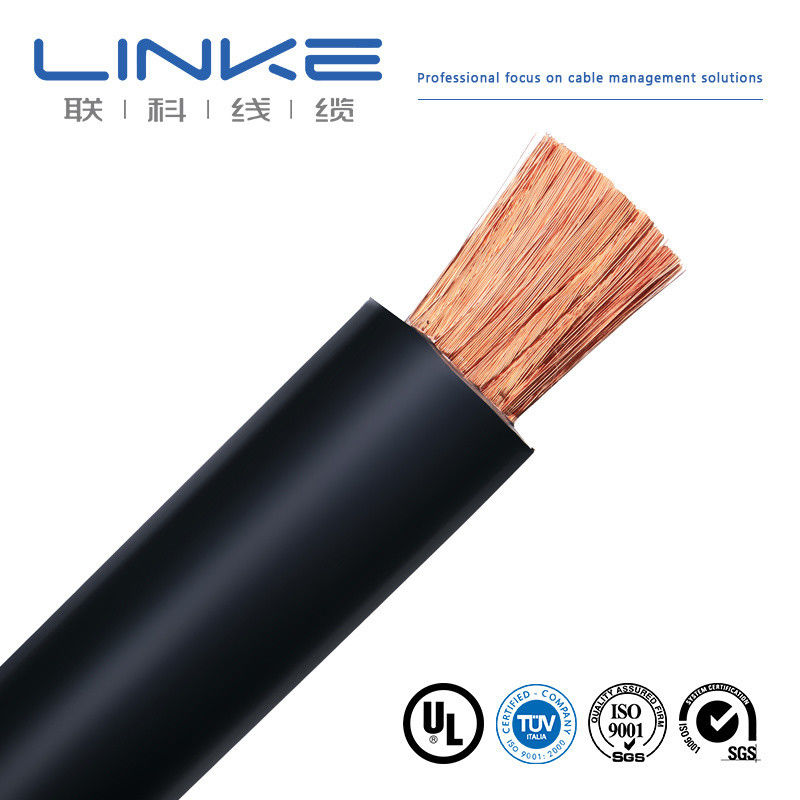

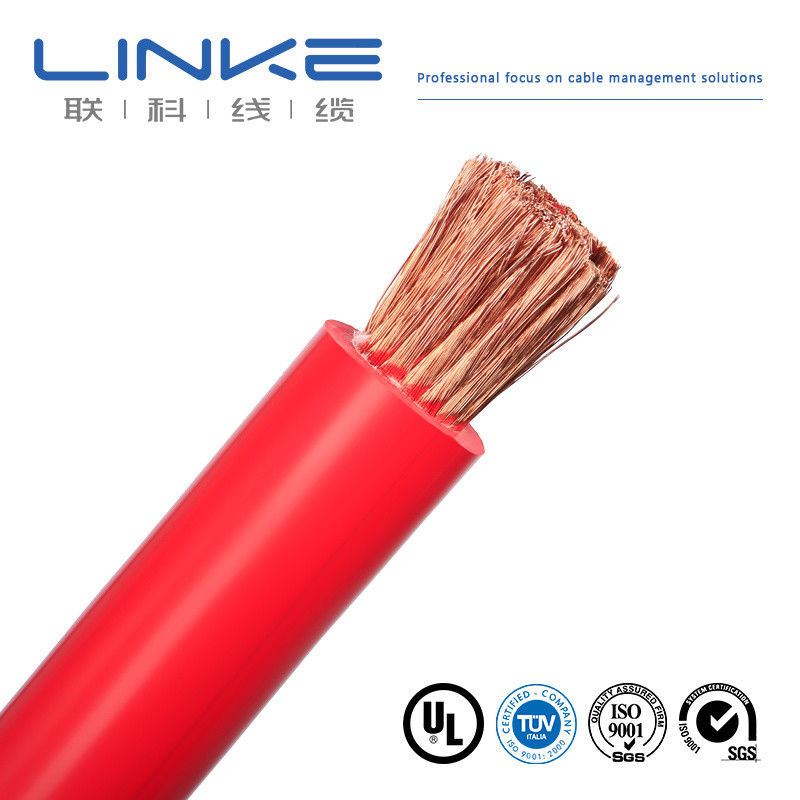

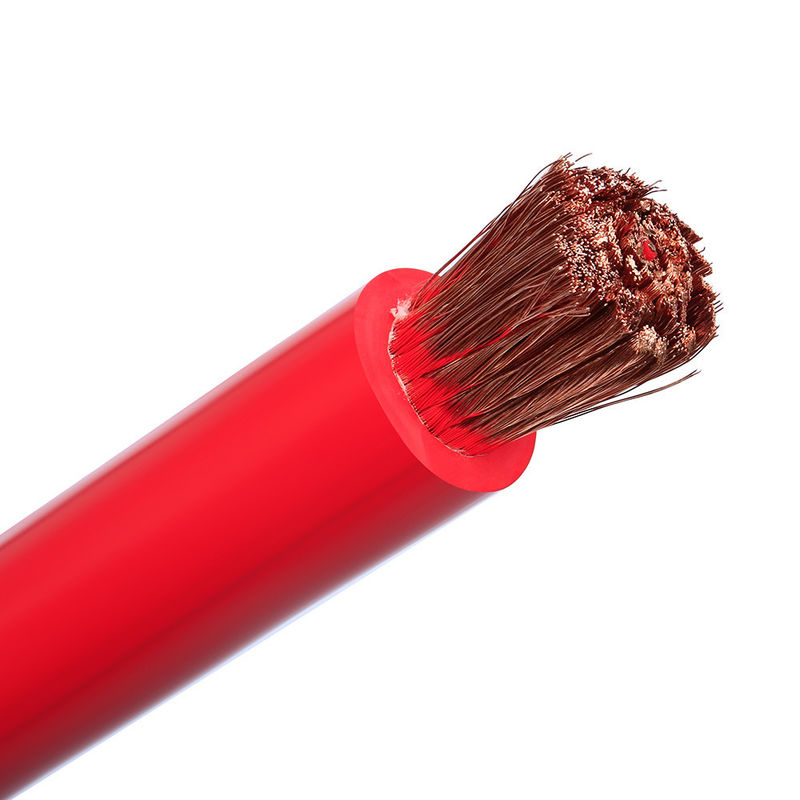

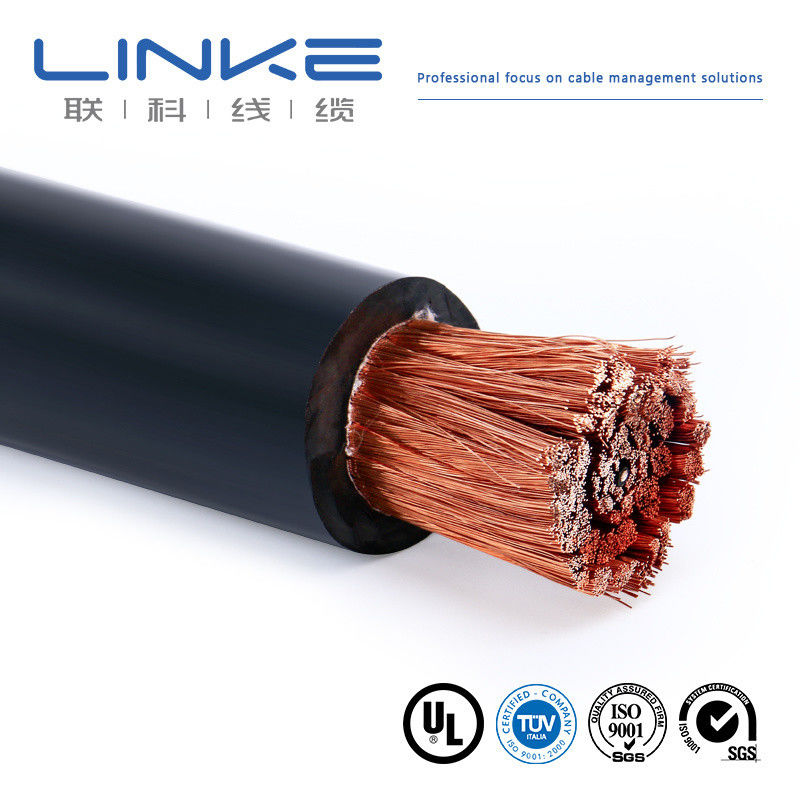

Super Soft Silicone Wire Electric Cable
Available in 24/22/20/18/16/14/12/10/8/6/4/2/0 AWG Flexible Car Tin Plated Copper Wires
Our super soft silicone electrical cables are designed for maximum flexibility and durability. These tin-coated automotive-grade wires are ideal for demanding applications requiring high temperature resistance and excellent conductivity.
Key Specifications
- Insulation Material: Silicone
- Conductor Material: Colored Tin-Plated Copper
- Rated Voltage: 600V
- Wire Gauge: 24/22/20/18/16/14/12/10/8/6/4/3/2 AWG
- Inner Core Diameter: 0.08mm
- Temperature Range: -60°C to +200°C
- Test Voltage: 2000V
Applications
These versatile cables are widely used in batteries, lithium battery systems, inverters, model airplanes, audio equipment, industrial robot arms, LED lighting, spotlights, high-speed motors, and various electronic devices.
Technical Specifications
| AWG |
Copper Wire Composition |
Insulation Thickness (mm) |
Diameter (mm) |
Overall Diameter (mm) |
Resistance (ohm/km) |
Cross-Sectional Area (mm²) |
Current Rating (A) |
Packing (M/coils) |
| 50 |
10000/0.08ts |
2.4 |
9.24 |
14 |
0.63 |
50 |
300 |
50 |
| 2 |
6700/0.08ts |
2.6 |
7.73 |
12.5 |
0.89 |
35 |
250 |
50 |
| 4 |
5000/0.08ts |
2.4 |
6.53 |
11 |
1.25 |
25 |
200 |
50 |
| 6 |
3200/0.08ts |
1.65 |
5.23 |
8.5 |
1.9 |
16 |
150 |
100 |
| 8 |
1650/0.08ts |
1.5 |
3.75 |
6.3 |
3.7 |
8.3 |
90 |
100 |
| 10 |
1050/0.08ts |
1.3 |
3 |
5.45 |
6.3 |
5.3 |
70 |
100 |
| 12 |
680/0.08ts |
1 |
2.41 |
4.5 |
9.8 |
3.4 |
40 |
100 |
| 14 |
400/0.08ts |
0.9 |
1.85 |
3.5 |
15.6 |
2 |
25 |
200 |
| 16 |
252/0.08ts |
0.75 |
1.47 |
3 |
24.4 |
1.27 |
15 |
200 |
| 18 |
150/0.08ts |
0.55 |
1.13 |
2.3 |
39.5 |
0.75 |
10 |
200 |
| 20 |
100/0.08ts |
0.45 |
0.92 |
1.8 |
62.5 |
0.5 |
6 |
400 |
| 22 |
60/0.08ts |
0.45 |
0.72 |
1.7 |
88.6 |
0.3 |
4 |
400 |
| 24 |
40/0.08ts |
0.5 |
0.58 |
1.6 |
97.6 |
0.2 |
2 |
400 |
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
About Linke Cable Technology Co., Ltd
As a leading cable supplier in China with over 10 years of experience, Linke Cable specializes in R&D, production, and marketing of high-quality wires and cables. We provide custom cable solutions worldwide, with expertise in:
- EV charging cables
- Medical cables
- Silicone cables
- Spring cables
- Braided cables
- UL wires
- Automotive cables
Our engineer-to-engineer approach ensures we develop superior cables that improve quality and performance for our customers.
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer with full control over production from start to finish. We welcome factory visits and provide pickup service in Shenzhen.
2. How can I get a sample to test your quality?
Samples are free for evaluation, with new clients responsible for courier costs.
3. What's your Minimum Order Quantity?
Standard MOQ is 100m. Due to weight considerations, we recommend ordering suitable quantities to optimize freight costs, with sea transportation being the most economical option.
4. Can I get a discount?
Discounts are available based on order quantity, and we may offer freight subsidies. Please contact us for specific pricing.
5. Does your company accept OEM production?
Yes, we offer OEM services including custom branding with your company name and quality cards to promote your business.
