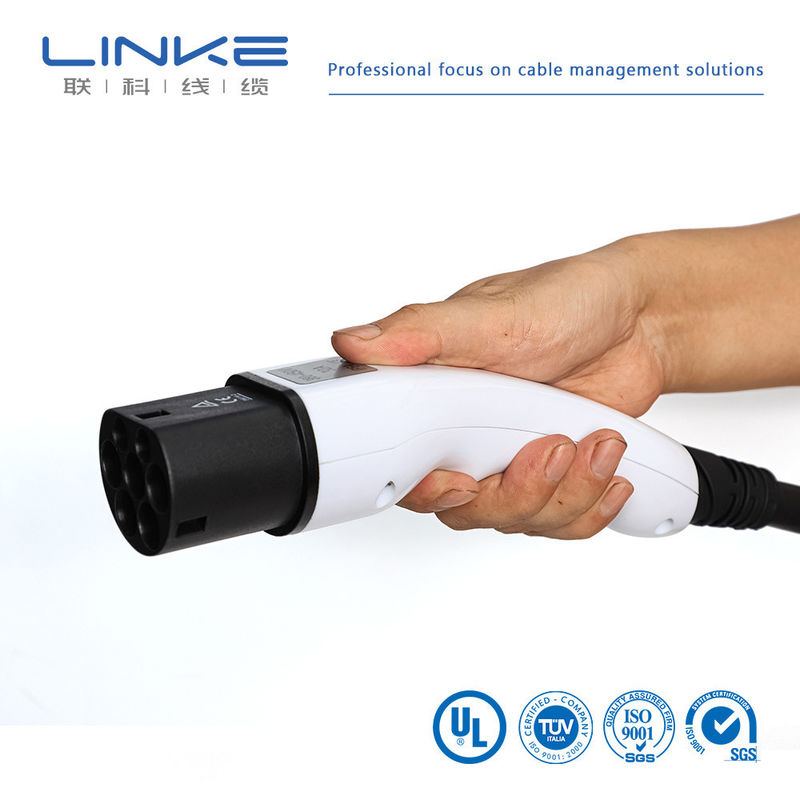

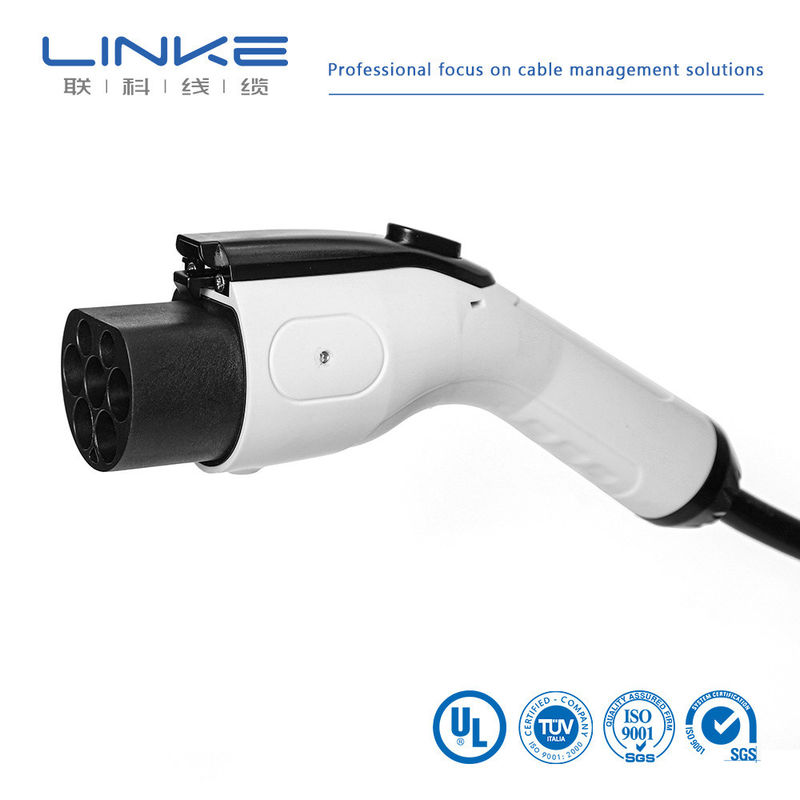

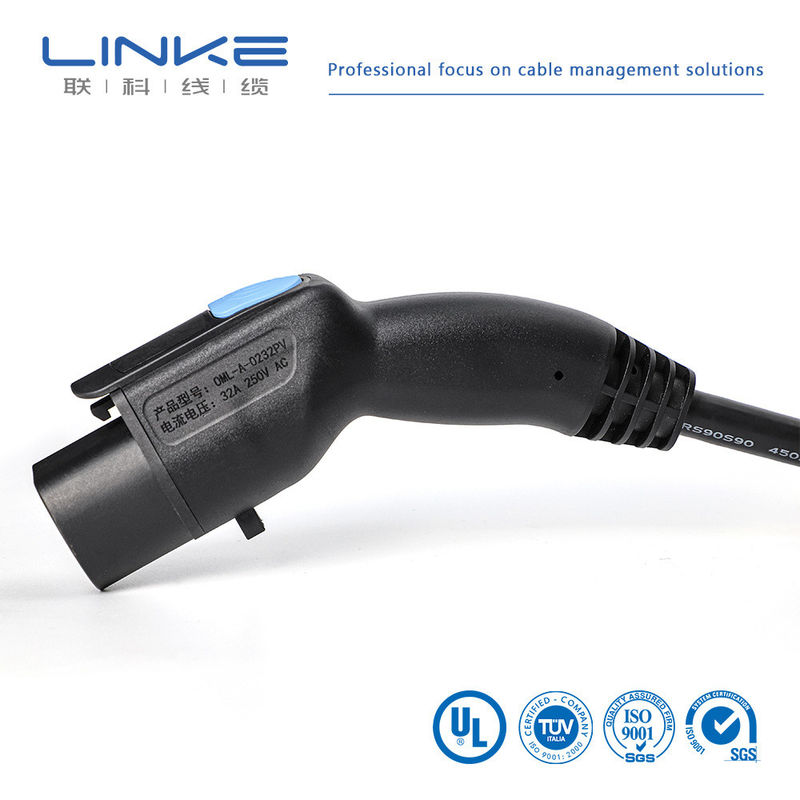

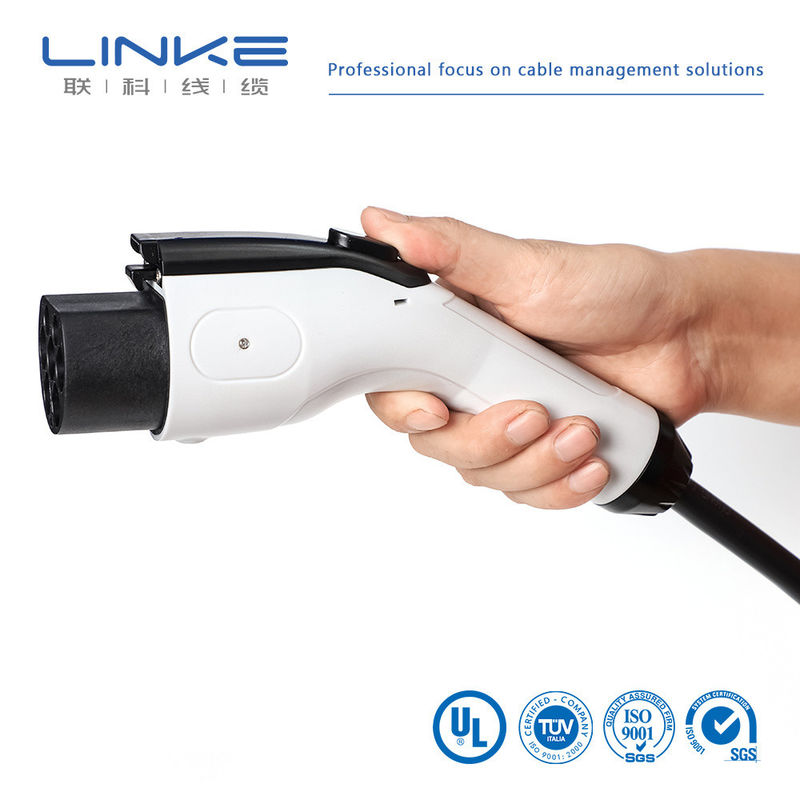

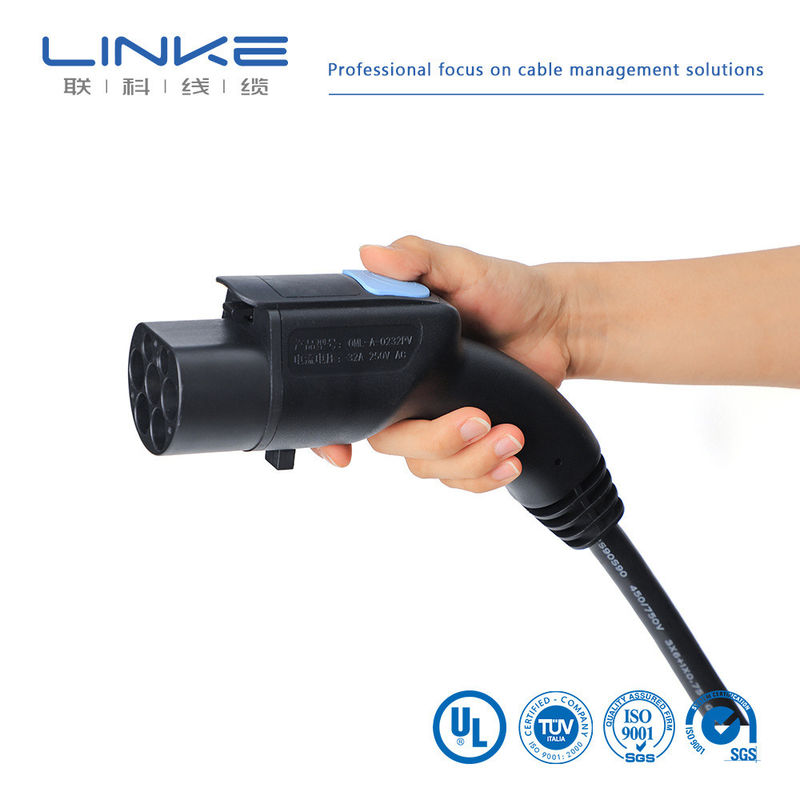

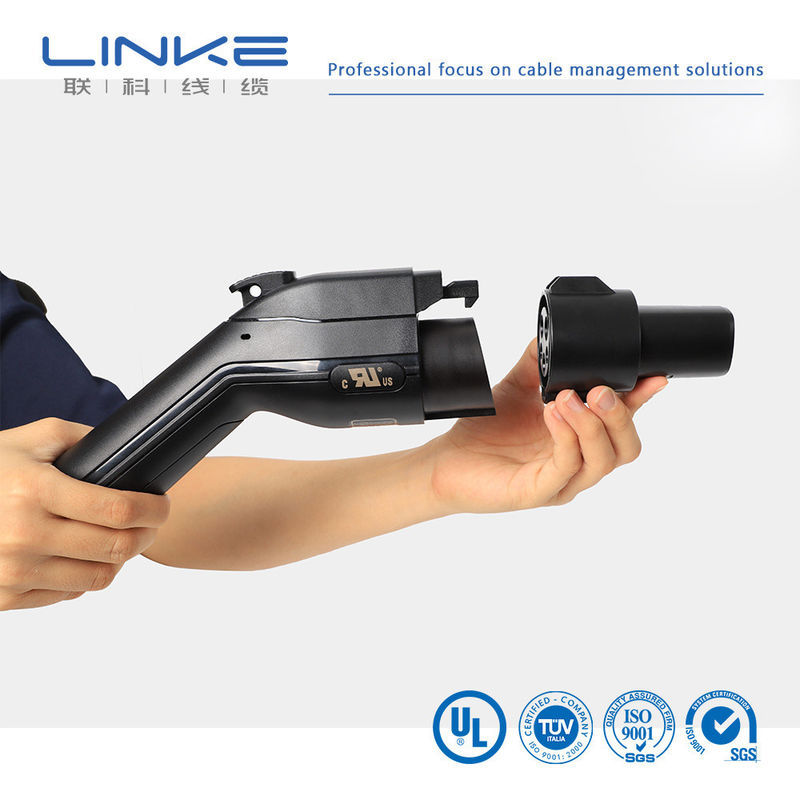

Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw

Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw

AC 32A EV Charger Cable

Silver Plated Brass EV Charger Cable

16A 3.5kw EV Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Contact Us
Request A Quote
Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw
Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw
Product Details
Model NO.:
16A AC Charger Cable
Color:
Black
Cable Length:
5metrer
Print:
TUV Sud Evc H07bz5-F/62893 IEC123 3X2.5+1X0.75
Standard:
En50620/IEC62893-3
Structure:
3034/0.20
Jacket:
TPE
Use:
Charger
After-Sales Service:
1 Year
Type:
Slow EV Charging Station
Warranty:
1year
Core:
Bare Copper
Transport Package:
Roll
Specification:
5M
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
550.00cm * 550.00cm * 380.00cm
Package Gross Weight:
55.000kg
Lead Time:
15 Days (1 - 100 Pieces) To Be Negotiated ( > 100 Pieces)
Rated Current:
16A
Phase:
Single Phase
IP Grade:
IP65
Samples:
US$ 1000/PCS 1 PCS(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

AC 32A EV Charger Cable

,

Silver Plated Brass EV Charger Cable

,

16A 3.5kw EV Charger Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
RELATED PRODUCTS
Good price UL 40A 50A 3x8AWG+1x18AWG EV Wire AC Charger Cable online Video

UL 40A 50A 3x8AWG+1x18AWG EV Wire AC Charger Cable

Get Best Price
Good price 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved online Video

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

Get Best Price
Good price Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw online Video

Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw

Get Best Price
Good price Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll online Video

Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll

Get Best Price
Contact Us
86-0769-81776230
86-18665106395
sales@linkecable.com
Contact Now
Product Description

Silver Plated Brass AC 32A 7kw   16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables

Silver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables
Overview
Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, with good
ergonomic design and beautiful appearance. The product has excellent protection grade, the
protection grade of the Vehicle connector
reaches IP67, and the protection grade coupled with the vehicle socket is IP54. Copper alloy
terminal, silver plating on the surface, V0 grade thermoplastic shell material, wire length and rated
current can be customized according to customer requirements.
Parameters
Rated voltage:220V AC(
single-phase)/380V AC(
three-phase)
Rated current :16A,32A
Ambient temperature:-35ºC-55ºC
Ambient Humidity :5%-95%
IP degrees:IP67(
Vehicle connector);IP54(
combination of the socket-outlet or connector)
Cable outer sheath, material :TPE
Cable structure :
single-phase 16A:3×2.5mm²+1×0.75mm² OD=11mm
single-phase 32A::3×6mm²+1×0.75mm² OD=13.5mm
three-phase 16A:5×2.5mm²+1×0.75mm² OD=13.5mm
three-phase 32A::5×6mm²+1×0.75mm² OD=16.5mm
Insertion/withdrawal force:10N-100N
Vehicle drive over:10000N
Connector material:PC,PA
Flame Rating:UL94 V-0
Connection terminal:Brass, silver plated3
Insulation resistance:≥100MΩ
Dielectric strength:2000VAC 1min
Insertion/withdrawal cycles :>10000



Product Description
Silver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables
combination of the socket-outlet or connector)
Cable outer sheath, material :TPE
Cable structure :
single-phase 16A:3×2.5mm²+1×0.75mm² OD=11mm
single-phase 32A::3×6mm²+1×0.75mm² OD=13.5mm
three-phase 16A:5×2.5mm²+1×0.75mm² OD=13.5mm
three-phase 32A::5×6mm²+1×0.75mm² OD=16.5mm
Insertion/withdrawal force:10N-100N
Vehicle drive over:10000N
Connector material:PC,PA

Silver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables
Product Parameters
Type EV-CABLE Customer signauture
Cable Grade -40ºC~+125ºC1500V
Standard GB/T 25087/ISO 14572
Cable Code Cable sizemm²
(****)		 Conductor Tinned copper braid  Cable Jacket
Material Copper Structure(mm) single copper OD.
(m)		 copper braid  Material Cable OD.
(mm)		 Standard thickness
(mm)		 Color  20ºCConductor resistance
(mΩ/m)
TEVB050-XX-027 0.5mm² Copper 16/(0.20±0.008) 0.10TD ≥85% XLPE 4.20±0.15 0.70 Black/Customization ≤37.1
TEVB075-XX-041 0.75mm² 24/(0.20±0.008) 0.10TD 4.50±0.15 0.70 ≤24.7
TEVB100-XX-006 1mm² 32/(0.20±0.008) 0.10TD 4.80±0.15 0.80 ≤18.5
TEVB150-XX-036 1.5mm² 49/(0.20±0.008) 0.127TD 5.20±0.15 0.80 ≤12.7
TEVB250-XX-295 2.5mm² 49/(0.25±0.008) 0.10TD 5.60±0.20 0.70 ≤7.60
TEVB400-XX-140 4mm² 133/(0.20±0.008) 0.15TD 7.30±0.20 0.90 ≤4.71
TEVB600-XX-093 6mm² 190/(0.20±0.008) 0.127TD 7.70±0.20 0.90 ≤3.14
TEVB800-XX-002 8mm² 259/(0.20±0.008) 0.15TD 8.50±0.20 1.00 ≤2.38
TEVBA10-XX-051 10mm² 323/(0.20±0.008) 0.15TD 9.60±0.30 1.00 ≤1.82
TEVBA16-XX-044 16mm² 513/(0.20±0.008) 0.15TD 10.90±0.30 1.00 ≤1.16
TEVBA25-XX-042 25mm² 798/(0.20±0.008) 0.15TD 13.50±0.30 1.20 ≤0.743
TEVBA35-XX-043 35mm² 1121/(0.20±0.008) 0.15TD 14.50±0.30 1.20 ≤0.527
TEVBA50-XX-050 50mm² 1596/(0.20±0.008) 0.15TD 17.00±0.40 1.30 ≤0.368
TEVBA70-XX-054 70mm² 2257/(0.20±0.008) 0.20TD 21.00÷0.50 1.30 ≤0.259
TEVBA95-XX-014 95mm² 1887/(0.254±0.008) 0.20TD 22.0±0.40 1.60 ≤0.196
TEVBA120-XX-016 120mm² 2368/(0.254±0.008) 0.20TD 27.00±1.0 1.60 ≤0.153

Print EV-cable"mm³-40ºC~+125ºC1500V DC N ATTENTION HIGH VOLTAGE LINKE CABLE->XLPE<

Silver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables
Certifications




Silver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV CablesSilver Plated Brass AC 32A 7kw 16A 3.5kw Electric Vehicle Charging EV Charger Cable Car EV Cables



Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.


FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.


4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.


5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
