105 Degree AC 300/500V H05bz5-F / H07bz5-F EV Charger Cable with Silicone Jacket and 16A Rated Current

IP65 EV Car Charger Cable

Type2 EV Car Charger Cable

IP65 Car Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Eve/Evt/Evjt/Evje

Color:

Black

Cable Length:

305

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

After-Sales Service:

1 Year

Type:

EV Charging Cable

Warranty:

1year

Transport Package:

Roll

Specification:

Custom

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

850.00cm * 850.00cm * 580.00cm

Package Gross Weight:

210.000kg

Lead Time:

7-15days

Rated Current:

16A

Phase:

Single Phase

IP Grade:

IP65

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Currency:

US$

Highlight:

IP65 EV Car Charger Cable

Type2 EV Car Charger Cable

IP65 Car Charger Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

XLPE Insulated High Temperature 1200c Thermocouple Aerial Bundle Cable

Get Best Price

Customized Slow EV Charging Station Auto Electronics Car Charger

Get Best Price

Industrial Range FEP Wire Tinned Copper Cable for Home Appliance Heater Lighting Industrial control line

Get Best Price

Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

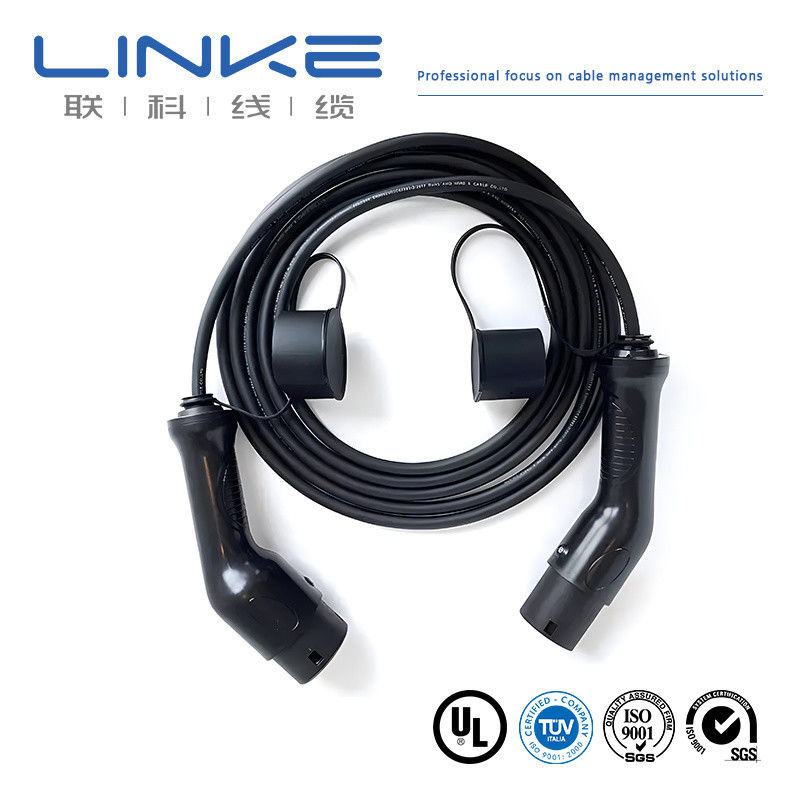

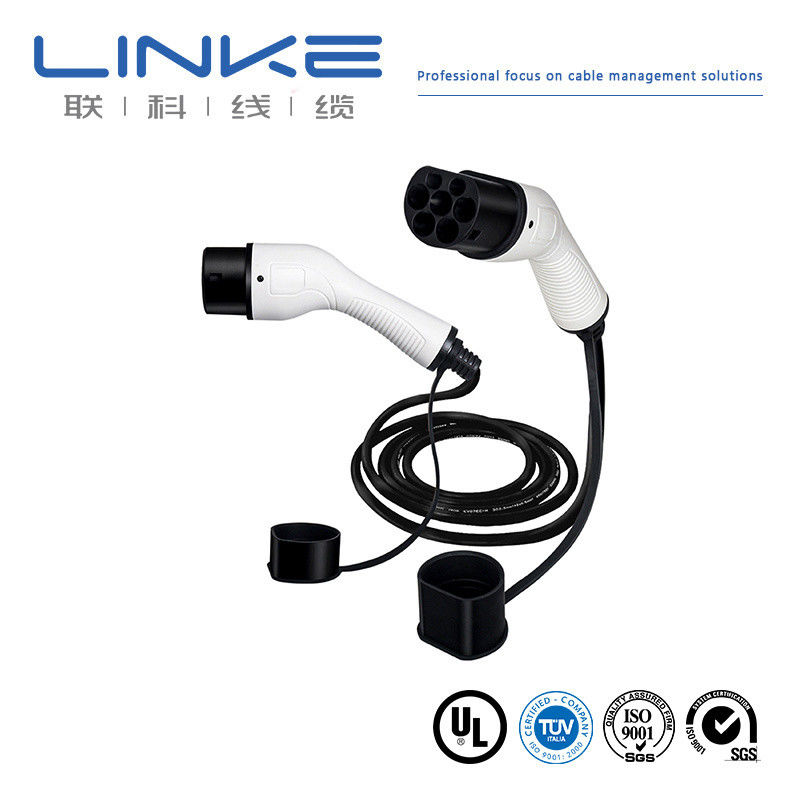

105 Degree AC 300/500V EVC H05BZ5-F / H07BZ5-F 3*1.5mm² Smart Car Charger EV Connection Cable

Structural Parameters

Category	Wire Specifications	Reference Current (A)	Diameter (mm)
UL:EVE,EVT 600V	3*16AWG	12	10.8
	3*14AWG	16	13.4
	3*12AWG	23	14.2
	3*10AWG	32	16.2
	316AWG+118AWG	12	11.4
	314AWG+118AWG	16	13.6
	312AWG+118AWG	23	14.3
	310AWG+118AWG	32	15.9
	38AWG+118AWG	46	21.8
	2*8AWG+10AWG+18AWG	46	20.9
	2*6AWG+8AWG+18AWG	63	23.1
	2*4AWG+6AWG+18AWG	75	26.5
	2*2AWG+4AWG+18AWG	100	30.1
	316AWG+218AWG	12	12.1
	314AWG+218AWG	16	13.9
	312AWG+218AWG	23	15.0
	310AWG+218AWG	32	16.6
	28AWG+10AWG+218AWG	46	21.9
	26AWG+8AWG+218AWG	63	24.8
UL:EVJE,EVJT 300V	3*16AWG	12	8.2
	3*14AWG	16	9.0
	3*12AWG	23	10.1
	316AWG+118AWG	12	8.8
	314AWG+118AWG	16	9.5
	312AWG+118AWG	23	11.2
	316AWG+218AWG	12	9.5
	314AWG+218AWG	16	12.1
	312AWG+218AWG	23	13.2

Technical Specifications

Electrical Characteristics	Physical Properties
Rated voltage: DC 1000V	Tensile strength: ≥20MPa
Rated temperature: Jacket -40~90ºC	Elongation: ≥300%
Insulation -40~125ºC	Aged condition: 110±1ºC*168h
Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Percent of original tensile strength: ≤±30%
Insulation Voltage withstand(Core A &B,10m): AC 2.5kV/5min, leakage current≤5mA	Flame test: GB/T 18380.12-2008
Completed cable Voltage withstand(Core A to A &B,10m): AC 3.5kV/15min, leakage current≤5mA	Artificial weathering test: GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B): 500MΩ.km	Vehicle rolling: Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21

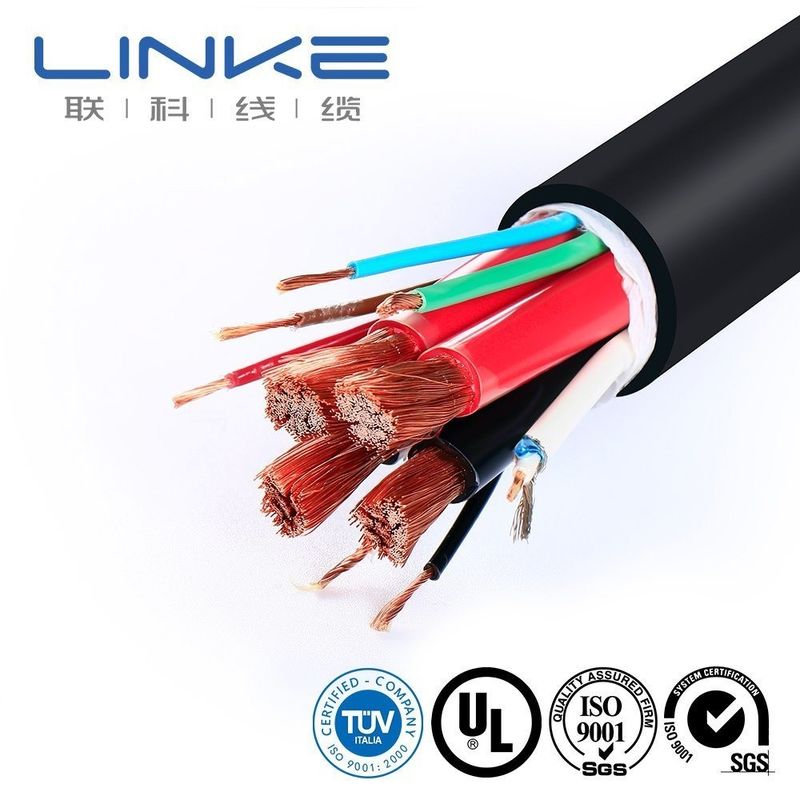

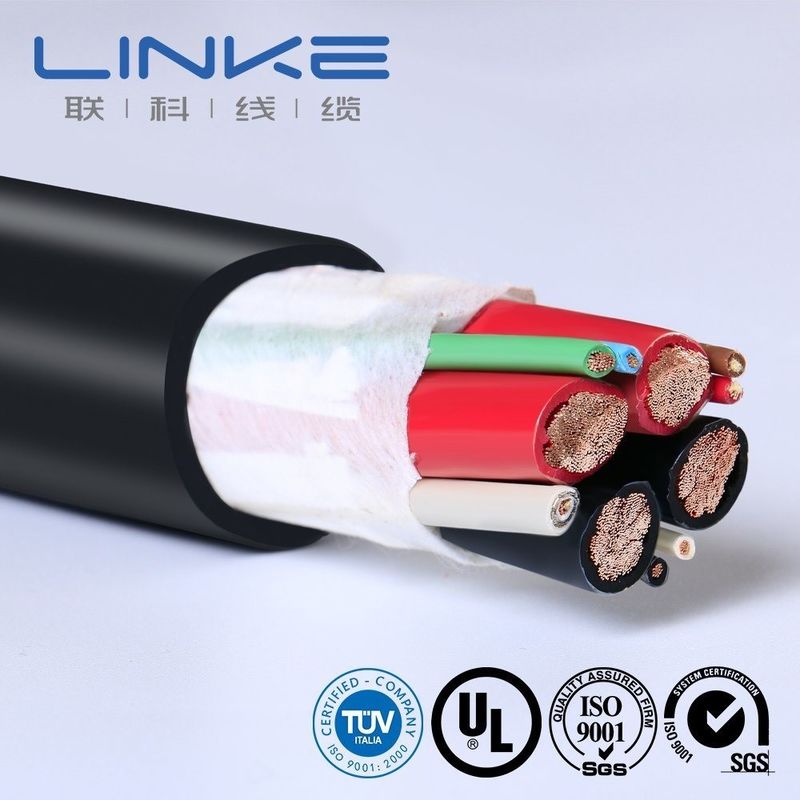

Cable Construction

Conductor: Flexible bare annealed copper wire
Insulation: Silicone
Jacket options: Black, Orange, Red or Yellow Blue, single & double insulated
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Temperature range: -60°C to 200°C

Manufacturer Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China with over 10 years of experience in R&D, production and marketing of wire and cable products. We specialize in providing various cables and custom cable solutions worldwide, including:

EV charging cable
Medical cable
Silicone cable
Spring cable
Braided cable
Twinlobe cable
UL wire
Automotive cable

At Linke Cable, we use an engineer-to-engineer approach to develop better cables for customers and improve quality of life.

Our Certifications

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR- Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from beginning to end. Welcome to visit us - we'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

Samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. We recommend ordering a suitable quantity to avoid high freight costs. Sea transportation is the best option.

4. Can I get a discount?

Discounts depend on your quantity. We can offer discounts and cover freight costs. Please contact us for details.

5. Does your company accept OEM production?

Yes, we can print your company name and even customize quality cards to promote your company.
