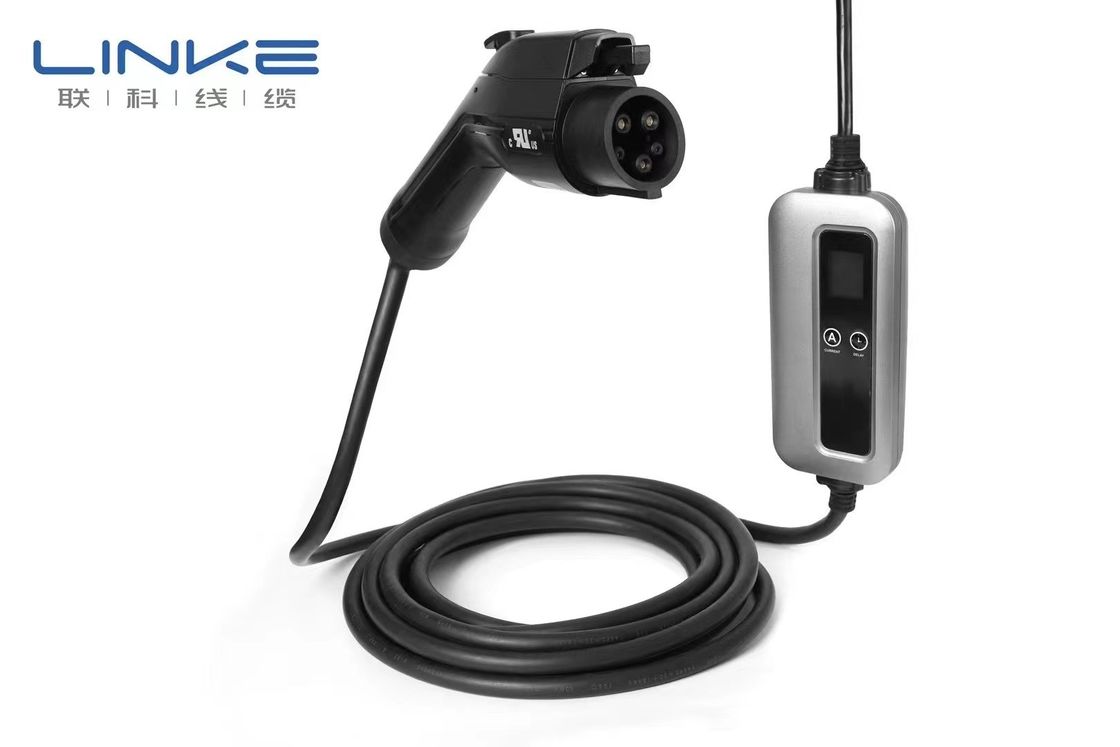

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

32A EV Charger Cable

5M EV Charger Cable 16A

IEC62893 EV Charging Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Contact Us
Request A Quote
16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved
16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved
Product Details
Model NO.:
VDE(EN50620)& IEC62893
Color:
Black
Plug Type:

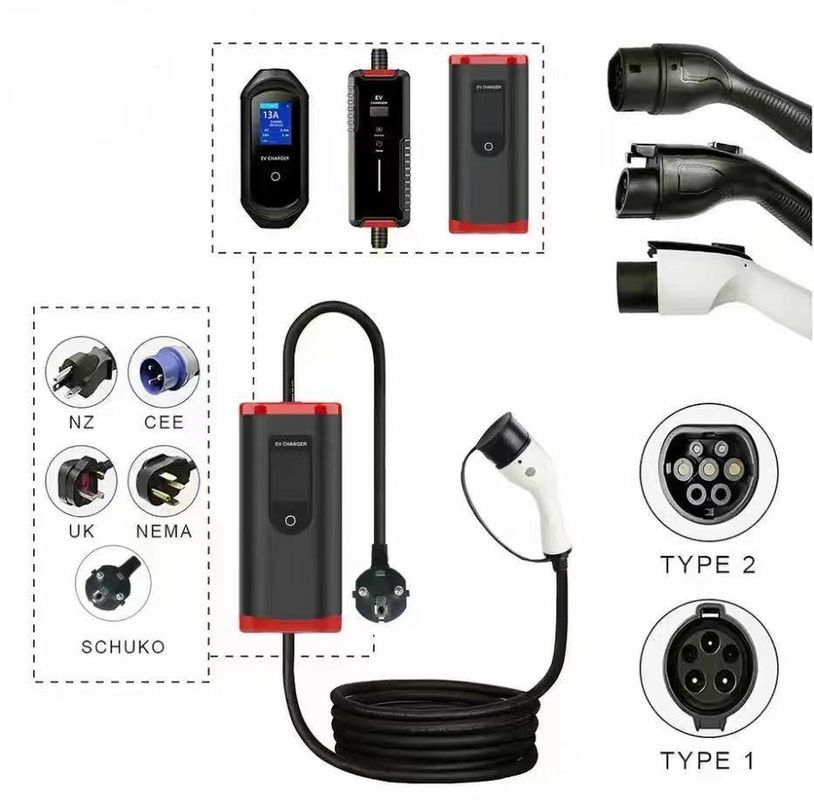

IEC 62196-2 (Type 2), SAE J1772 Type 1
Conductor:
Bare Copper
Item:
(En50620)& IEC62893
Jacket:
Silicone Charging Cable
Use:
Charging
After-Sales Service:
1 Year
Type:
Slow EV Charging Station
Warranty:
1year
Jacket 1:
XLPE Charging Cable
Transport Package:
Roll
Specification:
5M
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
850.00cm * 850.00cm * 690.00cm
Package Gross Weight:
235.000kg
Rated Current:
32A
Phase:
Three Phase
IP Grade:
IP65
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

32A EV Charger Cable

,

5M EV Charger Cable 16A

,

IEC62893 EV Charging Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
RELATED PRODUCTS
Good price UL 40A 50A 3x8AWG+1x18AWG EV Wire AC Charger Cable online Video

UL 40A 50A 3x8AWG+1x18AWG EV Wire AC Charger Cable

Get Best Price
Good price 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved online Video

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

Get Best Price
Good price Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw online Video

Silver Plated Brass Electric Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw

Get Best Price
Good price Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll online Video

Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll

Get Best Price
Contact Us
86-0769-81776230
86-18665106395
sales@linkecable.com
Contact Now
Product Description

TUV IEC62893 and UL Approved 16A 32A EV Charging Cable for Charging Solutions
Electrical Vehicle Charing Cable EV Charging Cable with TUV VDE(EN50620)& IEC62893 and UL

16A 32A Electrical Vehicle Charing Cable EV Cable with TUV IEC62893 and UL

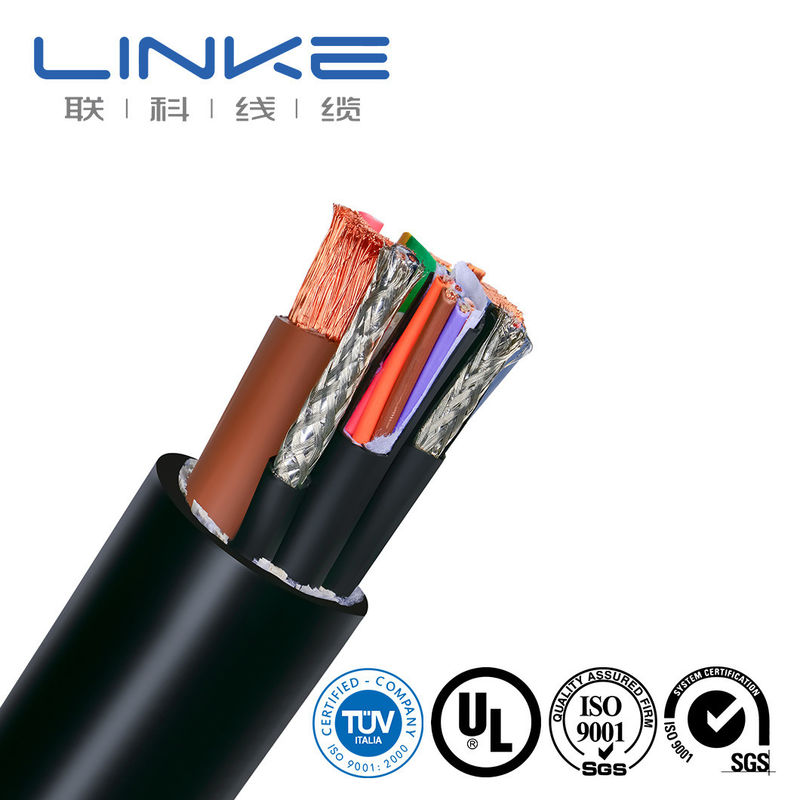

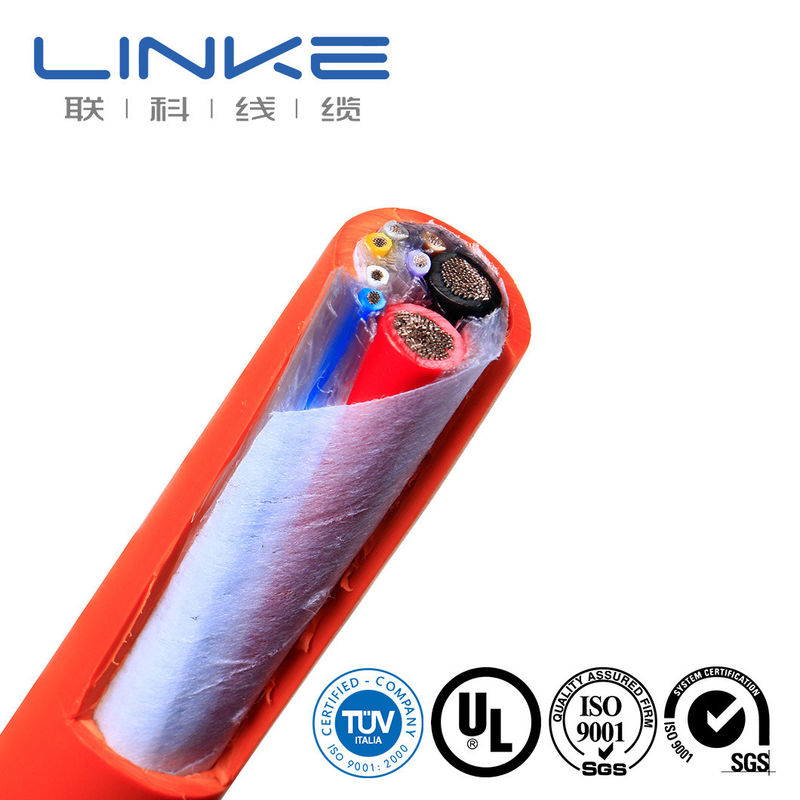

SPECIFICATION CABLE NAME EV Cable
CABLE SPEC 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
RoHS  Compliant
Item A : 2C×80mm2 B : 1C×25mm2 C : 1C×4mm2 D:(3C×0.75mm2)(P2) E:(7C×0.75mm2)
CONDUCTOR Material Bared copper stranded
Size 2580/0.20 ±0.008mm 798/0.20 ±0.008mm 224/0.15±0.008mm
+10/1#Tinsel+1000D Kevlar		 40/0.15±0.008mm+
10/0.19mmTinsel+200DKevlar		 40/0.15±0.008mm+
10/0.19mmTinsel+200D
Kevlar
O.D.(Ref.) 12.40±0.25mm 7.00±0.20mm   2.70±0.15mm 1.40±0.10mm 1.40±0.10mm
INSULATION Material Thermoplastic(EF2585,85±3A)
Min. average thickness 1.60mm 1.20mm 1.00mm 0.50mm 0.50mm
Min.thickness at any point 1.34mm 0.98mm 0.80mm 0.35mm 0.35mm
O.D. 15.60±0.40mm 9.60±0.30mm 4.70±0.20mm 2.50±0.10mm 2.50±0.10mm
CABLING-1 Filler / Cotton Cotton
Material / AL-mylar(facing out) Non-woven

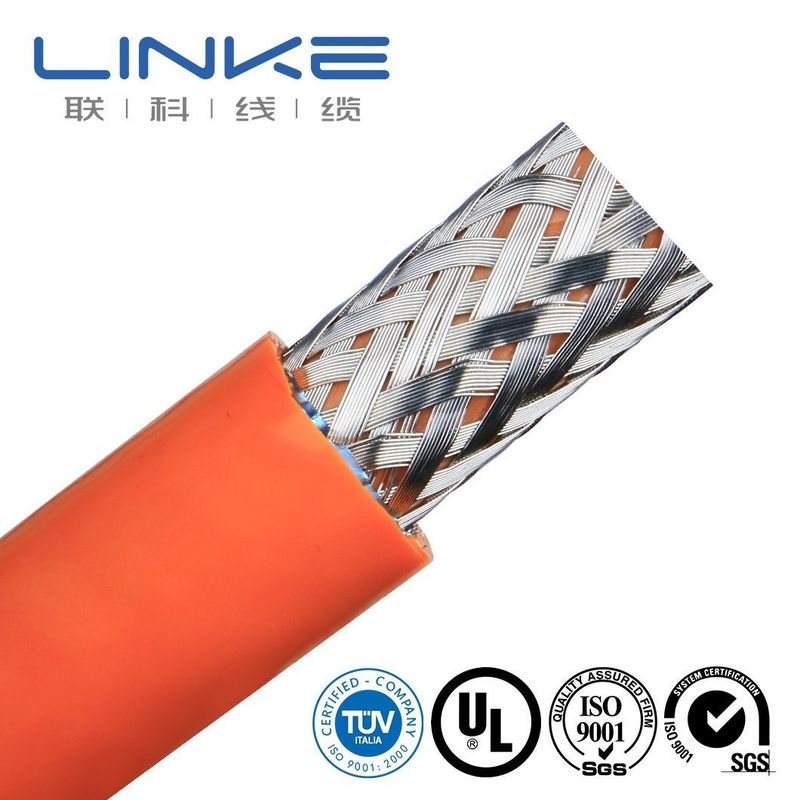

BRAID Material / Tinned  copper /
Size / 0.12mm,≥60% /
In-JACKET Material / TPE TPE
Min. average thickness / 0.60mm 0.60mm
Min.thickness at any point / 0.42mm 0.42mm
O.D. / 7.20±0.25mm 9.70±0.25mm
CABLING Filler Strengthed  PP  rope
Material Non-woven(≥25% overlapping)
Assembly 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET Material TPU
Min. average thickness 2.80mm
Min.thickness at any point  2.28mm
O.D. 38.00+0.6/-1.00mm


Structure
NO. conductor                 mm2 insulution 20ºC conductor resistance             (Ω/KM)
conductor                 mm2 Structure(N/mm)  Conductor DIA(mm) Conductor  Thickness (mm) MATERIAL insulution OD          (mm)
EV-YJ 1.5 48/0.20 1.60  copper  0.6 silicone 2.90±0.15 ≤12.7
EV-YJ 2.5 80/0.20 2.06  copper  0.7 silicone 3.50±0.15 ≤7.60
EV-YJ 4  128/0.20 2.62  copper  0.8 silicone 4.30±0.15 ≤4.71
EV-YJ 6  196/0.20 3.50  copper  0.8 silicone 5.10±0.20 ≤3.14
EV-YJ 10  322/0.20 4.50  copper  1.00  silicone 6.70±0.20 ≤1.82
EV-YJ 16  513/0.20 5.70  copper  1.10  silicone 8.00±0.30 ≤1.16
EV-YJ 25  798/0.20 7.10  copper  1.3 silicone 9.80±0.30 ≤0.743
EV-YJ 35  1121/0.20 8.50  copper  1.3 silicone 11.40±0.30 ≤0.527
EV-YJ 50  1596/0.20 10.10  copper  1.50  silicone 13.50±0.30 ≤0.368
EV-YJ 70  2242/0.20 12.10  copper  1.50  silicone 15.50±0.40 ≤0.259
EV-YJ 95  3034/0.20 14.10  copper  1.50  silicone 17.50±0.50 ≤0.196

2,Low viscosity appearance
16A 32A Electrical Vehicle Charing Cable EV Cable with TUV IEC62893 and UL
Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C



Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to

develop better cables for customers and  improve the quality of one's life.


FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.


4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.


5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
