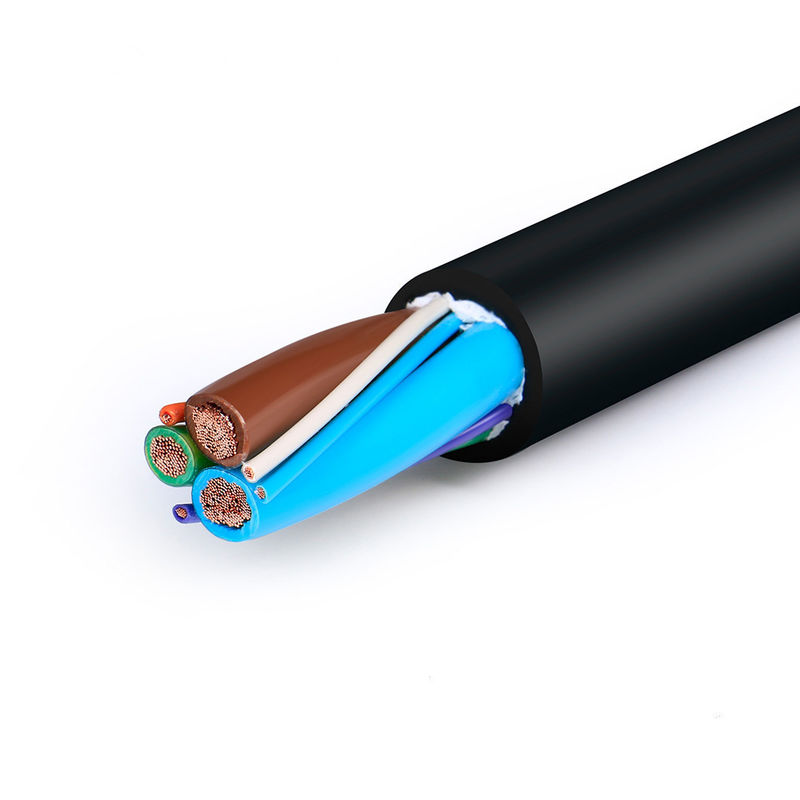

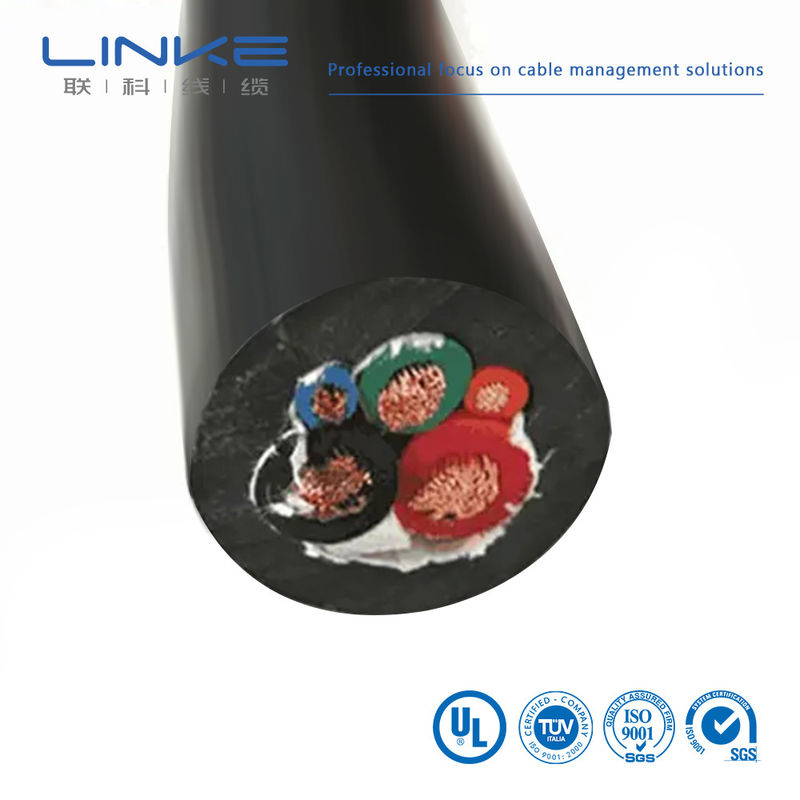

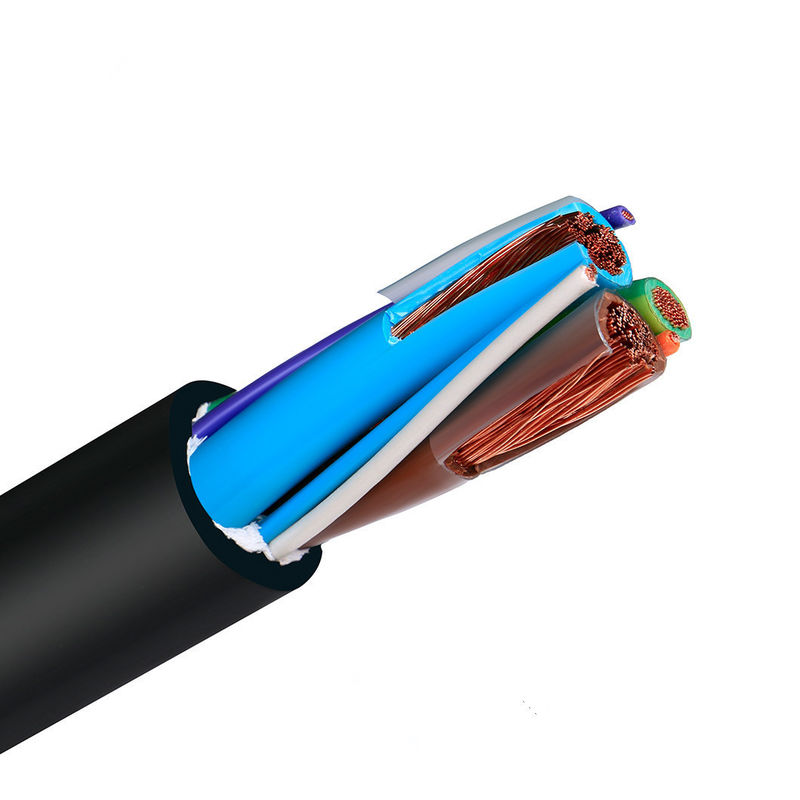

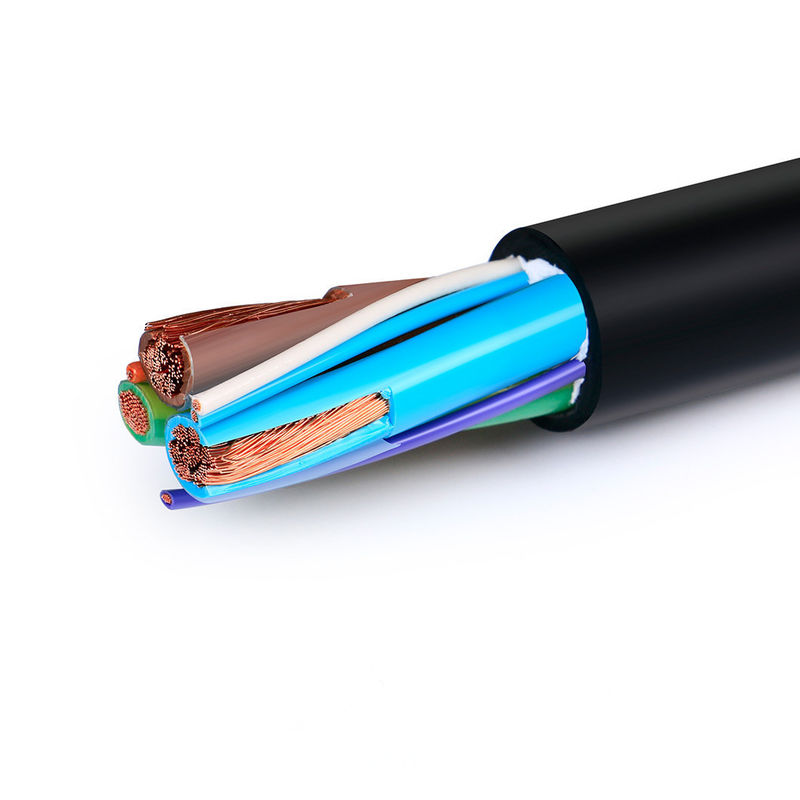

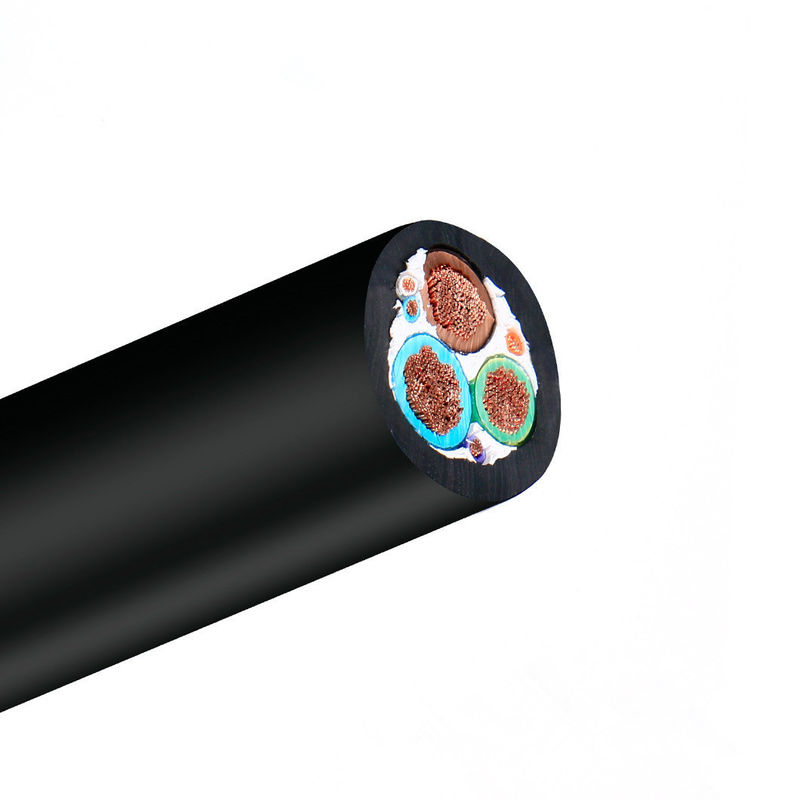

3.6kW 16A EV Charging Cable
High-quality AC EV charging cable with tinned copper construction and comprehensive 30-day return policy.
Key Specifications
- Rated current: 16A
- Operating voltage: 250V AC
- Insulation resistance: >1000MΩ
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Working temperature: -30°C to +50°C
- Compliant with IEC 62196-2 standard
Technical Parameters
- Model: 16A wire for EV charging
- Specification: 3*2.5mm²+2*0.5mm²
- Reference Standard: TUV 2PfG 1908
- Rated current: 16A
- Working voltage: 450/750V AC
- Bending radius: ≥ 8D
- Flame retardant test: IEC60332-1
- Smoke density: IEC61034, EN50268-2
- Acid gas release: IEC60754-1, EN50267-2-1
- Resistant to heat, cold, wear, ozone, and UV light
- Operating temperature: -45°C to +125°C
Certifications
CE TUV UL
Product Features
EV charging cable designed to connect electric vehicles with charging stations or power sockets. Features high-quality oxygen-free copper conductors for optimal conductivity and TPE insulation material that offers both flexibility and strength.
Cable sheath is manufactured from high-performance TPE with excellent weather resistance, high/low temperature tolerance, abrasion resistance, and remains flexible and elastic even in low temperatures without hardening.
Physical Properties
| Component |
2.5mm² |
0.5mm² |
| Construction |
140/0.15±0.008 |
28/0.15±0.008 |
| Material |
Bare Copper Wire |
| O.D. |
2.40 mm |
0.91 mm |
| Insulation Material |
TPE |
| Avg. Thickness |
0.90 mm |
0.60 mm |
| Min. Thickness |
0.71 mm |
0.45 mm |
| Insulation O.D. |
4.2±0.15 mm |
2.2±0.15 mm |
| Color |
Brown, Blue, Yellow/Green |
Black, Green |
| Coverage |
Non-woven fabric, 100% coverage with 25% overlapping |
| Jacket Material |
TPE |
| Avg. Thickness |
1.70 mm |
| Min. Thickness |
1.50 mm |
| Cable O.D. |
12.2±0.2 mm |
| Color |
Orange or Black |
Electrical Performance
| Reference Standard |
TUV 2 PfG 1908/05.12 |
| Rated Voltage |
AC 450/750V |
| Temperature Rating |
-40°C to +125°C |
| Max. Conductor Resistance at 20°C |
2.5mm² ≤7.98 Ω/KM & 0.5mm² ≤39.0 Ω/KM |
| Reference Current |
16A |
| Cold Bend Test |
-40±2°C x 4H No Breakdown |
| Tensile Strength |
Insulation ≥10N/mm², Sheath ≥10N/mm² |
| Flame Test |
IEC 60332-1 |
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
UL Certification
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading wire and cable manufacturer in China with over 10 years of experience in R&D, production, and marketing. We specialize in EV charging cables, medical cables, silicone cables, spring cables, braided cables, towlobe cables, UL wires, automotive cables, and custom cable solutions for global markets.
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664ISO9001 and ISO13485, TS16949CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, controlling your order from beginning to end. Welcome to visit us - we'll pick you up in Shenzhen.
How can I get a sample to test your quality?
Samples are free for you. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. However, due to cable weight, we recommend ordering suitable quantities to avoid high freight. Sea transportation is the best option.
Can I get a discount?
Discounts depend on your quantity. We can offer discounts and cover freight costs. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and even customize quality cards to promote your brand.
