EV Flexible Cable with IEC 62196-2 and SAE J1772

1500V Battery Wiring Harness

Silicone Jacket Battery Wiring Harness

UL Certification Battery Wiring Harness

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV14

AMP:

1200A

Color:

Customized

Customized:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 55.00cm * 50.00cm

Package Gross Weight:

118.000kg

After-sales Service:

1year

Warranty:

1year

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

1500V Battery Wiring Harness

Silicone Jacket Battery Wiring Harness

UL Certification Battery Wiring Harness

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Customizable EV Charging Cable with 600V~1000V Rated Voltage for Underground Application

Get Best Price

Video

UL2464 110 Core Electric Cable with Tinned Copper Conductor and Halogen-Free Thermoplastic for Electronic Equipment

Get Best Price

Video

High-Density High-Conductivity UL2464 UL Electrical Wire for EV Charger Cable and 160 Core Applications

Get Best Price

Video

32A Rated Current IP65 Protection Grade Silicone Jacket EV Charger Cable for Electric Vehicles

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

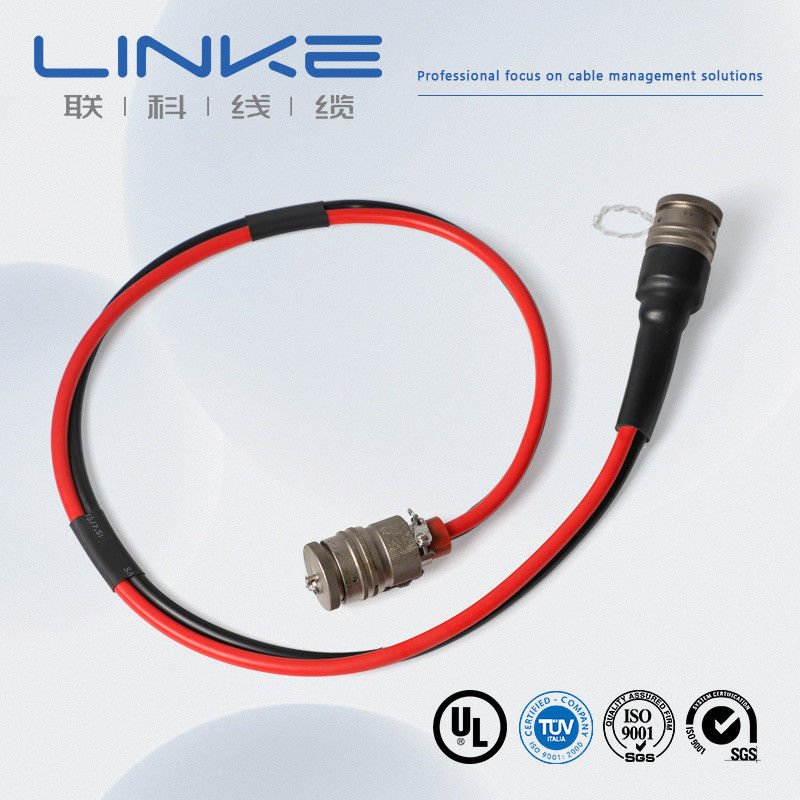

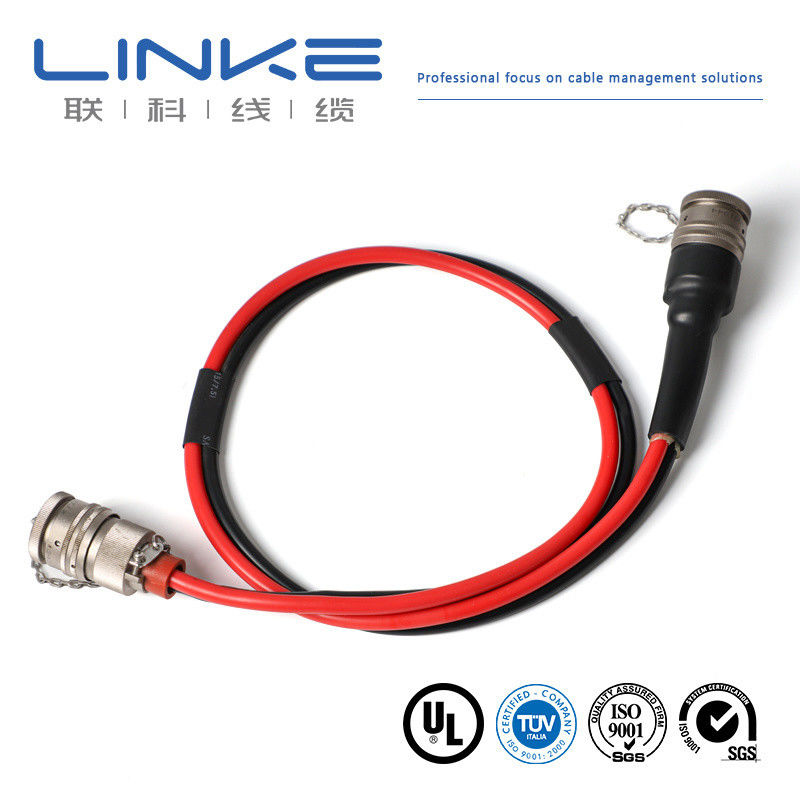

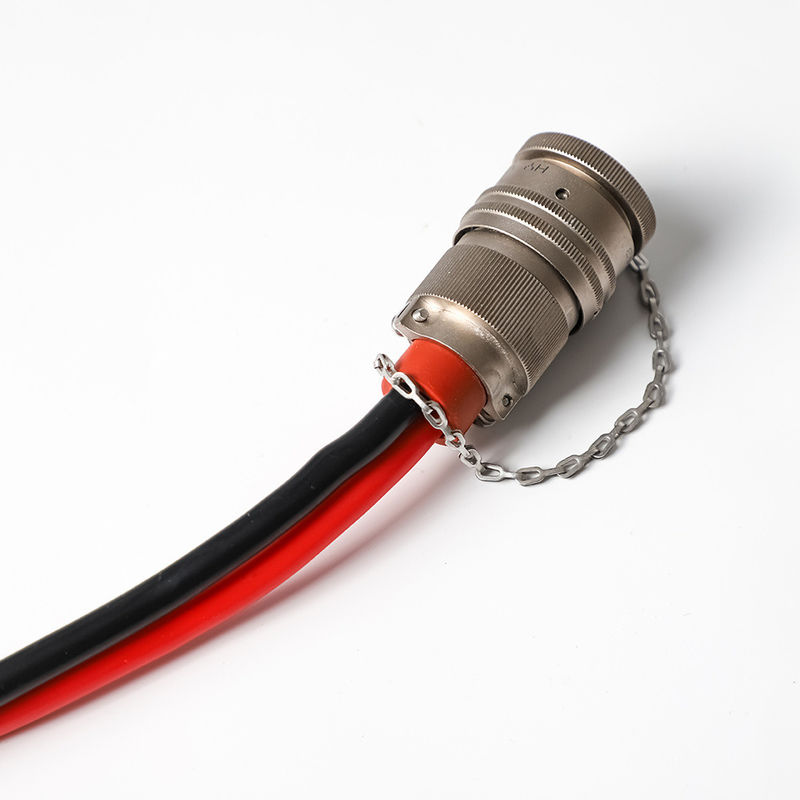

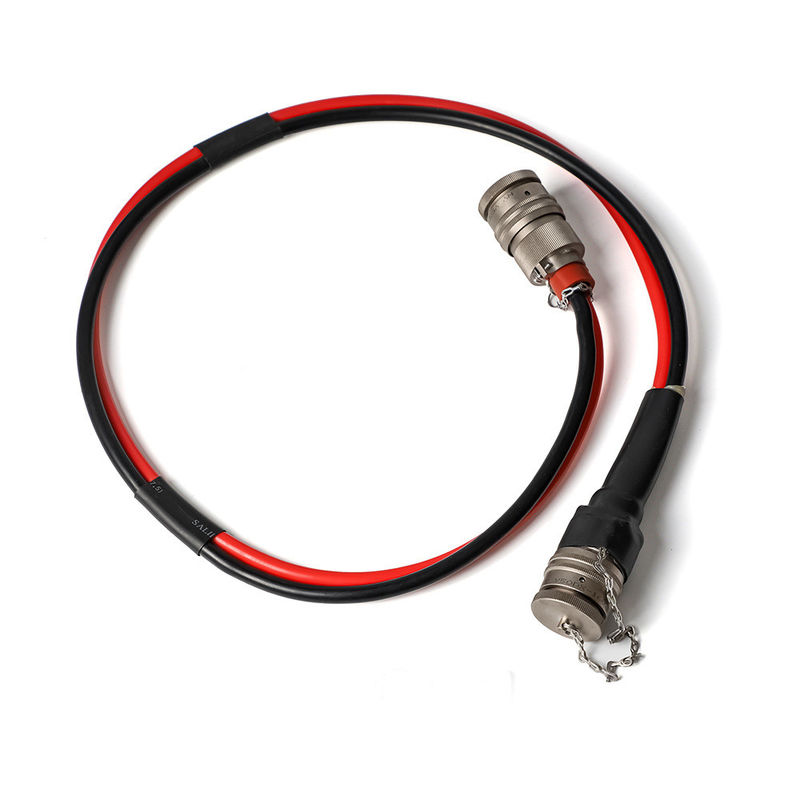

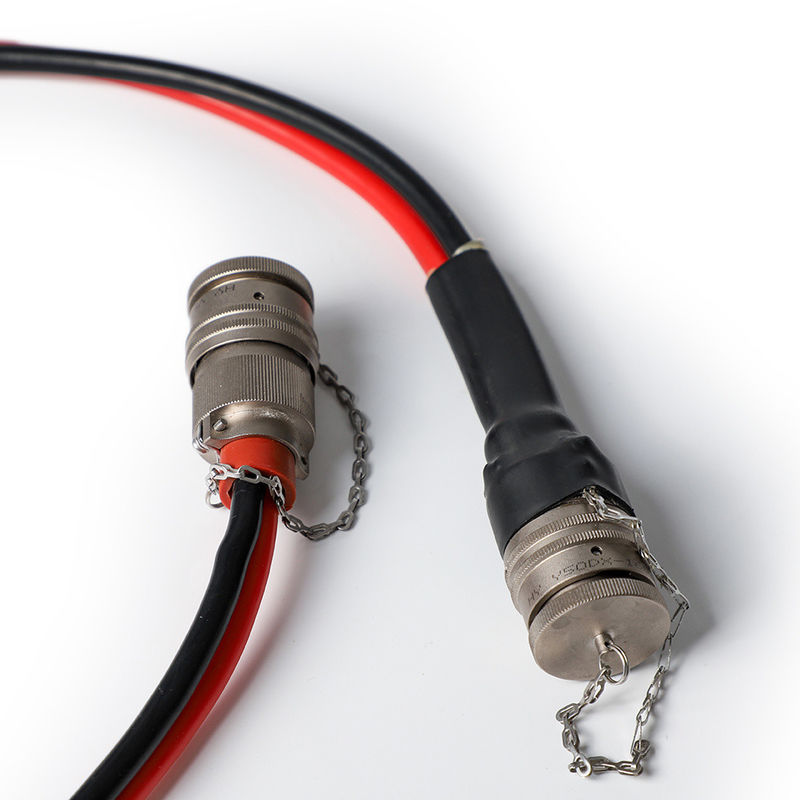

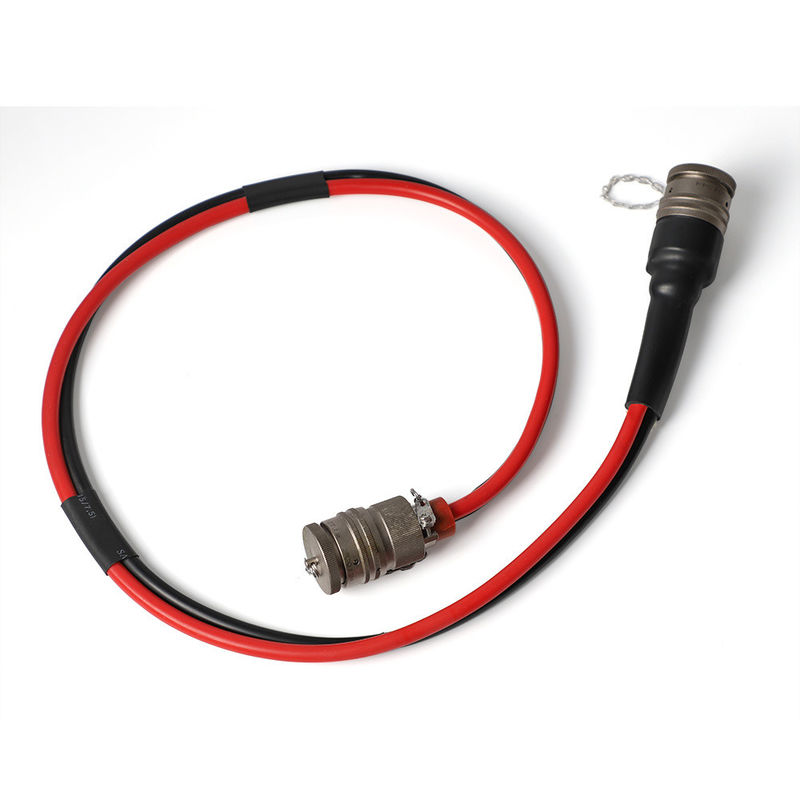

Silicone Jacket EV Flexible Cable 1500V Battery Wiring Harness with UL Certification

Product Specifications

CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant

Detailed Construction

Item	Conductor Material	Size	O.D.(Ref.)
A : 2C×80mm2	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B : 1C×25mm2	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C : 1C×4mm2	Bared copper stranded	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	2.70±0.15mm

Insulation Details

Material	Min. average thickness	Min.thickness at any point	O.D.
Thermoplastic(EF2585,85±3A)	1.60mm	1.34mm	15.60±0.40mm

Electrical Characteristics

Property	Value
Rated voltage	DC 1000V
Rated temperature	Jacket -40~90ºC, Insulation -40~125ºC
Max. conductor resistance(20ºC)	A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass

Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and

provide professional solutions to the Cable&Wire,especially for the

different industry customers.It contains :

Humanoid robot cable,

AI power cable/data cable,

Semiconductor cable/industrial automatic cable,

Sensor cable,

New energy cable,

Medical beauty wire,

UL wire cable,

Linke Cable has diversified product development capabilities and technical capabilities to support diversified

customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We

have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485

(Medical apparatus and instruments),IATF 16949(Auto industry)

Manufacturer Information

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China with over 10 years of experience in R&D, production and marketing of wire and cable. We specialize in:

EV charging cable
Medical cable
Silicone cable
Automotive cable
Custom cable solutions

Our Certifications

UL1007
UL1185
UL1672
UL10070
UL10483
UL1015
UL1569
UL10012
UL10269
ISO9001
ISO13485
TS16949

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
