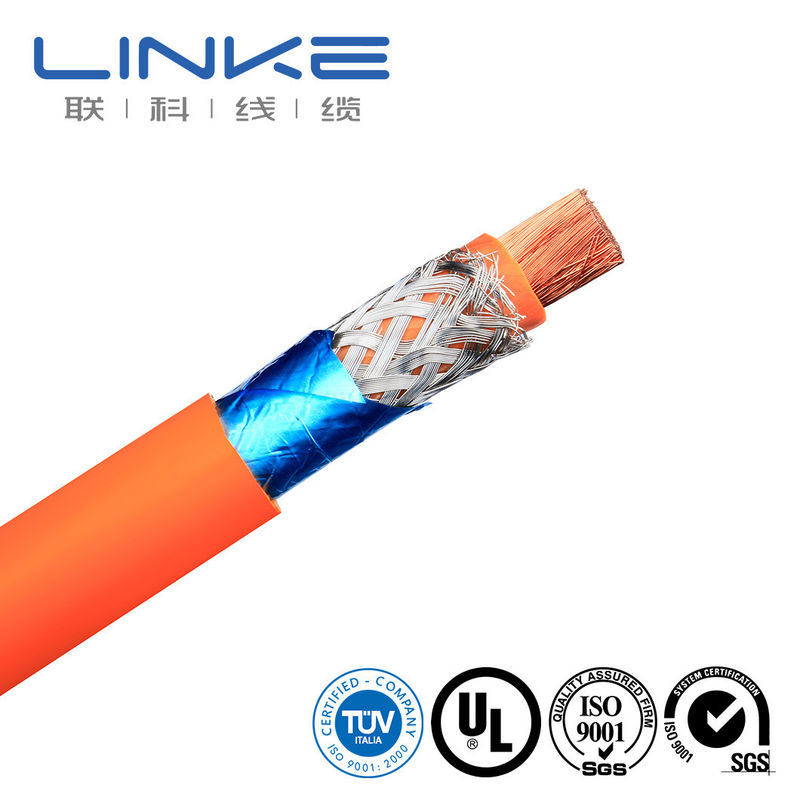

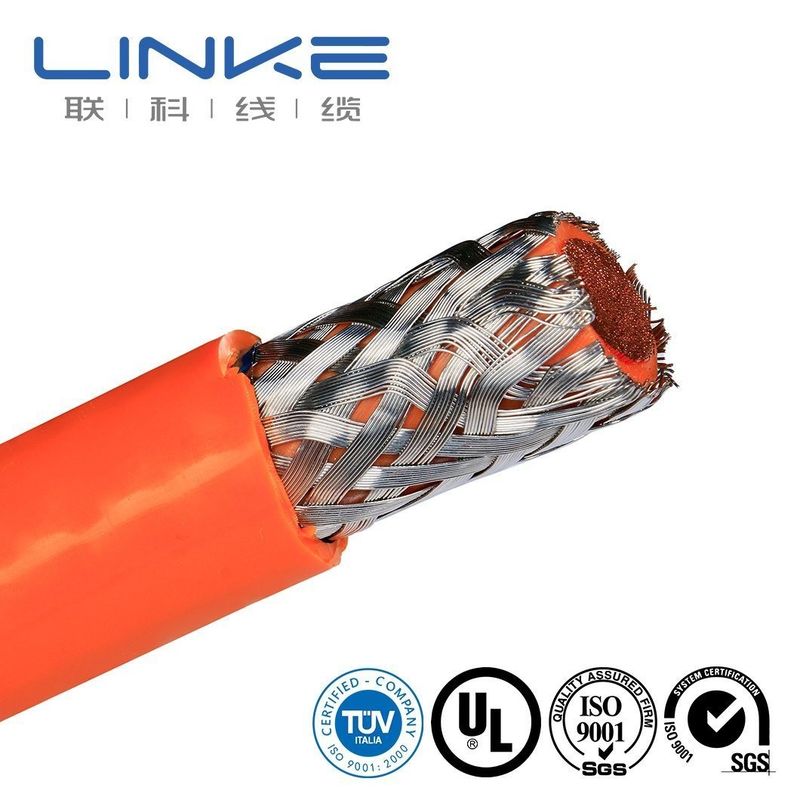

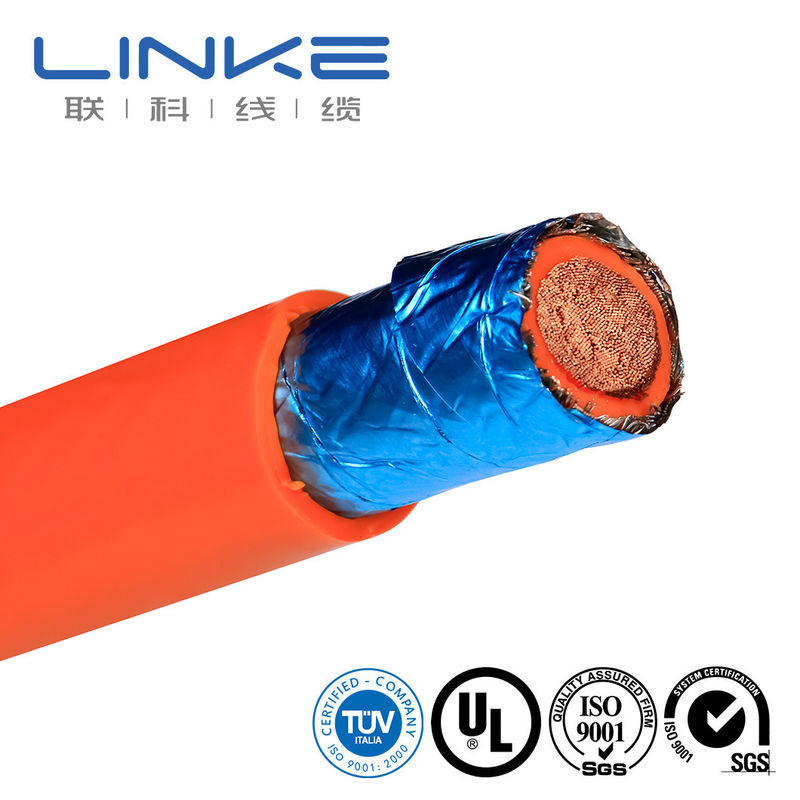

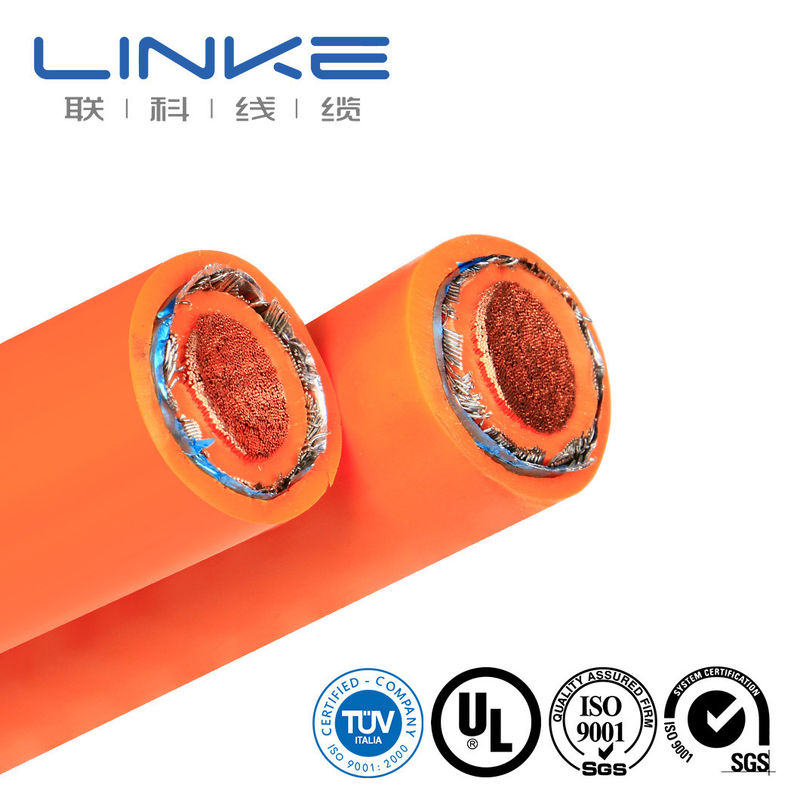

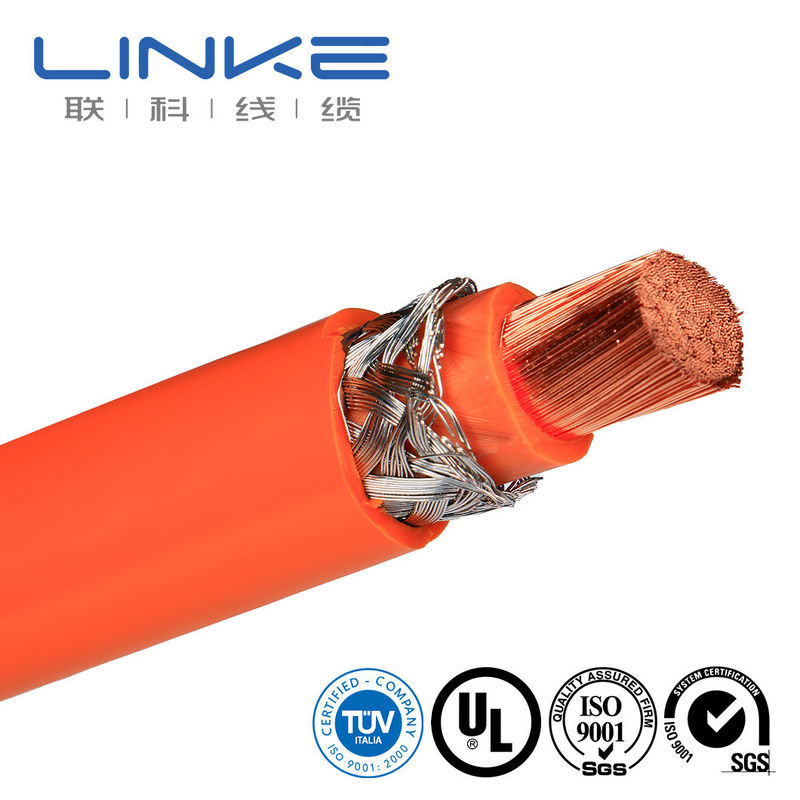

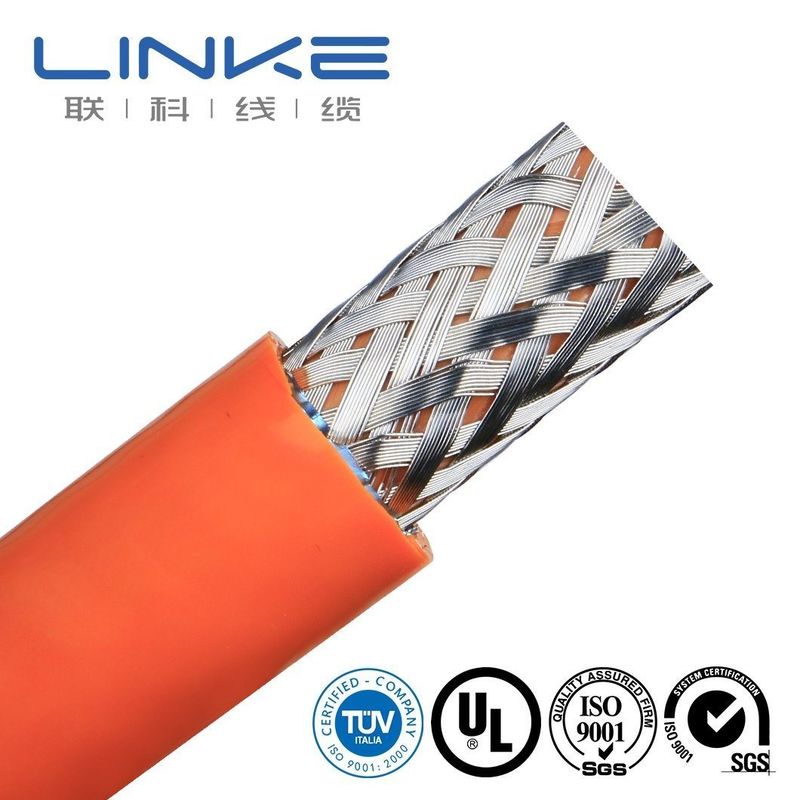

120mm2 Silicone Shielded EV Cable Wiring Harness with 1200A Current Rating

120mm2 EV Cable Wiring Harness

Silicone Shielded EV Cable Wiring Harness

Package Size EV Cable Wiring Harness

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Silicone Cable Xlpe Cable

AMP:

1200A

Color:

Customized

Customized:

Non-Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Type 1:

Silicone Rubber Cable

Type 2:

XLPE Cable

Size:

120mm2

Transport Package:

Roll

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

800.00cm * 800.00cm * 580.00cm

Package Gross Weight:

25.000kg

Lead Time:

7-15days

After-sales Service:

1year

Warranty:

1year

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Core:

Multiple

Highlight:

120mm2 EV Cable Wiring Harness

Silicone Shielded EV Cable Wiring Harness

Package Size EV Cable Wiring Harness

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

25mm2 High Current Battery Cables Silicone for Customized Request and EV Charging

Get Best Price

Video

300V 150°C Tinned Copper Silicone Rubber Wire for Electrical Appliances and Vehicle Wiring

Get Best Price

Video

High Temperature Resistant Silicone Insulated Cable with Low Temperature Resistance and Customization Options

Get Best Price

Video

High-Temperature Resistant Silicone Rubber Cable with Tinned Copper Conductor and Customizable Insulation for Industrial Control

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

120mm² Voltage EV Cable Wiring Harness with Silicone Shielded Cable

Product Overview

High-quality booster jumper cables designed for automotive car jumping and power charging applications. These EV cables feature superior construction with silicone insulation for optimal performance and durability.

Cable Specifications

Model	Conductor (mm²)	Structure	Conductor DIA (mm)	Material	Insulation Thickness (mm)	Insulation Material	Insulation OD (mm)	20ºC Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	Copper	0.6	Silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	Copper	0.7	Silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	Copper	0.8	Silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	Copper	0.8	Silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	Copper	1.00	Silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	Copper	1.10	Silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	Copper	1.3	Silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	Copper	1.3	Silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	Copper	1.50	Silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	Copper	1.50	Silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	Copper	1.50	Silicone	17.50±0.50	≤0.196

Quality Certifications

UL Standards: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
Additional UL Certifications: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485 Quality Management Systems
TS16949 Automotive Quality Standard
CNR Appliance Wiring Material Certification
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
