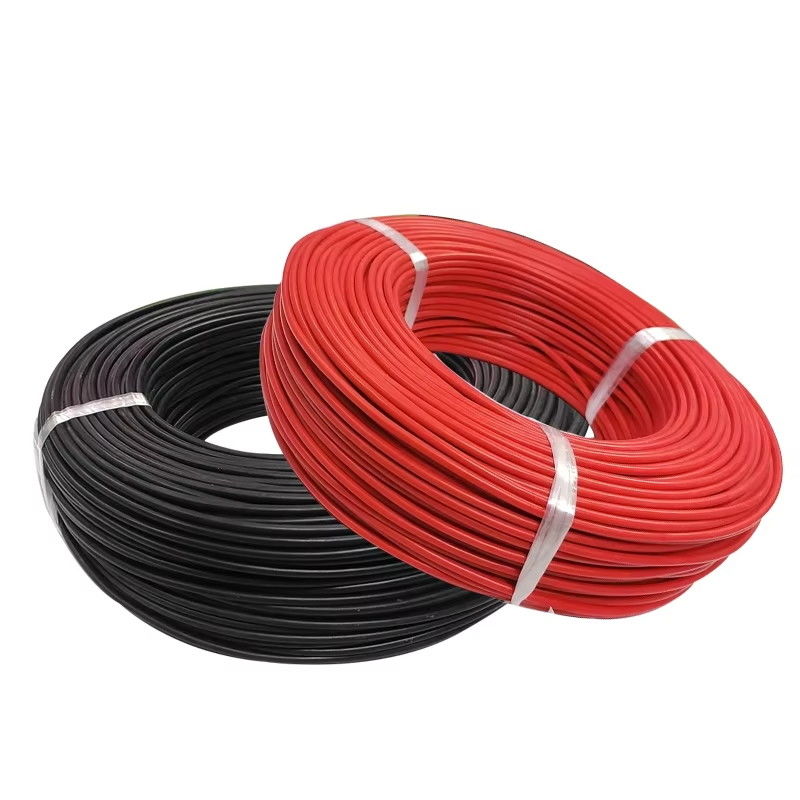

Tinned Copper High Temperature Silicone Wire with Multiple AWG Sizes for Industrial Applications

Stranded Conductor Silicone Rubber Cable

Flame Retardant Silicone Rubber Cable

UL758 Silicone Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Silicone Rubber Cable

Conductor Material:

Copper

Sheath Material:

PVC

Insulation Material:

Silicone Rubber

Material Shape:

Round Wire

Range Of Application:

Flame Retardant

Name:

Silicone Rubber Cable

Conductor:

Tinned Copper

Filler:

Optional

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground, Construction, Power Plant, Underground, Industrial

Samples:

US$ 1000/Meter 1 Meter(Min.Order) |

Customization:

Available

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Package:

By Roll

Lead Time:

7-15days

Highlight:

Stranded Conductor Silicone Rubber Cable

Flame Retardant Silicone Rubber Cable

UL758 Silicone Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Quotation by specification

Packaging Details

According to requirement

Delivery Time

7-15day

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

120mm2 Voltage EV Cable Wiring Harness with Silicone Shielded Cable and Package Size

Get Best Price

Video

25mm2 High Current Battery Cables Silicone for Customized Request and EV Charging

Get Best Price

Video

Waterproof XLPE Insulated 1200A EV Charger Cable for High Voltage Electric Vehicle Charging

Get Best Price

Video

Customized High Temperature 35mm2 Silicone Cable for Accurate Thermocouple Extension in EV Charger Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

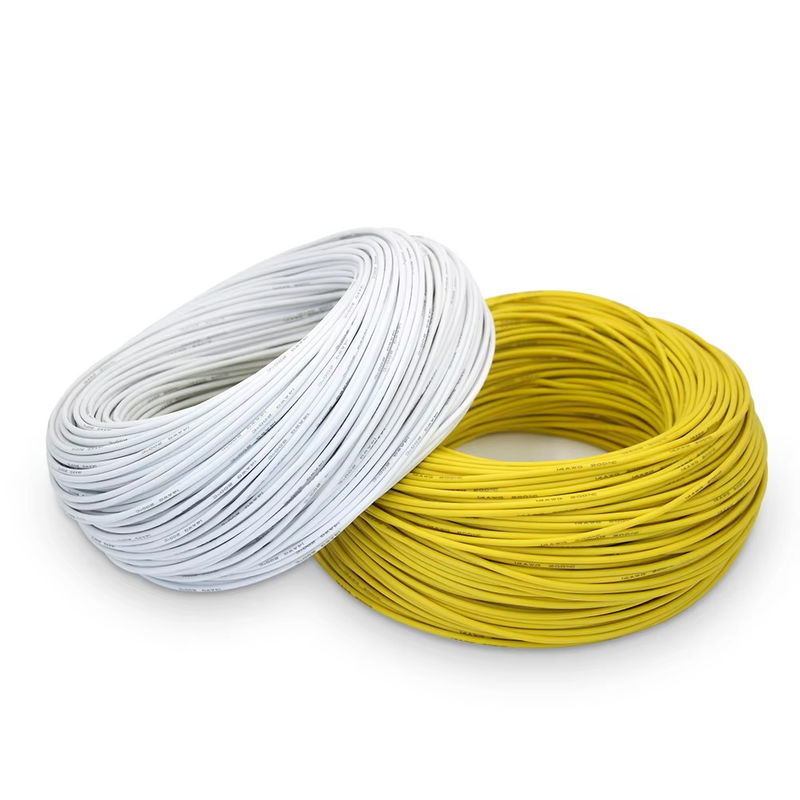

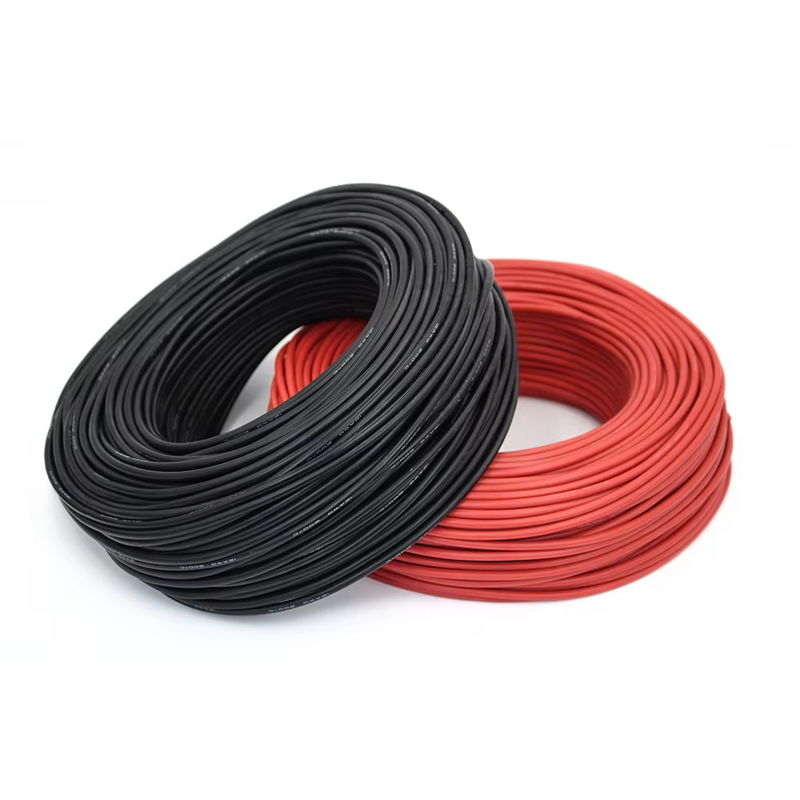

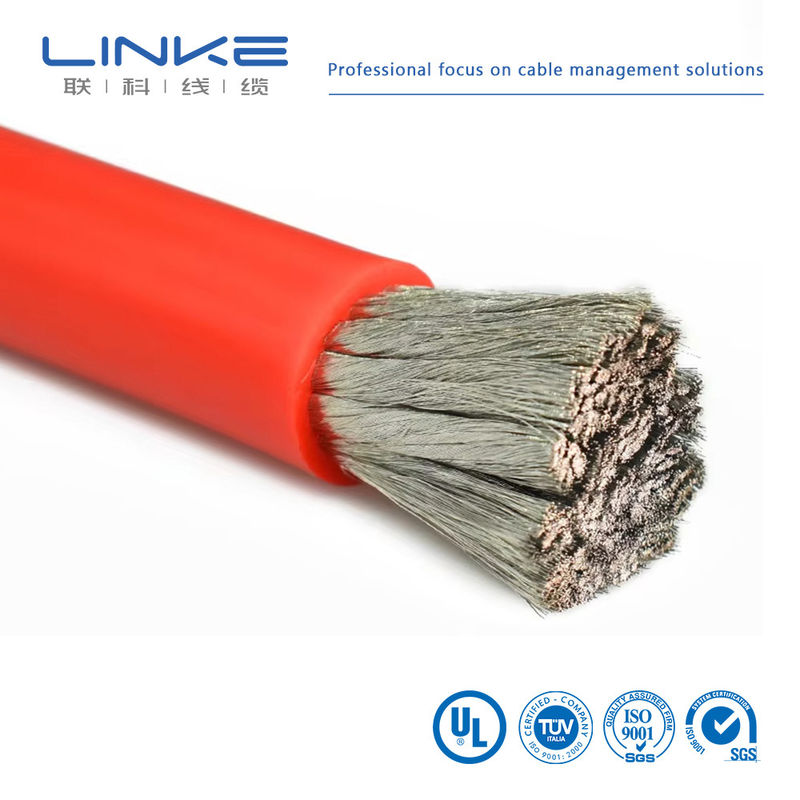

Silicone Wire 16 14 13 12 11 10 8 7 9 6 Tinned Copper 4/3/2AWG

Product Specifications

Customized: Yes
Type: Isolated
Conductor Type: Extra Soft High Temperature Silicone Wire
Brand Name: Linke Cable
Conductor Material: Tinned Copper
Insulating Material: Silicone
Source: CN
Qualification: UL, CCC
Temperature Resistance: -60℃ to 200℃
Available Specifications: 28, 26, 24, 22, 20, 18, 16, 14, 12, 10, 8, 6 AWG
Materials: Silicone, Tinned Copper
Scope of Application: Lithium Battery, Model Aircraft, DIY Projects

Model Aircraft Silicone Wire Specifications

Specification	Conductor Structure	Copper Wire Diameter (mm)	Outer Diameter (mm)
30 AWG	11/0.08AS	0.3	1.15
28 AWG	16/0.08AS	0.36	1.2
26 AWG	30/0.08AS	0.5	1.5
24 AWG	40/0.08AS	0.58	1.6
22 AWG	60/0.08AS	0.71	1.7
20 AWG	100/0.08AS	0.92	1.8
18 AWG	150/0.08AS	1.13	2.3
17 AWG	210/0.08AS	1.33	2.7
16 AWG	252/0.08AS	1.46	3
15 AWG	300/0.08AS	1.6	3.2
14 AWG	400/0.08AS	1.84	3.5
13 AWG	500/0.08AS	2.06	4
12 AWG	680/0.08AS	2.4	4.5
11 AWG	750/0.08AS	2.53	5
10 AWG	1050/0.08AS	2.994	5.5
9 AWG	1200/0.08AS	3.2	6
8 AWG	1650/0.08AS	3.75	6.3
7 AWG	2400/0.08AS	4.52	7.2
6 AWG	3200/0.08AS	5.22	8.5
5 AWG	3998/0.08AS	5.84	9.5
4 AWG	500/0.08AS	6.53	11

General Wire Properties

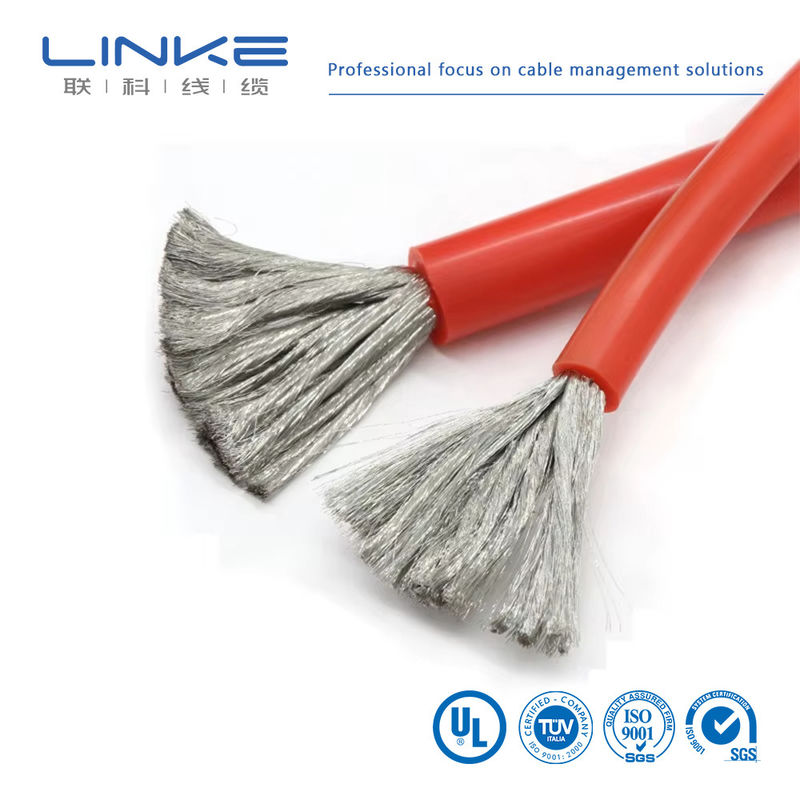

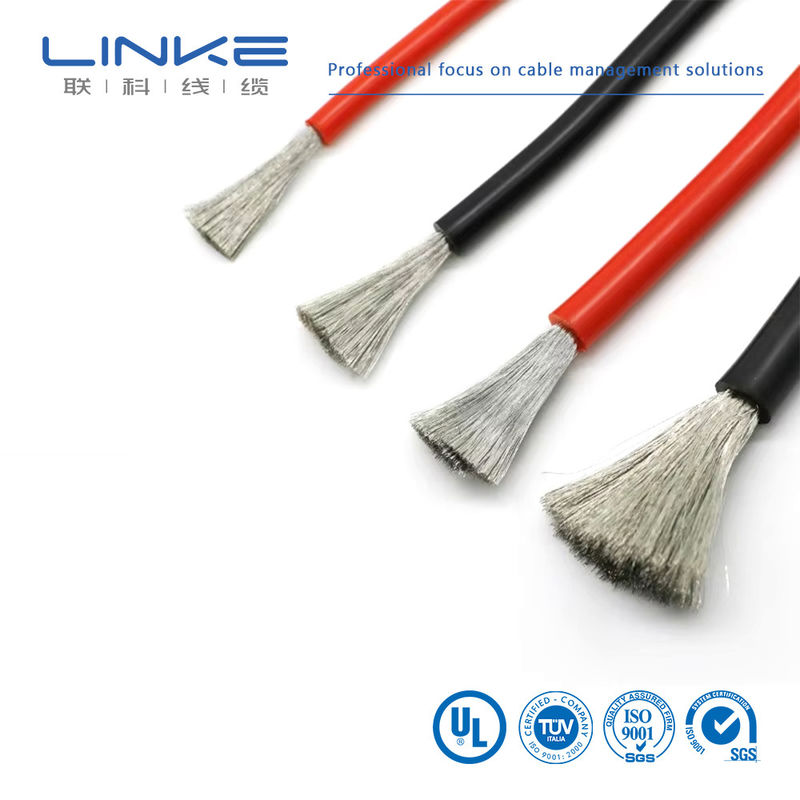

Conductor: Multiple strands of tinned copper (bare copper optional) wire stranded, according to the sixth stranded conductor GB/T3956

Insulation: High and low temperature resistant silicone rubber

Insulation Color: Brown, blue, black, gray, purple, white, orange, red, yellow, green, pink, yellow-green, etc.

Application Standards: Q/IRMV2-2008, UL758

Rated Voltage: 300/500V

Test Voltage: Insulation thickness ≤0.5mm: 2000V; Insulation thickness ≥0.5mm: 2500V

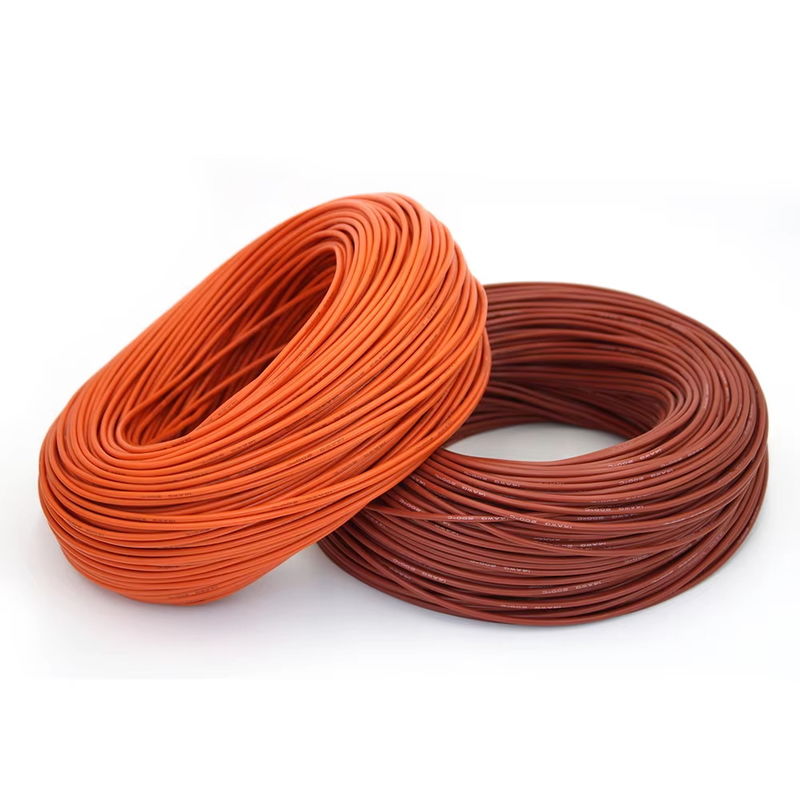

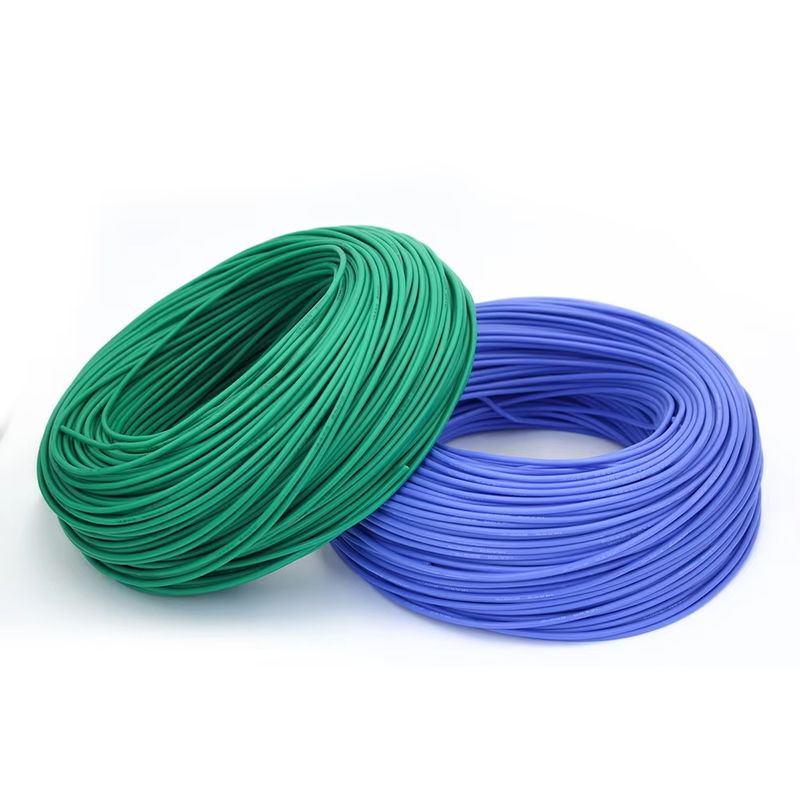

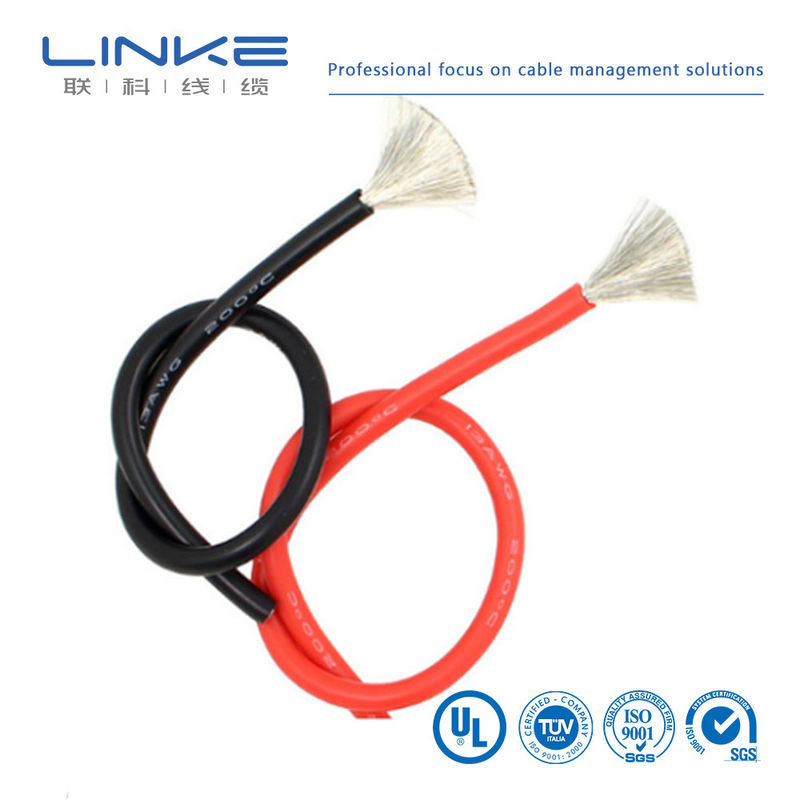

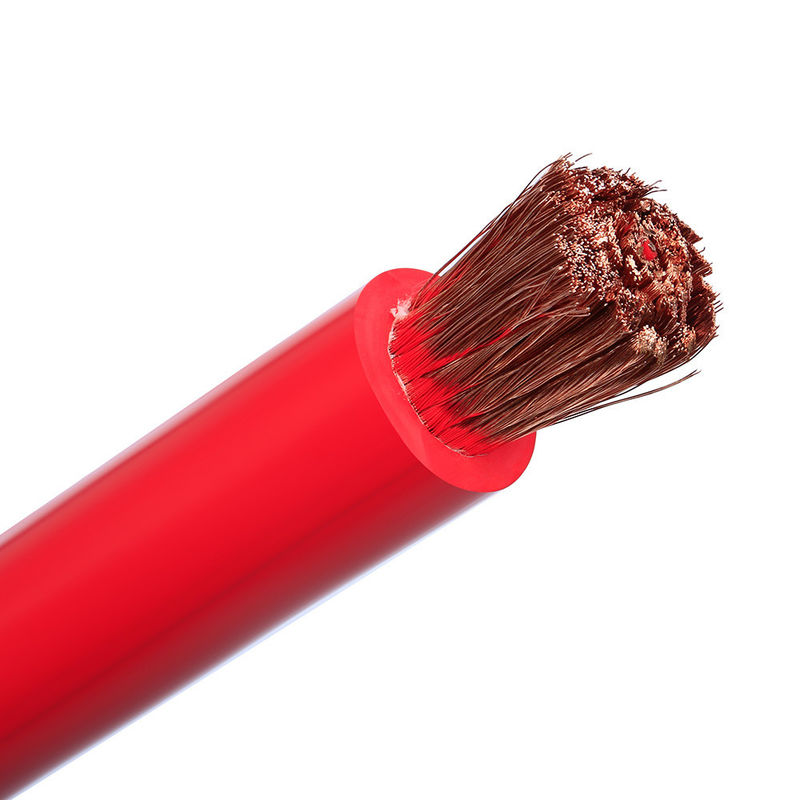

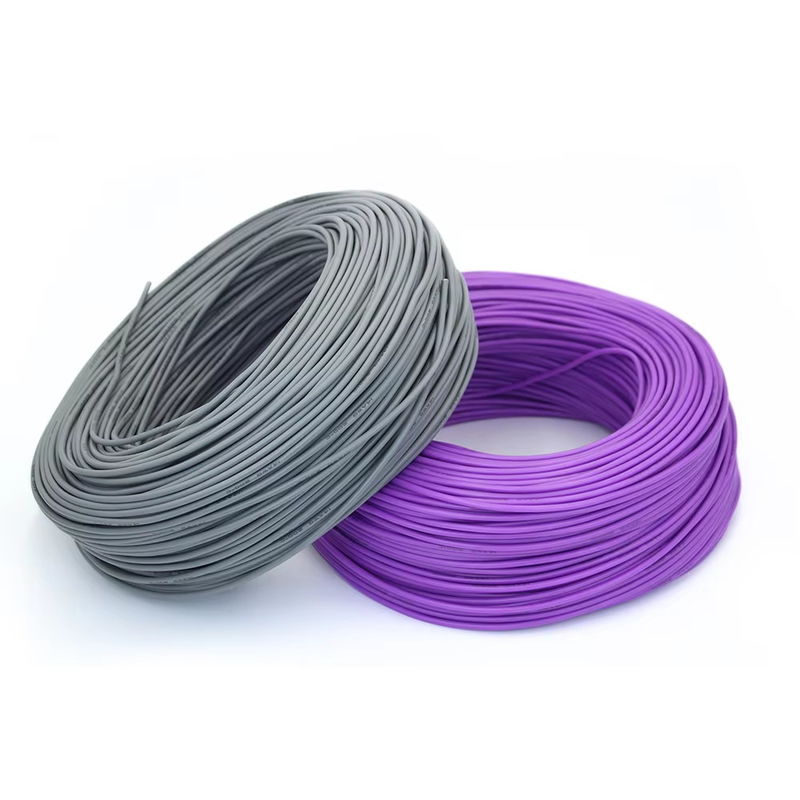

Product Images

Frequently Asked Questions

Are you a manufacturer or trading company? We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality? The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity? Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount? It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production? Yes, we can print your company name, and we even customize the quality card to promote your company.

For More Information, Please feel free to contact us!
