120mm2 Voltage EV Cable Wiring Harness with Silicone Shielded Cable and Package Size

120mm2 Voltage EV Cable Wiring Harness with Silicone Shielded Cable and Package Size

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
Silicone Cable Xlpe Cable
AMP:
1200A
Color:
Customized
Customized:
Non-Customized
Plug Type:
IEC 62196-2 (Type 2), SAE J1772 Type 1
Type 1:
Silicone Rubber Cable
Type 2:
XLPE Cable
Size:
120mm2
Transport Package:
Roll
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
800.00cm * 800.00cm * 580.00cm
Package Gross Weight:
25.000kg
Lead Time:
5 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
After-sales Service:
1year
Warranty:
1year
Certification:
RoHS, TUV, CE, ISO
Samples:
US$ 1000/PCS 1 PCS(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

120mm2 Voltage EV Cable Wiring Harness with Silicone Shielded Cable and Package Size

Detailed Photos

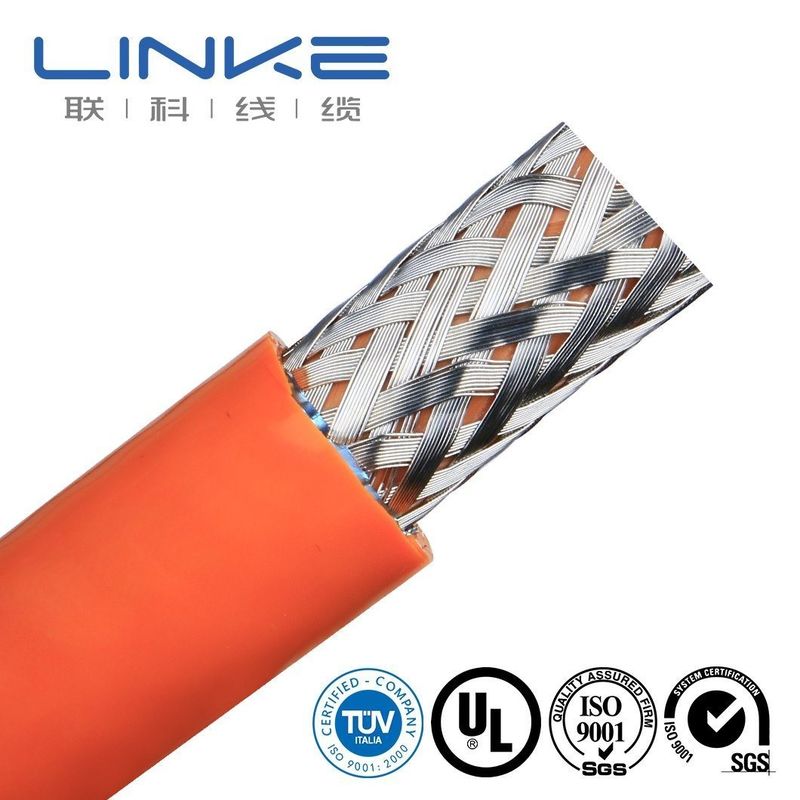

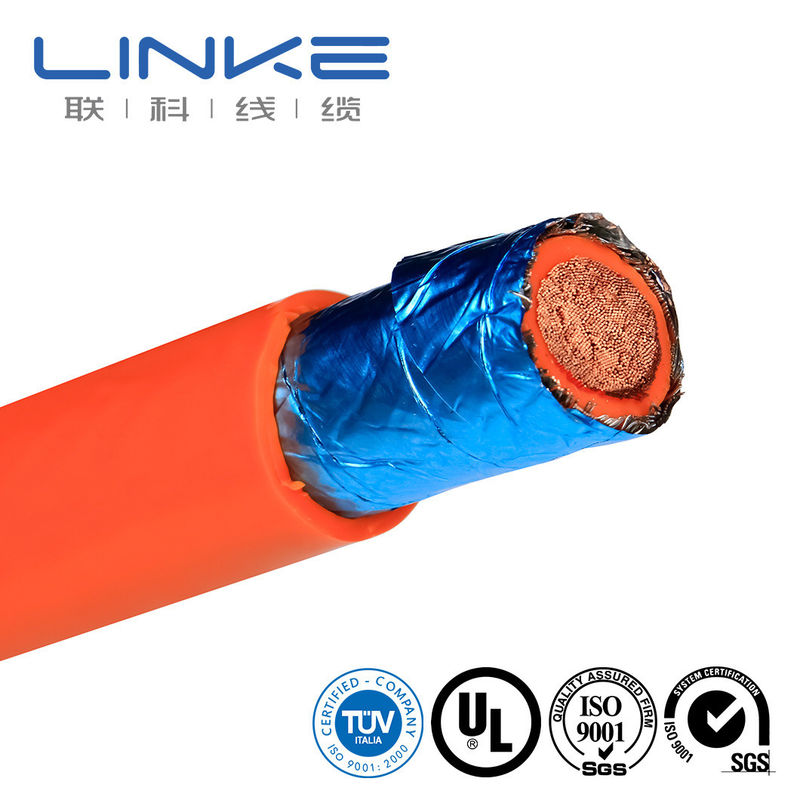

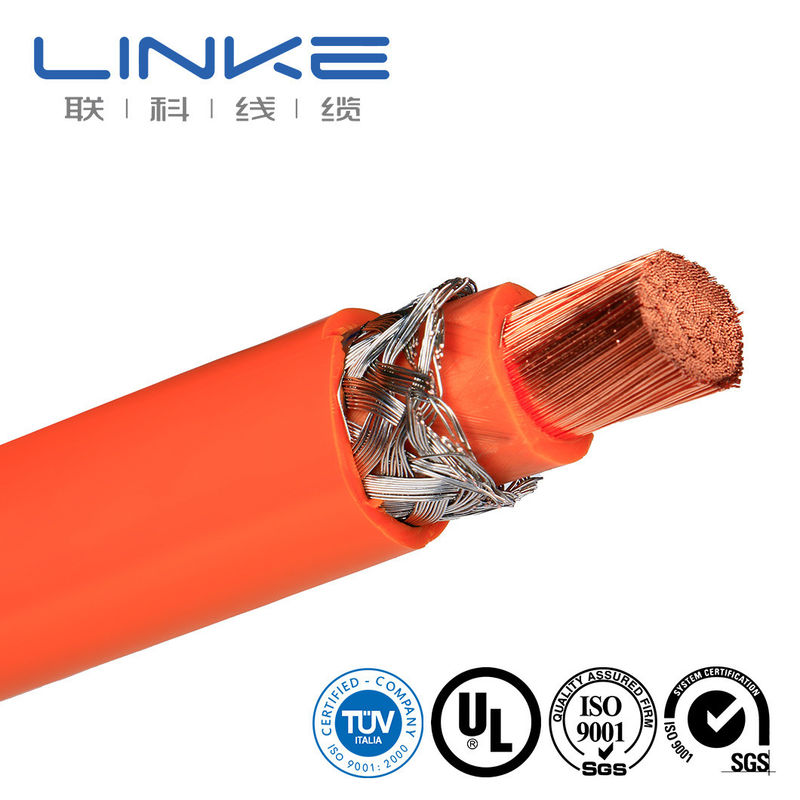

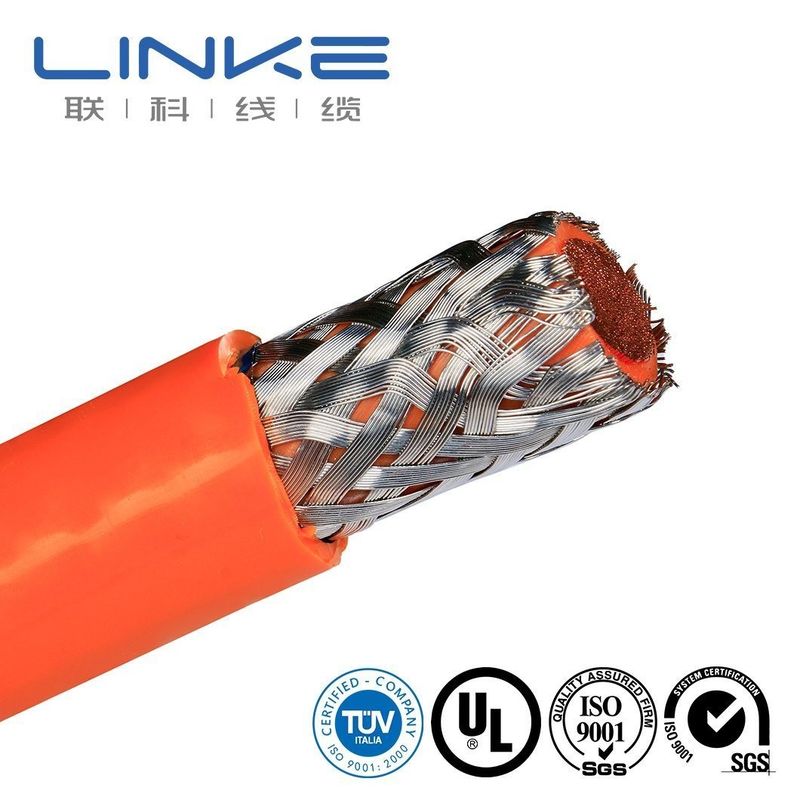

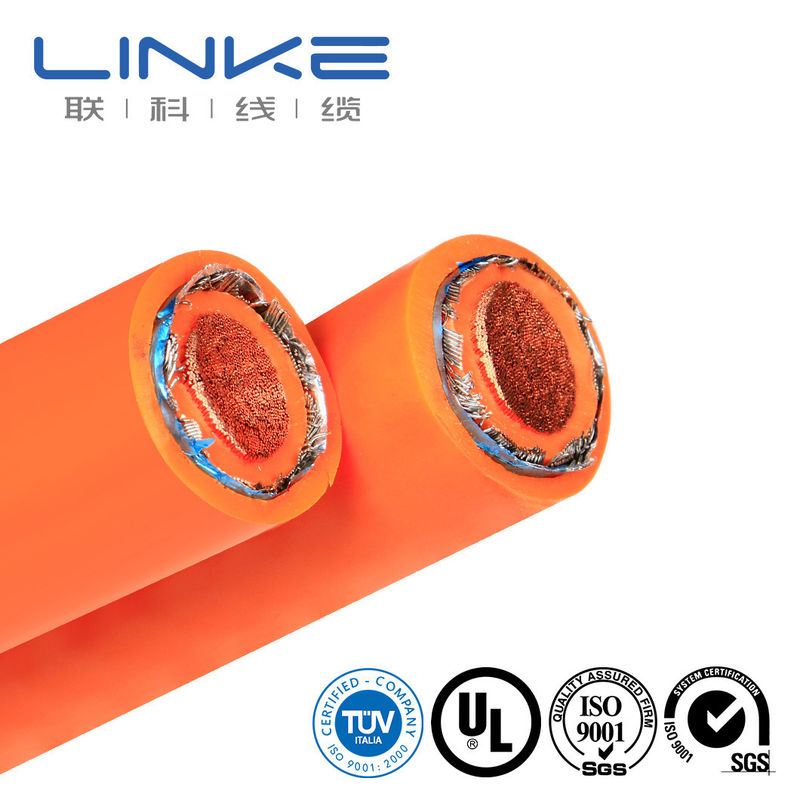

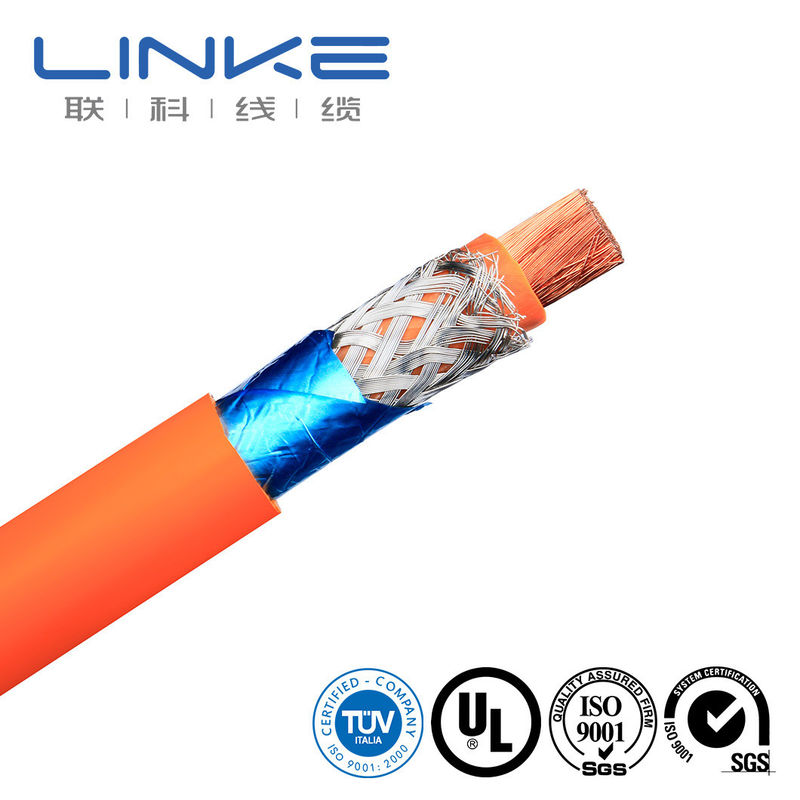

New Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with Silicone
New Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with Silicone



BoosterJumper cables for auto car jumping cables power charging cable

Structure
NO. conductor                 mm2 insulution 20ºC conductor resistance             (Ω/KM)
conductor                 mm2 Structure(N/mm)  Conductor DIA(mm) Conductor  Thickness (mm) MATERIAL insulution OD          (mm)
EV-YJ 1.5 48/0.20 1.60  copper  0.6 silicone 2.90±0.15 ≤12.7
EV-YJ 2.5 80/0.20 2.06  copper  0.7 silicone 3.50±0.15 ≤7.60
EV-YJ 128/0.20 2.62  copper  0.8 silicone 4.30±0.15 ≤4.71
EV-YJ 196/0.20 3.50  copper  0.8 silicone 5.10±0.20 ≤3.14
EV-YJ 10  322/0.20 4.50  copper  1.00  silicone 6.70±0.20 ≤1.82
EV-YJ 16  513/0.20 5.70  copper  1.10  silicone 8.00±0.30 ≤1.16
EV-YJ 25  798/0.20 7.10  copper  1.3 silicone 9.80±0.30 ≤0.743
EV-YJ 35  1121/0.20 8.50  copper  1.3 silicone 11.40±0.30 ≤0.527
EV-YJ 50  1596/0.20 10.10  copper  1.50  silicone 13.50±0.30 ≤0.368
EV-YJ 70  2242/0.20 12.10  copper  1.50  silicone 15.50±0.40 ≤0.259
EV-YJ 95  3034/0.20 14.10  copper  1.50  silicone 17.50±0.50 ≤0.196
New Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with Silicone
Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.
New Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with Silicone

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,

UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
New Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with SiliconeNew Energy Vehicle High-Voltage EV Cable Wiring Harness Shielded Cable with Silicone

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
