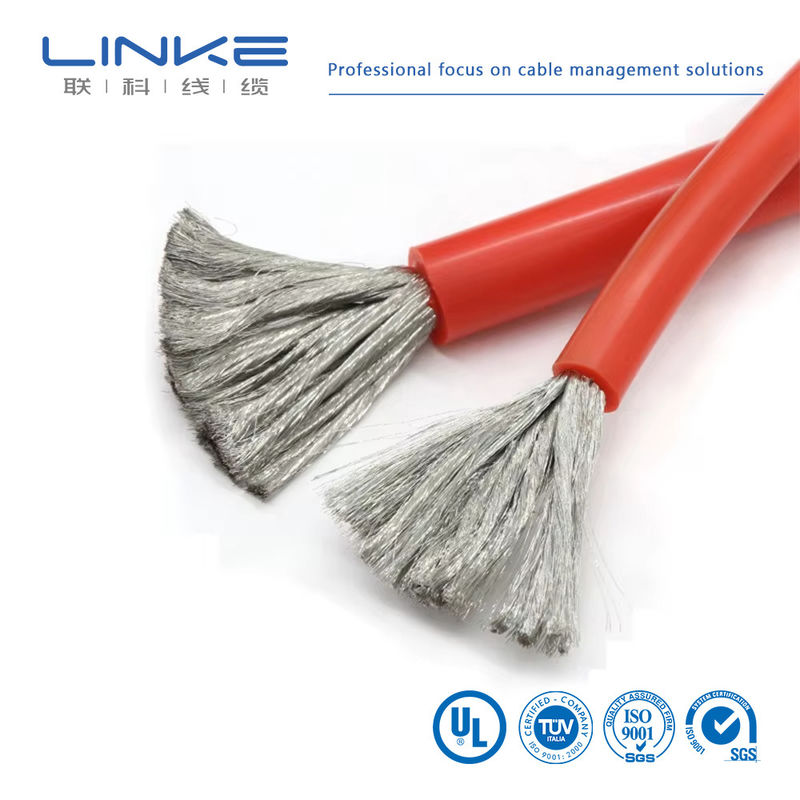

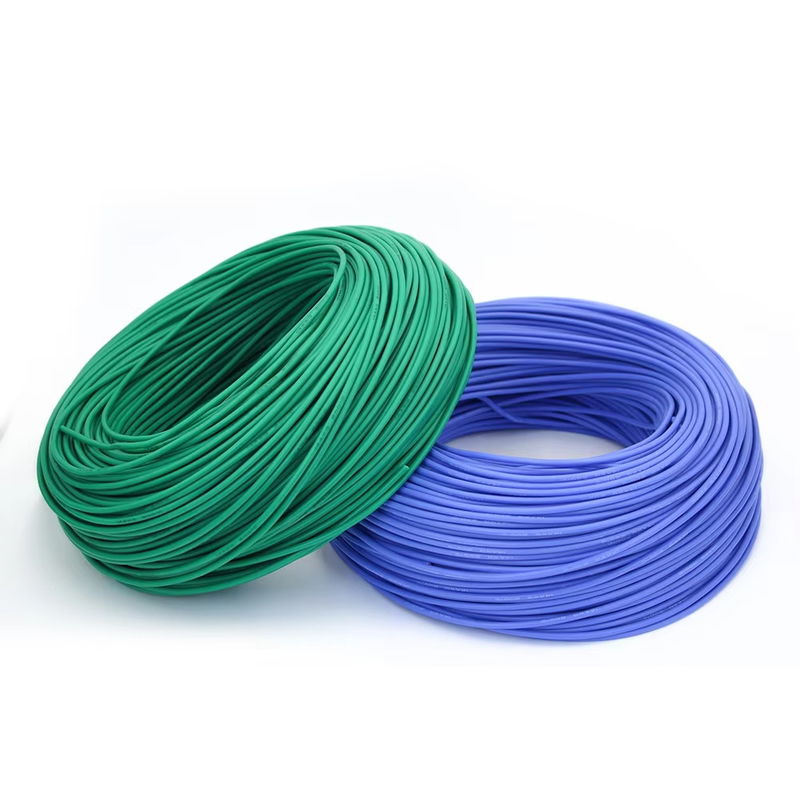

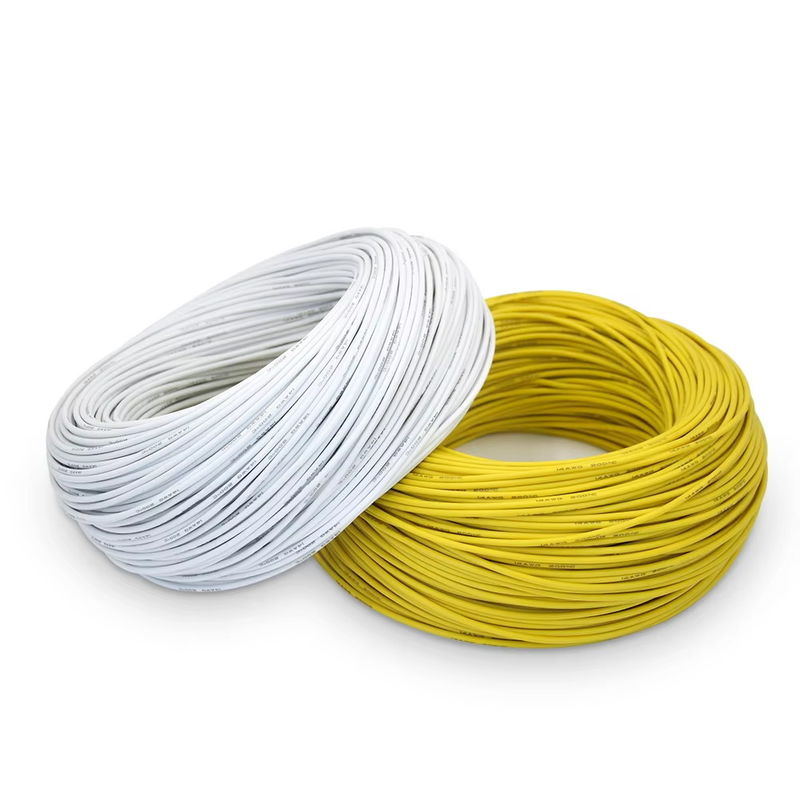

UL3512 Tinned Copper High Temperature Silicone Wire with Multiple AWG Sizes for Industrial Applications

Stranded Conductor Silicone Rubber Cable

Flame Retardant Silicone Rubber Cable

UL758 Silicone Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Range Of Application:

Flame Retardant

Filler:

Optional

Type:

Insulated

Conductor Type:

Twisted Wire

Customization:

Available

Core:

Multiple

Package:

By Roll

Highlight:

Stranded Conductor Silicone Rubber Cable

Flame Retardant Silicone Rubber Cable

UL758 Silicone Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Quotation by specification

Packaging Details

According to requirement

Delivery Time

7-15day

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

High Temperature Resistant Silicone Insulated Cable with Low Temperature Resistance and Customization Options

Get Best Price

Video

High-Temperature Resistant Silicone Rubber Cable with Tinned Copper Conductor and Customizable Insulation for Industrial Control

Get Best Price

Video

Flexible 18 AWG High Voltage 3kV Silicone Cable with Tinned Copper Wire for Industrial Applications

Get Best Price

Video

Custom Signal Wiring Harness with Flexible Bare Annealed Copper Wire and Wide Temperature Range for Automotive Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Product Specifications

Customized: Yes
Type: Isolated
Conductor Type: Extra Soft High Temperature Silicone Wire
Brand Name: Linke Cable
Conductor Material: Tinned Copper
Insulating Material: Silicone
Source: CN
Qualification: UL, CCC
Temperature Resistance: -60℃ to 200℃
Available Specifications: 28, 26, 24, 22, 20, 18, 16, 14, 12, 10, 8, 6 AWG
Materials: Silicone, Tinned Copper
Scope of Application: Lithium Battery, Model Aircraft, DIY Projects

Model Aircraft Silicone Wire Specifications

Specification	Conductor Structure	Copper Wire Diameter (mm)	Outer Diameter (mm)
30 AWG	11/0.08AS	0.3	1.15
28 AWG	16/0.08AS	0.36	1.2
26 AWG	30/0.08AS	0.5	1.5
24 AWG	40/0.08AS	0.58	1.6
22 AWG	60/0.08AS	0.71	1.7
20 AWG	100/0.08AS	0.92	1.8
18 AWG	150/0.08AS	1.13	2.3
17 AWG	210/0.08AS	1.33	2.7
16 AWG	252/0.08AS	1.46	3
15 AWG	300/0.08AS	1.6	3.2
14 AWG	400/0.08AS	1.84	3.5
13 AWG	500/0.08AS	2.06	4
12 AWG	680/0.08AS	2.4	4.5
11 AWG	750/0.08AS	2.53	5
10 AWG	1050/0.08AS	2.994	5.5
9 AWG	1200/0.08AS	3.2	6
8 AWG	1650/0.08AS	3.75	6.3
7 AWG	2400/0.08AS	4.52	7.2
6 AWG	3200/0.08AS	5.22	8.5
5 AWG	3998/0.08AS	5.84	9.5
4 AWG	500/0.08AS	6.53	11

General Wire Properties

Conductor: Multiple strands of tinned copper (bare copper optional) wire stranded, according to the sixth stranded conductor GB/T3956

Insulation: High and low temperature resistant silicone rubber

Insulation Color: Brown, blue, black, gray, purple, white, orange, red, yellow, green, pink, yellow-green, etc.

Application Standards: Q/IRMV2-2008, UL758

Rated Voltage: 300/500V

Test Voltage: Insulation thickness ≤0.5mm: 2000V; Insulation thickness ≥0.5mm: 2500V

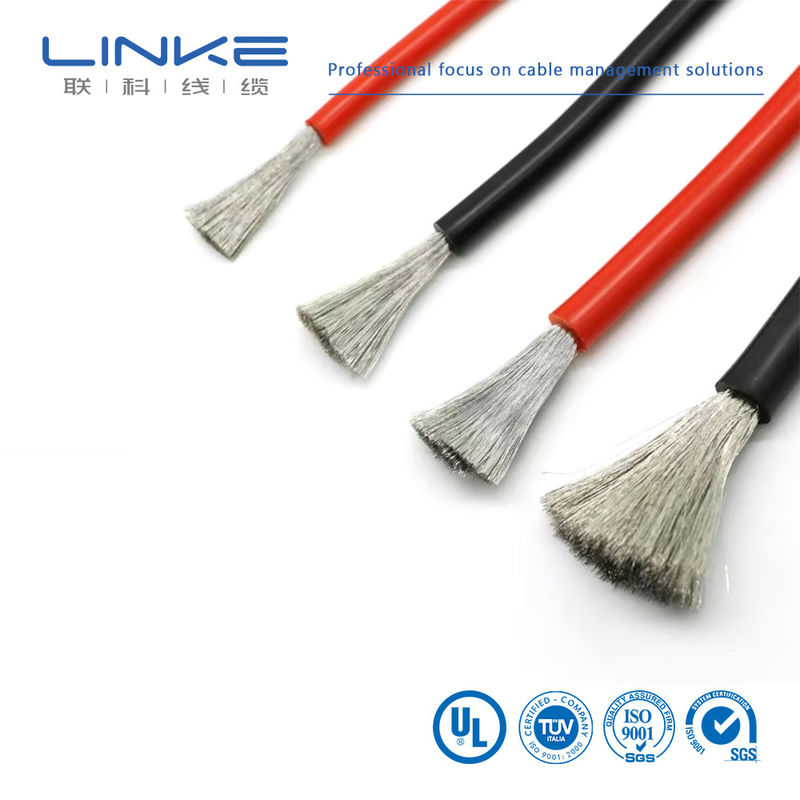

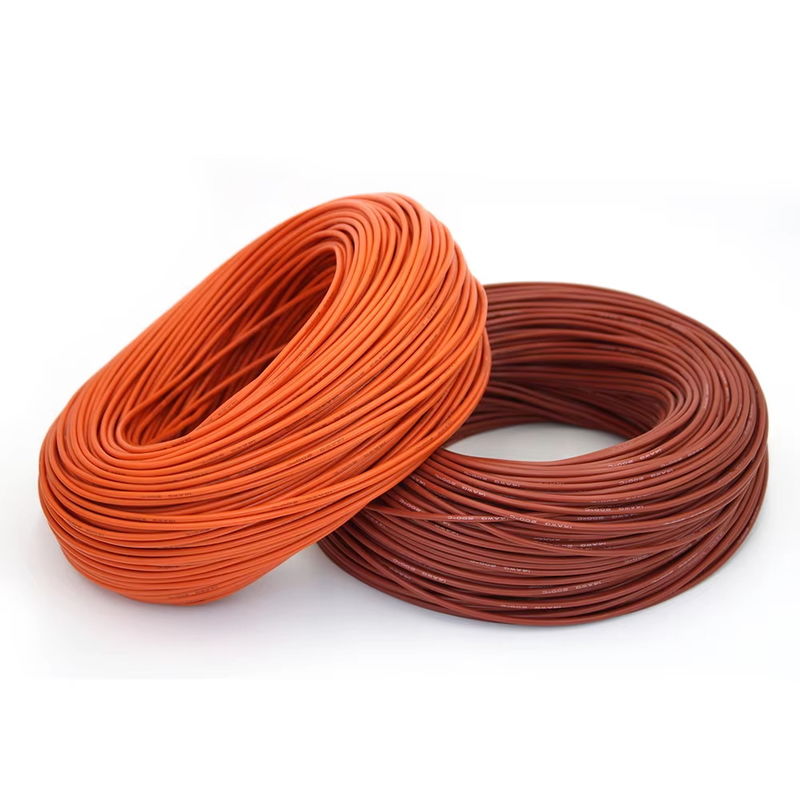

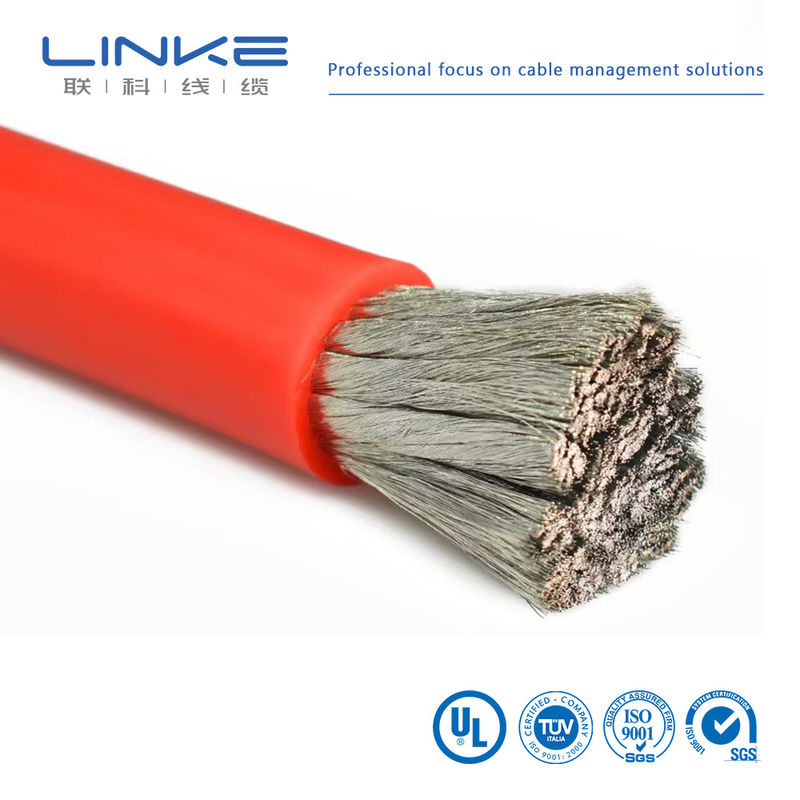

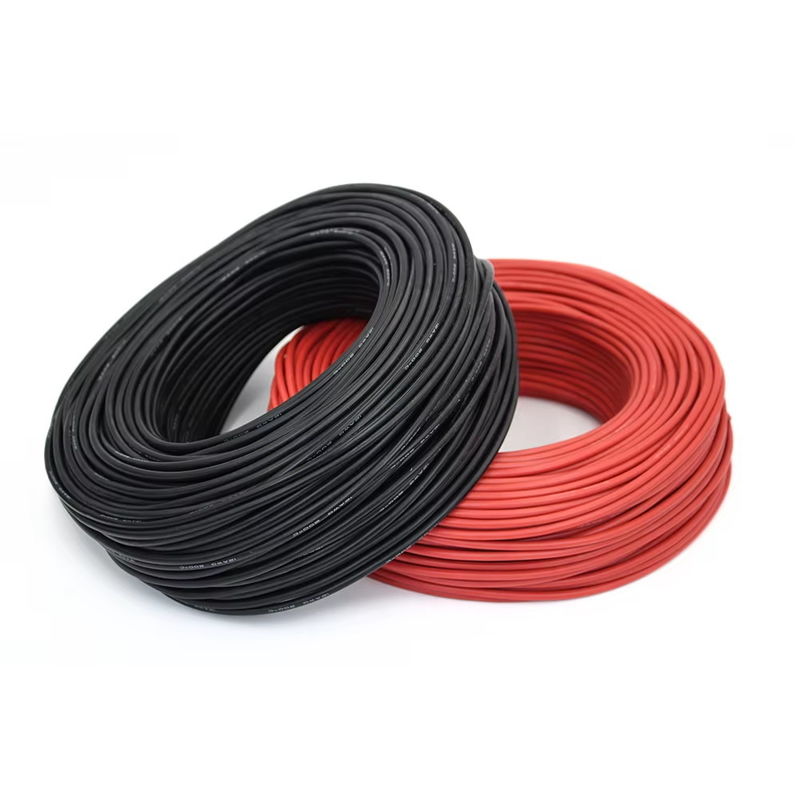

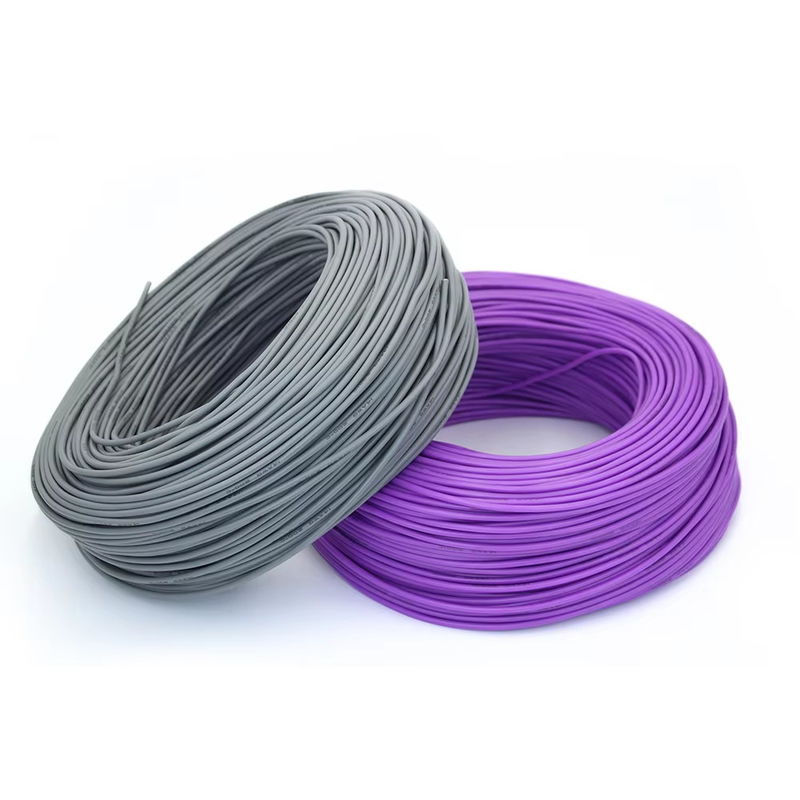

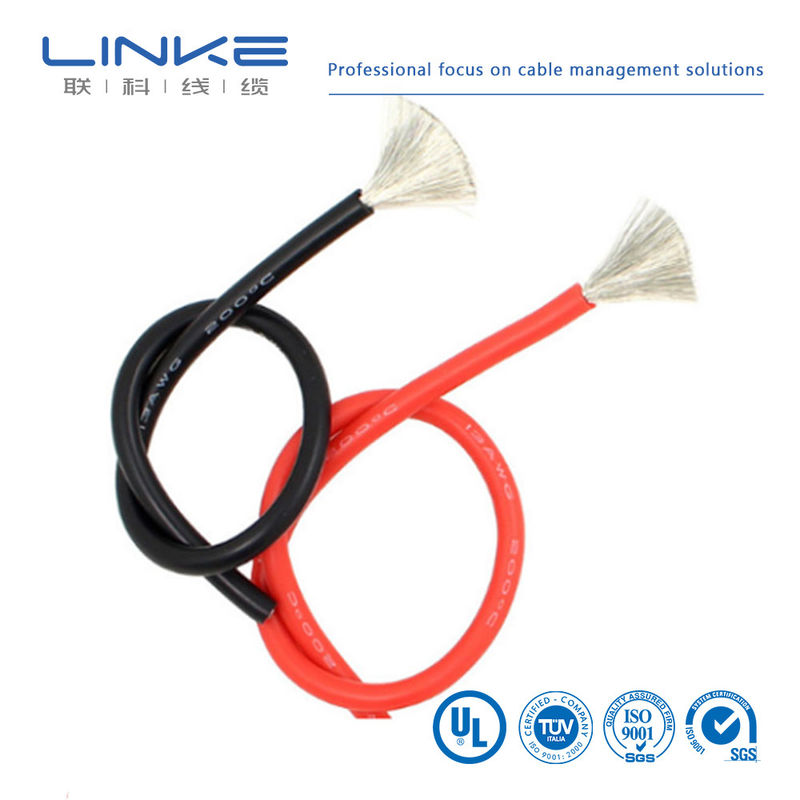

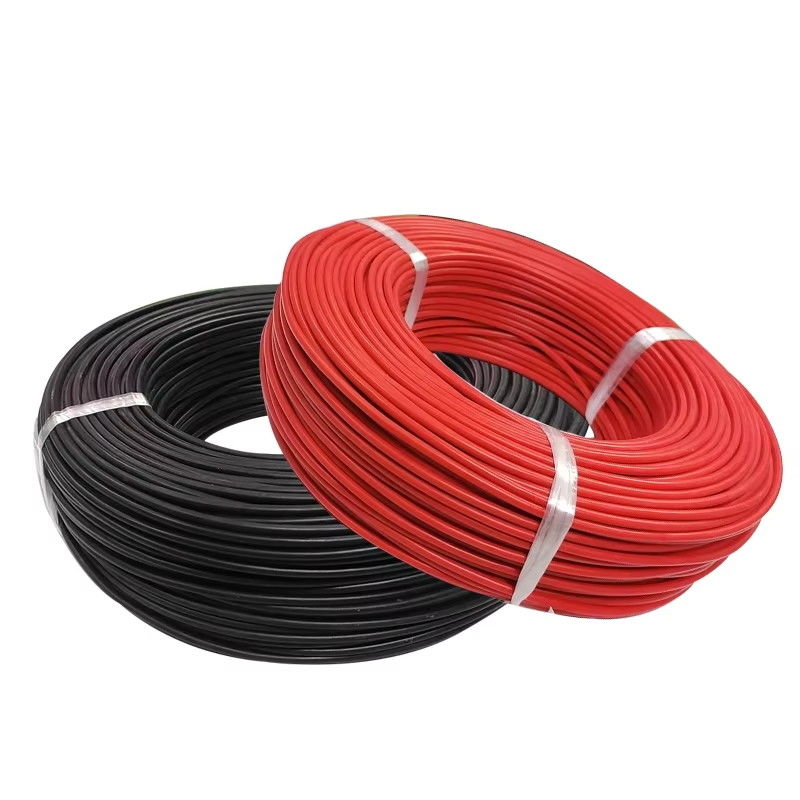

Product Images

Frequently Asked Questions

Are you a manufacturer or trading company? We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality? The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity? Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount? It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production? Yes, we can print your company name, and we even customize the quality card to promote your company.

For More Information, Please feel free to contact us!
