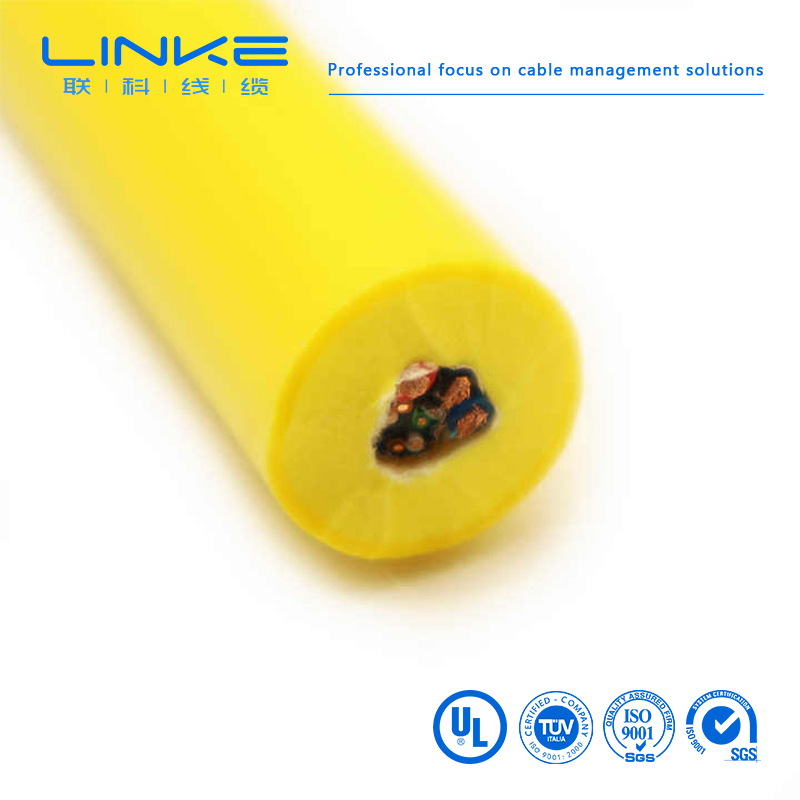

Floating Cable High Quality ROV Buoyancy Underwater Wire Waterproofing Floating Electrical Power Cable
Product Specifications
| Attribute | Value |
| Model NO. | LK-496 |
| Connection Structure | FC-LC |
| Material Shape | Round Wire |
| Allowed Lateral Pressure | >1000(N/100mm) |
| Allowed Tensile Strength | >10000N |
| Core | Multiple |
| Brand | Linke |
| Sheath Material | PUR Foam |
| Name | Floating Cable |
| Copper | Tinned Copper |
| Jacket | PUR Foam |
| Type1 | Single-Mode Fiber |
| Transport Package | Roll |
| Specification | 50*50*45CM |
| Trademark | LINKE |
| Origin | China |
| HS Code | 94054090 |
| Production Capacity | 100000000 |
Product Features
- Cable conductor: Multi strand fine annealed oxygen free copper wire precision twisted conductor, compliant with DIN VDE 0295 Class 5 standard and IEC60228 Class 5 standard
- Cable insulation: Inner semiconducting layer + characteristic EPR + outer semiconducting layer (peelable)
- Core identification: Colored core wire or black wire body with white numerical coding, 3-core or above with yellow green grounding wire (yellow green optional)
- Cable specifications: 3#120+3*25
- Cable formation method: 3+3 structure, optimal pitch twisted into cable
- Grounding core: Semi conductive material
- Control chip: TPEE thermoplastic polyester elastomer
- Fiber optic core: Single mode E9/125, multi-mode 62.5/125 available, standard configuration includes 6 sets of optical fibers (12 or 18 sets available for selection)
- Inner sheath: Thermoplastic polyurethane elastomer mixture
- Anti torsion layer: Aramid yarn weaving
- Cable sheath: Thermoplastic polyurethane elastomer mixture
- Sheath color: Black RAL9005, yellow RAL1016, other colors can be customized according to the RAL color chart
- Anti torsion layer: Special fiber woven mesh
- Rated voltage: 6000/10000V
- Test voltage: 21KV voltage test for 5 minutes without breakdown
- Laying itinerary: 80~150m
- Acceleration: 50m/s
- Moving speed: 2m/s
- Usage temperature: -40~+105°C
- Bending radius: Fixed installation: 5 * cable diameter; Mobile installation: 6 * cable diameter
- Oil resistance characteristics: Meets the requirements of IEC60811-2-1 standard
- Flame retardant properties: Meets the requirements of IEC60332-1 standard
- Reference standards: VDE 0250P814 MT818
Company Profile
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables & custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
Certifications
We past UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR- Appliance Wiring Material, Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2.
Single-conductor, thermoplastic insulation
1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369
1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483
1185 | 1332 | 1577 | 1672 | 10012 | 10269
Multiple-conductor, thermoplastic insulation
2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963
2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198
2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664
Single-conductor, thermoset insulation
3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005
3123 | 3212 | 3321 | 3398 | 3577 | 3702
3132 | 3266 | 3331 | 3512 | 3644 | 3817
3135 | 3271 | 3385 | 3529 | 3674 | 3886
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
