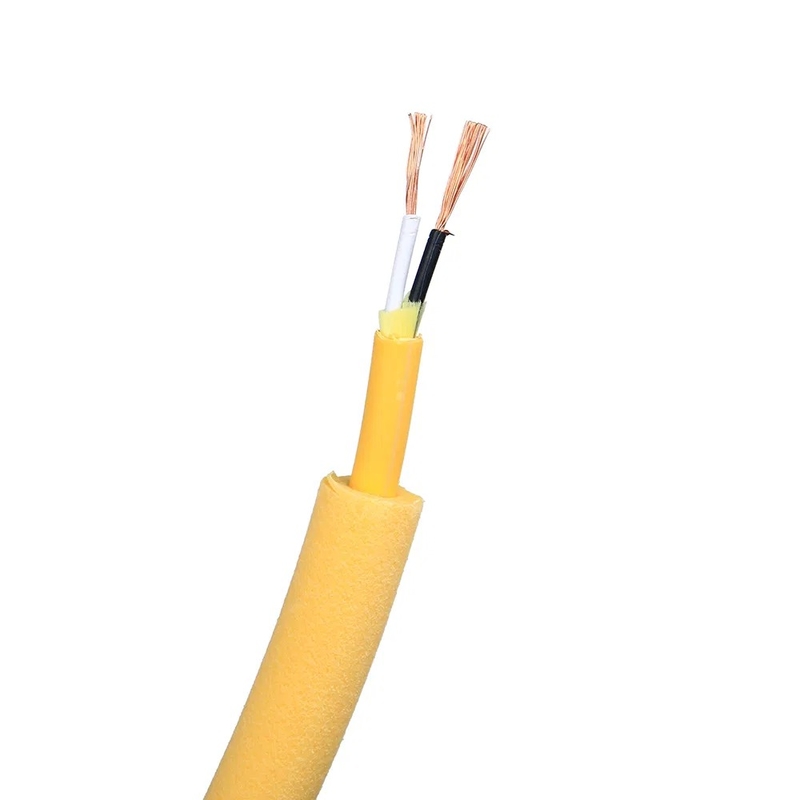

OEM Waterproof Underwater Robot Floating Cable
Swimming Pool Float Cable Assembly with TPU Inner Sheath
Product Specifications
| Attribute |
Value |
| Model NO. |
LK-C79 |
| Current |
DC & AC |
| Insulation Material |
Silicone |
| Sheath Material |
TPE |
| Material Shape |
Round Wire |
| Wire Core Material |
Bare Copper Wire |
| Model |
KVVP |
| Brand |
Linke |
| Plug Type |
IEC 62196-2 (Type 2), SAE J1772 Type 1 |
| Name |
Rov Floating Cable |
| Jacket |
TPE |
| Sheath |
TPE |
| Transport Package |
Roll |
| Specification |
50*50*40 |
| Trademark |
LINKE |
| Origin |
China |
| HS Code |
94054090 |
| Production Capacity |
100000000 |
Technical Specifications
Electrical Characteristics
- Rate voltage: Low Voltage
- Conductor: Pure Copper, Tinned Copper
- Insulation: FPE, PE, or HT PVC 105ºC
- Outer sheath: FEP, Foam TPE Inner Jacket Press extruded TPE
- Color options: Yellow, Blue, Orange
Key Features
- Special flexible sheath material (customer-selectable colors) with bending life exceeding 6 million cycles
- Exceptional flexibility, wear resistance, and durability against oil, acid, alkali, and tensile forces
- Superior waterproof and anti-aging properties
- Buoyancy design with specific gravity matching water for surface floating capability
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
Applications
Floating cable relies on foam core extrusion capabilities to achieve precise buoyancy requirements. Ideal for:
- Robotic cleaning systems in swimming pools and aquarium facilities
- Marine applications and submersible environmental pumping systems
- Deep well power supply to submersible pumps
Technical Performance
- Continuous use in deep well applications
- Excellent resistance to moisture, abrasion, grease, and oil
- Superior mechanical and electrical characteristics
- UV-stable with good bendability and abrasion resistance
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading Chinese cable manufacturer specializing in R&D, production, and marketing of high-quality cables for over 10 years. We provide custom cable solutions worldwide, with expertise in:
- EV charging cables
- Medical cables
- Silicone and spring cables
- Braided and towlobe cables
- UL wires and automotive cables
Certifications
- UL standards: 1007, 1185, 1672, 10070, 10483, 1015, 1569, 10012, 10269
- Additional UL standards: 2095, 2129, 2468, 2586, 2725, 20233, 20280, etc.
- ISO9001 and ISO13485 certified
- TS16949 certified
- CNR-Appliance Wiring Material certified
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer with complete control over production from start to finish. Visitors are welcome - we provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for new clients, who only need to cover courier costs.
What's your Minimum Order Quantity?
Standard MOQ is 100m. Due to weight considerations, we recommend ordering suitable quantities to optimize shipping costs, with sea transport being the most economical option.
Can I get a discount?
Discounts are available based on order quantity and may include freight considerations. Please contact us for specific pricing.
Does your company accept OEM production?
Yes, we offer OEM services including custom branding on cables and quality cards to promote your company.
